haproxy spoa bouncer

HI all, I am trying to use haproxy spoa bouncer but the issue I am seeing is that my webiste is behind cloudflare, I've managed to pass the real IPs to both haproxy logs and down the line to nginx but the bouncer is still only seeing cloudflare's IPs. I've tried a few things using ai unfortunately nothing really helped My crowdsec.cfg:

spoe-agent crowdsec-agent
    messages    crowdsec-ip crowdsec-http
    option      var-prefix      crowdsec
    option      set-on-error    error
    timeout     hello           100ms
    timeout     idle            30s
    timeout     processing      500ms
    use-backend crowdsec-spoa
    log         global

## Minimal test - just pass src directly
spoe-message crowdsec-ip
    args src-ip=src
    event on-frontend-http-request

spoe-message crowdsec-http
    args remediation=var(txn.crowdsec.remediation) host=hdr(Host) method=method path=path
    event on-frontend-http-request

spoe-agent crowdsec-agent
    messages    crowdsec-ip crowdsec-http
    option      var-prefix      crowdsec
    option      set-on-error    error
    timeout     hello           100ms
    timeout     idle            30s
    timeout     processing      500ms
    use-backend crowdsec-spoa
    log         global

## Minimal test - just pass src directly
spoe-message crowdsec-ip
    args src-ip=src
    event on-frontend-http-request

spoe-message crowdsec-http
    args remediation=var(txn.crowdsec.remediation) host=hdr(Host) method=method path=path
    event on-frontend-http-request

My haproxy.cfg frontend: ```frontend web_traffic_in mode http bind 10...:443 ssl crt /etc/ssl/ alpn h2,http/1.1 # ACL to identify Cloudflare traffic (needs to be tcp-request compatible) acl from_cf src -f /etc/haproxy/CF_ips.list
# FIRST: Replace source IP with real client IP http-request set-src req.hdr(CF-Connecting-IP) if from_cf
# Also set the header for other components http-request set-header CF-Connecting-IP %[var(sess.real_ip)] # Set source for logging http-request set-src var(sess.real_ip) # CrowdSec SPOE filter filter spoe engine crowdsec config /etc/haproxy/crowdsec.cfg http-request set-header X-CrowdSec-Remediation %[var(txn.crowdsec.remediation)] http-request lua.crowdsec_handle if { var(txn.crowdsec.remediation) -m found } # Add headers option forwardfor http-request add-header X-Forwarded-Proto https if { ssl_fc } # ACLs for routing acl ** hdr(host) -i **
# Use ACLs to route requests use_backend

17 Replies

CrowdSec•2mo ago

Important Information

This post has been marked as resolved. If this is a mistake please press the red button below or type /unresolve

Loz•2mo ago

Yes, we figured having an upstream proxy will cause issue especially since our "out of box" uses on-tcp-request which wont happen at the right layer. So I guess even passing:

spoe-message crowdsec-ip
    args src-ip=hdr(CF-Connecting-IP)
    event on-frontend-http-request

spoe-message crowdsec-ip
    args src-ip=hdr(CF-Connecting-IP)
    event on-frontend-http-request

wont work? and thinking now it might not parse to the correct type

SprattOP•2mo ago

@iiamloz your original response before edited ended up returning this:

time="2025-10-09T12:56:24+01:00" level=debug msg="received header bytes: datalength: 30 | verb: get, | module: hosts | submodule: "
time="2025-10-09T12:56:24+01:00" level=debug msg="data: [webtest.mainlinemenswear.co.uk]"
time="2025-10-09T12:56:24+01:00" level=debug msg="calling command get:hosts with data: [mysite.co.uk] and permissions 0"
time="2025-10-09T12:56:24+01:00" level=debug msg="command get:hosts returned &{Host: Captcha:{Provider: SecretKey: SiteKey: FallbackRemediation: CookieGenerator:{SignCookies:<nil> Secure: HTTPOnly:<nil> Secret: Name: logger:<nil>} Sessions:{sessions:map[] SessionIdleTimeout: SessionMaxTime: SessionGarbageSeconds:0 parsedIdleTimeout:0 parsedMaxTime:0 logger:<nil> mu:{w:{_:{} mu:{state:0 sema:0}} writerSem:0 readerSem:0 readerCount:{_:{} v:0} readerWait:{_:{} v:0}}} logger:<nil> client:<nil> Cancel:<nil>} Ban:{ContactUsURL: logger:<nil>} AppSec:{AlwaysSend:false logger:<nil>} LogLevel:<nil> logger:<nil>}"

time="2025-10-09T12:56:24+01:00" level=debug msg="received header bytes: datalength: 30 | verb: get, | module: hosts | submodule: "
time="2025-10-09T12:56:24+01:00" level=debug msg="data: [webtest.mainlinemenswear.co.uk]"
time="2025-10-09T12:56:24+01:00" level=debug msg="calling command get:hosts with data: [mysite.co.uk] and permissions 0"
time="2025-10-09T12:56:24+01:00" level=debug msg="command get:hosts returned &{Host: Captcha:{Provider: SecretKey: SiteKey: FallbackRemediation: CookieGenerator:{SignCookies:<nil> Secure: HTTPOnly:<nil> Secret: Name: logger:<nil>} Sessions:{sessions:map[] SessionIdleTimeout: SessionMaxTime: SessionGarbageSeconds:0 parsedIdleTimeout:0 parsedMaxTime:0 logger:<nil> mu:{w:{_:{} mu:{state:0 sema:0}} writerSem:0 readerSem:0 readerCount:{_:{} v:0} readerWait:{_:{} v:0}}} logger:<nil> client:<nil> Cancel:<nil>} Ban:{ContactUsURL: logger:<nil>} AppSec:{AlwaysSend:false logger:<nil>} LogLevel:<nil> logger:<nil>}"

the edited reponse crashes haproxy on restart :

2025-10-09T12:57:25.447706+01:00 lb-2 haproxy[449211]: [ALERT]    (449211) : config : parsing [/etc/haproxy/crowdsec.cfg:15] : error detected while parsing an 'event on-frontend-http-request' condition : unknown fetch method 'from_cf' in ACL expression 'from_cf'.

2025-10-09T12:57:25.447706+01:00 lb-2 haproxy[449211]: [ALERT]    (449211) : config : parsing [/etc/haproxy/crowdsec.cfg:15] : error detected while parsing an 'event on-frontend-http-request' condition : unknown fetch method 'from_cf' in ACL expression 'from_cf'.

Loz•2mo ago

ahh okay, didnt know if the ACL you defined was global or not you can remove the if case the "working" logs dont seem to show what ip it is checking?

SprattOP•2mo ago

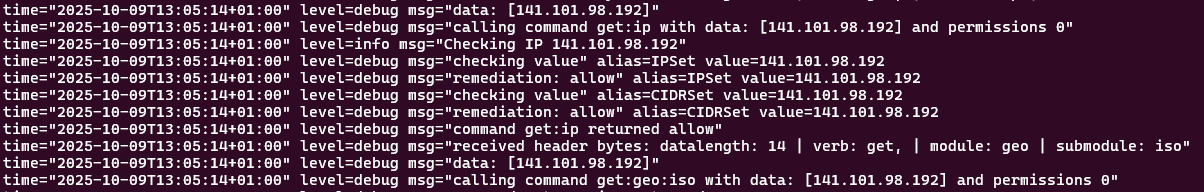

WIth the crowdsec.cfg I provided the logs show this

SprattOP•2mo ago

if I try your suggestion without the if case it doesn't return any IP logs yes

Loz•2mo ago

😕

SprattOP•2mo ago

Just to confirm that I checked again:

Loz•2mo ago

Okay @Spratt try

spoe-message crowdsec-ip
    args src-ip=req.hdr_ip(CF-Connecting-IP)
    event on-frontend-http-request

spoe-message crowdsec-ip
    args src-ip=req.hdr_ip(CF-Connecting-IP)
    event on-frontend-http-request

SprattOP•2mo ago

It works

Loz•2mo ago

but you may want to move or reuse the acl adding a

    event on-frontend-http-request if { src -f /etc/haproxy/CF_ips.list }

    event on-frontend-http-request if { src -f /etc/haproxy/CF_ips.list }

to prevent spoofing if not firewalled

SprattOP•2mo ago

good Idea. Thanks a lot for helping

CrowdSec•2mo ago

Resolving haproxy spoa bouncer This has now been resolved. If you think this is a mistake please run /unresolve

Loz•2mo ago

https://github.com/crowdsecurity/cs-haproxy-spoa-bouncer/pull/85

GitHub

Add example configuration for HAProxy behind upstream proxy by Laur...

fix: #13 This adds example configurations demonstrating how to extract real client IP when HAProxy is deployed behind an upstream proxy (nginx, Cloudflare, etc.). Key changes: docker-compose.proxy...

Loz•2mo ago

however, I still see issues @Spratt we may have to split it to two message crowdsec-tcp and crowdsec-http and need to do the ip check in crowdsec-http

SprattOP•2mo ago

I see how that could be an issue

Loz•2mo ago

going to create a pr now, that means you can drop the crowdsec-ip message and just do crowdsec-http as long as you pass the src-ip variable it will do the check. Okay created a seperate PR and update the examples to be based on the new code once merged 😅
