Arduino nano burned

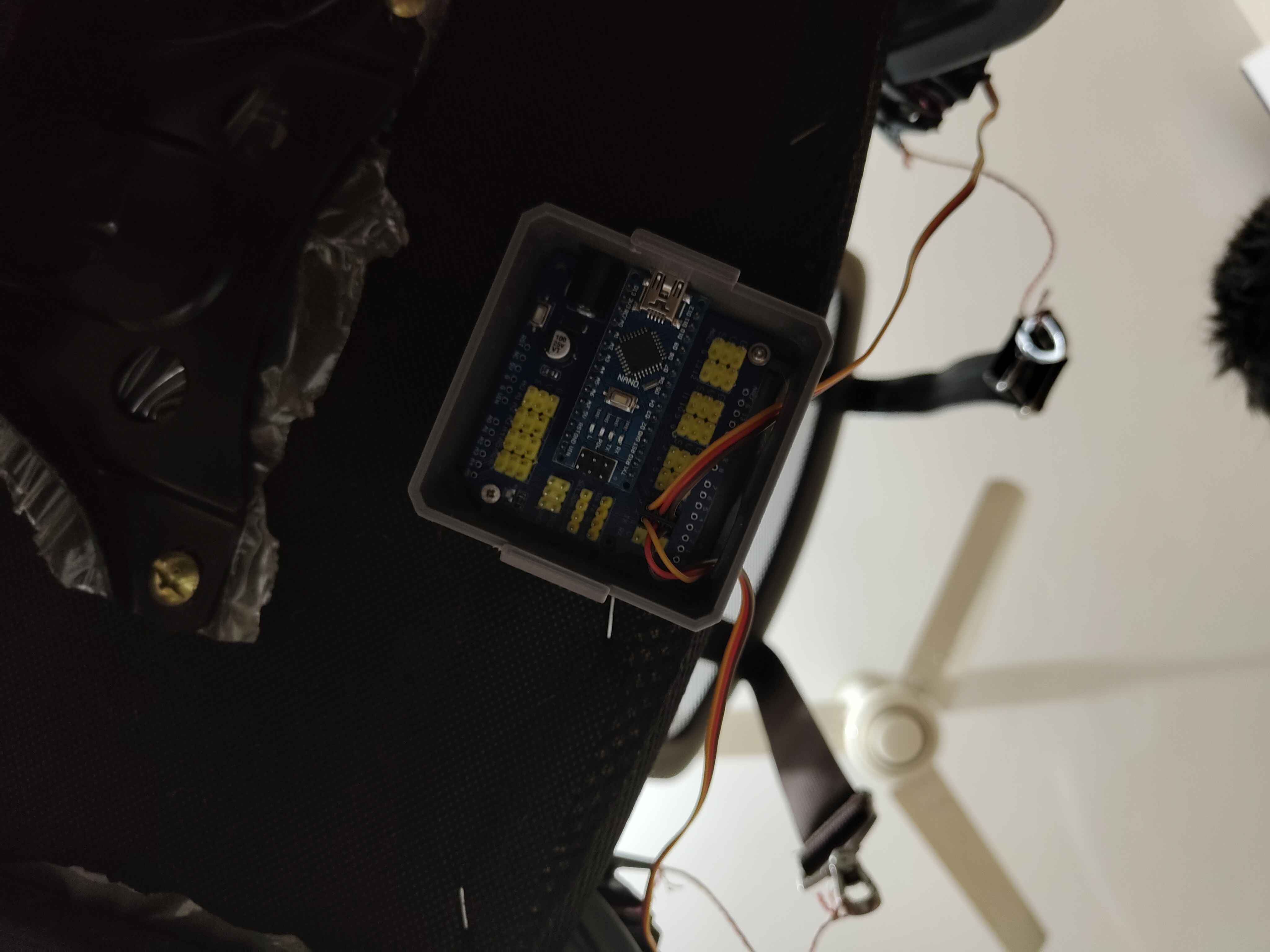

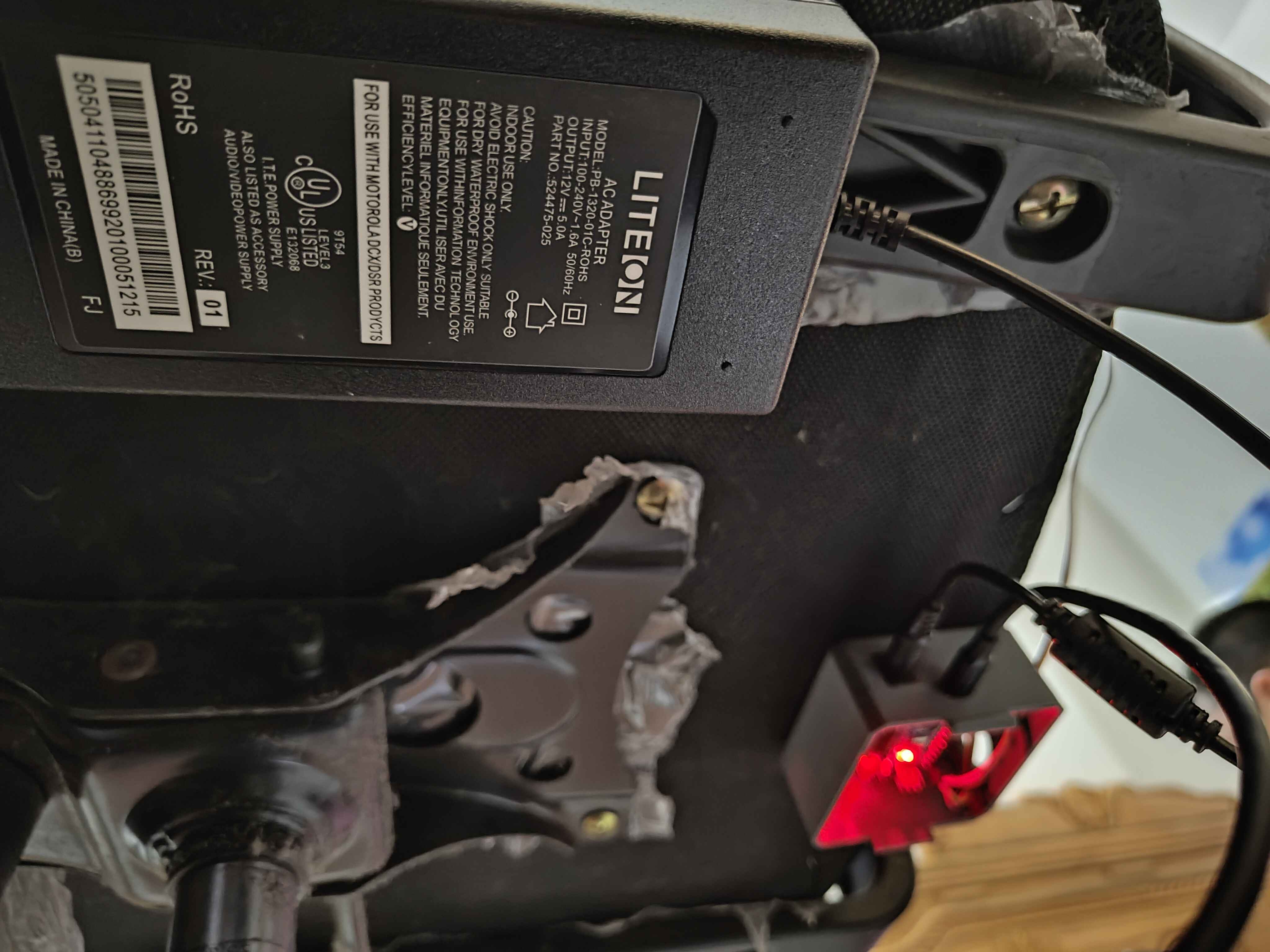

So this is my setup i am powering the arduino nano from my pc usb it is must for me cuz it takes data from my input and the expansion board is taking 12v 5a and 2 mg996r servo is connected to the expansion board so whats wrong here why my nano got burned
12 Replies
Sorry by mistake i posted this in official product help too
quit cross-posting! leave your thread here and delete the cross posts
Deleted it
thanks, now add some detail so others can help
what expansion board? how did you connect 12v? (servos can't take 12v)

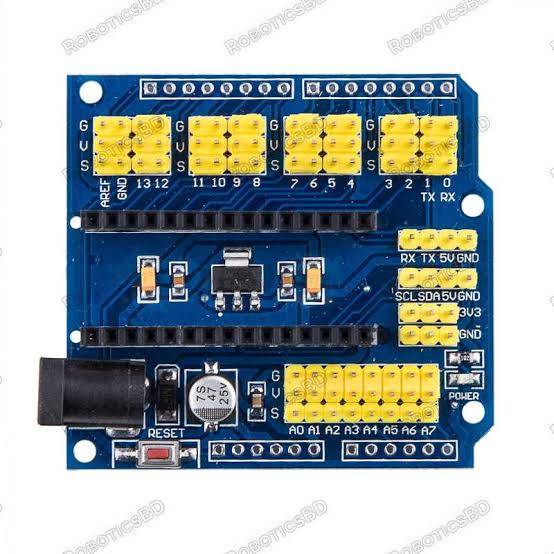

This the expansion board the servos are connected on the yellow pins and 12v is connected on the input
is this part burnt / melted?
as near as I can tell that board is using the 5v regulator on the Nano to power the servos
maybe you can power one or two servos that way
https://forum.arduino.cc/uploads/short-url/gLelmv0kOT3hm2nX3RWTAIaDqEW.pdf
Only the arduino nano got burned
Yes i am powering 2 servo
So what am i doing wrong
you need to not power the servos with the Nano
Uh what should i do exactly
in future use external power for things like motors, solenoids and servos.
you cannot power high current devices from an Arduino board.
I just didnt use the adapter anymore
Only usb from pc now working fine
And thanks for the help
