can't find docs on how to put component on bottom side of pcb.
search terms "pcb side" "bottom" "flip"
expected to find here if nowhere else: https://docs.tscircuit.com/guides/tscircuit-essentials/layout-properties#manual-pcb-layout-properties
Using Layout Properties | tscircuit docs
There are many ways to layout your schematic and PCB with tscircuit including automatic layout and manual edits. In this article we'll discuss how to programmatically lay out a board using layout properties like
schX/schY and pcbX and pcbY5 Replies
looked inside type defs for any clues.
layer="bottom" did the trick.
conveniently, discovered a separate bug as a result:

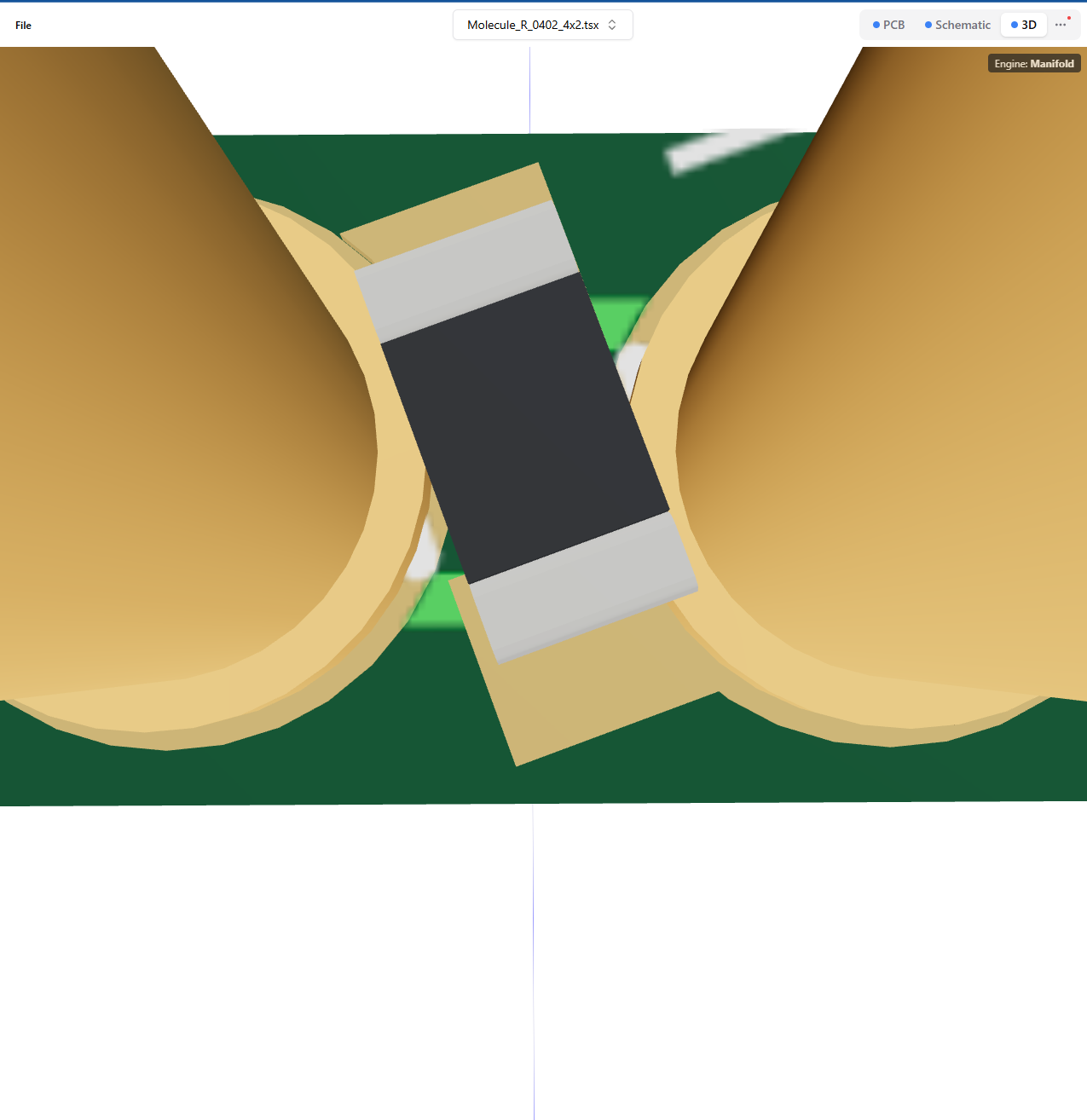

here is an 0402 from kicad rotated 110 degrees, on the top surface. all looks correct.

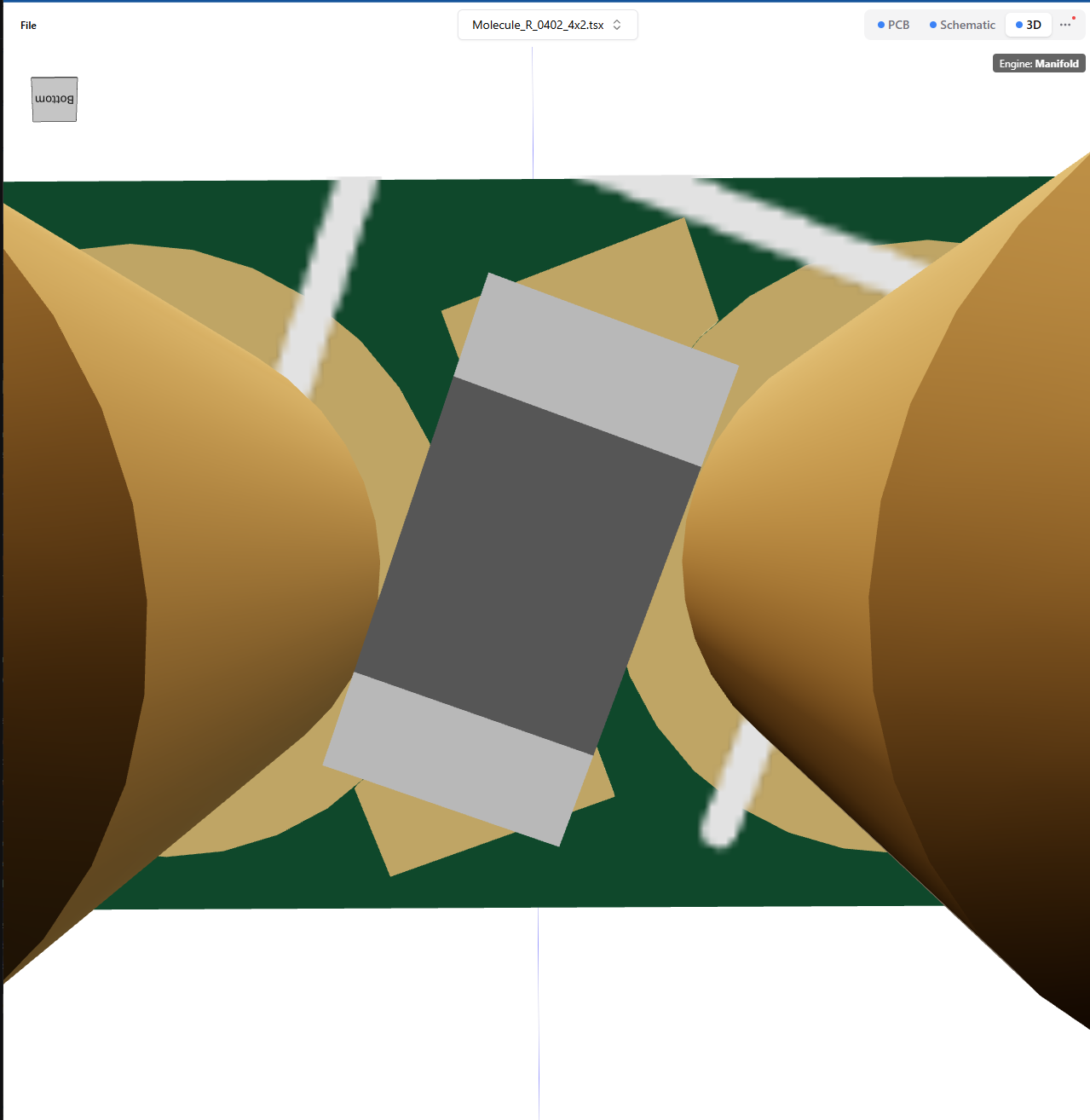

now, with layer="bottom"

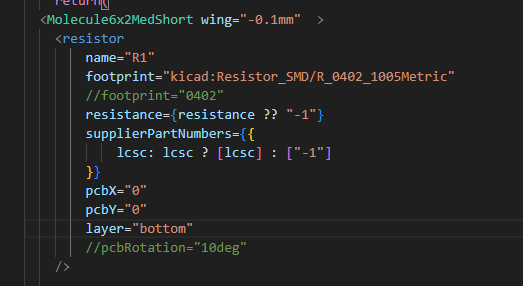

pic 3 with stock
footprint="0402"

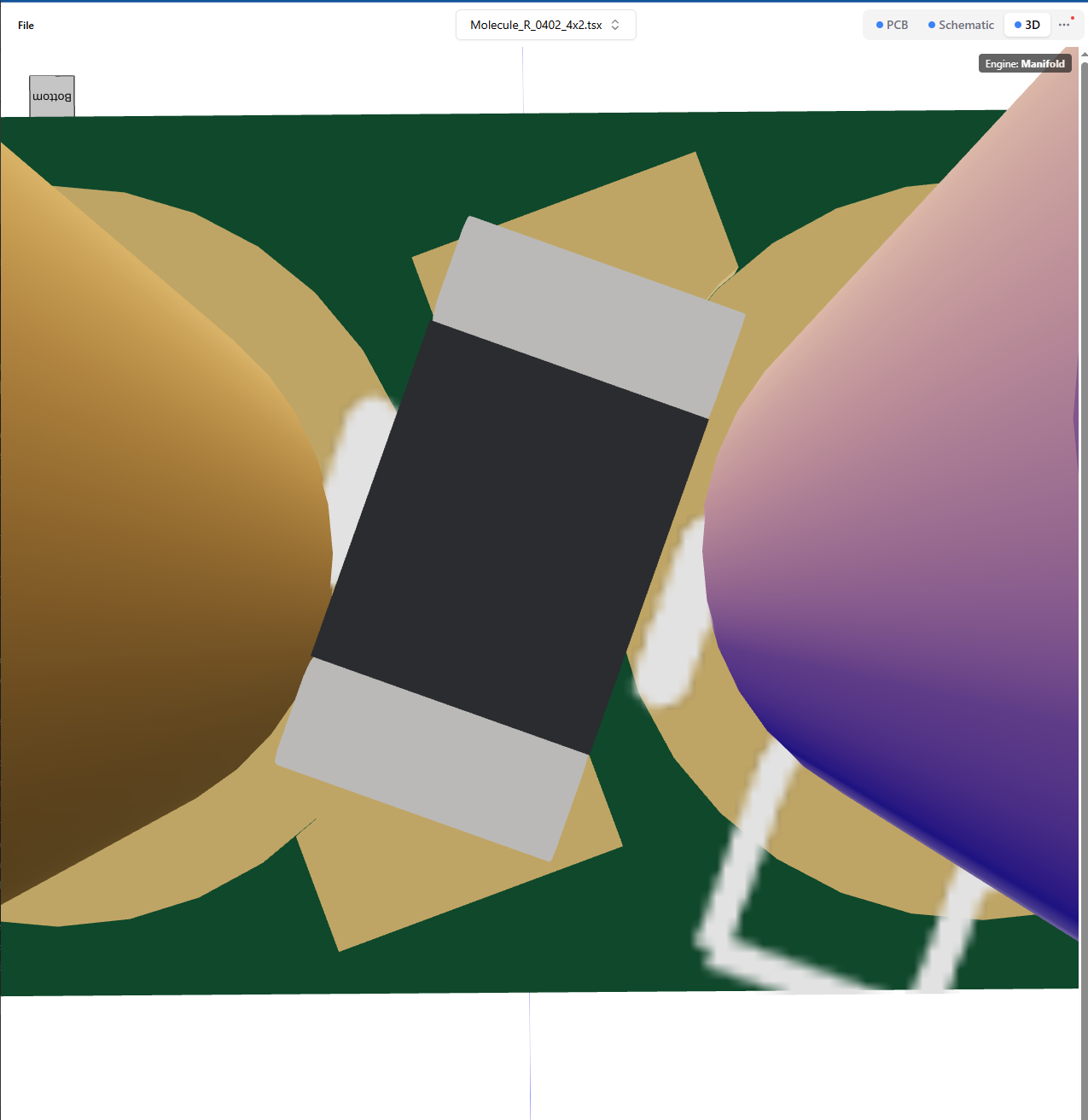

similar issue.
I think transforms are being applied incorrectly to pads when on bottom layer.
lastly, putting a component on
layer="inner1" puts it on the top of the board, and no errors. ideally this should be a type error - components themselves like resistor, chip, etc... can only be placed on layers top or bottom
...unless you're TI and embedding silicon into substrate, which... we are not (yet)yea will take a look at this
