Blueprint•2mo ago

blueprint panel ising panneling (poblary a dumb issue)

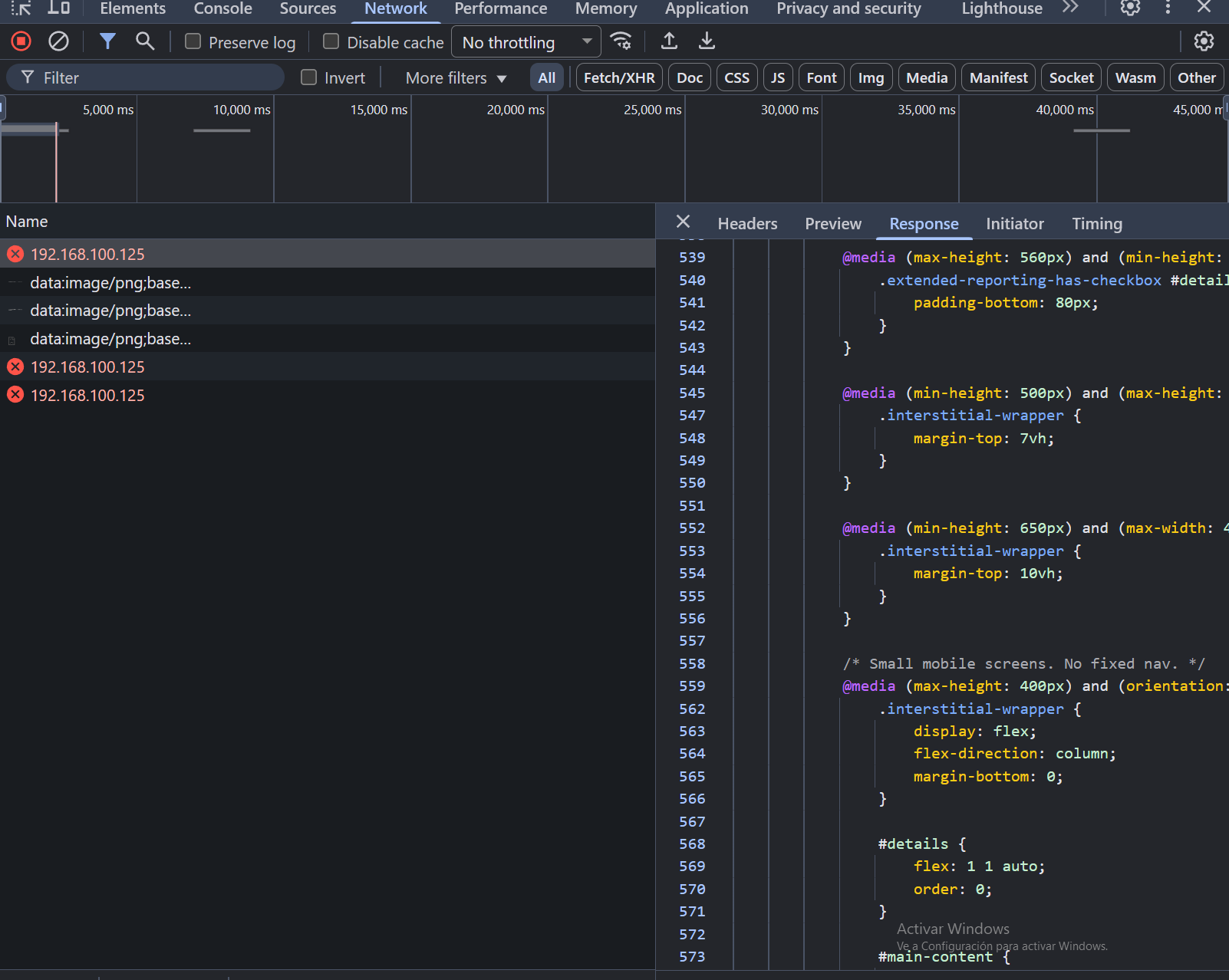

im trying to get blueprint work on my homeserver (in proxmox) with docker and nginx proxy manager. I got it to install but now im getting 502 bad gateaway but if i go directly to the ip it gives the html but dosent show it :heavysob: panel logs: https://pb.csd4ni3l.hu/?45f09e0347cc9b05#7kWaY6K7wiGdMAhYF1bBoJh2NNq5aRdUrMa9VbZnR8AD (ts is a friend pastebin)

Solution:

Change the port to 3000 in your panel.conf or change the right port mapping for panel to 80. Right now you're directing traffic to port 3000 in the container, where nothing is listening....

Jump to solution

27 Replies

Loki•2mo ago

Paste all the relevant config information for NPM and the panel, both compose file and panel.conf

Lucas11OP•2mo ago

Ok! I cant rn as Windows bricked it self :heavysob:

Lucas11OP•2mo ago

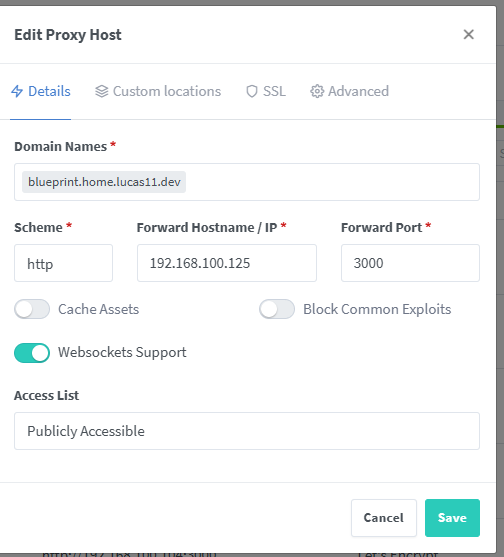

I aready passed the npm (nginx proxy manager) information but heres it is again and heres the compose file: https://pb.csd4ni3l.hu/?0a46f4e1b1211b43#DhBqgV9L6uz8DvPygrxtu3xkstgs7eFLZt5sRvEnymfg

Lucas11OP•2mo ago

as i know npm works as my rest of domains in npm works (and sorry what is the panel.conf 😭 )

Loki•2mo ago

Your webserver block. Mounted at /srv/pterodactyl/nginx by default.

Lucas11OP•2mo ago

 If using Ubuntu this file should be placed in:
#                       /etc/nginx/sites-available/
#
# If using CentOS this file should be placed in:
#                                /etc/nginx/conf.d/
#
server {
    listen 80;
    server_name _;

    root /app/public;
    index index.html index.htm index.php;
    charset utf-8;

    location / {
        try_files $uri $uri/ /index.php?$query_string;
    }

    location = /favicon.ico { access_log off; log_not_found off; }
    location = /robots.txt  { access_log off; log_not_found off; }

    access_log off;
    error_log  /var/log/nginx/pterodactyl.app-error.log error;

    # allow larger file uploads and longer script runtimes
    client_max_body_size 100m;
    client_body_timeout 120s;

    sendfile off;

    location ~ \.php$ {
        fastcgi_split_path_info ^(.+\.php)(/.+)$;
        # the fastcgi_pass path needs to be changed accordingly when using CentOS
        fastcgi_pass 127.0.0.1:9000;
        fastcgi_index index.php;
        include fastcgi_params;
        fastcgi_param PHP_VALUE "upload_max_filesize = 100M \n post_max_size=100M";
        fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
        fastcgi_param HTTP_PROXY "";
        fastcgi_intercept_errors off;
        fastcgi_buffer_size 16k;
        fastcgi_buffers 4 16k;
        fastcgi_connect_timeout 300;
        fastcgi_send_timeout 300;
        fastcgi_read_timeout 300;
    }

    location ~ /\.ht {
        deny all;
    }
}

 If using Ubuntu this file should be placed in:
#                       /etc/nginx/sites-available/
#
# If using CentOS this file should be placed in:
#                                /etc/nginx/conf.d/
#
server {
    listen 80;
    server_name _;

    root /app/public;
    index index.html index.htm index.php;
    charset utf-8;

    location / {
        try_files $uri $uri/ /index.php?$query_string;
    }

    location = /favicon.ico { access_log off; log_not_found off; }
    location = /robots.txt  { access_log off; log_not_found off; }

    access_log off;
    error_log  /var/log/nginx/pterodactyl.app-error.log error;

    # allow larger file uploads and longer script runtimes
    client_max_body_size 100m;
    client_body_timeout 120s;

    sendfile off;

    location ~ \.php$ {
        fastcgi_split_path_info ^(.+\.php)(/.+)$;
        # the fastcgi_pass path needs to be changed accordingly when using CentOS
        fastcgi_pass 127.0.0.1:9000;
        fastcgi_index index.php;
        include fastcgi_params;
        fastcgi_param PHP_VALUE "upload_max_filesize = 100M \n post_max_size=100M";
        fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
        fastcgi_param HTTP_PROXY "";
        fastcgi_intercept_errors off;
        fastcgi_buffer_size 16k;
        fastcgi_buffers 4 16k;
        fastcgi_connect_timeout 300;
        fastcgi_send_timeout 300;
        fastcgi_read_timeout 300;
    }

    location ~ /\.ht {
        deny all;
    }
}

Loki•2mo ago

What is PANEL_PORT set to in your .env file?

Lucas11OP•2mo ago

3000 so its fine

Solution

Loki•2mo ago

Change the port to 3000 in your panel.conf or change the right port mapping for panel to 80. Right now you're directing traffic to port 3000 in the container, where nothing is listening.

Lucas11OP•2mo ago

ohhh thank you! it works!

Lucas11OP•2mo ago

umm so now the blueprint options dosent show up 😭 and now its giving 403 even when reinstalling 😭

Loki•2mo ago

You can always reset the volume.

docker compose down -v panel
docker compose up -d panel
sleep 15
blueprint -i *.blueprint

docker compose down -v panel
docker compose up -d panel
sleep 15
blueprint -i *.blueprint

Lucas11OP•2mo ago

oh thanks sorry for asking alot 😭

Loki•2mo ago

No worries

Lucas11OP•2mo ago

yay its back! lest check if blueprint is acutaly installed nop!

Loki•2mo ago

In general, if you want to update either the panel or Blueprint, or if anything goes wrong, this is the solution.

Lucas11OP•2mo ago

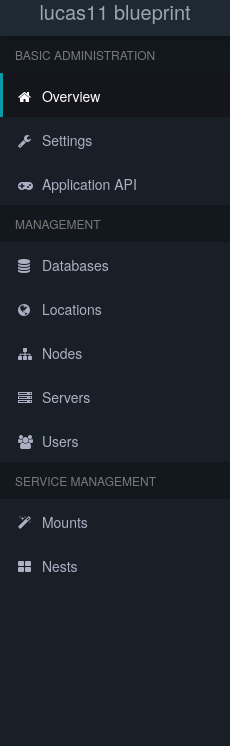

in the admin pannel blueprint is gone.

Loki•2mo ago

Clear cache

Lucas11OP•2mo ago

same

Lucas11OP•2mo ago

Loki•2mo ago

You should see the icon for it even if the latest version of the image doesn't have the latest Blueprint yet (it builds once a week). If it says to finish installing, blueprint -upgrade

Lucas11OP•2mo ago

it dosent say that at all

Loki•2mo ago

Should be at the top right if I remember right.

Lucas11OP•2mo ago

OH WAIT IM DUMB SO SORRY 😭

Loki•2mo ago

It's not with the other Admin stuff, to be fair.

Lucas11OP•2mo ago

now its time to update! so new issue! there is no .blueprint folder on /srv/pterodactyl and /var/www/pterodactyl nvm found it
