maybe a stupic question, but where/how do I actually import the basic components?

20 Replies

Ray Kholodovsky•5w ago

They should be already in without any imports!

Ray Kholodovsky•5w ago

https://docs.tscircuit.com/elements/resistor

<resistor /> | tscircuit docs

A <resistor /> is an extremely common element of electronic designs. It limits the flow of electricity and is critial to making sure digital signals are properly "pulled up" or "pulled down" to set their default value as 1 or 0

Ray Kholodovsky•5w ago

try a <resistor like shown here

Ray Kholodovsky•5w ago

then try an led: https://docs.tscircuit.com/elements/led

<led /> | tscircuit docs

Light emitting diodes are diodes that emit light when current passes through them. They are commonly used as indicators on a circuit board such as a "power on indicator" or "data transfer in progress indicator

xiduzoOP•5w ago

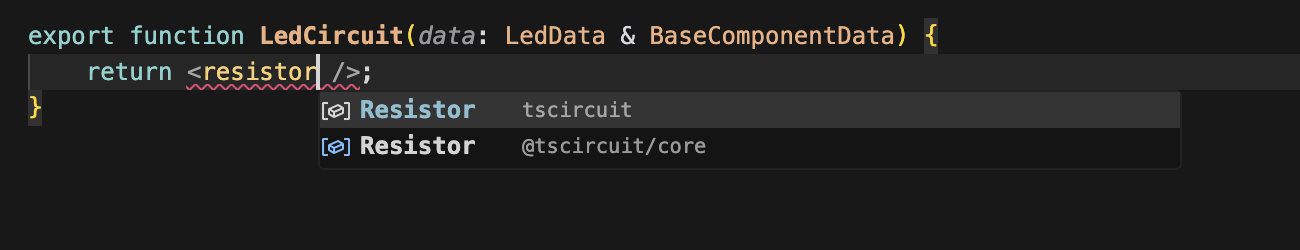

somehow my IDE does not recognise them? I do have

"types": [
            "tscircuit",
            "@tscircuit/core"
        ]

"types": [
            "tscircuit",
            "@tscircuit/core"
        ]

configured (yes @tscircuit/core is not neccecary with tscircuit as it contains it, but Im just tying things out here!)

Ray Kholodovsky•5w ago

if you are just getting started, suggest you follow the basic examples before you try to do complex weird things 🙂

Ray Kholodovsky•5w ago

https://docs.tscircuit.com/intro/quickstart-cli https://docs.tscircuit.com/elements/board

Quickstart CLI | tscircuit docs

The command line is the best way to use tscircuit. Using the CLI, you can just run tsci dev in a project and see previews of your circuit just like any other local development tool!

<board /> | tscircuit docs

Root element that contains all chips and traces to create a printed circuit board.

xiduzoOP•5w ago

sure, will check it out. thanks

Ray Kholodovsky•5w ago

yeah so try to replicate the example in <board> first - that's the standard syntax and quite different from what you show.

xiduzoOP•5w ago

before I try to dive into this rabbit hole - is it possible to include tscircuit inside of my current (React) application?

Ray Kholodovsky•5w ago

yes, there are a number of ways to do it, but first I suggest you do a basic circuit example on tscircuit.com per the docs above

Seve•5w ago

@xiduzo yep would recommend starting with tsci dev as Ray is suggesting, curious about your use case for because there are a couple ways to display on web (e.g. compiling a circuit to circuit json before displaying it can load faster for visitors, but then you can't dynamically change the circuit in browser)

xiduzoOP•5w ago

I have built a tool to make it easier for (non-)programmers to prototype with Arduinos, see https://microflow.vercel.app/. It would be amazing if I can also generate a circuit view based on the nodes and edges!

Microflow

Microcontrollers made simple

Seve•5w ago

oh awesome!

xiduzoOP•5w ago

I am now looking into the CircuitJsonPreview and

const root = new RootCircuit();

root.add(new Led({ name: "led1" }));

const circuitJson = root.getCircuitJson()

const root = new RootCircuit();

root.add(new Led({ name: "led1" }));

const circuitJson = root.getCircuitJson()

so that might be sufficient for my use case!

Seve•5w ago

yea that's a pretty low-level way to do it but pretty good! if you want to build in the browser, you can try using RunFrame, which is capable of building tscircuit code in the browser, it's the same thing our dev environment uses Examples: https://runframe.tscircuit.com/?fixtureId=%7B%22path%22%3A%22examples%2Fexample01-resistor.fixture.tsx%22%7D

Seve•5w ago

repo: https://github.com/tscircuit/runframe

GitHub

GitHub - tscircuit/runframe: Runs tscircuit code inside a webworker...

Runs tscircuit code inside a webworker, view PCBs, schematics and 3D previews - tscircuit/runframe

xiduzoOP•5w ago

eventually it will need to run in an electron app (which is a browser too 😛 )

Seve•5w ago

nice! let us know how it goes!!! happy to help as you progress!!!!

xiduzoOP•5w ago

awesome! I'll be sure to share some progress
