My corne doesnt register key presses

Im having trouble with my corne that doesnt want to register key presses. I have flashed it and i can connect to the studio via usb. I cant connect to bluetooth and i cant press any buttons at all to reset it. The nice!view with the counter isnt showing anything either.

TyperAI•11/17/25, 9:01 PM

If ZMK Studio sees the board over USB but no keys or display work and BLE won’t connect, that almost always means the nice!nano isn’t actually talking to the PCB (headers/sockets/orientation), or the wrong firmware is flashed.

Let’s narrow it down:

**Basic checks**
- Is this happening on both halves or just the left?
- With USB plugged in, flip the power switch ON anyway (up).
- Press the physical reset button on the PCB: do you see a tiny blue LED blink on the nice!nano?
**Check nice!nano mounting**
- The nice!nano should be face down: the side with chips/logo facing the PCB.
- It must be fully seated in the headers/sockets; push down on the plastic of the headers until there’s no visible gap.
- Make sure there are no pins in B+ / B- and that every other pin has a good solder joint on both the PCB and the nano sockets (if soldered).
  Guide:
**Reflash known‑good firmware**
- Put the nano into bootloader (double‑tap reset) so the
```
NICENANO
```
```
NICENANO
```
  drive appears.
- From here:
  download the correct UF2 for:
  - Corne column count (5 or 6)
  - Left vs right
  - With or without nice!view
- Copy the UF2 to
```
NICENANO
```
```
NICENANO
```
  , wait for it to reboot, then unplug/replug USB and see if any keys or the display work over USB.
**If still dead**
- This points to a physical connection issue between the nice!nano and the PCB. Carefully inspect for:
  - Bent pins on the headers
  - Cold/missing solder joints on the nice!nano sockets
  - Any visible damage around the nice!view socket

If you can, send clear photos of the top and bottom of one half (around the nice!nano, nice!view, and power switch). Reply to this message or tag me so I’m notified and can keep helping.

WilleOP•11/18/25, 8:46 PM

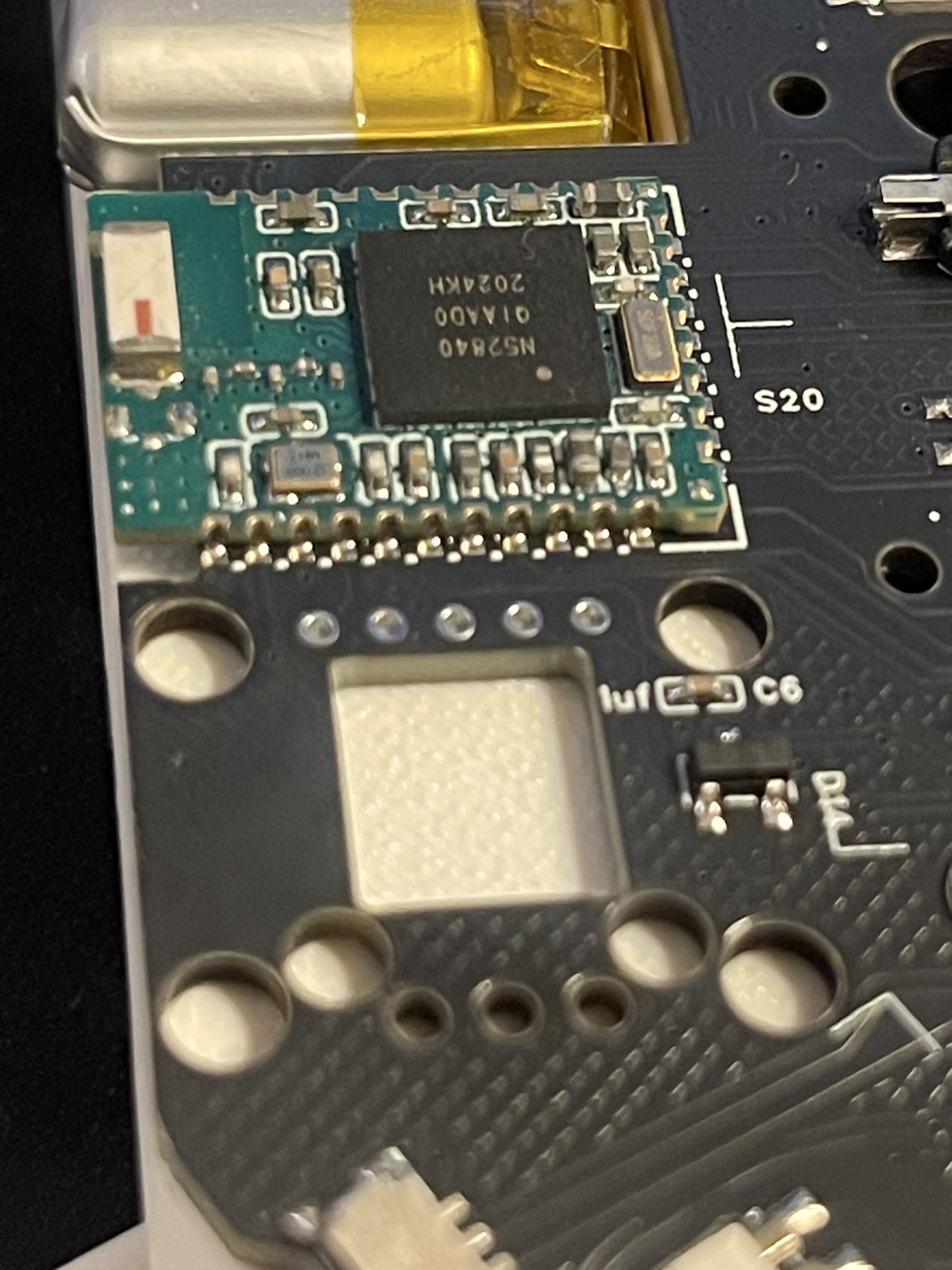

here are the soldering. I think it looks ok?

WilleOP•11/18/25, 8:48 PM

@TyperAI

WWille @TyperAI

TyperAI•11/18/25, 8:48 PM

From what you describe (no keys, no BLE, no display, but ZMK Studio sees the board) we’re down to two main possibilities:

Firmware mismatch
nice!nano not actually connected to the matrix (headers/sockets/orientation)

I can’t reliably judge solder quality from here, so let’s go through some targeted checks:

---

Confirm behaviour on each half

Does either half register keys in ZMK Studio’s Key Tester tab over USB?
Does either nice!view show anything (even briefly) when:
- USB is plugged in, and
- Power switch is ON, and
- You press the reset button (do you see a blue LED blink)?

If one half works and the other doesn’t, it’s almost certainly a hardware issue on that half.

---

Verify exact firmware

Please reflash the left half with a known‑good UF2 from here:

Pick exactly:

5‑column vs 6‑column
Left vs right
With or without nice!view

Steps:

Double‑tap reset →
```
NICENANO
```
```
NICENANO
```
drive appears.
Copy the matching left UF2.
After reboot, test keys over USB in ZMK Studio.

Repeat with the matching right UF2 on the right half.

---

Check nice!nano mounting

On each half:

nice!nano must be face down (chips/logo toward PCB).
Fully seated in the sockets/headers (no visible gap).
No pins in B+ / B-.
No obviously cold joints or solder bridges on the rows of pins.

---

Can you tell me:

Which UF2 filenames you flashed (copy/paste them), and
Whether either half shows keys in ZMK Studio after reflashing?

Reply to this message or tag me so I see your update and we can keep digging.

WilleOP•11/19/25, 7:38 PM

as i understand now its not a nice!nano mcu. It some other kind

WilleOP•11/19/25, 7:41 PM

@TyperAI

WWille @TyperAI

TyperAI•11/19/25, 7:42 PM

All of our Corne wireless guides/firmware assume a nice!nano v2.
If your MCU is a different board, that would very easily explain:

Our UF2 flashing “works” but
No keys, no BLE, no nice!view output

because the pinout and board definition don’t match.

To figure out what will work, I need a bit more info:

**What exactly is the MCU?**
- Read anything printed on the PCB (e.g. “nice!nano v2”, “XIAO nRF52840”, “nRFMicro”, etc.).
- When you enter bootloader, what is the USB drive name? (
```
NICENANO
```
```
NICENANO
```
  , something else?)
**Where did the Corne/MCU come from?**
- Is this a Typeractive Corne kit, or a different vendor’s board?
**Which firmware did you flash?**
- Please paste the exact UF2 filename(s) you used.

If it’s not a pin‑compatible nice!nano (or clone), then:

Typeractive UF2 files from will not work correctly.
You’ll need firmware built for that specific MCU + this Corne shield from the MCU vendor’s or keyboard vendor’s repo.

If you can, send a clear photo of the MCU area and the top of one PCB half; that’ll let me tell if it’s nice!nano‑compatible or not.

Reply to this message or tag me again so I’m notified and can walk you through the right firmware setup once we identify the board.
