class 10 electricity doubt ðŸ˜

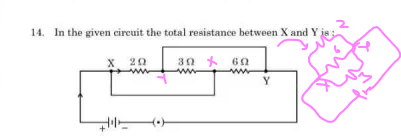

shouldnt the total resistance here be 6ohms? cant the current just like short circuit and go before the 6ohm resistor (the ans is actually 1ohm and this q was asked in 2024 and m still not really able to understand this q even tho its been many days now)
14 Replies
@Gyro Gearloose
Note for OP
+solved @user1 @user2... to close the thread when your doubt is solved. Mention the users who helped you solve the doubt. This will be added to their stats.all three resistrors are in parallel
so by formula
we get 1 ohm
ye but
what about the short circuit thing
cant the current bypass 2,3ohm wale resistors
where?
on that X point
nah because if we re draw the circuit diagram all three comes in parallel
and in parallel current goes through all the wires
try it once
great point. look at what happens at pt x and also between 2 and 3 ohms
so the potential diff between these points IS the same, you are right thre
but you gotta see all of them together.
oh
tysm
i get it now
in such qs we gotta like see the whole circuit together right sirf ek cheez dekh ke nhi kar sakte
Absolutely
tysm guys
wait
how do I close this channel
+solved @Sephrina @iTeachChem
