Semiconductor

Looks simple but im not getting something in this?

Real potatoOP•12/15/25, 5:12 PM

Why cant it be -5?

CorrodedCoffin•12/15/25, 5:17 PM

i made two cases

CorrodedCoffin•12/15/25, 5:17 PM

Vout > 5 and Vout < 5

CorrodedCoffin•12/15/25, 5:17 PM

since D1 will depend on it

CorrodedCoffin•12/15/25, 5:17 PM

and then kvl kinda shit

Real potatoOP•12/15/25, 5:18 PM

Can u share what u did

CorrodedCoffin•12/15/25, 5:20 PM

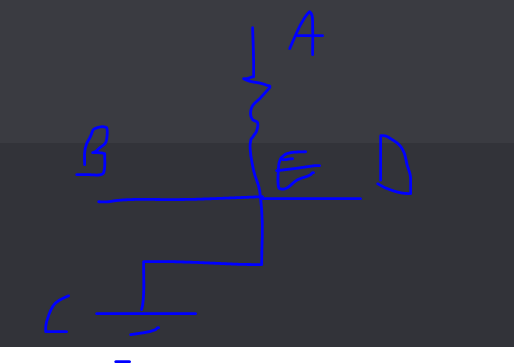

case 1 :
Va - iR -Vc = 0
5 = iR
Ve = Vc = 0
so Vd = 0 but not possible since case 1 is Vout >5

case 2 :
wire with D1 breaks
and then same yada yada . here we can say Vout = 0 snce we considered it less than 5

CorrodedCoffin•12/15/25, 5:20 PM

can u share what u did

CorrodedCoffin•12/15/25, 5:20 PM

maybe i am doing smthing wrong

Real potatoOP•12/15/25, 5:26 PM

Oh wait i got it

Real potatoOP•12/15/25, 5:26 PM

Since ideal diode condition is given

Real potatoOP•12/15/25, 5:26 PM

And potential at junction of D1 will we less then 5 it is in Rb

Real potatoOP•12/15/25, 5:26 PM

So open ckt there

Real potatoOP•12/15/25, 5:27 PM

And D2 will be fb

Real potatoOP•12/15/25, 5:27 PM

Ideal condition me it provides no resistance

Real potatoOP•12/15/25, 5:27 PM

So pd across it should be zero

Real potatoOP•12/15/25, 5:27 PM

Tht makes vout=0

Real potatoOP•12/15/25, 5:27 PM

Makes sense?
