I pulled this behemoth out of a old tread mill
I pulled this behemoth out of a old tread mill
PSo. It is already close to 100$ for 2axiss. And you do not account so valuable resource as lifetime?
How much time random person will spend to setup everything together, fix bugs only to realize later that it produces terrible non informative FFB full of terrible cogging effects. And that people already once come throu the same path and created good working solution that imediately gives excelent result - kit on BLDC motors. Smooth, powerfull and easy to use
How much time random person will spend to setup everything together, fix bugs only to realize later that it produces terrible non informative FFB full of terrible cogging effects. And that people already once come throu the same path and created good working solution that imediately gives excelent result - kit on BLDC motors. Smooth, powerfull and easy to use PYou are happy if you can get motors for free. Not everybody have the source with them around
SUsed market
SPeople list free items
SIdk I dont see it like that. Yes sure there is kits ready to use but I dont see whats wrong with diy
SI have fun playng around with different motors
PYou will not convince me. I already come through tone of experiments. You can have fun from whatever you want. I just WARN PEOPLE not to start from DC motors if them want good and smooth working solution. Just start with BLDC. Be smart, and believe those who already throw away ton of money an experiments
SNot tryng to convince you, I know where your coming from
BWell, no ready made firmware or parts, other than the MSFFB2 board
but let me tell you that is a PROJECT
but let me tell you that is a PROJECTBModded msffb2 board allowed me to use dc motors but it’s work to mod it and you have to have very very good motors
SOpen ffb board and fino project are basically ready made
BDoes open FFB work with 2 axis controllers tho? Last I checked into open FFB it wasn’t very useful for joysticks
SI have msffb2 also but I havent touched it other then doubling the torque
BHence my ffb2 route
SYeah it has a joystick 2 axis mode
BHuh. Well that’s new apparently
BGranted I did my frankenstick over a year ago
BBefore Walmis kit available, and iirc open FFB had no joystick support
SYeah
SIt a good joystick
SI have two of them
BYa I’m a little out of the loop honestly, when I did my FFB2 creation there were basically no ready made firmware solutions available
SWhat does it look like

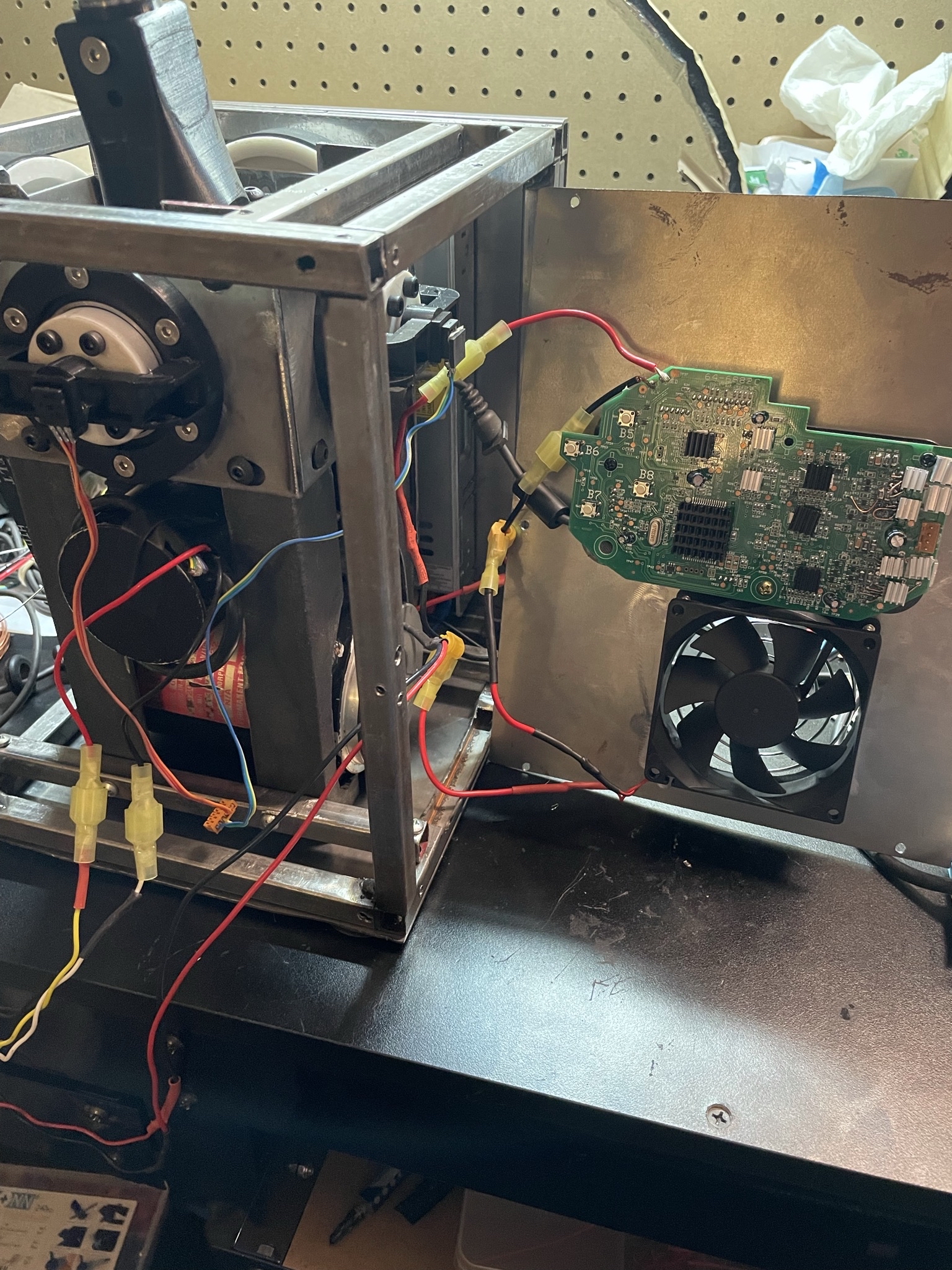

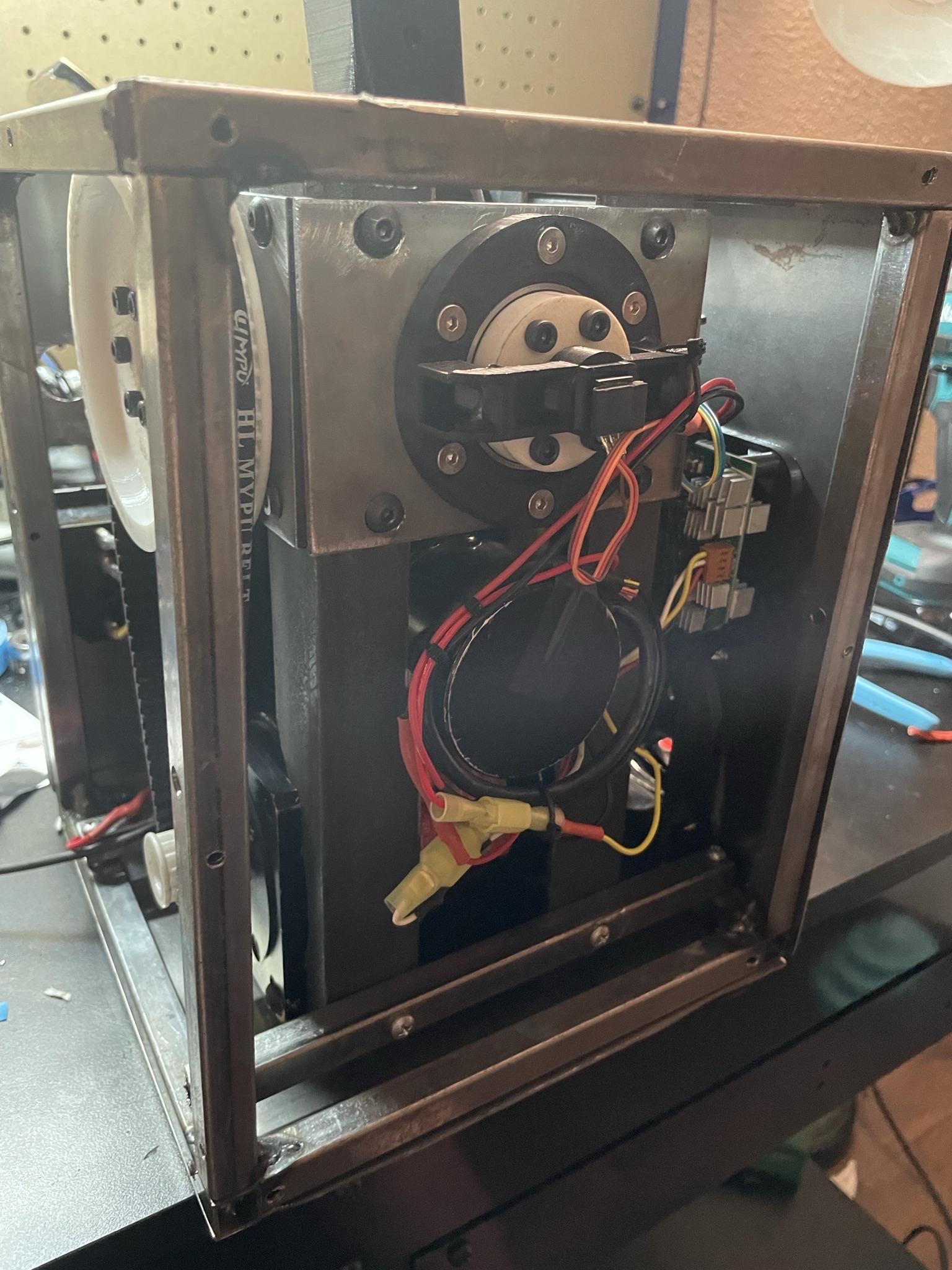

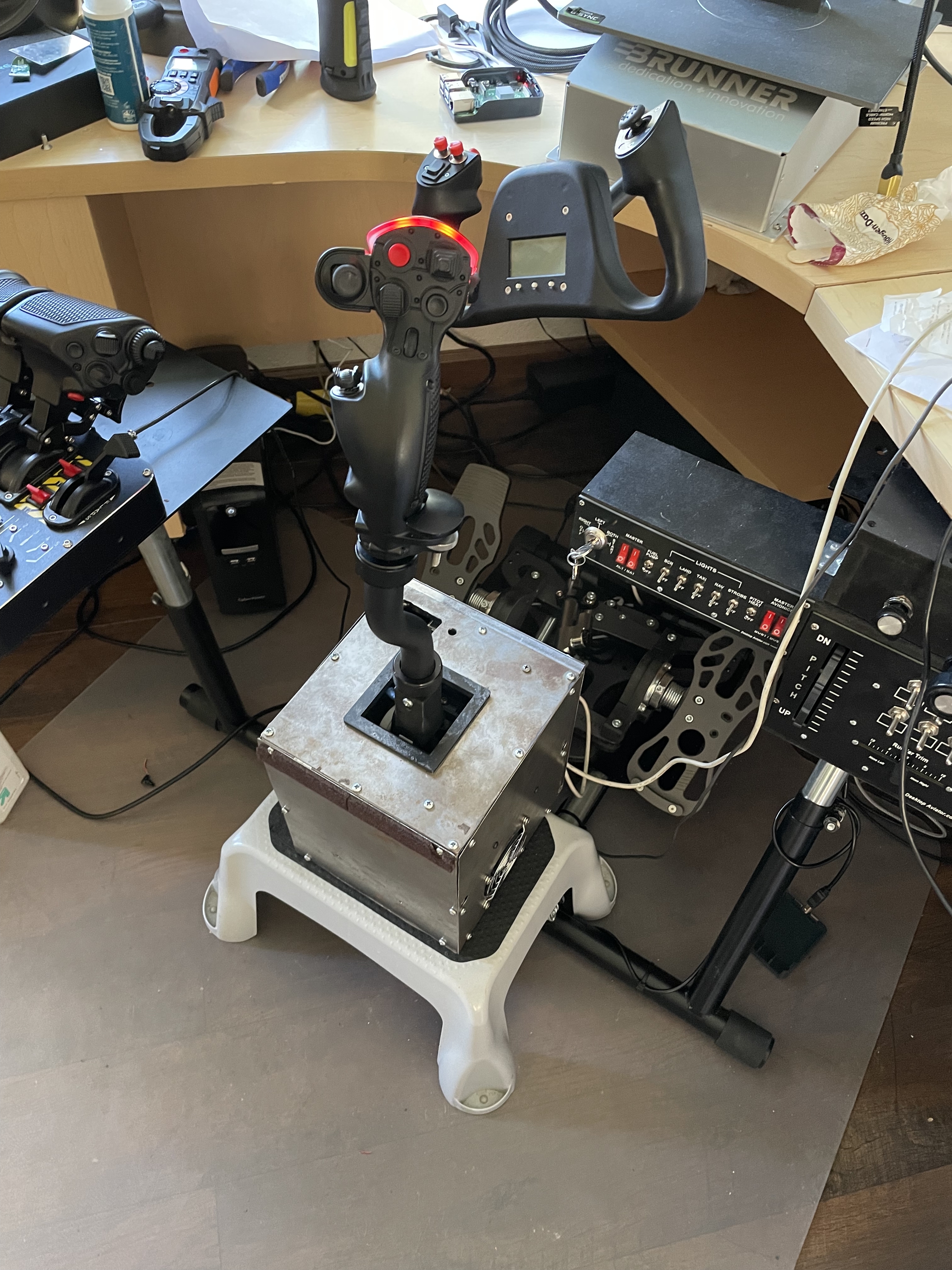

B
B
BTrouble with FFB2 is there is zero anti-cogging so you can only use high end servomotors basically
SHow is the resolution
S1024 right?
BI got used Glentek servomotors on ebay and even then it was $300 in motors.
BResolution 1024 ya
SHolly
BThey are beautiful motors tho literally no cogging at all
BAt least not noticeable
SAnd probably have good resale value too if you decide to switch them with something else
SI was looking at electric power steering motors
BAlso re: the resolution thing, eventually I’m gonna hook the pot outputs up in parallel to the Virpil DIY board in there and get axis output from that hopefully haven’t got around to it
BAlso modifying the board is a pain. If I was doing it today I’d prob do a Walmis DIY kit honestly
SWhy not just swap if with open ffb board or fino
SAnd you can use any encoder or adc with those
SOr even just built in adc you get 12 bit
SIm not sure if the game is going to send the ffb signals if its taking xy position from a different device
SMaybe through joystick gremlin and vjoy then combine the two but it seems like a really big pain in the but
YI think your question got lost in the conversation above.
Walmis mentions earlier that he has most of the kits in stock so delay is only a couple of days now.
As a newbie to this I can say that I am enjoying building my own. Even though it is taking a while do to lack of time. There are lots of resources here and elsewhere to help and if Okona gets his gimbal add-on kits going it will be even easier.
Walmis mentions earlier that he has most of the kits in stock so delay is only a couple of days now.
As a newbie to this I can say that I am enjoying building my own. Even though it is taking a while do to lack of time. There are lots of resources here and elsewhere to help and if Okona gets his gimbal add-on kits going it will be even easier.
SDid you also swap the mosfets
BOh yes. Took me forever to find ones that could handle the current and they gotta be heat sinked
BI wrecked 2 boards before I got it working
BI forget the numbers but I think it’s something like 12x the stock current
BAt least on the pitch axis
PThis is official reply about what openFFB board supports
