makes sense now...sort of like "of course" once it sinks in
makes sense now...sort of like "of course" once it sinks in
KAwesome that you got it going. Looking back, I think I gave misleading configs. I had spring turned off and sticky unchecked in the effects section, but the spring (and master, periodic, intertia, and damper) in the settings tab are set to 100%, so I was utilizing the game spring function too.
KIt is really freakin cool when you feel your stick move along with the trim and just like in a real plane, tune in for straight and level with no input. FFB is equal to VR in creating a sense of awe while flying.
SHave to agree!
SWithout tuning it feels close to the push back controls give you
MHi walis, here is an video of the behaviour and a photo of my settings
KIs that not a side effect of having the 8 way to 4 way hat button checked?
MI changed it and I have the effects still
WCan you activate generic grip (debug) profile and activate more buttons?
MStill the same double button input
WCan you also copy some lines from the Debug tab?
W
MYour guys are awsome. I used the wrong browser and I never saw the option to update the firmware. Now the buttons work as intendet. Thx to you all.
APeriodic effects appear to still be applied after I've ejected from the aircraft, I'm guessing that's not intended?
WTelemFFB?
A@walmis Which grub screw do you use with the motor pulleys? M4?
WM4x3
TWhen connecting the motors to MOT1 and MOT2 on the controller board, which one is Roll and which is Pitch?
Wdoesn't matter
RI've noticed a significantly reduced damper effect on my X-axis (roll). Pull-and-release on the Y-axis results in a well damped return to center, while the same on the X-axis results in a springy overshoot and return, which gradually settles out to center.
Adjusting the effect percentage on the axis doesn't seem to make a noticeable difference. Disabling the effect results in the expected very bouncy return to center.
Intial effect levels are the same for both axis and the gain maps are 1:1. Using current firmware and app versions.
Adjusting the effect percentage on the axis doesn't seem to make a noticeable difference. Disabling the effect results in the expected very bouncy return to center.
Intial effect levels are the same for both axis and the gain maps are 1:1. Using current firmware and app versions.
WCan you show us your settings?
R@walmis

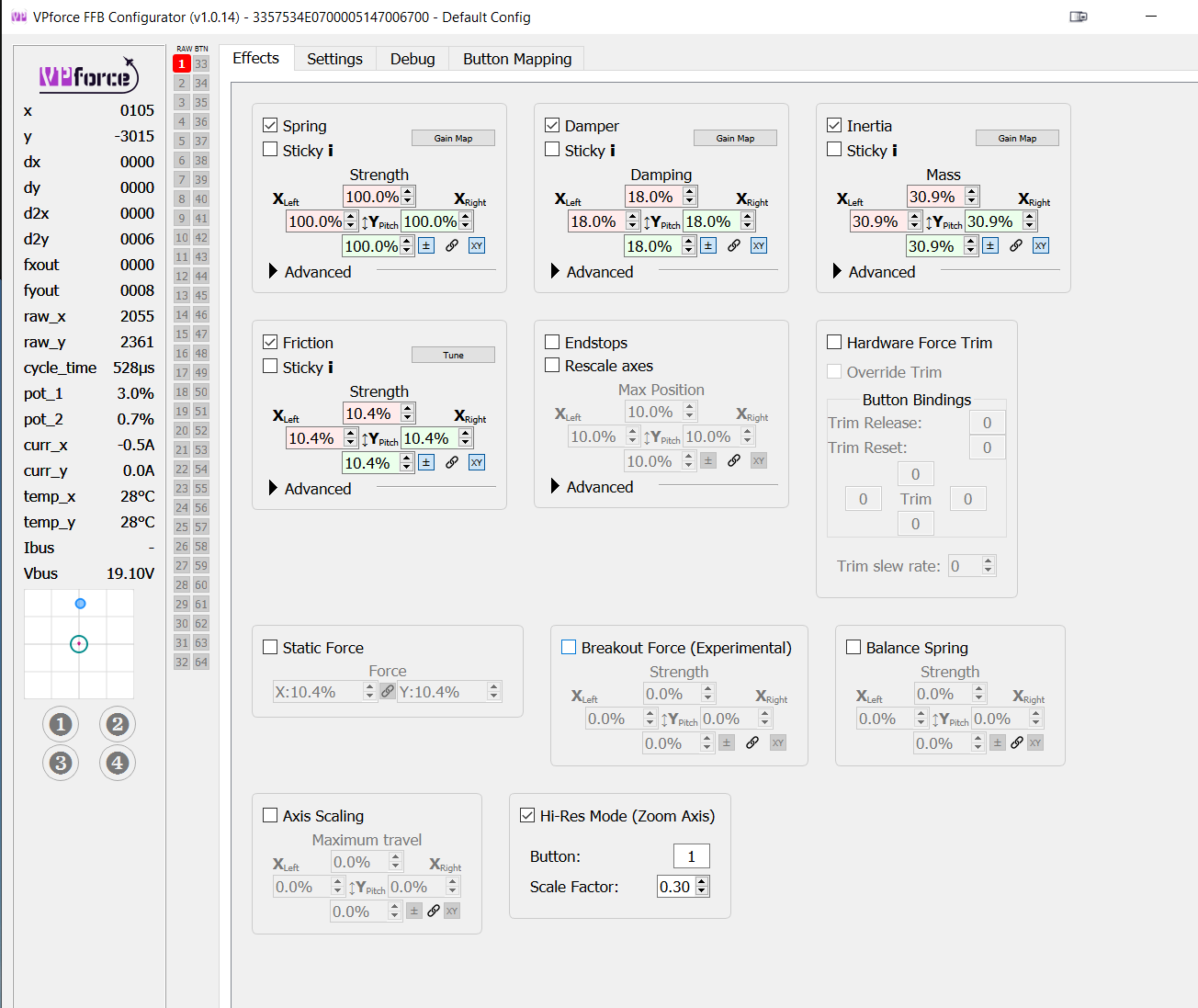

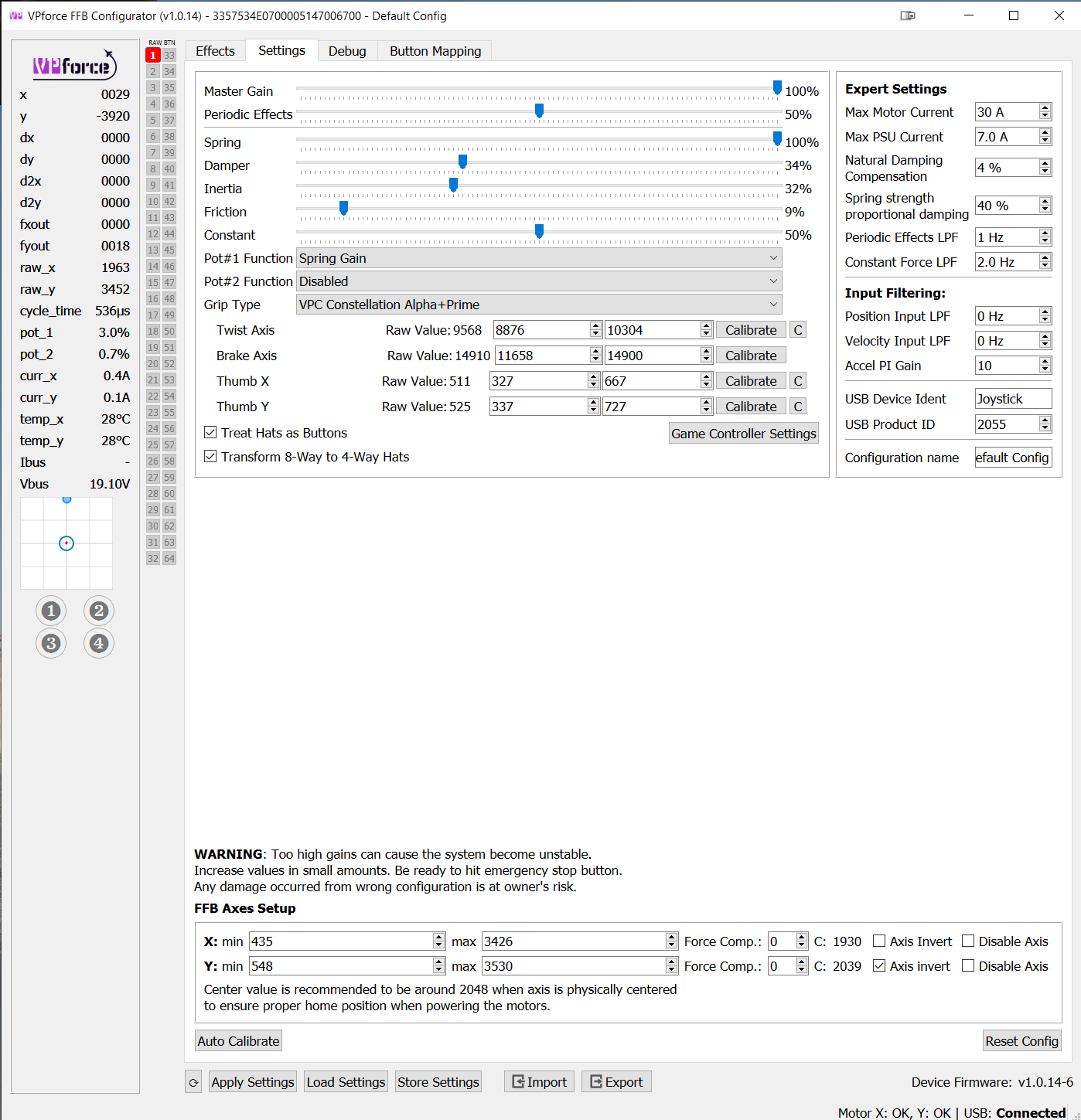

R
RNo looseness and the bounce is more pronounced with friction and inertia disabled.
R@walmis
WMy guess is that the the X axis has reduced calibrated range
WTry increasing spring bandwidth to 15Hz
Rno change
Rre calibration, I'm using the printed limiter set at 13 degrees y-axis, 10 degrees x-axis with axis calibrated after fitting.
Wwhat happens if you set both axis the same range - 1512 <> 2925
RMax reported deflection on the y-axis occurs at ~75% physical deflection, as expected. But, still bouncing on the x-axis.
WInteresting, how's the belt tension?
Raround 5mm displacement from the centreline on both axis. I don't recall what it was like when first received though.
RActually, quick comparison of the calibrated ranges vs setting both axis to 1512<>2925 and the y-axis now also has very reduced damping. Not quite as bouncy as the x-axis, but it's close.
R... if I pull the y-axis to its max physical deflection before releasing it.
Rscratch that, it's the same whether it's full physical or just to the reported max in relation to the reduction in damping.

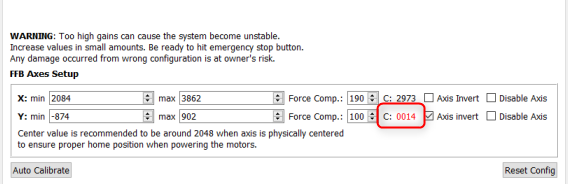

AIs there a reason for the red color of the center value?
WYeah, your physical center is ambiguous on startup, you need to install the belts so that the motor center is in the middle (~2000)
N@walmis any chance you can drop the stl file for the USB jack mount somewhere? My USB jack came lose again and in the process of trying to fix it, I managed to break the mount :D... I could re-create it, but figured I'd ask.

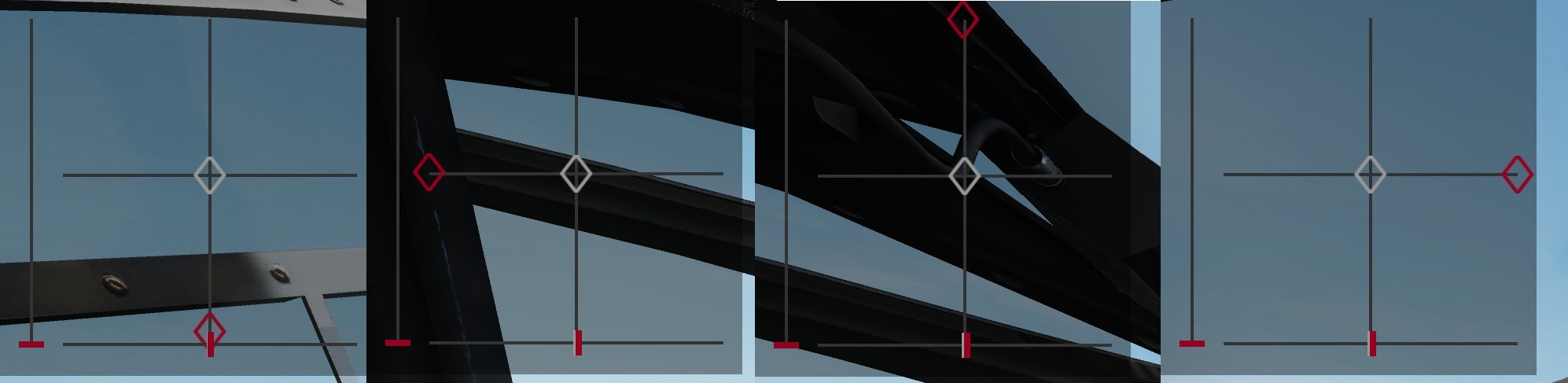

SI have an interesting problem with the SA342. I calibrated the Rhino and assigned the pitch and roll axes. The controls indicator at maximum stick excursion looks like this:
S

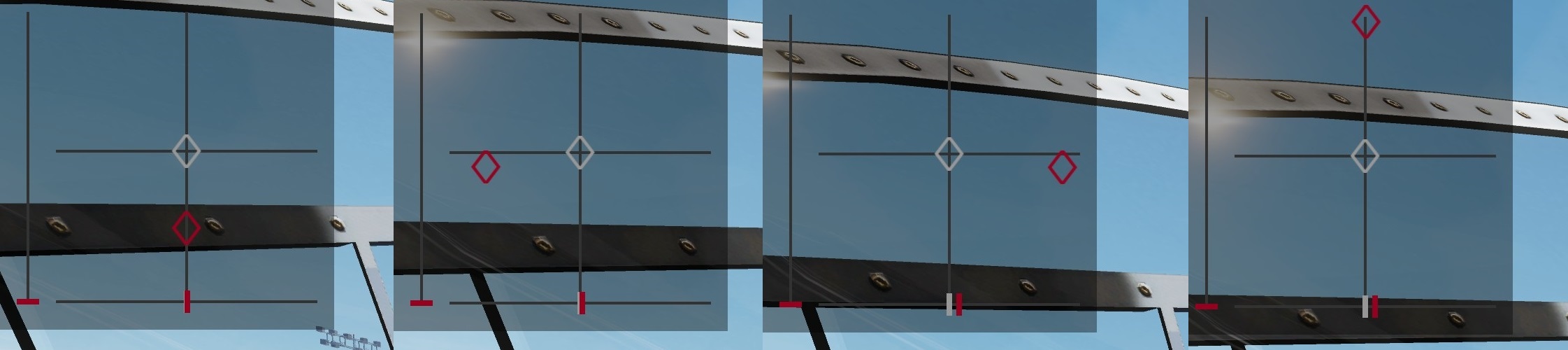

SAs you can see, the only direction which registers a full deflection is down (moving the cyclic forward) . All the others are only about halfway. I have no curves or saturation modifications in DCS. This is a newly calibrated Rhino and the settings were cleaered before assigning the axes. For comparison, I hooked up my old virpil stick and it registers full excursions in all directions.
S
SThese are my VPconfig settings:
S
KI'm assuming you've tried with hi-res mode unchecked?
KWhat does the windows joystick configurator show for stick deflection?
SYes, I unchecked hi res and the same behavior persists. Anyway, the excursion limitation in DCS is asymmetric. In the VP config app, the excusion is full and goes to the edge of the box in the direction the cyclic is moved
SAlso, the windows USB game control panel shows full excursion of the cyclic.
