Mmight have something to do with how RS sends those inputs to windows. They come off a second virtual device
WBut if the presses were visible with the debug grip profile, it should work. Can you recheck the debug grip profile which bytes change on button presses?
Myeah, one sec
M[11:05:48.706] FF FF FF FF FF FF FF FB 04 00 00 00 00 00 00 00
[11:05:48.908] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[11:05:49.109] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[11:05:49.309] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[11:05:49.511] FF FF FF FF FF FF FF F7 04 00 00 00 00 00 00 00
[11:05:49.712] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[11:05:49.912] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[11:05:50.114] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[11:05:50.315] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[11:05:50.516] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[11:05:50.717] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[11:05:50.917] FF FF FF FF FF FF FF FD 04 00 00 00 00 00 00 00
[11:05:48.908] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[11:05:49.109] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[11:05:49.309] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[11:05:49.511] FF FF FF FF FF FF FF F7 04 00 00 00 00 00 00 00
[11:05:49.712] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[11:05:49.912] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[11:05:50.114] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[11:05:50.315] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[11:05:50.516] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[11:05:50.717] FF FF FF FF FF FF FF FF 04 00 00 00 00 00 00 00
[11:05:50.917] FF FF FF FF FF FF FF FD 04 00 00 00 00 00 00 00
MThe FB, F7, and FD are the 3 hats
Min debug, the grip constantly sends the FF, not sure if that's just the poll rate, or what
Hhi @walmis , i am still loosing ffb. But at least sometimes it seems to be only the spring force while the others are still ok. Do you have further Ideas?
BI have been experiencing something that seems to be specific to the aircraft that I'm using (Cowansim MD500E). TelemFFB throws exceptions pretty much every time I fly, and it seems to happen whenever TelemFFB attempts to generate an effect. It does not do this with the Cabri G2, which works fine. Here's the log... I'm assuming I need to add something to the config.user.ini but I don't know what.
MD500E_TelemFFB_log.txt3.95KB
N@_blave could be any number of things that aren't implemented properly in that aircraft, or in a way that TelemFFB isn't expecting (or a legit TelemFFB bug...)
But at the very least you should add the aircraft to your config as a helicopter:
But at the very least you should add the aircraft to your config as a helicopter:
B@walmis Could have the wiring diagram for the 32 input Shift register to “Main Board” - I used the diagram given by @subsonic1748 but no joy.
BWoops have to rewire, thanks
Sahhh sorry, missed that you were using the shift reg
B@subsonic1748 no probs buddy, just a quick swap of the pins and got it working
CWhat's the purpose of the 7pin Aux switch connector out of interest?
SNot sure, @walmis can answer that one
BThank you November Four Eight One. I'll give that a go!
BOK, that worked. I added this to the user config file:
[500E.*]
type=Helicopter
runway_rumble_intensity = 0.5
rotor_blade_count=5
etl_start_speed = 15
etl_stop_speed = 24
etl_effect_intensity = 0.25
overspeed_shake_start = 60
overspeed_shake_intensity = 0.2
I googled "translational lift" and more than one source says that it starts between 16 and 24 knots, so I upped the entry speed. I cannot find a reference as to when the vibration goes away. But what I did notice is that the 500E's vibration is of a higher frequency than the Cabri, which is as it should be (5 vs. 3 blades). Nice work, 481.
[500E.*]
type=Helicopter
runway_rumble_intensity = 0.5
rotor_blade_count=5
etl_start_speed = 15
etl_stop_speed = 24
etl_effect_intensity = 0.25
overspeed_shake_start = 60
overspeed_shake_intensity = 0.2
I googled "translational lift" and more than one source says that it starts between 16 and 24 knots, so I upped the entry speed. I cannot find a reference as to when the vibration goes away. But what I did notice is that the 500E's vibration is of a higher frequency than the Cabri, which is as it should be (5 vs. 3 blades). Nice work, 481.
Nsweet... keep in mind those speeds in the config are in meterts/second. So rougly cut the knot values in half (.514) to be exact. So that would be 8 to 12 m/s.
Or (I think walmis added this).. you can say 15kt and 24kt and it will be auto-converted at runtime
Or (I think walmis added this).. you can say 15kt and 24kt and it will be auto-converted at runtime
WCurrently reserved for future use, probably will be for extra buttons/switches
AWalmis with the private APIs
HI was trying to figure out what is this, and what is the aim of this feature...
Wto adjust these programatically, i.e. from TelemFFB config.ini
SSo, anybody using a 20 cm extension that would be willing to share his settings ?
Thanks
Thanks
MDoes anyone know if p3d would support simple stall stick shakers and g force load increase, along with xplane? It may not be tested but my rhino has just shipped so I can test, but just waning to know!
MP3d has sim connect so I think it would work
Nxplane has no native FFB at all, and the Telemetry software doesnt support it yet (will require a complete new effects module similar to the one for MSFS).
P3D is a fork of old FS and thus has simconnect support, but it is so ancient I don't know if it will work with pysimconnect (which is the underlying simconnect support that TelemFFB uses)
P3D is a fork of old FS and thus has simconnect support, but it is so ancient I don't know if it will work with pysimconnect (which is the underlying simconnect support that TelemFFB uses)
MAg. My brunner works nice with xplane. Well, thanks.
MBrunner works best with xplane.
MBut the rhino is way different
WI guess that's with the Brunner's telemetry software?
MYeah. You don’t even need hardware trim. Xplane automatically sends the data to brunner. If you are interested with anything brunner, ask me. I have their pedals and stick. If you even want to test it I can help with that.
MAs I am moving to rhino now.
Nam I correct in my understanding that for X-Plane it requires you to edit each aircraft to change the trim behavior so that it works properly (software trim method)?
MYes. It sucks but in the end it’s really nice, and realistic.

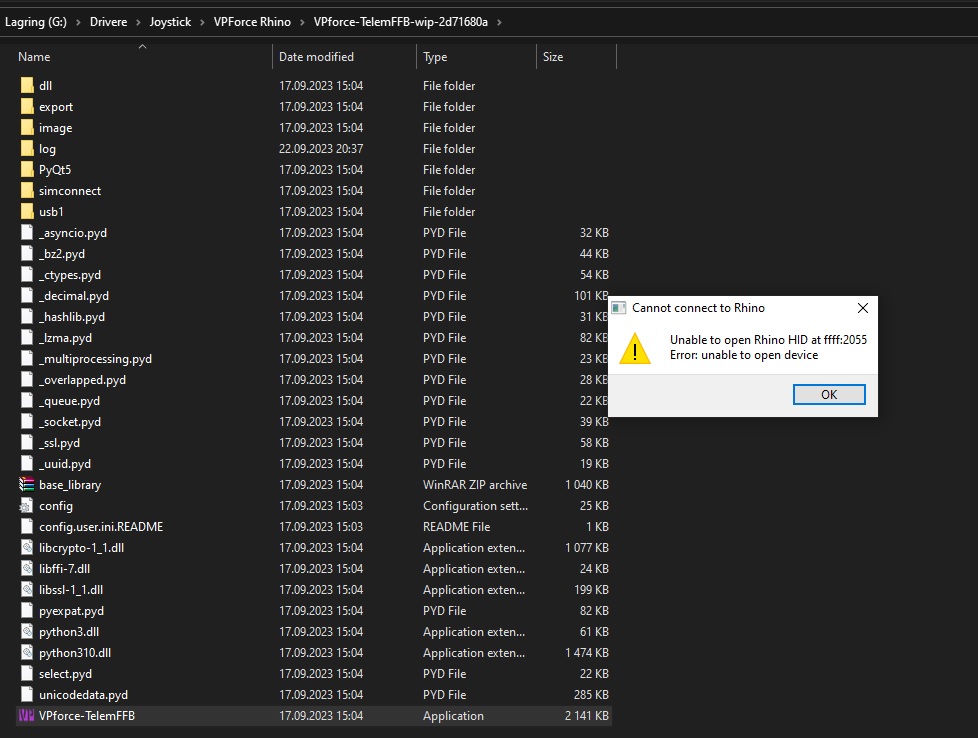

TJust got my Rhino today, reading the readme and trying to get things working, first order of business seems to be an error when trying to run TelemFFB?
Currently running Windows 10 (latest version).
Currently running Windows 10 (latest version).
Nwhat do you see here when you look at the configurator?
THang on, will advise
T2055
TAnd I did store settings in the configurator, heard an audible "blip" from the base when I did so.
Nwhat version of telemFFB are you running?
TCurrently the newest stable version, 0.1.3
Nlikely not related since afaik the older 'stable' version should still at least connect to the Rhino.. but you'll probably want the latest from here: https://vpforcecontrols.com/downloads/TelemFFB/?C=M;O=A a lot has been updated since 0.1.3
TOk, I only went with a github link, will try that one!
Have been unable to find the repository you just linked
Have been unable to find the repository you just linked
NNyou can also check out the documentation for TelemFFB in the Rhino Manual https://discord.com/channels/965234441511383080/1091401951951982602
Nit is by no means complete but may help get acclimated
TManual is where I found the github link in which I found the download link for 0.1.3.
Regardless, much obliged, I shall make all efforts to stay tuned!
Regardless, much obliged, I shall make all efforts to stay tuned!
Nthe new version may give more info as to why it is failing to connect
TUnfortunately the newest telemffb has the same issue, but as you said, probably not related
