Does the telemFFB log indicate any errors? Sounds like USB could be picking up interference or smth.
Does the telemFFB log indicate any errors? Sounds like USB could be picking up interference or smth.
Sthe only error is after some seconds the beep and the X axis disconnect with that previous error.
Wahh, try reducing the the LPF from 20Hz to 15Hz
Sits like its getting stronger with each start I do
SMotor X: FAULT_UNEXPECTED_D_CURRENT
S
Schanging from 20 to 15hz look that helped somehow but just to mitigate it
Swhat I'm doing is start the engine and stop it several times
Si'll record it
WWhat happens here when you do it?
Swhere is that?
WDebug tab
Sone sec
S
Sfirst start
Wcan you scroll loaded effects to the bottom?
Salready heppned it disconnected the X
S
Sand with it working
Sits the video I did
SI can upload it another way
Sengine rumble at 0.15 I can't make it happen
N- What is your
engine_rumble_lowrpm? Did you modify it from the default 650? - Does the effect stop (when its 'stuck) if you pause the sim?
SRecord you and your screen to clarify your points. Get vidoes organized as mind map, calendar, or any layout. And share it with a link to boost your productivity.
SI set it to 0.2 max, and at that setting that happens in the video
Nnot the intensity, the RPM value..
Sand testing the same at 0.15 it doen't happen at all after several restarts of the engine
SI just changed the value not the rpm
S
Nwith the engine stopped, but the effect still playing... look at the Telemetry output in TelemFFB.. what do you see for 'PropRPM`?
Sin the effects tab is not showing the engine rumble
Sbut i'll check
Sengine cut, and propeller read zero in the app and rhino shaking!!!

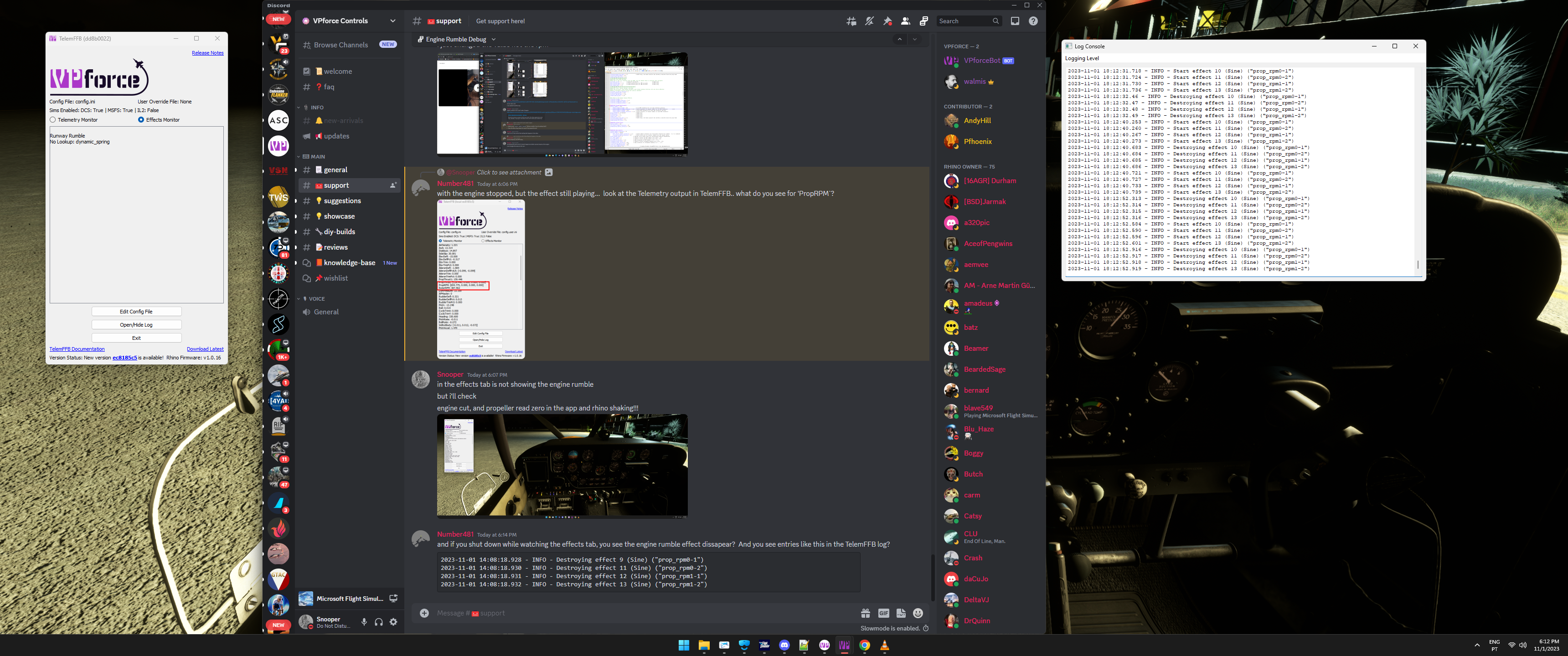

Nand if you shut down while watching the effects tab, you see the engine rumble effect dissapear? And you see entries like this in the TelemFFB log?
Syes!!
Sthe effect goes away and the log checks and the rhino keeps shaking and I only can make it stop with the emergency button or by it self with the X error
NSet it back to 0.2 in TelemFFB but drop your periodic effects slider in VPConf to %25 (and apply).. see if it still happens. That should be a pretty good indication as to whether TelemFFB is the cause, or if its something with the Rhino config
Sok, just to make sure its clear, at 0.15 I don't have the problem.. just at 0.2 and wilco.
Nagreed, but this also changes the amount of power the Rhino is pulling when generating the effects... reducing the slider in vpconf will have the same net effect
Seffects slider at %25 I cant reproduce the problem and after that I set it again to 50 and started right away with it! I managed to put it at %0 the effects slider and rhino continued to shake and then stopped it with debug - reset motors.
Sso, looks like its not TelemFFB..
WI'm starting wondering if the rumble is the result of self-oscillation.

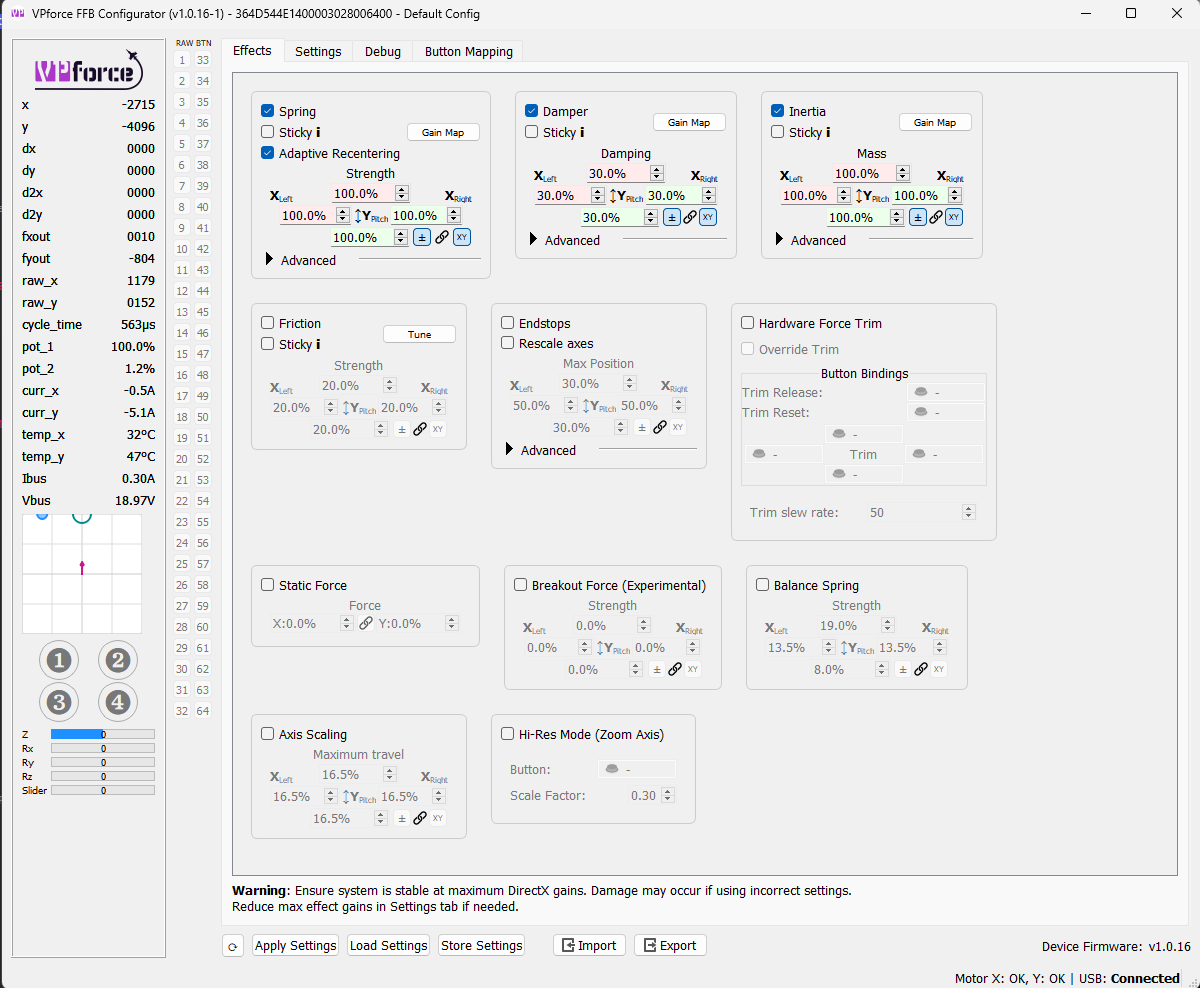

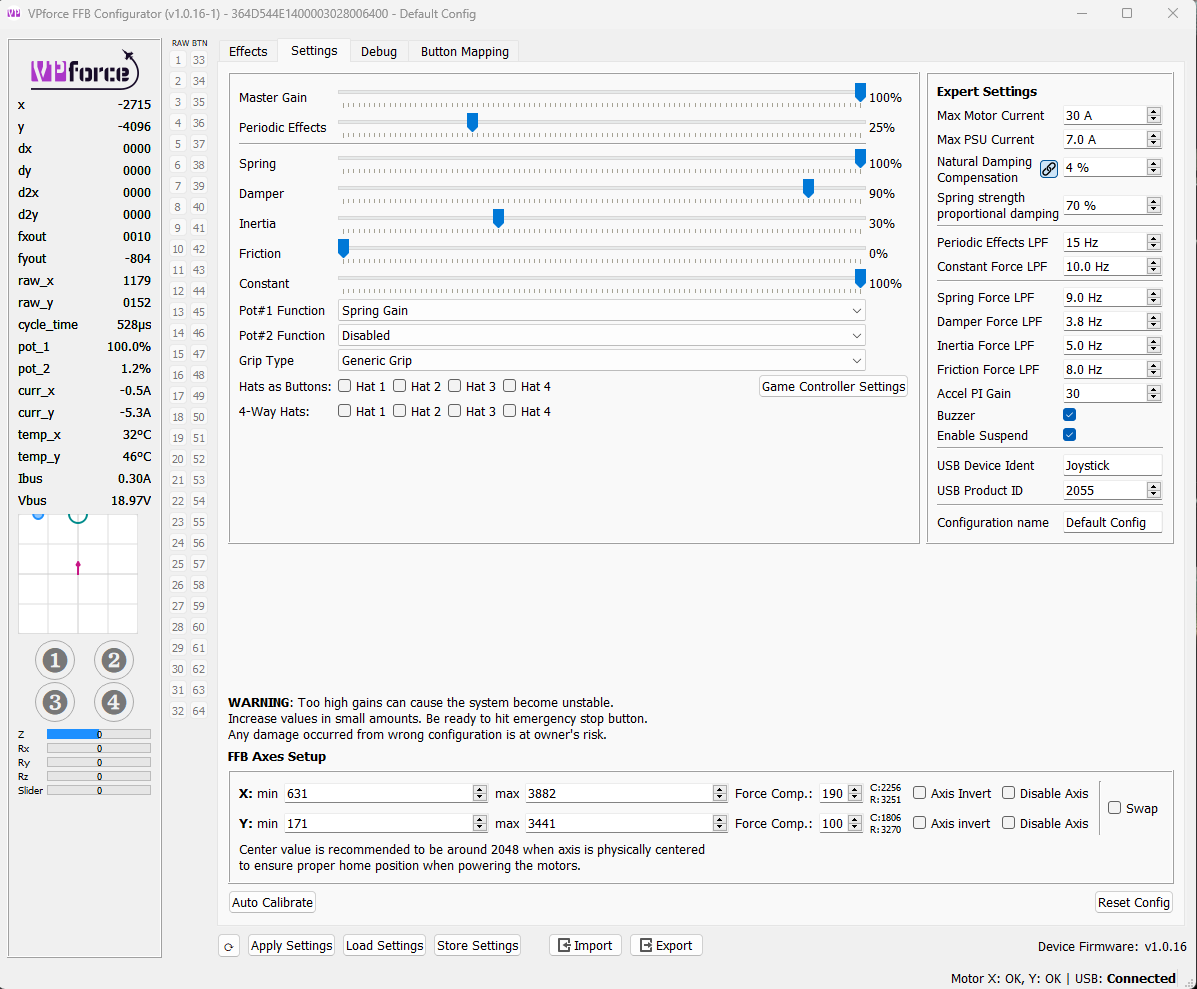

@snooperoldschool can you use the snipping tool to grab a screenshot of both effects and settings tabs
@snooperoldschool can you use the snipping tool to grab a screenshot of both effects and settings tabs
Sbut the Periodic effects LPF from 20 to 15 helped to take more time till it shows
Sok
S
S
Scould be inertia?
WYeah, it adds instability
WTry disabling it
WOr set inertia LPF to 3Hz
