Virpil hats need additional decoding, ~~do any of the existing Virpil grip profiles work for the blackhawk grip?~~

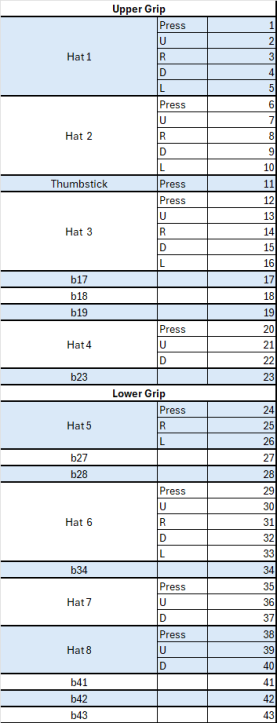

Can you DM me the "Generic grip (debug)" output in the Debug tab and I'll also need the mapping for the hats, table like this would be very useful. I'll add a new profile to the firmware

walmisOP•2/28/24, 2:06 PM

Andre•2/28/24, 2:42 PM

How do i get the Generic Grip debug output?

walmisOP•2/28/24, 2:42 PM

select Generic grip (debug)Generic grip (debug) profile

CaiJ•2/28/24, 2:58 PM

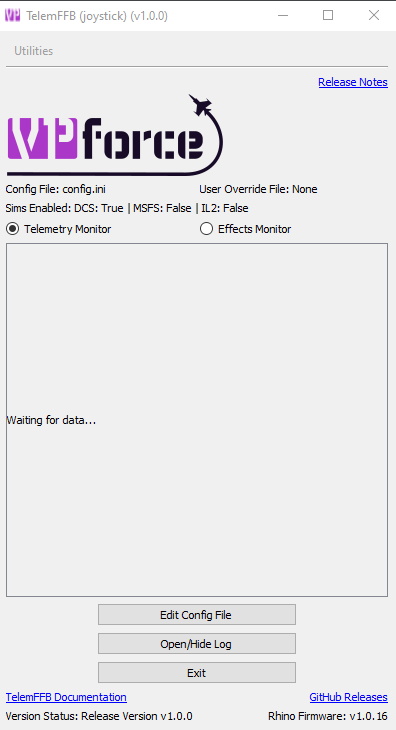

it says MSFS isnt enabled even thouigh i have the game open? anyone know how to fix?

Andre•2/28/24, 2:59 PM

Here is the CSV file. Is that the correct Debug file?

samples.csv616.64KB

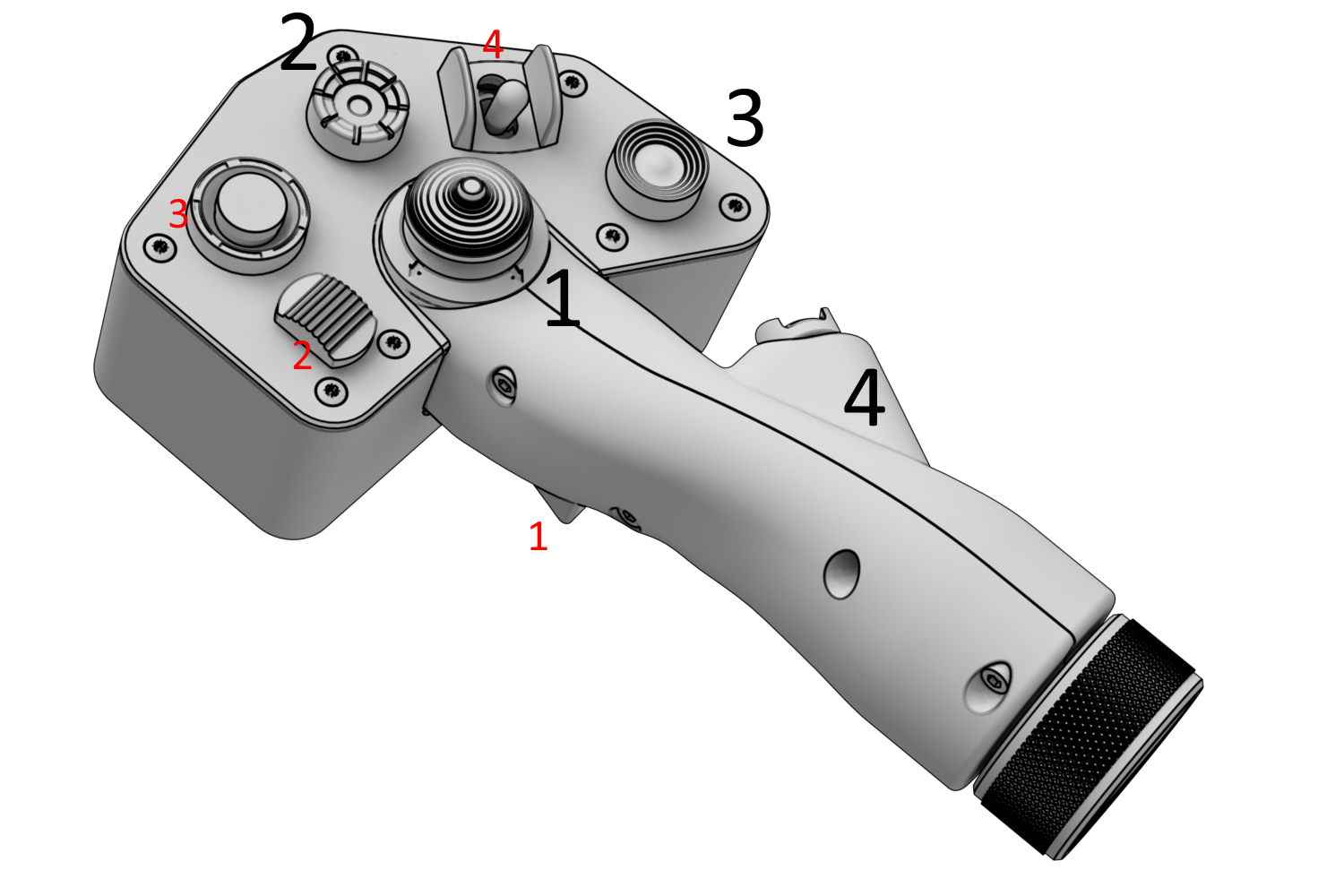

Grip_buttons.txt274B

Andre•2/28/24, 3:05 PM

Btw: the #2 Button also acts as the Hat buttons. When pressing Up. both Up (13) and Press (12) are lighted.

walmisOP•2/28/24, 3:06 PM

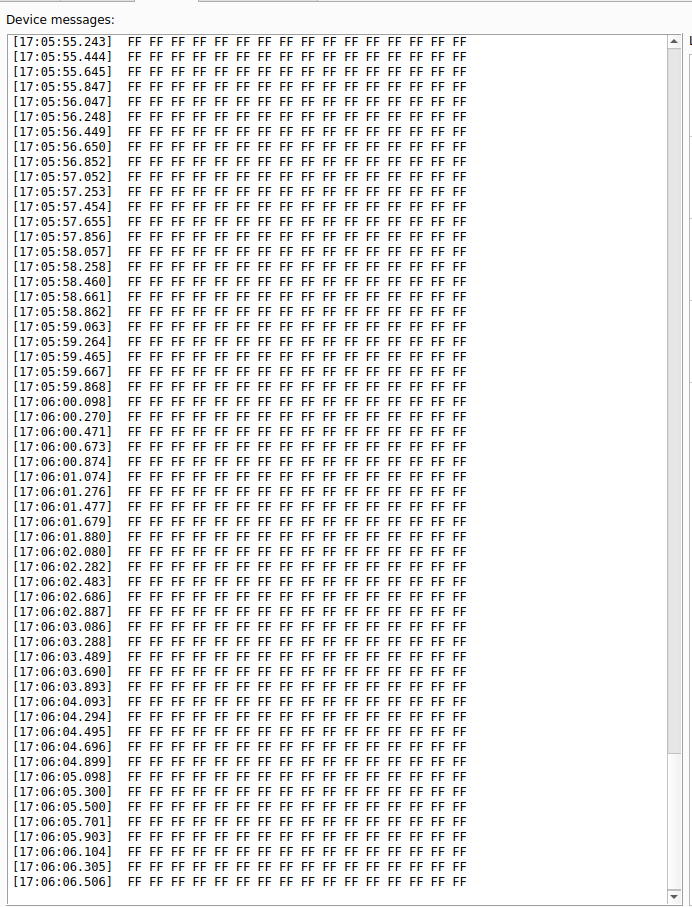

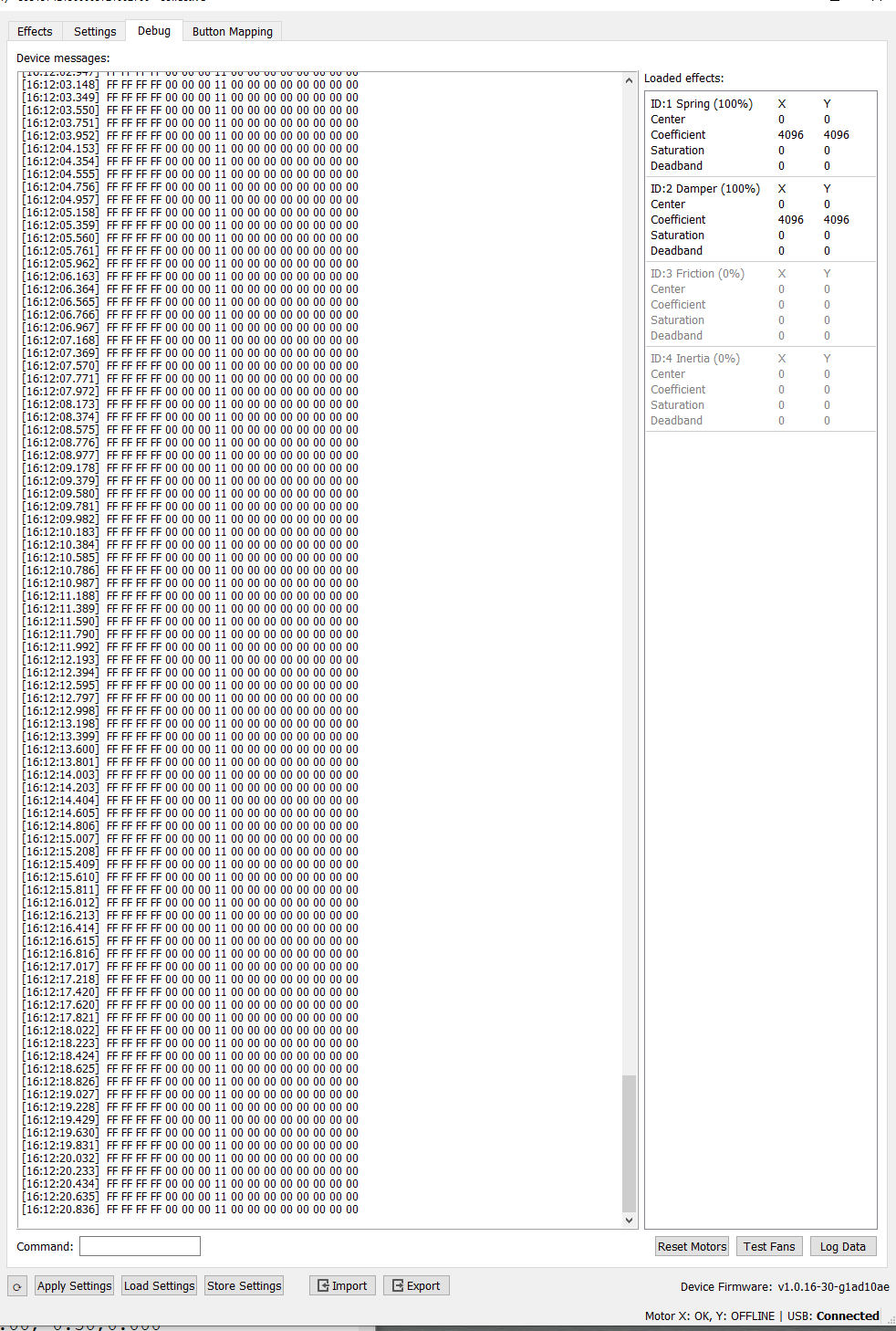

Also please include the Grip debug data as shown

CCaiJ it says MSFS isnt enabled even thouigh i have the game open? anyone know how to ...

Number481•2/28/24, 3:11 PM

1.) You'll want to grab the latest 'WiP" version (see pinned messages here: https://discord.com/channels/965234441511383080/1093558100713279508)
2.) Check out the manual (Section 4.2) https://docs.google.com/document/d/1YL5DLkiTxlaNx_zKHEYSs25PjmGtQ6_WZDk58_SGt8Y/edit#heading=h.ghj8phqmqr7y

While the WIP version is linked in the doc and the github readme, its not always obvious that you probably want that version

Wwalmis Also please include the Grip debug data as shown 🙂

Andre•2/28/24, 3:16 PM

You mean a printscreen of the debug window? Isn't that the same as the samples.csv? Sorry for being a noob..

Andre•2/28/24, 3:16 PM

Tinman•2/28/24, 3:19 PM

@walmis Hello. I think the F03 motor I purchased is DOA.

NNumber481 1.) You'll want to grab the latest 'WiP" version (see pinned messages here: http...

CaiJ•2/28/24, 3:20 PM

Got it thank youi

Tinman•2/28/24, 3:21 PM

I turned off my system and swapped with the F04 and it gave all the expected readings on the left panel. Also twisted the axis and showed movement.

Tinman•2/28/24, 3:21 PM

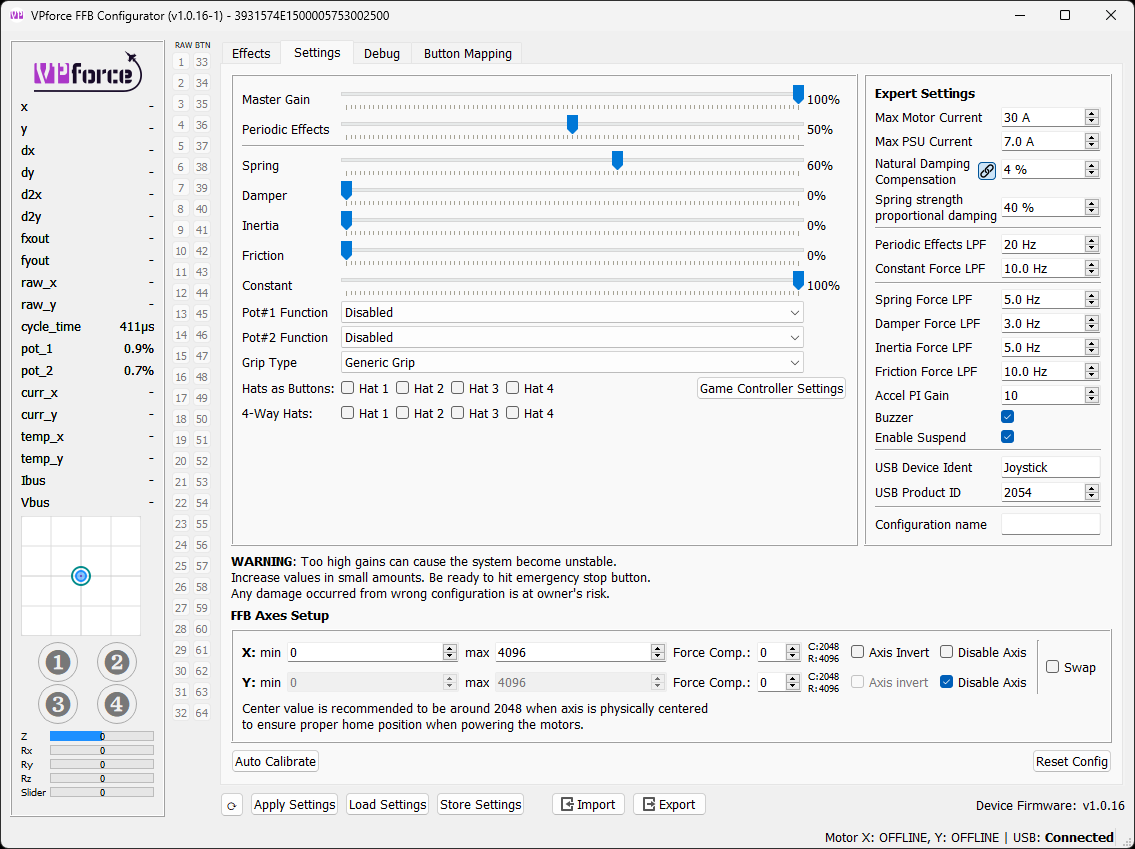

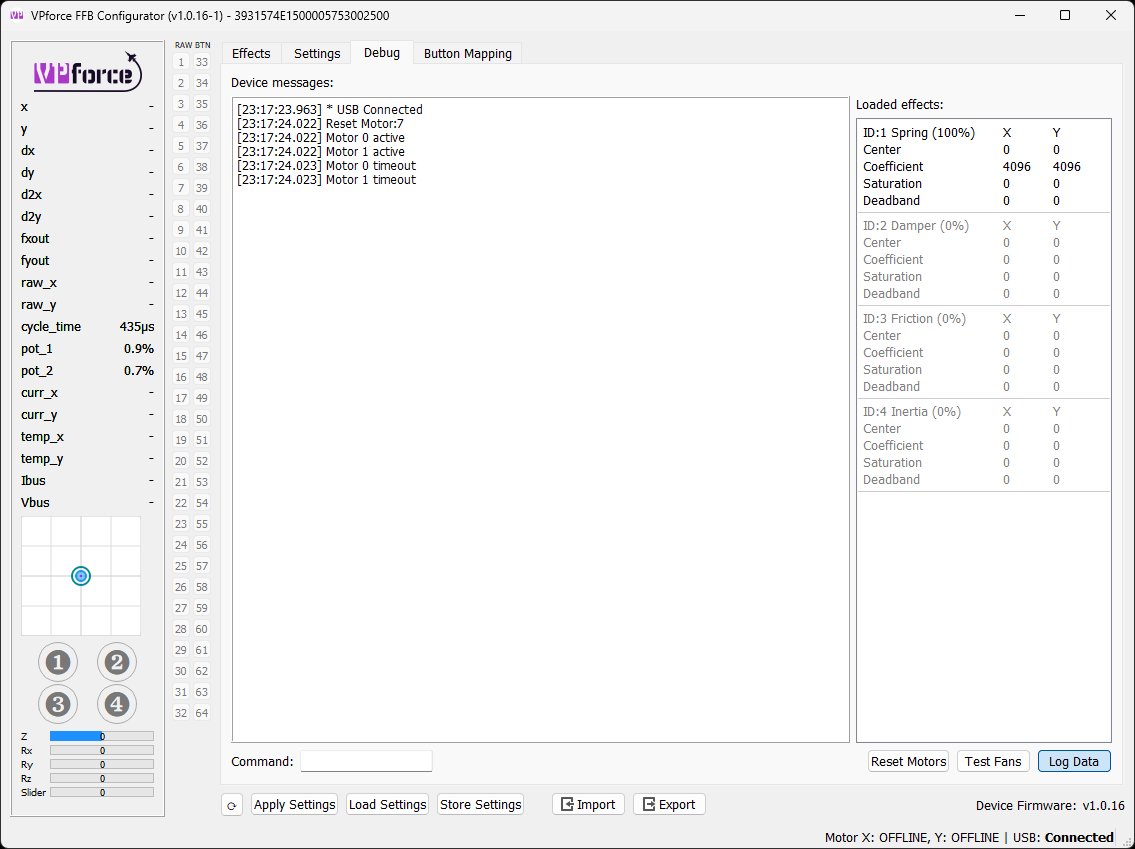

When I switched back to this F03 motor, this is what I get

Tinman•2/28/24, 3:23 PM

Tinman•2/28/24, 3:25 PM

walmisOP•2/28/24, 3:27 PM

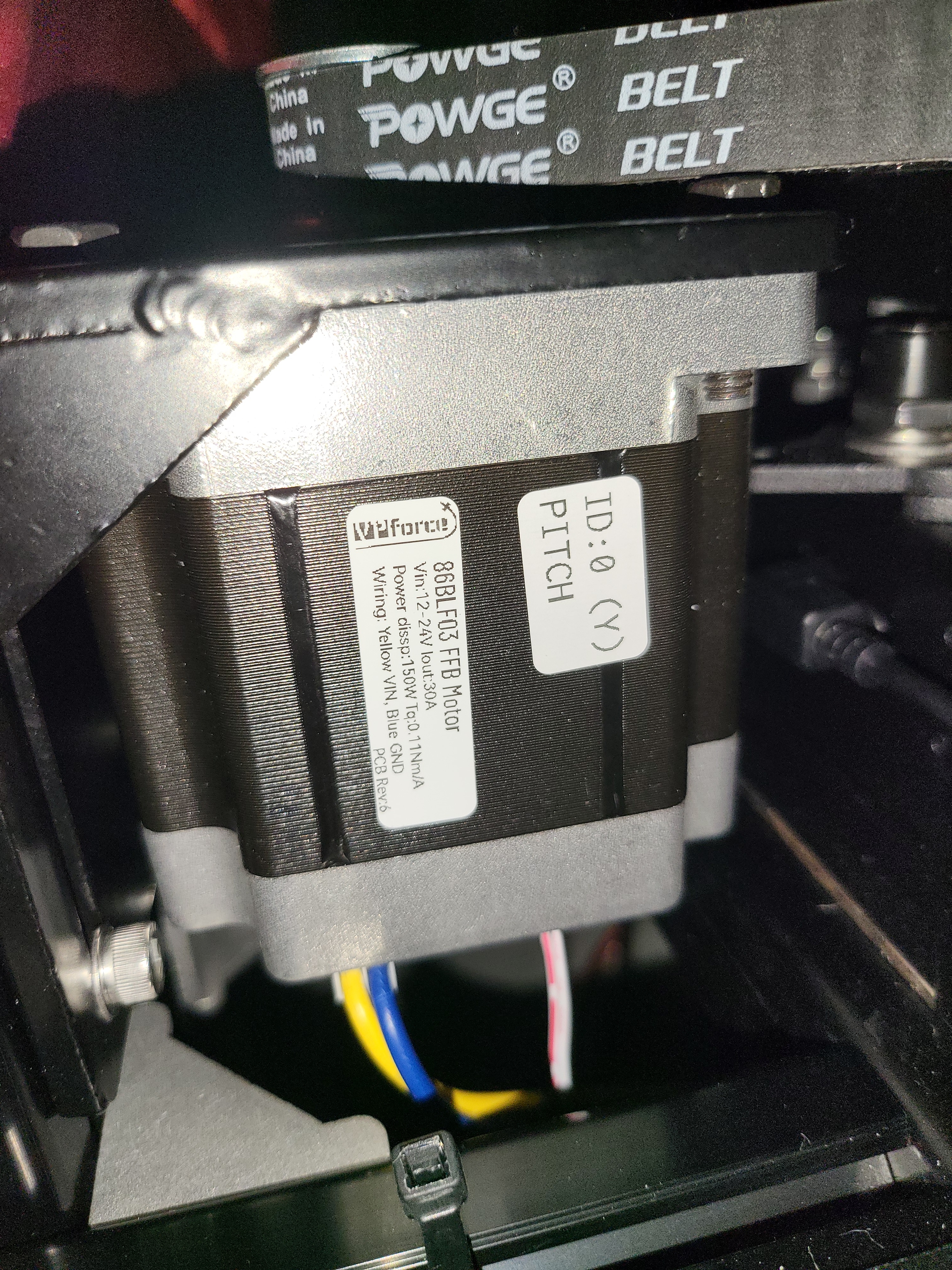

Can you check the motor IDs?

Tinman•2/28/24, 3:27 PM

hold on

Tinman•2/28/24, 3:31 PM

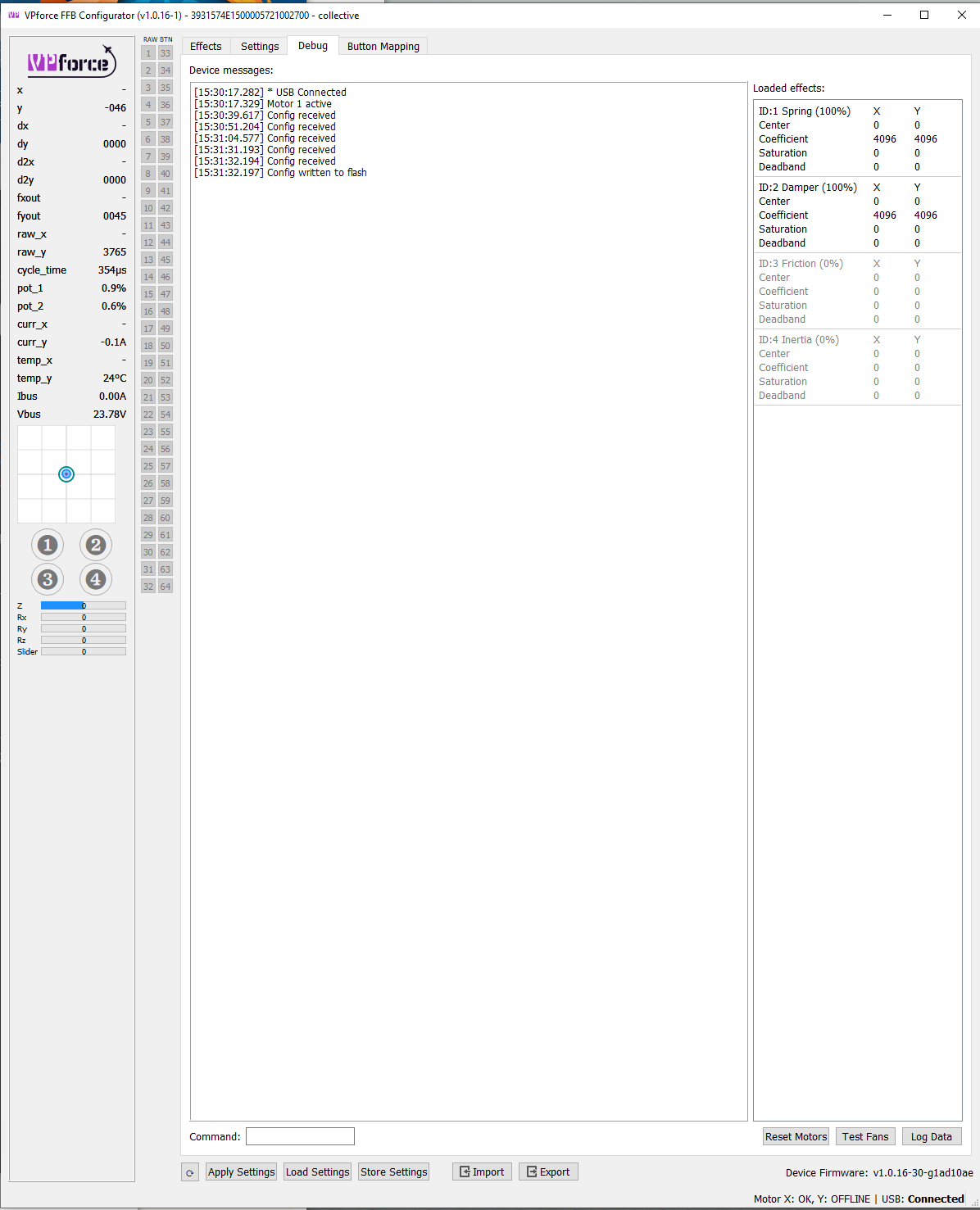

walmisOP•2/28/24, 3:31 PM

So yeah, this one is with Pitch id

walmisOP•2/28/24, 3:32 PM

You need to disable X and enable Y in the configurator

Tinman•2/28/24, 3:32 PM

Working now! Tyvm!

Tinman•2/28/24, 3:32 PM

TonyM•2/28/24, 6:20 PM

BTW, is there any information concerning the date when we will be able to preorder/order the FFB kit for the MFGs pedals?

MashedPotato•2/28/24, 6:24 PM

Last news was late Feb due to a parts shortage on the bigger motors, so hopefully any day now

Col. Sanders•2/29/24, 9:12 AM

Looking to get an extension cord for my vkb adapter. Not sure what type of cable it is. Any help?

CCol. Sanders Looking to get an extension cord for my vkb adapter. Not sure what type of cable...

walmisOP•2/29/24, 2:09 PM

It's a GX12 cable

mark turner•2/29/24, 5:19 PM

Hi, a few weeks back, I set up VP Force config with some differing profiles for various modules. I had this working nicely, so when I flew the F14,. it loaded my F14 profile, the F5 , the F5 profile etc. However, it now appears to have stopped working.....Telem FFB does not register the correct module on the GUI anymore for example, I just flew in the Hornet and Telem FFB b was saying it was an F14.....it appears stuck on F14....any ideas what might be going on and how I might be able to unfuck it? Thanks! I have checked and in the system/edit sim section, each jet has the correct vpconf file selected at the bottom.....

Mmark turner Hi, a few weeks back, I set up VP Force config with some differing profiles for ...

Number481•2/29/24, 6:27 PM

can you create a support bundle (help menu) and post that here, or post your userconfig xml file? Sounds like maybe you have an overzealous match string set up

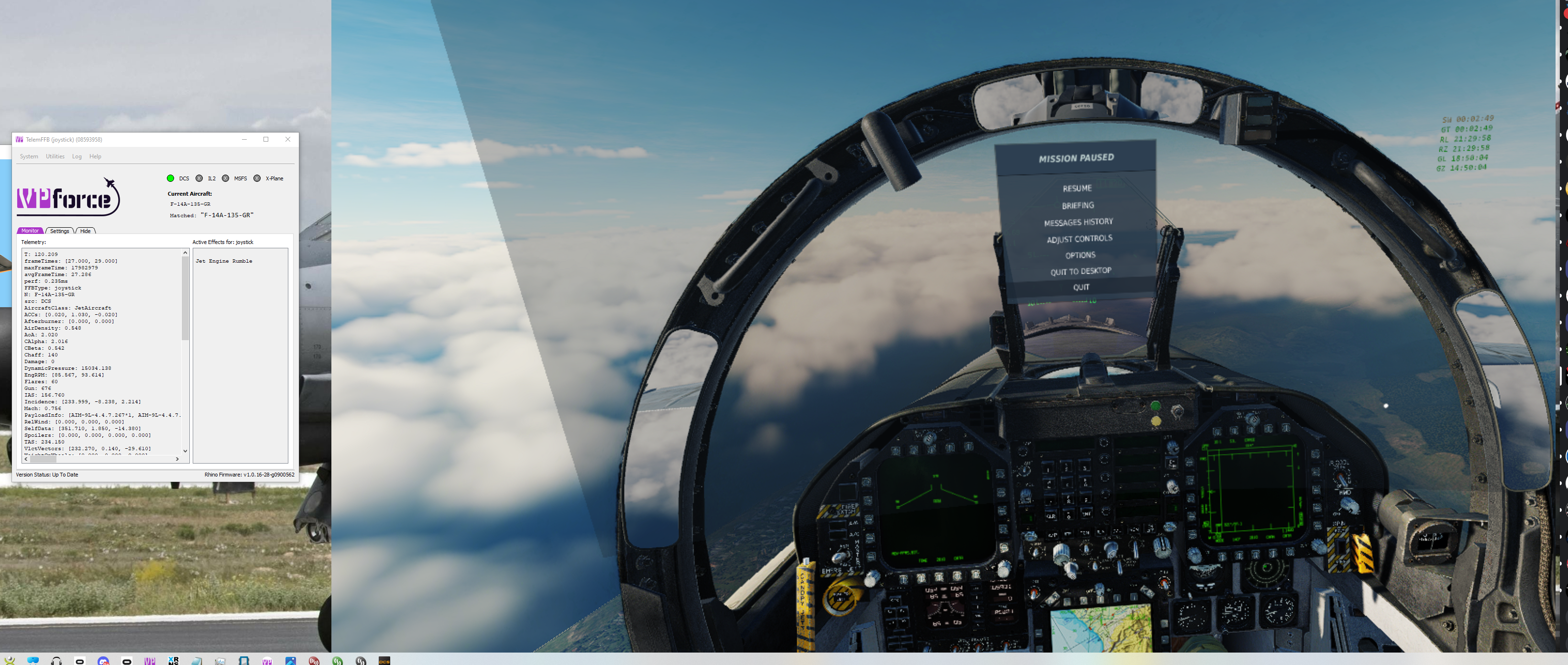

Also a screenshot of TelemFFB when you are in a aircraft like the F18, but TelemFFB is loading the config for the F14

Caprice•2/29/24, 8:06 PM

Hey @walmis I just received a 2nd rhino order near completion message, I must have been signed up twice somehow. I wanted to know that this 2nd order could be cancelled and pushed out to the next lucky customer.

NNumber481 can you create a support bundle (help menu) and post that here, or post your use...

mark turner•2/29/24, 8:11 PM

Sure, just had a look but could not find the xml file....can you point me?

smitty•2/29/24, 8:31 PM

Mmark turner Sure, just had a look but could not find the xml file....can you point me?

Number481•2/29/24, 8:46 PM

You can create the support bundle per above (which includes config and logs) or you can open the config directory from the system menu

mark turner•2/29/24, 9:33 PM

Thx, here they are

userconfig.xml32.88KB

mark turner•2/29/24, 9:34 PM

TelemFFB_Log_Archive_20240228.zip85.98KB

Mmark turner Thx, here they are

Number481•2/29/24, 9:48 PM

Hmm. That is something I’ve never seen. It’s not TelemFFB mistaking the aircraft for the F14 or a bad match string… DCS is telling us it’s the F14. The N:N: field in the telemetry is exactly what we are getting from DCS.

The TelemFFB export script doesn’t modify what we read from the sim before sending to TelemFFB so that data is coming from DCS.

Number481•2/29/24, 9:50 PM

Are you one of the super secret squirrel beta testers testing an unreleased version of DCS?

I suppose it’s possible some mod or another is messing with DCS badly enough to cause this.

You can try deleting the TelemFFB export script from DCS and then let TelemFFB reinstall it, but i doubt that will be it.

plehmann•2/29/24, 11:14 PM

getting to the order point now(finally!! ) for my Slaw F16 rudder pedals FFB conversation....and thinking the DIY FFB kit: 86BLF04 x1 + USB version- though it says out of stock

:any ideas when the 04 motor kit will be available to order again @walmis or is there a kit due soon for ffb conversation

Vitalii | VO•3/1/24, 12:09 AM

Hi @walmis, hi all, I'm having an issue. Just unpacked my DIY kit and powered it on.
Motor X is offline, Motor Y is Ok, USB is connected. Firmware is 1.0.16. The motor X looks powered and blink green. It looks like address or RS-485 is wrong or something like that.
How to fix it?.

VVitalii | VO Hi @walmis, hi all, I'm having an issue. Just unpacked my DIY kit and powered it...

walmisOP•3/1/24, 5:51 AM

Hi, disable the unused axis (Y) using the checkbox

Pplehmann getting to the order point now(finally!! ) for my Slaw F16 rudder pedals FFB con...

walmisOP•3/1/24, 5:52 AM

I hope to receive new stock during March.

NNumber481 Hmm. That is something I’ve never seen. It’s not TelemFFB mistaking the aircra...

mark turner•3/1/24, 7:48 AM

In that instance, as you can see, I was using the F18, but Telem was stuck thinking it was the F14. Going to turn everything on again this morning and check…….I will turn off all mods as well…….

Mmark turner In that instance, as you can see, I was using the F18, but Telem was stuck think...

walmisOP•3/1/24, 7:49 AM

Does the telemetry update while flying?

Pplehmann getting to the order point now(finally!! ) for my Slaw F16 rudder pedals FFB con...

Tinman•3/1/24, 8:16 AM

Just sharing unsolicited advise, The F03 motor is more than enough for rudder purposes. I'd go as far as to say the F04 is a bit overkill as just having tried both myself. With the F03, you wont even need more than 50% spring force generally speaking, how much more for the F04.

Dalbath•3/1/24, 9:41 AM

Hi, I’m searching for the type of connector used on the pcb for the motors communication wires .

walmisOP•3/1/24, 9:42 AM

It's JST PH

Wwalmis Does the telemetry update while flying?

mark turner•3/1/24, 10:52 AM

Hi guys, well this morning on restarting, it was all working as it should....so obviously some kind of PC brain fart going on...sorry to have troubled you.......

Wwalmis Hi, disable the unused axis (Y) using the checkbox

Vitalii | VO•3/1/24, 12:43 PM

Hi, I'm bulding joistick - not ruder so I need two X and Y. I've tried to disable offline motor. After that configurator can read data from online motor.
Additionally I've checked:

motor data cable is ok (both pairs)
mainboard is ok (working motor is identifiable on any data port)
Motor X is offline in any combination but it is blinking the same as other motor when not connected (motherboard is always quiet)
What to do?
Is motor Id could be updated somehow?

harf4ng•3/1/24, 6:23 PM

wonder, anybody has tried using the rhino for car racing? Unsure how to calibrate it, the in game wheel moves left / right very fast even when I do nothing, and it is barely playable so wonder if this is doable. Or I need to add a deadzone?

harf4ng•3/1/24, 6:23 PM

in project cars 2 for instance when trying to calibrate it, I need first to move the "wheel" to the max side, then move it to 90°
