New Beacon setup. No clues...

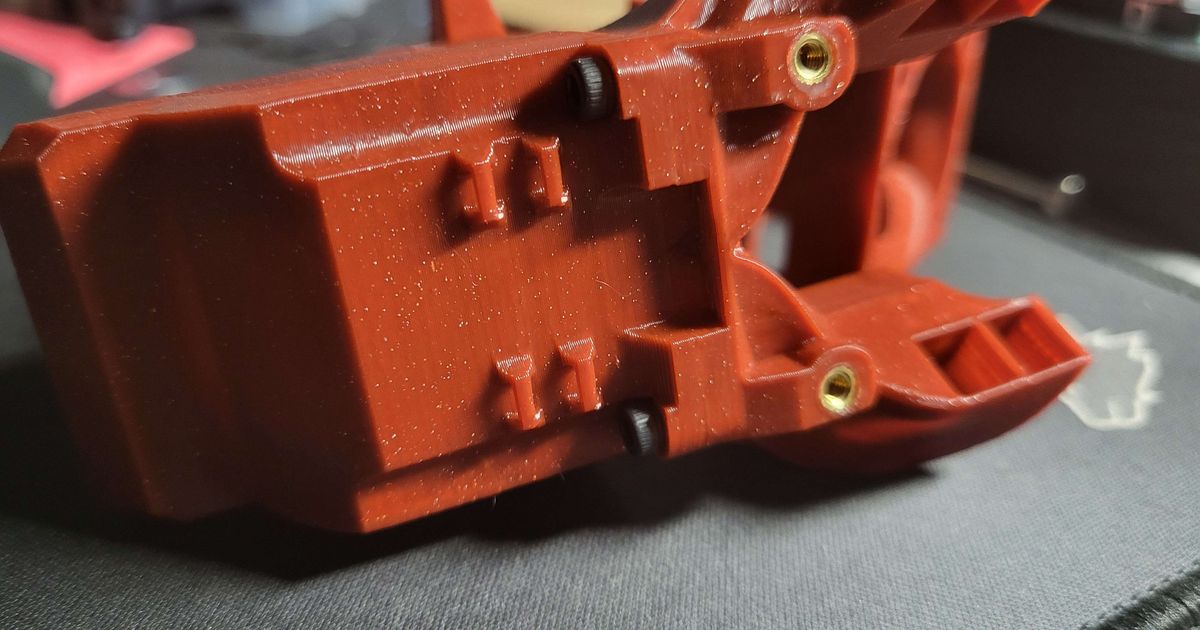

I have an enclosed 500 with the toolhead 1.0 beta2 setup. I am using the toolhead from https://www.printables.com/model/720356-ratrig-toolhead-beta2-beacon-probe-revh-mount to mount the beacon Rev H. The issue that I have is that I don't see a standard setup for it. Can someone copy/paste that chunk here so I can see what they are using?
I ended up with this but am wanting to wait to run it as I don't want the hotend dug into the printbed.
####################################################################################################
Beacon Setup
####################################################################################################
[include RatOS/z-probe/beacon.cfg]
[beacon]
y_offset: 20.676
speed: 5
#[resonance_tester]
#accel_chip: beacon
#probe_points: 250, 250, 20
[stepper_z]
endstop_pin: probe:z_virtual_endstop # use beacon as virtual endstop
homing_retract_dist: 0 # beacon needs this to be set to 0
homing_speed: 5
[bed_mesh]
horizontal_move_z: 5
mesh_min: 35,30
mesh_max:465,470
probe_count: 25,25
fade_start: 1.0
fade_end: 10.0
mesh_pps: 2,2
algorithm: bicubic
bicubic_tension: .2
speed: 300
[z_tilt]
z_positions:
0,0
250,500
500,0
points: 60,60 250,470 460,60
horizontal_move_z: 20 retries: 10 retry_tolerance: 0.02 ####################################################################################################
points: 60,60 250,470 460,60
horizontal_move_z: 20 retries: 10 retry_tolerance: 0.02 ####################################################################################################
Printables.com
RatRig Toolhead Beta2 Beacon Probe RevH Mount by JensD23 | Download...
Beacon Mount for Beacon3D RevH (only!) | Download free 3D printable STL models
2 Replies
Mine looks identical. Only thing I'd suggest is being ready to hit emergency stop first try.
I got it sorted out. Luckly I had a junk plate to "learn" with. Found out I needed to manually drive the bed up to light the probe sensor so the z limit could be set. The do the calibrate. I drove the plate into the hotend not knowing that I was setting the sensor to see the plate.
All else was easy. I adjusted the sensor places so that the z-tilt would work better.
####################################################################################################
Beacon Setup
####################################################################################################
[include RatOS/z-probe/beacon.cfg]
[beacon]
y_offset: 20.676
speed: 5
#[resonance_tester]
#accel_chip: beacon
#probe_points: 250, 250, 20
[stepper_z]
endstop_pin: probe:z_virtual_endstop # use beacon as virtual endstop
homing_retract_dist: 0 # beacon needs this to be set to 0
homing_speed: 5
[bed_mesh]
horizontal_move_z: 5
mesh_min: 35,30
mesh_max:465,470
probe_count: 25,25
fade_start: 1.0
fade_end: 10.0
mesh_pps: 2,2
algorithm: bicubic
bicubic_tension: .2
speed: 300
[z_tilt]
z_positions:
0,0
250,500
500,0
points:
50,50
250,450
450,50
horizontal_move_z: 20 retries: 10 retry_tolerance: 0.02 #################################################################################################### Took out the resonance part as the toolboard already has one.
horizontal_move_z: 20 retries: 10 retry_tolerance: 0.02 #################################################################################################### Took out the resonance part as the toolboard already has one.
