How do I find the USB ID of my ffb rudder pedal motor>
How do I find the USB ID of my ffb rudder pedal motor>
E
HYou assign it yourself in the VP configurator software. (obviously it needs to be different from the joysticks)

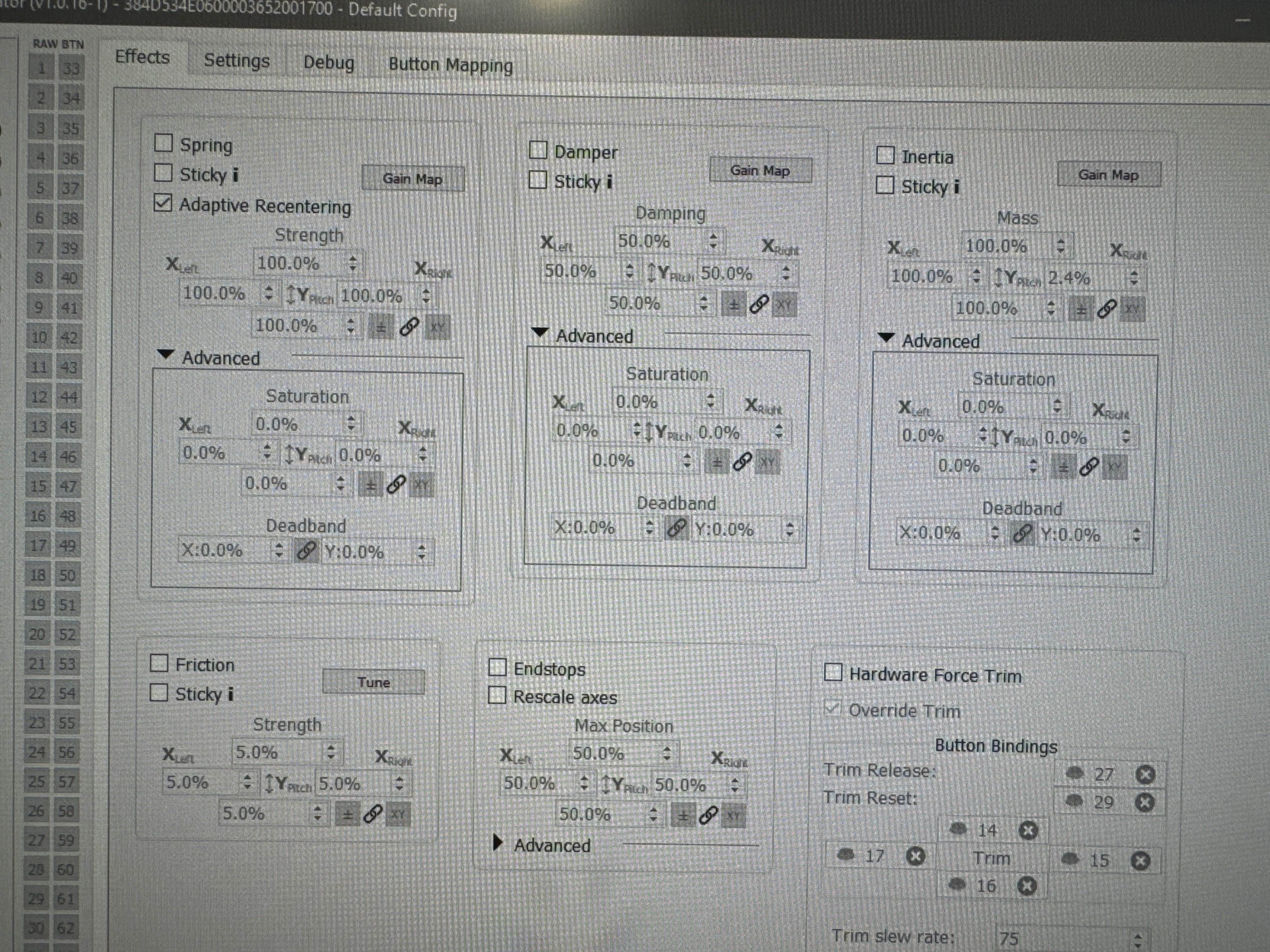

RI imported the default config and tested and i am still getting the boing effect vs what @amadeus posted in his video. I then match his settings and still have the boing. I will post a video later when I get some time of what my joystick is doing. Here are my current settings
RDont mind the pink arrow, joystick is currently off.
R
Ayeah unfort i'm pretty stumped at this point, based on what you're saying, everything should just be working as expected
NCheck your debug tab while DCS is running. The effects with black text are the active ones. Look for the damper effect. If it is grey text, DCS or something else stopped the effect you have set in configurator. Unless you have the damper override in TelemFFB set at %0 (which will actually override a sticky setting in configurator), enabling the sticky option will stop DCS from stopping the effect.
RThey settings i have checked in effects show up as black i can turn them on and off and they show black or blank depending whether on and off, so working correctly.
RR
RReset config and match your settings and still has the boing.
R@amadeus @Number481 it appears the boing on from side to side. fore and aft seem to work.
RAwhat's the debug tab look like?
R
Aalso -- probably a dumb question, don't mean to imply your dumb or anything, just want to cover obvious bases -- you are pressing Apply Settings after making settings changes in configurator?
Acan you scroll down in the Loaded Effects?
Athere's a bunch more stuff out of view
RYes sir.
A(yeah -- i think it's clear you are clicking apply btw -- since i see written to flash)
RAok -- what is interesting -- is that it looks like damping has a 0 saturation :thonk:
Rwhy would the x axis work and the y axis not
Rall settings the saturation is ero
Acan you screen shot the expanded area of Damper?
Aalso -- you only have 1 rhino right? no FFB rhino pedals or anything, right?
R1 rhino correct
Alet me compare against mine real quick
Aok yeah, i don't think that's an issue, let me boot up DCS real quick and check the loaded effects in the OH58D

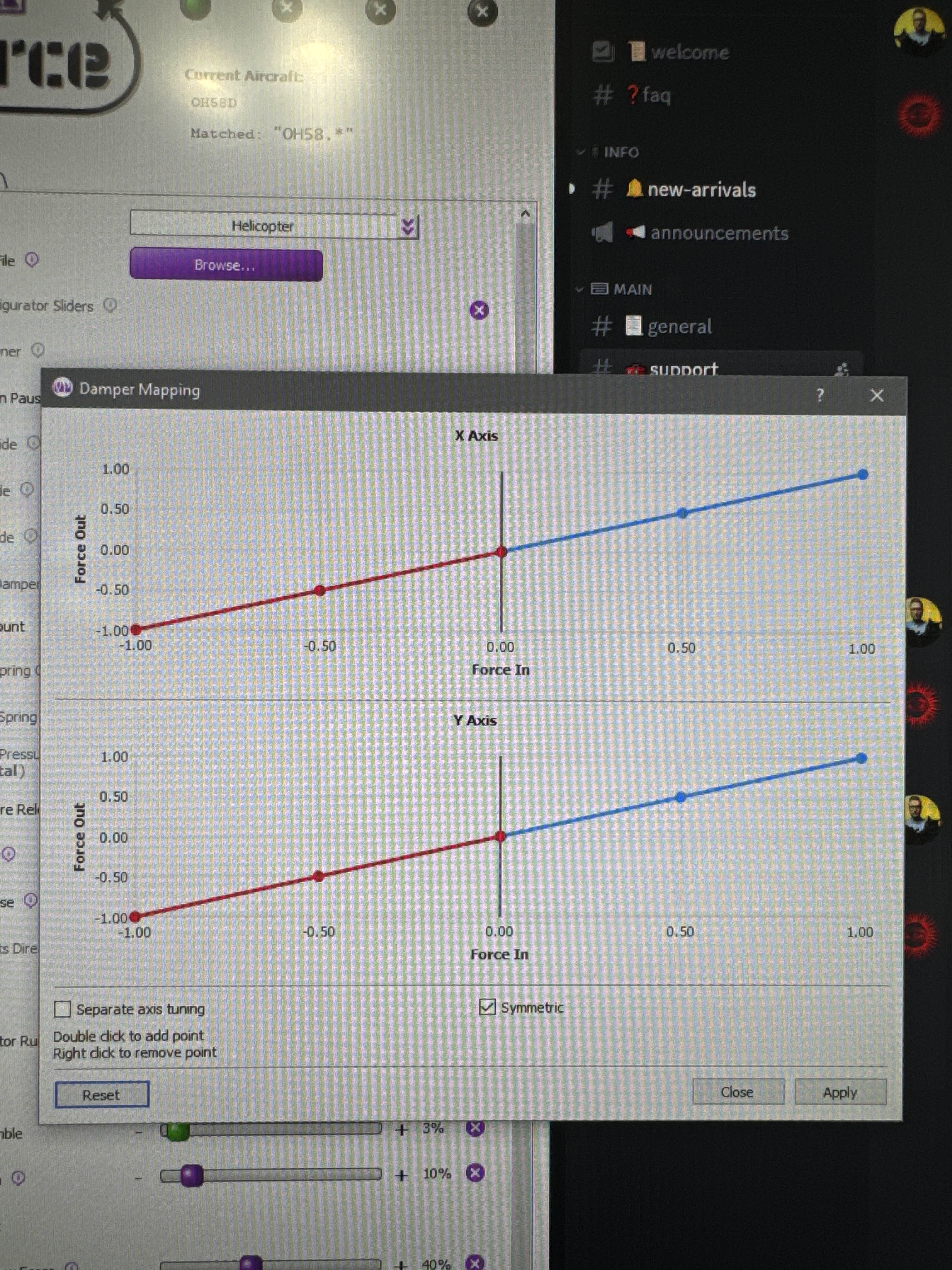

Aoh -- quick q: what's the gain map for damper look like?
R
Ayup, that's the default
Aon random thing
Aif you set Damper Force LPF in Expert Settings to 20.0hz. does that change anything?
A(obvi make sure to Apply Settings)
RYes, scares the shit out of me. The rhino just went crazy oscillation and failed with buzzer and beep.
Ahehe, kk, yeah that's probably some weird interplay with your extension, or the other expert settings
Ai don't know enough about those settings to know whether they can fight with each other, or if like, it's very dependent on whether you have an extension or not
RMy extension is 40cm
Athe only other thing i would say try, and it may still yield those chaotic resuls, is trying to match my expert settings across the board
Rit wont break anything?
Ai don't know if you got that shut down because the damper was too high relative to other stuff, or whether it was an issue with your extension
Ai think the shut down will keep things safe like it did previously, but if you're worried, wait for someone like walmis or one of the DIY guys that knows more about hardware to chime in
Rill try it
Rfailed again
Aok -- so the only other thing i can think of at this point would be -- revert back to the settings you had previously, and try maybe incrementing that damper lpf thing, in smaller increments. you originally had it on 6, maybe try 10 and see what happens
Rwhat does that do?
Adon't quote me on it -- but i believe it has to do with how it applies and mixes the forces together
Amy running theory, but i don't know for sure, is that somehow damping is not being applied properly, and so the spring is just dominating (why it might be happening more in one axis than the other might be related to the balance of your extension)
Rbalance spring wouldnt be an issue would it
