Twenty•3w ago

0.53 Field metadata settings are missing for field workspaceMember

@Jas0r @Badr

69 Replies

Hello there, if you're facing the Field metadata settings are missing for field workspaceMember while upgrading to 0.53 high chances that it means you've missed the 0.52 upgrade. First things first you need to retrieve your workspace version from your core.workspace table. If it's between 0.52.0 and 0.52.6 you will need to: - Manually update in database your workspace version to 0.51.0 ( in order for the 0.52 ugprade to run over your workspace ) - pull twenty's version 0.52.11 ( replace TAG env var value ) - run yarn database:migrate:prod - run yarn command:prod upgrade - Optionally double check that your workspace version is now correctly 0.52.11 Finally pull twenty's version 0.53 ( upgrade is not done automatically ) and check your workspace version is now correctly 0.53.X If you still face the error, unfortunately it might means your workspace got corrupted. Would recommend restoring a previous backup and apply the same process described above

Badr•3w ago

Hi! I was successfully running v0.52.8 before upgrading to v0.53 today. Do you still recommend the flow you suggest? Trying to go through what you suggest, I can't update the db.

root@gp:~/infrastructure-deployment-files/twenty# docker exec -it 4ce4723c64fc /bin/sh
# psql -U postgres -l
                                                      List of databases
   Name    |  Owner   | Encoding | Locale Provider |  Collate   |   Ctype    | ICU Locale | ICU Rules |   Access privileges
-----------+----------+----------+-----------------+------------+------------+------------+-----------+-----------------------
 default   | postgres | UTF8     | libc            | en_US.utf8 | en_US.utf8 |            |           |
 postgres  | postgres | UTF8     | libc            | en_US.utf8 | en_US.utf8 |            |           |
 template0 | postgres | UTF8     | libc            | en_US.utf8 | en_US.utf8 |            |           | =c/postgres          +
           |          |          |                 |            |            |            |           | postgres=CTc/postgres
 template1 | postgres | UTF8     | libc            | en_US.utf8 | en_US.utf8 |            |           | =c/postgres          +
           |          |          |                 |            |            |            |           | postgres=CTc/postgres
(4 rows)

root@gp:~/infrastructure-deployment-files/twenty# docker exec -it 4ce4723c64fc /bin/sh
# psql -U postgres -l
                                                      List of databases
   Name    |  Owner   | Encoding | Locale Provider |  Collate   |   Ctype    | ICU Locale | ICU Rules |   Access privileges
-----------+----------+----------+-----------------+------------+------------+------------+-----------+-----------------------
 default   | postgres | UTF8     | libc            | en_US.utf8 | en_US.utf8 |            |           |
 postgres  | postgres | UTF8     | libc            | en_US.utf8 | en_US.utf8 |            |           |
 template0 | postgres | UTF8     | libc            | en_US.utf8 | en_US.utf8 |            |           | =c/postgres          +
           |          |          |                 |            |            |            |           | postgres=CTc/postgres
 template1 | postgres | UTF8     | libc            | en_US.utf8 | en_US.utf8 |            |           | =c/postgres          +
           |          |          |                 |            |            |            |           | postgres=CTc/postgres
(4 rows)

I was expecting to find a database related to twenty A \d in the shell after running # PGPASSWORD=xxxxx psql -h localhost -p 5432 -U postgres -d postgres returns Did not find any relations.

PrastoinOP•3w ago

Should not be necessary It should be within default database Have you run both the migrate and upgrade command for your 0.52 upgrade ? Could you please share your upgrade logs ?

Badr•3w ago

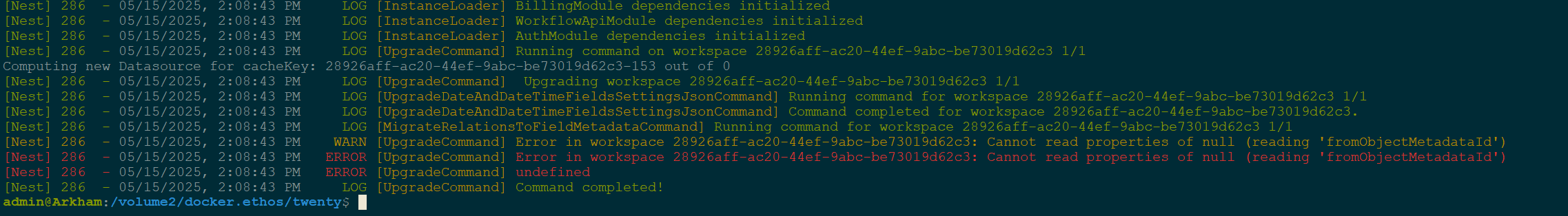

So I went ahead and did as you said, here are the upgrade logs.

message.txt

PrastoinOP•3w ago

Hey @Rob following your message from #🏡︱general

Taldres•3w ago

Hey, I'm getting the same error. I've upgraded from 0.51 to 0.52 and then to 0.53

PrastoinOP•3w ago

Ok about to prio reproducing this in about 30 mins Would anyone be up for a call in order to check your instance please ? still unable to reproduce. Or if a good willing soul could share a backup that I could restore with the minimal repro would be lovely This errors occur because your workspace does not seem to have completed the MigrateRelationsToFieldMetadataCommand command done through the upgrade one. You can manually, starting from 0.52 ( also avaiable in 0.53 ), run using

yarn command:prod cache:flush
# Then
yarn command:prod upgrade:0-52:migrate-relations-to-field-metadata

yarn command:prod cache:flush
# Then
yarn command:prod upgrade:0-52:migrate-relations-to-field-metadata

Could you please share this command logs ? @Taldres @Badr

Taldres•3w ago

@prastoin thanks. But I'm running into Field metadata settings are missing for field workflow. I could open a new thread to this specific error, if needed

PrastoinOP•3w ago

That's the same issue

Taldres•3w ago

Here are my logs

logs.txt

PrastoinOP•3w ago

@Taldres could you please share the row matching this query please

SELECT id, "objectMetadataId", "type", name, "label", "defaultValue", description, icon, "isCustom", "isActive", "isSystem", "isNullable", "workspaceId", "createdAt", "updatedAt", "options", "standardId", settings, "isUnique", "isLabelSyncedWithName", "relationTargetFieldMetadataId", "relationTargetObjectMetadataId", "standardOverrides"
FROM metadata."fieldMetadata"
WHERE "name" = 'workflow' AND "workspaceId" = 'a2c6daa8-8616-4378-b0a4-9eba41071af0';

SELECT id, "objectMetadataId", "type", name, "label", "defaultValue", description, icon, "isCustom", "isActive", "isSystem", "isNullable", "workspaceId", "createdAt", "updatedAt", "options", "standardId", settings, "isUnique", "isLabelSyncedWithName", "relationTargetFieldMetadataId", "relationTargetObjectMetadataId", "standardOverrides"
FROM metadata."fieldMetadata"
WHERE "name" = 'workflow' AND "workspaceId" = 'a2c6daa8-8616-4378-b0a4-9eba41071af0';

Taldres•3w ago

ERROR:  relation "metadata.fieldMetadata" does not exist
LINE 2: FROM metadata."fieldMetadata"

ERROR:  relation "metadata.fieldMetadata" does not exist
LINE 2: FROM metadata."fieldMetadata"

PrastoinOP•3w ago

Your metadata schema is empty ?

Badr•3w ago

@prastoin happy to share a backup. I just sent you a friend request to share it in DM.

PrastoinOP•3w ago

Hey @Rorschach in order to espace 0.52 please follow initial message process. please always do a backup before upgrading, and always upgrade to 0.52 agonistically of the patch

Rorschach•3w ago

Hi prastoin, what does "agnostically of the patch" mean?

PrastoinOP•3w ago

I wanted to mean that by pulling from the 0.52 mirror if a new patch is added it will get pulled automatically

Rorschach•3w ago

Not 100% sure what you mean, but if it isn't that important, it should be fine I am unfamiliar with postgres (normally use maria), can you give me a suggestion of which section contains the required field to alter the version?

Rorschach•3w ago

PrastoinOP•3w ago

No worries, should be located at default.core.workspace table in schemas

Rorschach•3w ago

This is what I have under schemas, I can see nothing that looks relevant under 'core'

Rorschach•3w ago

Okay, this appears to be the correct place, where does the version number get entered?

PrastoinOP•3w ago

Depends on your database GUI/explorer but I would tend to think you can find an edit option ? What's the current value still ?

Rorschach•3w ago

I'm looking around for a 'version' value but can't see one

PrastoinOP•3w ago

Please double click on workspace table to see value I guess, what software are you using to iterate through your db ?

Rorschach•3w ago

pgadmin

Rorschach•3w ago

This is where I currently am

PrastoinOP•3w ago

Please run SELECT * from core.workspace; as query

Rorschach•3w ago

Okay I found it I think

PrastoinOP•3w ago

Please share the value

Rorschach•3w ago

PrastoinOP•3w ago

Please pull latest 0.52 version by changing your .env TAG=0.52 To finally upgrade following https://twenty.com/developers/section/self-hosting/upgrade-guide#v0.51-to-v0.52 Nothing blocking here

Rorschach•3w ago

Do I still amend the version within pgadmin to 0.51.0?

Rorschach•3w ago

Running the upgrade commands without amending the version results in the following error

PrastoinOP•3w ago

No need Please run the migrate command before the upgrade

Rorschach•3w ago

Hi, I did that (and just repeated the process to confirm)

PrastoinOP•3w ago

What version are you using exactly ?

Rorschach•3w ago

The twenty server container is 0.52

PrastoinOP•3w ago

Have you restarted your containers ? Please review your workspace version in order to check if has been migrated to 0.52 My hunch is that you haven't refreshed your twenty instance to 0.52 correclty

Rorschach•3w ago

I did a compose up with --force-recreate Worth noting only the server container has the 0.52 tag set

Rorschach•3w ago

This is the set of container as they are now

Rorschach•3w ago

Database still reports 0.51.1

PrastoinOP•3w ago

docker compose down docker compose up

Rorschach•3w ago

That has already been done I will do it again though

Rorschach•3w ago

Did a compose down, deleted unused images, compose up (redownloaded images), re-ran upgrade commands and had a different error

dialnco•3w ago

did you migrated (dump & restore) dbs to new postgres?? remember having similar issues related to corrupt data state (had to repeat dumping and restoring a couple of times to fix)

Rorschach•3w ago

Nope

PrastoinOP•3w ago

Hey @Rorschach @dialnco is right since 0.42 we do not support spilo postgres image anymore please find official migration here https://twenty.com/developers/section/self-hosting/upgrade-guide#(option-2)-database-migration

Rorschach•3w ago

Oh, I did this process at the time

PrastoinOP•3w ago

from this screen looks like you still use spilo db

Rorschach•3w ago

Will check this out later When doing the dump/restore, am I deleting the original database prior to doing the import?

dialnco•3w ago

dont delete the db! I recommend creating a new staging project and test if you can migrate your data successfully first to the new staging project with the new db. After you confirm your dump and restoration flow is successful then you can proceed to use your staging as your main.

Rorschach•2w ago

Sorry dialnco, but I have no idea what you mean by "new staging project" After a bunch of failed attempts to migrate/upgrade/whatever, I now have a backup of the original db in a "databases_backup.sql" What exactly should I be doing with this to put something back into production ie) what version of Twenty should I spin up to be able to use this

matspi•2w ago

I see the same errors. I restored a backup with version 0.52.0 and still cannot upgrade, nor is it working anymore with server-version 0.52.0. In the database I see that columns "relationTargetFieldMetadataId" and "relationTargetObjectMetadataId" are empty for all rows but 2. Any hints?

PrastoinOP•2w ago

please use latest 0.52 patch version and double check your workspace version value

matspi•2w ago

I use tag v0.52 of the docker image. I changed the version in the db by doing update core.workspace set version='0.51.0'; Still get

[Nest] 128 - 05/19/2025, 11:51:21 AM LOG [UpgradeCommand] Running command on workspace c73dbca2-bbc6-44e1-b4c0-07a2092714c0 1/1 Computing new Datasource for cacheKey: c73dbca2-bbc6-44e1-b4c0-07a2092714c0-26 out of 0 [Nest] 128 - 05/19/2025, 11:51:22 AM WARN [UpgradeCommand] Error in workspace c73dbca2-bbc6-44e1-b4c0-07a2092714c0: Field metadata settings are missing for field workspaceMember [Nest] 128 - 05/19/2025, 11:51:22 AM ERROR [UpgradeCommand] Error in workspace c73dbca2-bbc6-44e1-b4c0-07a2092714c0: Field metadata settings are missing for field workspaceMember [Nest] 128 - 05/19/2025, 11:51:22 AM ERROR [UpgradeCommand] undefined [Nest] 128 - 05/19/2025, 11:51:22 AM LOG [UpgradeCommand] Command completed!

PrastoinOP•2w ago

You have to target a specific workspace in order to mutate the version Please double check the value of your workspace version before and after mutation attempt to assert it has been modified

matspi•2w ago

I have only one workspace in the database:

twentycrm=# select count(*) from core.workspace ; count ------- 1 (1 row)

After the update, it is set to 0.51.0:

twentycrm=# select version from core.workspace; version --------- 0.51.0 (1 row)

Anit was 0.52.0 before

Rorschach•2w ago

Also, during the import of my .sql file into postgres, it appears to be mostly successful aside from these error messages at the end... are these of any concern, or even related to the login message?

Rorschach•2w ago

Thanks in advance for any further input

Taldres•2w ago

@prastoin Hey 🙂 I'm at 0.54 rn 🙂 It worked for me to set the version in the workspace table row to 0.51 and metadataVersion to 51. After that I upgraded version to version

PrastoinOP•2w ago

Glad to hear that @Taldres ! Congrats Enjoy coding !

Taldres•2w ago

Thanks for your time ✌️

PrastoinOP•2w ago

GitHub

Upgrade from v0.52.11 to v0.53.0 failed · Issue #12030 · twentyhq...

I am currently on v52.11, trying to upgrade to v0.53.0, v0.53.2, and the latest (by changing the tag), all unsuccessful. root@hs3:~/twenty# docker compose down; docker compose up -d WARN[0000] The ...

rebelliouswhiz•2w ago

Hi everyone, I just got some time today and am reviewing the solution. I think my issue is not the same. For the solution @Prastoin provide, it's more for: Error in workspace ...: Field metadata settings are missing for field people But my issue was originally:

Error in workspace 22a31f1b-091e-4b2d-b0c7-2a2c02c4f847: Field c7f7233c-35be-48dd-a93f-de6e520267b8 of type RELATION  is a many to one relation but does not have a join column name

Totally different. I am in a kinda awkward situation checking if I should open up the issue again, or just checking.. I followed the instruction, and it was not helping my case. I am trying back-and-forth with the version to see if there's more clues I can get.

rebelliouswhiz•7d ago

I was able to jump v0.53 from v0.52.11 and updated directly to v0.54.6, but when I try to log in to the system, I get this

PrastoinOP•7d ago

Hello @rebelliouswhiz you should never skip upgrading a version If you can't upgrade from a 0.52 backup high chances that it means your workspace got corrupted anterioraly after not being ugpraded incrementally

Antonio Pinto•5d ago

Hello Going from 0.52 to 0.53 and getting this:

WARN [UpgradeCommand] Error in workspace 9827aaba-3e8c-4bd0-9620-4fe3a1124e08: Field metadata settings are missing for field workflow

WARN [UpgradeCommand] Error in workspace 9827aaba-3e8c-4bd0-9620-4fe3a1124e08: Field metadata settings are missing for field workflow

What can I do?

PrastoinOP•5d ago

Hey @armochillo, please refer to https://github.com/twentyhq/twenty/issues/12030#issuecomment-2907698243

GitHub

Upgrade from v0.52.11 to v0.53.0 failed `Field metadata setting...
