potential and field
A is def correct
B. E due to induced charges + E due to dipole = 0 so Einduce = -Edipole = given term
C. potential due to induced charges = 0 , potential due to charge on sphere = kQ/R , potental due to dipole = kp/(2r)^2 so net potential at C = kQ/R + kp/4R^2
D. ik Vnet at D = Vind + Vdipole + Vsphere = kp/R^2+ kQ/R + Vind
83 Replies
@Gyro Gearloose
Note for OP
+solved @user1 @user2... to close the thread when your doubt is solved. Mention the users who helped you solve the doubt. This will be added to their stats.What seems to be the doubt?
basically every part except A
i dont have the ans key so need to be sure
Also is this from ayjr of this year 😭
idk ...
Your reasoning for B seems correct. As for C, the potential inside the sphere will be kQ/R only (because of electromagnetic shielding). As for D, the induced charges will have a tendency to keep the potential the same throughout the sphere, we know that the potential at the center is kq/r and that due to dipole is kp/r^2, so V_ind+V_dipole+kq/r=kq/r, which means D is incorrect ig.

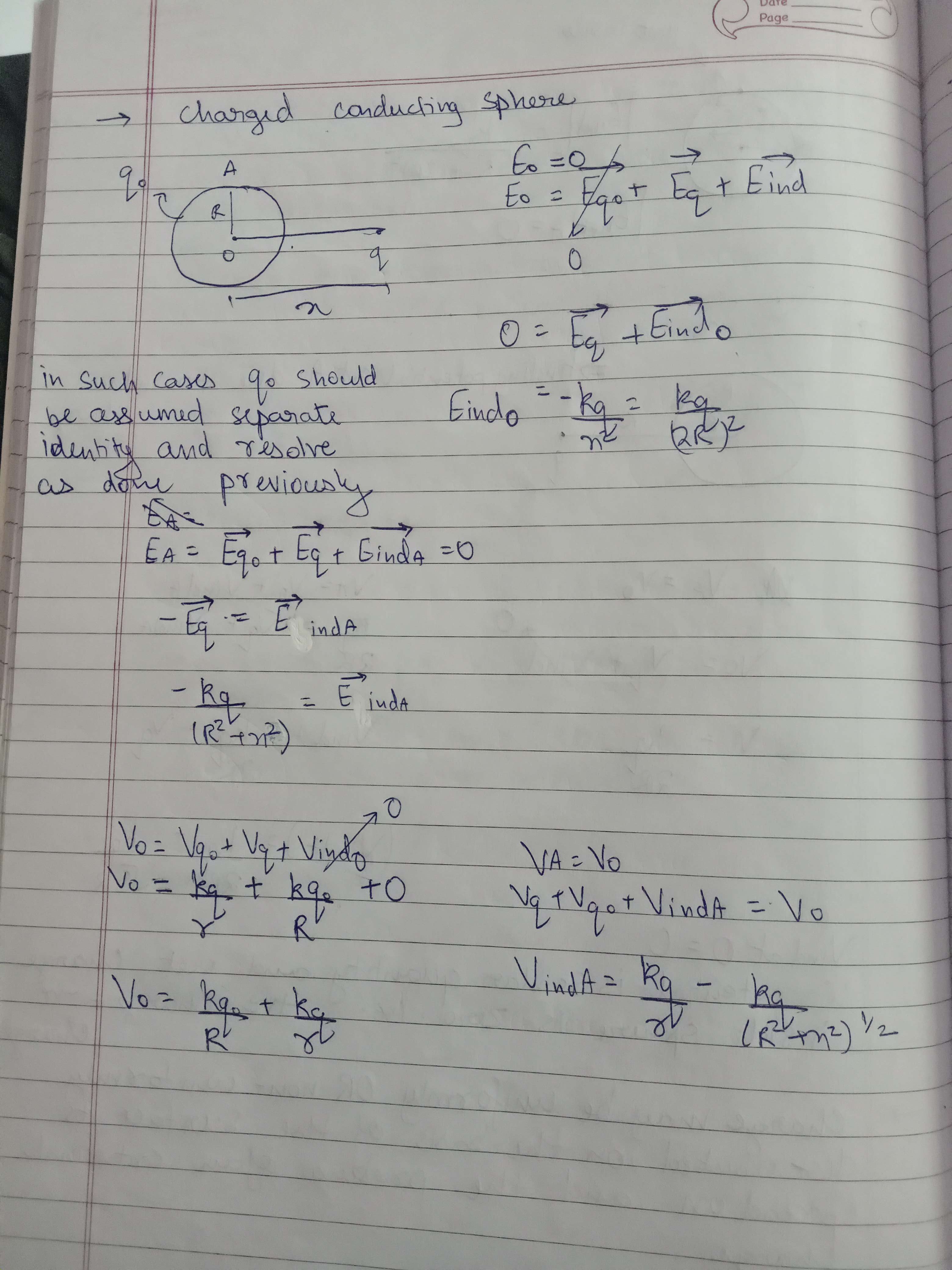

This article shows a conducting sphere of charge qo. An external charge q is placed distance x from centre with O as centre and A as a point just inside sphere
Is this discussion invalid
(In context of option c)
if i clear out Vc i can just do Vd= Vc = Vind + Vdipole + Vsphere = kp/R^2+ kQ/R + Vind
to get V due to induced charges on sphere at point D
wont we just add the potential due dipole + potential due to Q charge across the conducting sphere at C since well the sphere is conducting
yeah i think the same
Vc = kQ/R + kp/4R^2
electrostatic shielding tell us about the electric field at C iirc.
at C electric field will be only due to charge induced on inner portion of conductor
yeah potential remains same as the charges just rearrange
electric field at c gonna be 0 so Edipole = Echarges on sphere
true
so A and B are 100% correct
yepp and D too since we did Vc - V (due to dipole at D)
but Vc hi toh confirm nahi ho rha
ye hai
But the field inside a hollow sphere is zero, no?
Hence the potential remains constant?
*This. The field inside the conductor is zero, so you can view it as only the charge on the outer surface of shell has rearranged, while outside charge doesn't influence C, ig.
yes so potential on surface is same as potential at centre
before the dipole it was KQ/R but after the dipole is placed, it becomes KQ/R + KQ/4R^2
But the inside of the sphere is not affected by the outside stuff though right? Or am I tripping?
'Cuz of electromagnetic shielding and stuff?
i think that just means that charge rearranges to ensure there is no net electric field inside
but potential does change
also like logically all charges are still at R dist so potential due to Q charge on sphere is still KQ/R since potential is algebraically added...and potential due to dipole simple gets added since it's positive
This is for electric field right.. the shielding part. You can say that for electric field and change in potential, the outer charges won't influence the situation going on inside the shell. But potential at a point will be influenced by it. A,B and D are correct ig.
Electrostatic shielding discusses electric field and not potential
Remember , if E = 0 then V may or may not be zero but dV= 0
Yeah, I'm confused too. 😭
Do ping me if you find the answer.
Alr lol
Finally it's ABD
