pressure
the given ans is c
but my logic is wont the water put some force on the block making the force more?
9 Replies
Note for OP
+solved @user1 @user2... to close the thread when your doubt is solved. Mention the users who helped you solve the doubt. This will be added to their stats.@Gyro Gearloose

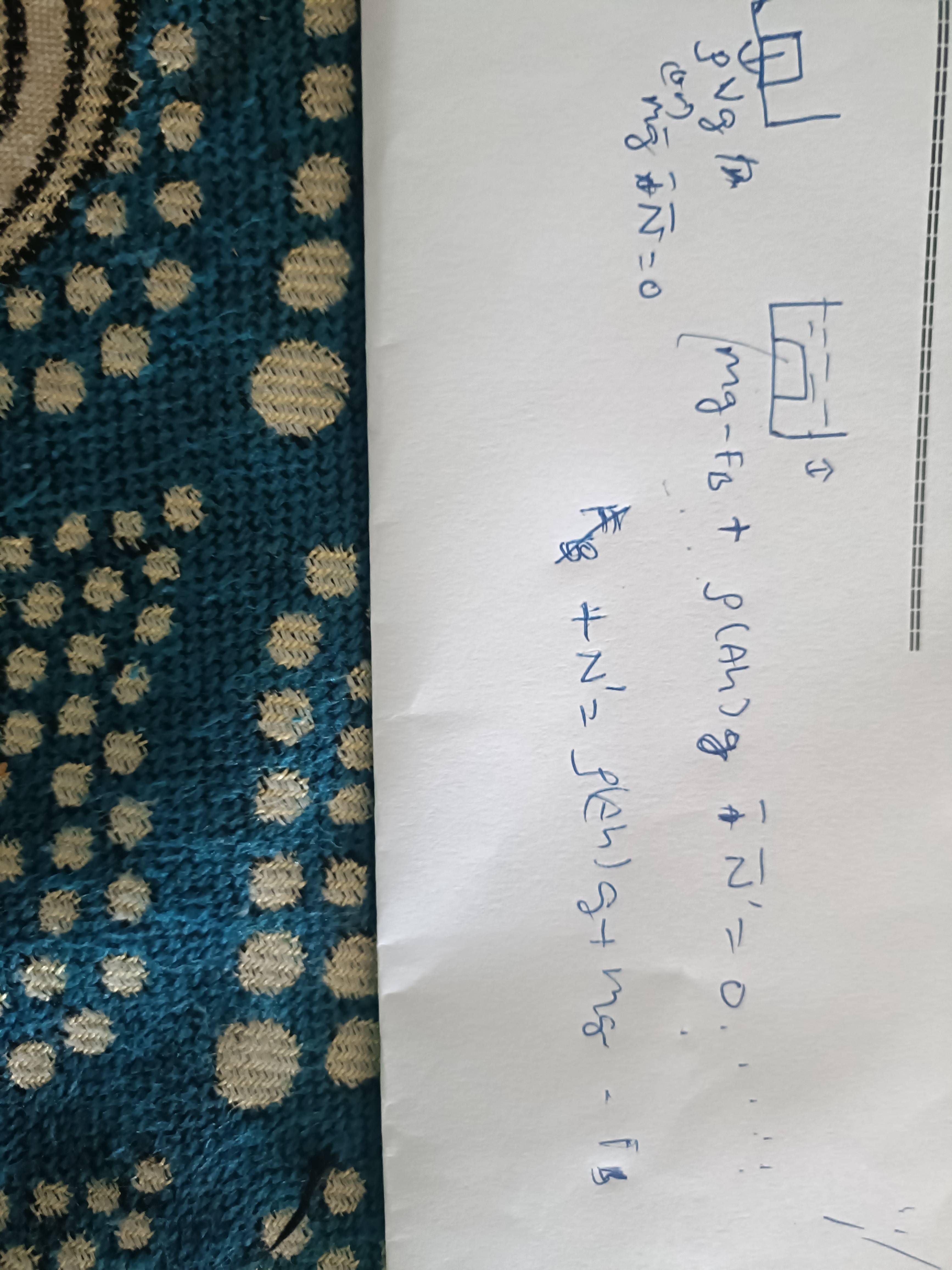

Drew FBD for when cube is not immersed and immersed
Equate net force acting on cube to zero
When not immersed N=mg
When immersed with a height h above the cube, write expression for N' (in picture)
N'=mg when
h=0 (height of liq above cube)
Fb=0
Which means we need to take the assumptions
1)block is just immersed
2) there is no liquid between cube and vessel so buoyant force is zero
but why do we take second assumption?
yes from the contact of the cube abd the vessel
The cube is touching the bottom, assuming ideal conditions (btw cannot happen irl), there should be no water in between
This question is some thought experiment
Hc verma sir cooking in objective II fr
lord
ok
+solved @coolguy.
