@Gyro Gearloose
Note for OP
+solved @user1 @user2... to close the thread when your doubt is solved. Mention the users who helped you solve the doubt. This will be added to their stats.
anyone?
Oh wait
Na aise nahi hoga

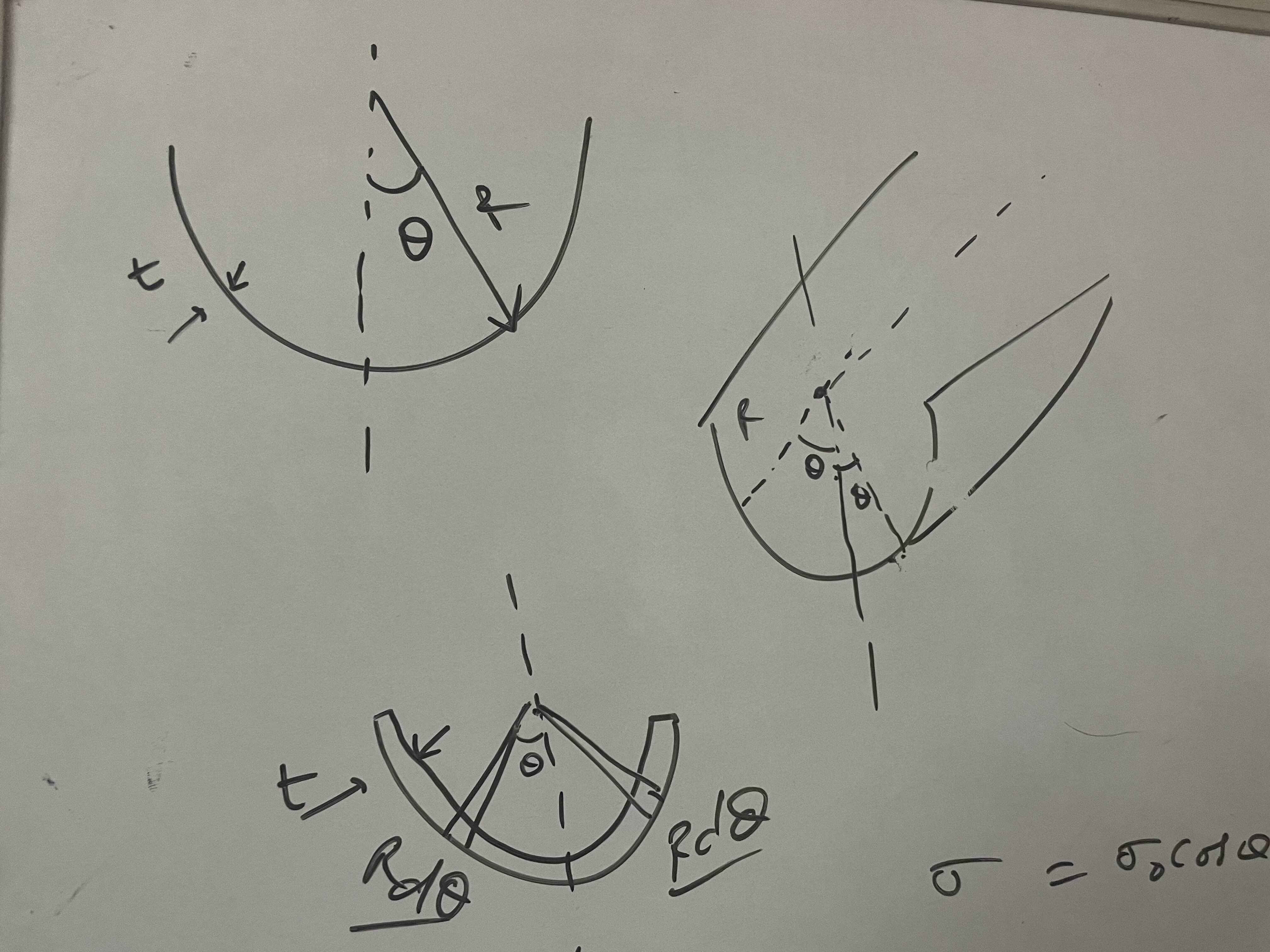

2 ring element maano
uska thickness t rhega
To usko ek long wire ki tarag treat kr sakte hai
Lekin kyuki conductivity vary kar rhi rhi to resistance vary krega with theta

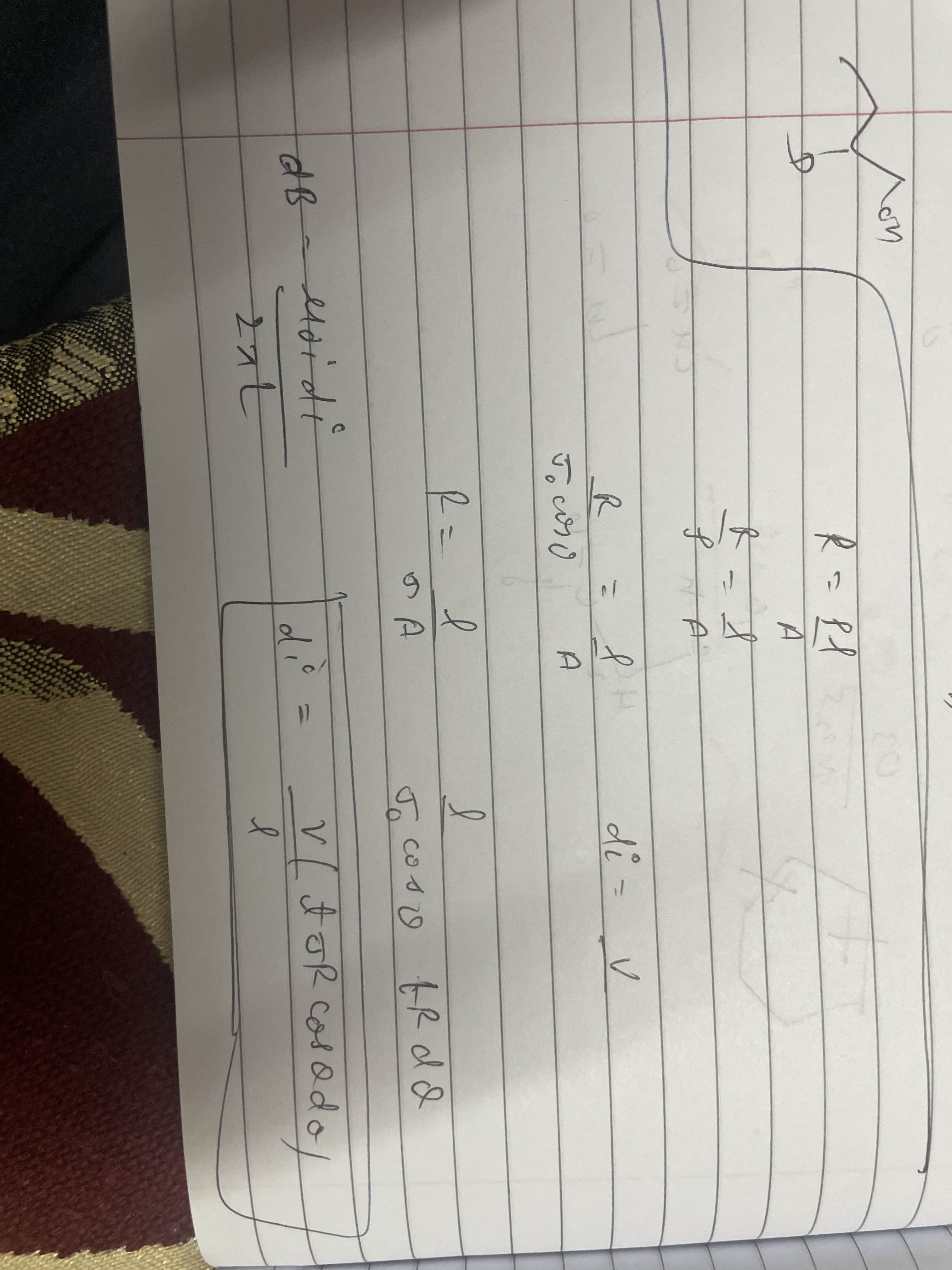

To phele current nikalo
Fir magnetic filed likho
Or resultant ko integrate kro
Will try fir btata
@Real potato
hua nahi yar mera
ek baar aap hi karke bhejdo agar horaha
Acha theek h bhejta hu thodi der me
u free bro?
@Imine can u see this one
sry havent done magnetic yet
oh chlo koina
@SirLancelotDuLac
Arey
Sori yar bhai
Me bhool gaya
Ping kr dete
Abhi krta hu

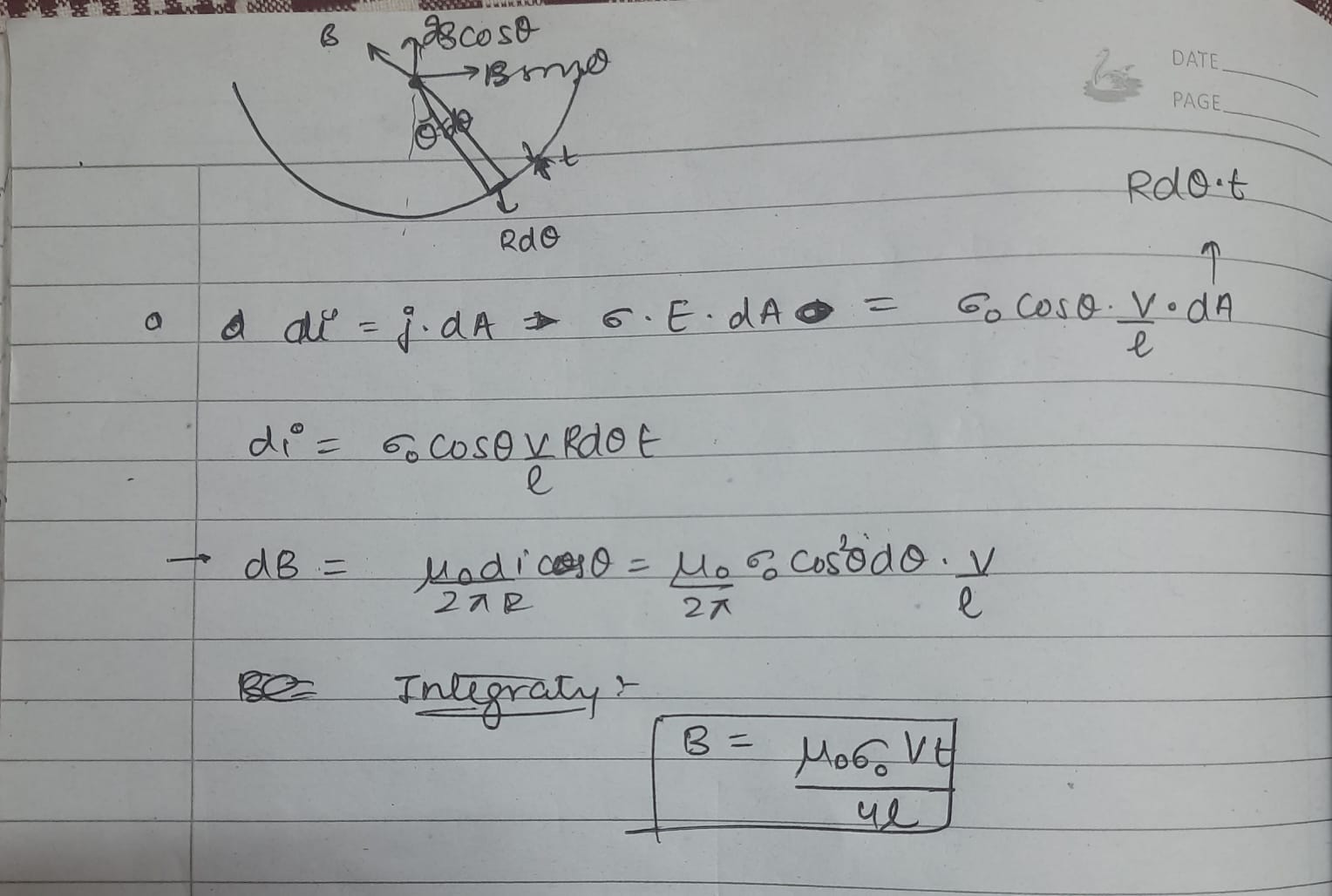

Zero se 2 pi integrate krna
db ko

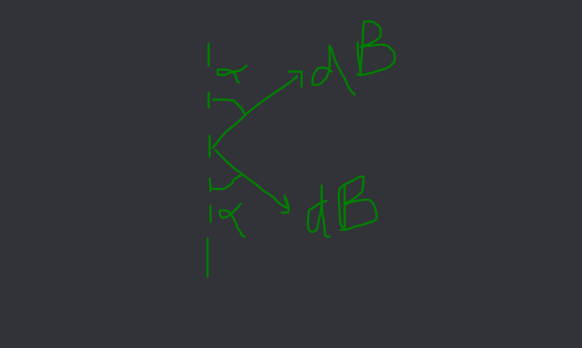

Or cosq se multiply cause sintheta wala component cut jayega
Agar ham current ki direction inwards mange to
Solve this ull get ur ans
@Prasan
mene socha tang kyu krna
acha main dekhta
are its fine
hn dekho
mene bhi yahi nahi kara tha upar?
isme
Oh thoda purana msg tha to mene dekha ni ki solution dala hua hai
Ha shi method hai
pr mereko ye glt lagraha ha
hume rod manke solve nahi karna chahie tha
Hamne rod ni mana hai
Long straight wires maane hai bohot sare
@Prasan ans toh batate jate bhai
,rotate
Couldn't find an attached image in the last 10 messages.
m/n = 1/4 ??
alpha = pi/2 - theta right ??? @Real potato
haan sahi ha
Final ans nhi nikala yr mene integrate krke check krlo
+solved @Real potato
