potential
i tried to do this question with potential method but i am getting stuck, how to do can anyone explain?
we have to calculate the potential V1 if all the resisiotors have the resistance as 2 ohm
14 Replies
@Gyro Gearloose
Note for OP
+solved @user1 @user2... to close the thread when your doubt is solved. Mention the users who helped you solve the doubt. This will be added to their stats.is ans D?
ys
Just combine the battery and resistance to evaluate current
In this case it is 1A
And the point grounded is considered 0V
Now by KVL Potential of V1 is -9V
no need to find current's value, just assume the current is going in clock or anti clockwise (any), and then put the
+ - sign across resistors according to the direction of current u chose, and then make 2 kvl equations taking 2 paths from V1 to the grounded point (0volts), so basically ull get two equations and two variables (V1 and the current) and then solve for V1
i mean yea u can also find current value like this
Absolutely correct but you know neet is all about time and accuracy
isse bhi 2 sec me ans ajaega, samjhaya isliye bada lag rha hai
sirf 4 line ka ans hai maine abhi solve kiya
Are sir bura mat maniye :sweaty:
are bura nhi mante mere bhai 🫂

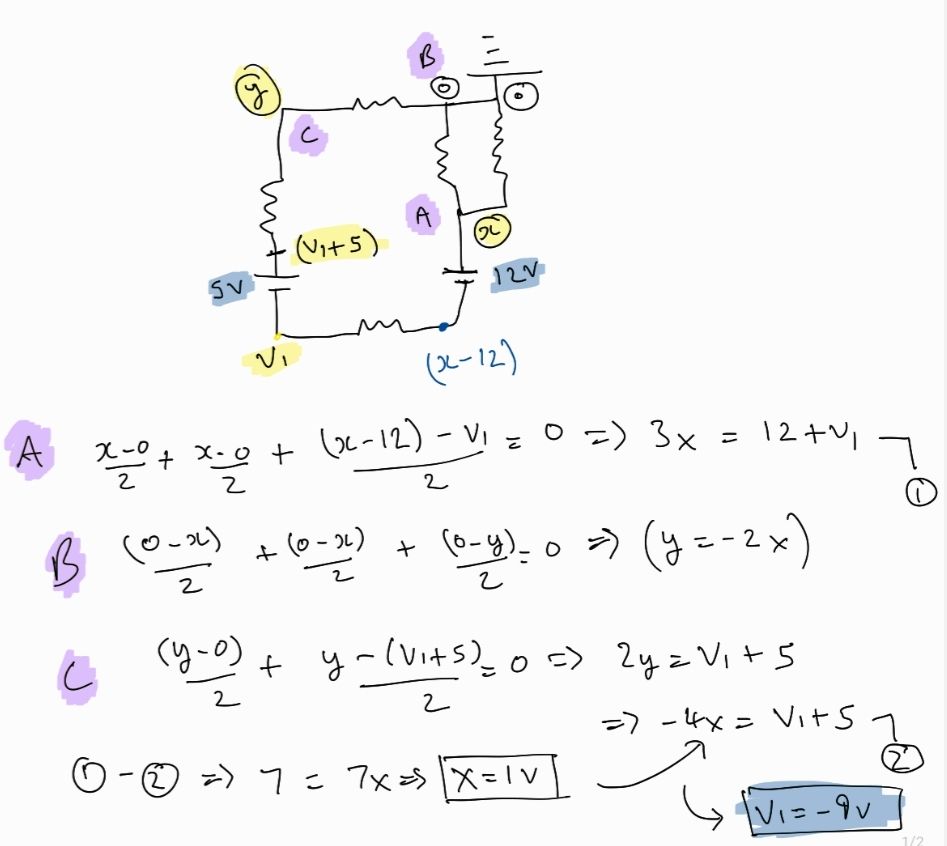

Here you go, point potential method, start by considering zero potential at points that are grounded
I was eepy yesterday
A, B, C are the nodes tht I considered
+solved @coolguy.
