My les strip never turn on. Esp32
Esp32 board.
ROM from install.wled.me
46 Replies
Show your wiring diagram!
Led strip vcc/gnd to external power (laptop usb or powerbank, both doesn't work). Esp32 GPIO16 to led strip DIN.
That's it cuz I don't have resistor or anything else.
I limited to 16 LEDs, still not working.
Ok!.. do a thing!.
I hope that your led strip must be of 5v. ( If not provided it require voltage).
And instead of flashing wled firmware into your esp32 .
Write a simple program to glow that 16 led in the strip.
( Wled required some configuration before working therefore must check if you are able to glow your led strip with simple code. )
Use a different power supply for led and then run it
I tried powerbank, still not power on
What is the voltage rating?
And it will not turn on until you give the correct data byte.
Show your wiring pic and code pic!
@chientrm haven't you it's generally taking 5v and 2-3 amps of power use a power adapter and try once
And once also see the wiring once bcz it's lot confusing when I first tried using it
It's working
Turns out the retailer wrongly wielded the led strip
Wrong direction. i cut it and wield it from the other side and work.
✨
Turns out led strip has direction tho
Yeah!.. it has i thought you have connected it in the right direction.
So!. What are you going to make with it
For now room decor
Doing some smart stuffs like auto lights on to welcome me home 🏡
Probably get longer strip
😯... Decorating your room!.
I also want to do that like voice control, motion detection and lighting.
Like 20m to decor full room
Oh I gotta need breadboard starter pack for that

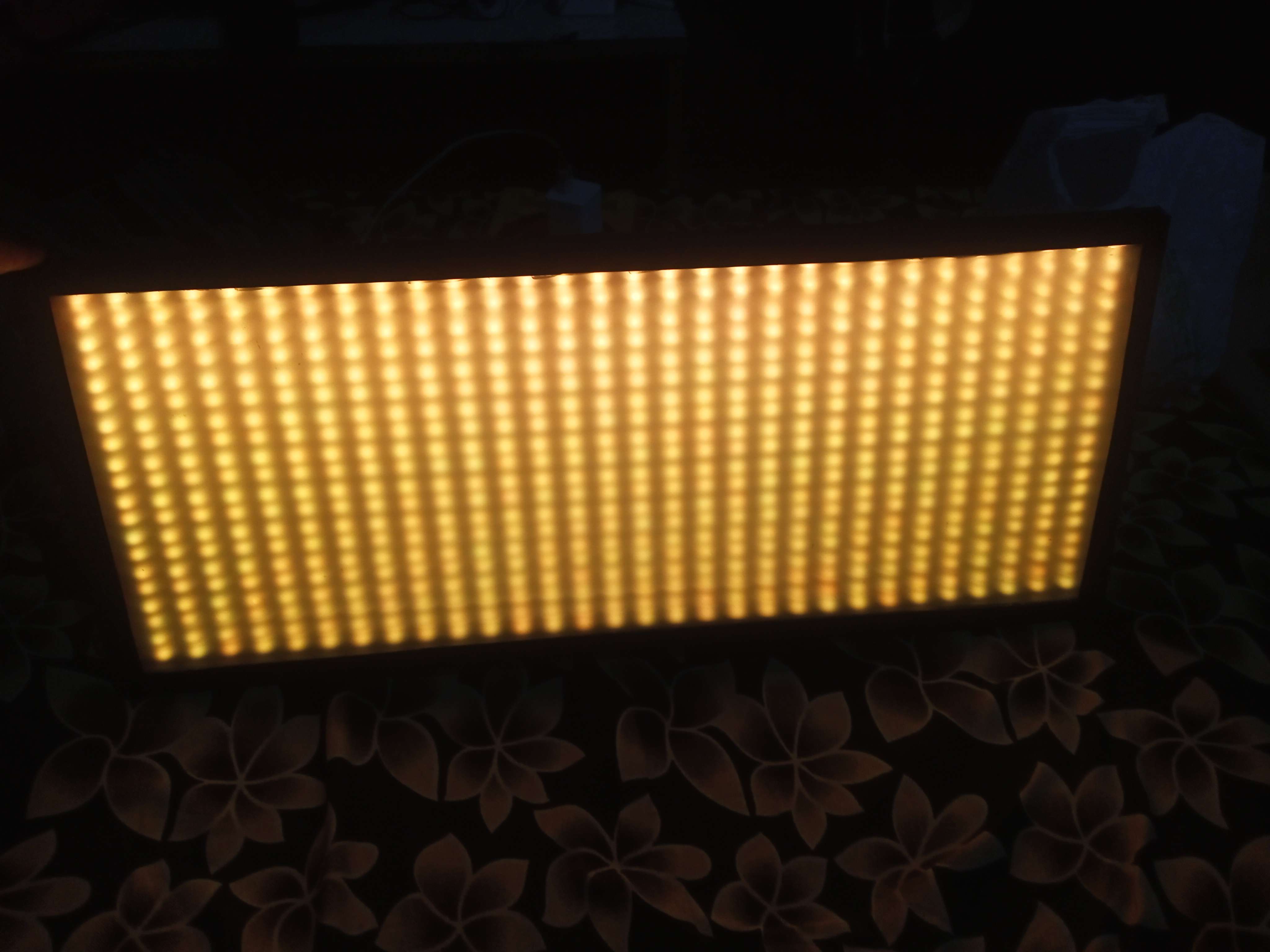

Cool!. I also made the rgb Matrix display with this address able strips
Which display text.
Damn
Matrix ?
Lemme check
" it works linearly, but we called it Matrix 🙂 "
Lol
Not sure my adapter can handle full room
Yeah!. The data travel in this strip linearly and we have connected it in zigzag manner to make a whole rectangle display
Probably 20m
I run it with the phone charger. I cut the usb and connected with it.
You can check the maximum power rating of the phone charger
It 5V 3A
I tried it with a local 5v -1amp adapter and it gets on smoke after 30 mins
Wth

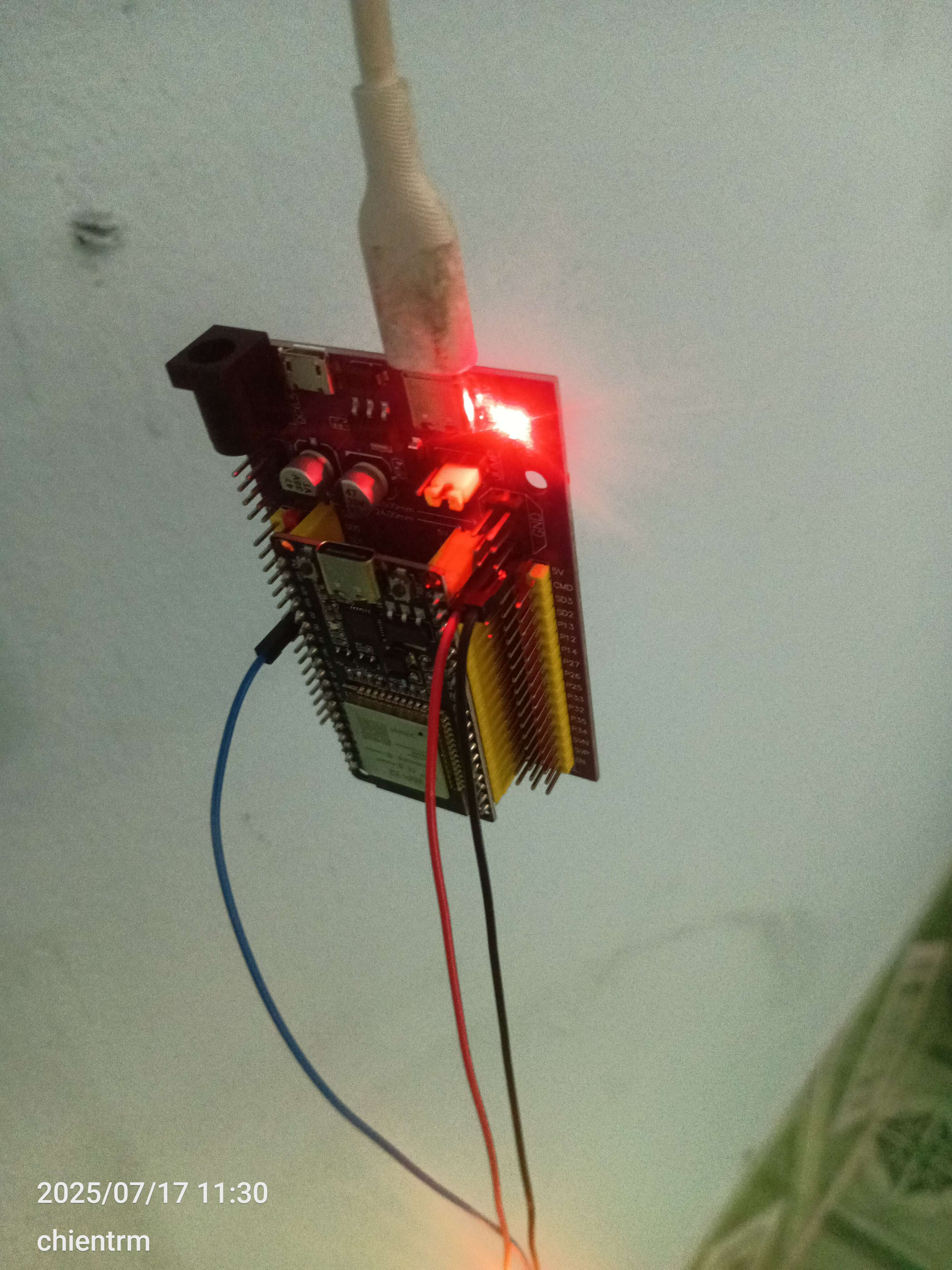

I got esp32 with shield board
Cool!. I did it with esp8266 with wled firmware flash on it
Don't you use shield board?
Nah!.. I am always low on budget.
Shield board is cheaper than the esp32 board itself tho
That was my first college project
My esp board is $4, shield is $1.5
Still
I bought two 500m addressable led strips for 1000 rupees
500m?
**5m
🤦
Lol 500m is epic
Here
Damn
You rewire manually?
Yeah
I cut the cardboard, stick the strips on it solder the connections
And I was using phone charger
There was a problem on less brightness in the end leds
I solved it my giving power at the end too
Gg
You could use multiple adapters
Then wire share the GNDs and data in
This will increase the burden of carrying the adapter
I used my friends redmi fast charger. It was good at taking load.
Imma see if any of them smoke out today
My project is submitted in the college. I can't use it now😞
