potential diff
uhh ans is 1 but when i used kvl i got 30, do we take the internal resistance of 10v battery also to get the potential drop?
20 Replies
@Gyro Gearloose
Note for OP
+solved @user1 @user2... to close the thread when your doubt is solved. Mention the users who helped you solve the doubt. This will be added to their stats.

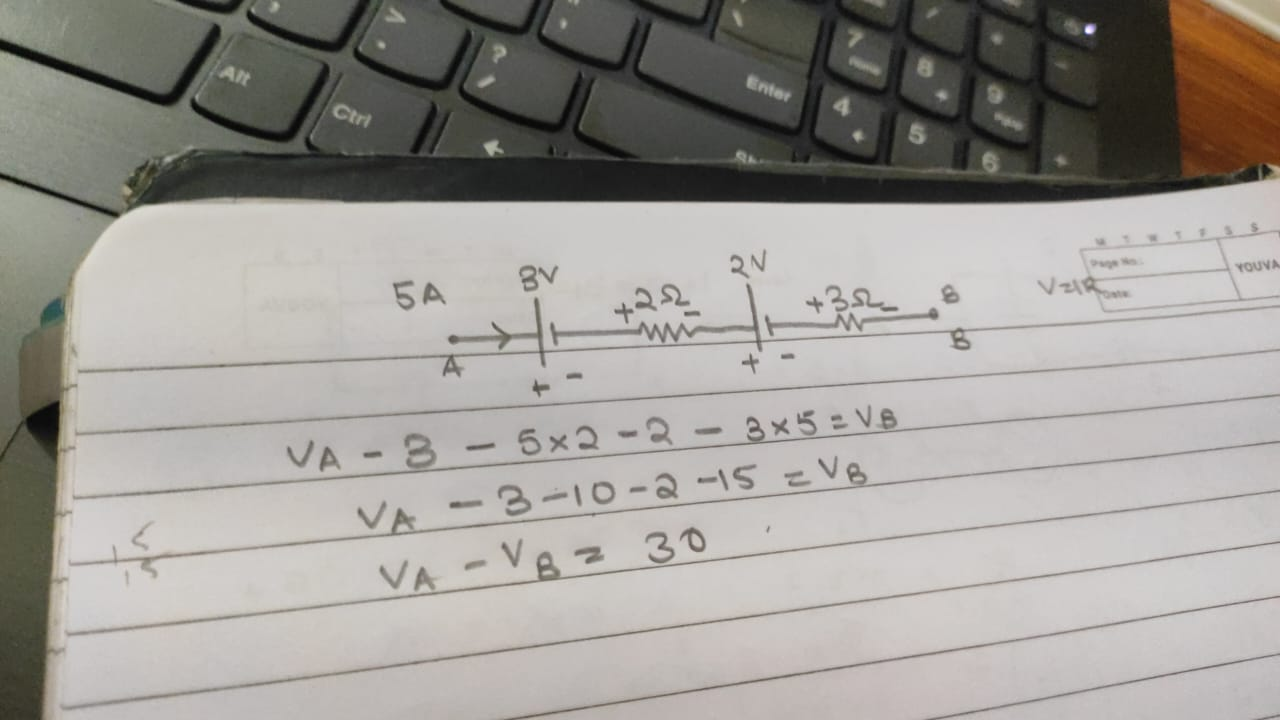

my attempt

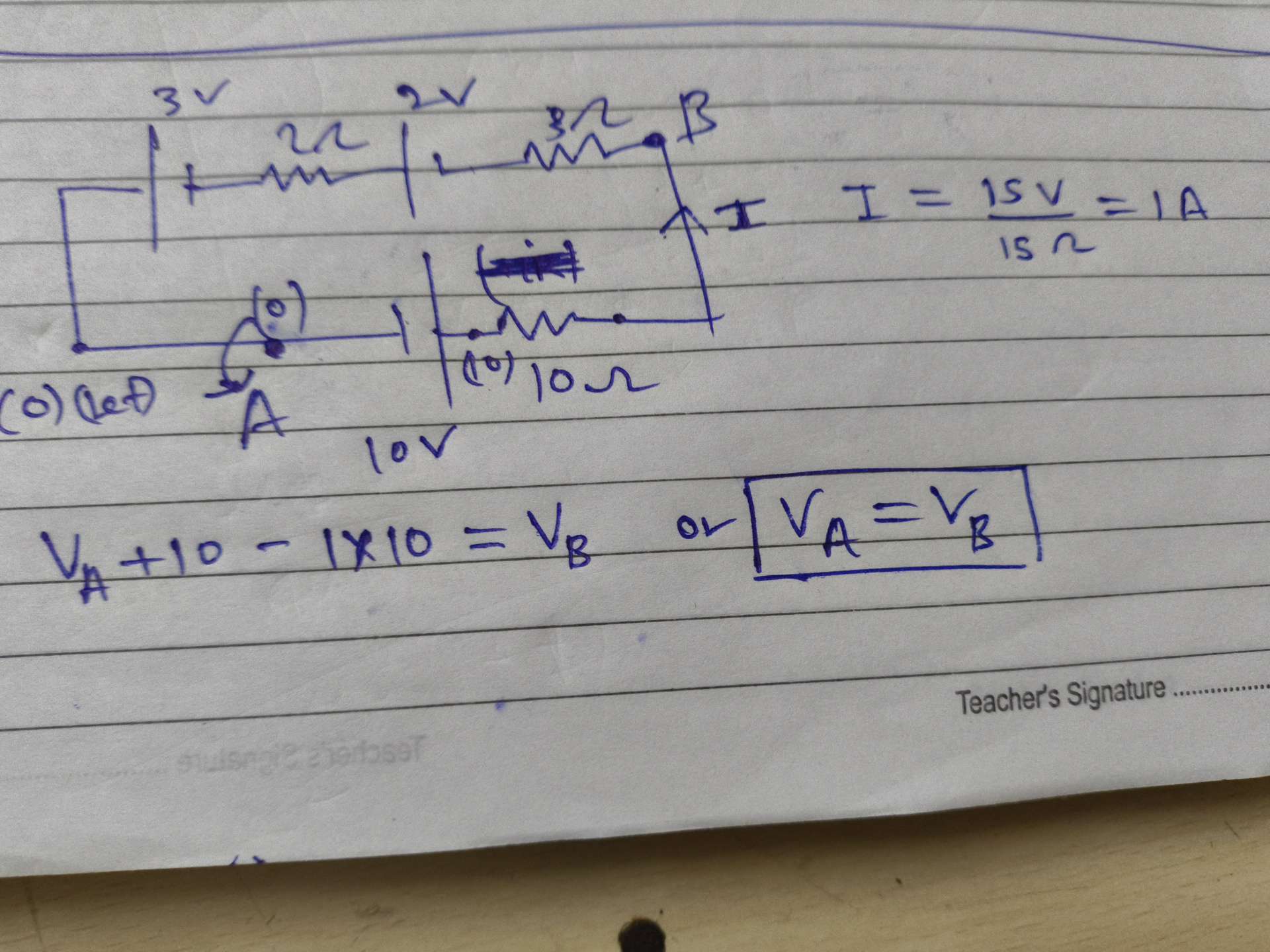

Current galat hai
1ampere hoga current
kaise?
Total emf 15
Total resistance bhi 15
aah tabhi
yes
maine current ulte ke hisab se minus kar siya
🤡
Nah nah
Sare battery ka current add hoga
Same direction na
alag hai direction
ik battery ulti hai
Alag kaha hai
Same hoga
current ka direction bolri
Mm
done?
no
i dont understand it
oh ok yeah got it
+solved @Priyam Alok
