32 Replies
@Moderator phy doubt solver role pls
@Gyro Gearloose
Anyone....?
aaj try karke batata hun
classes ha abhi
First of all ye solenoid kese ha
Vahi smjh nahi aa raha
Agar maan bhi lu solenoid ha tbbhi kuch nahi sujh raha
whii
@Real potato @integralofe^2v inputs ??
Yes please
I think im too noob for this but ill see
irodov ka hai woh toh puri bana li hogi aapne
Nhi banai bio si time nhi miltaðŸ˜
Partially banai he only
Aapki phy dekhke to lagta ha
Ye wala chapter abhi finish hua he to ache se nhi pada
ohh
well try ig

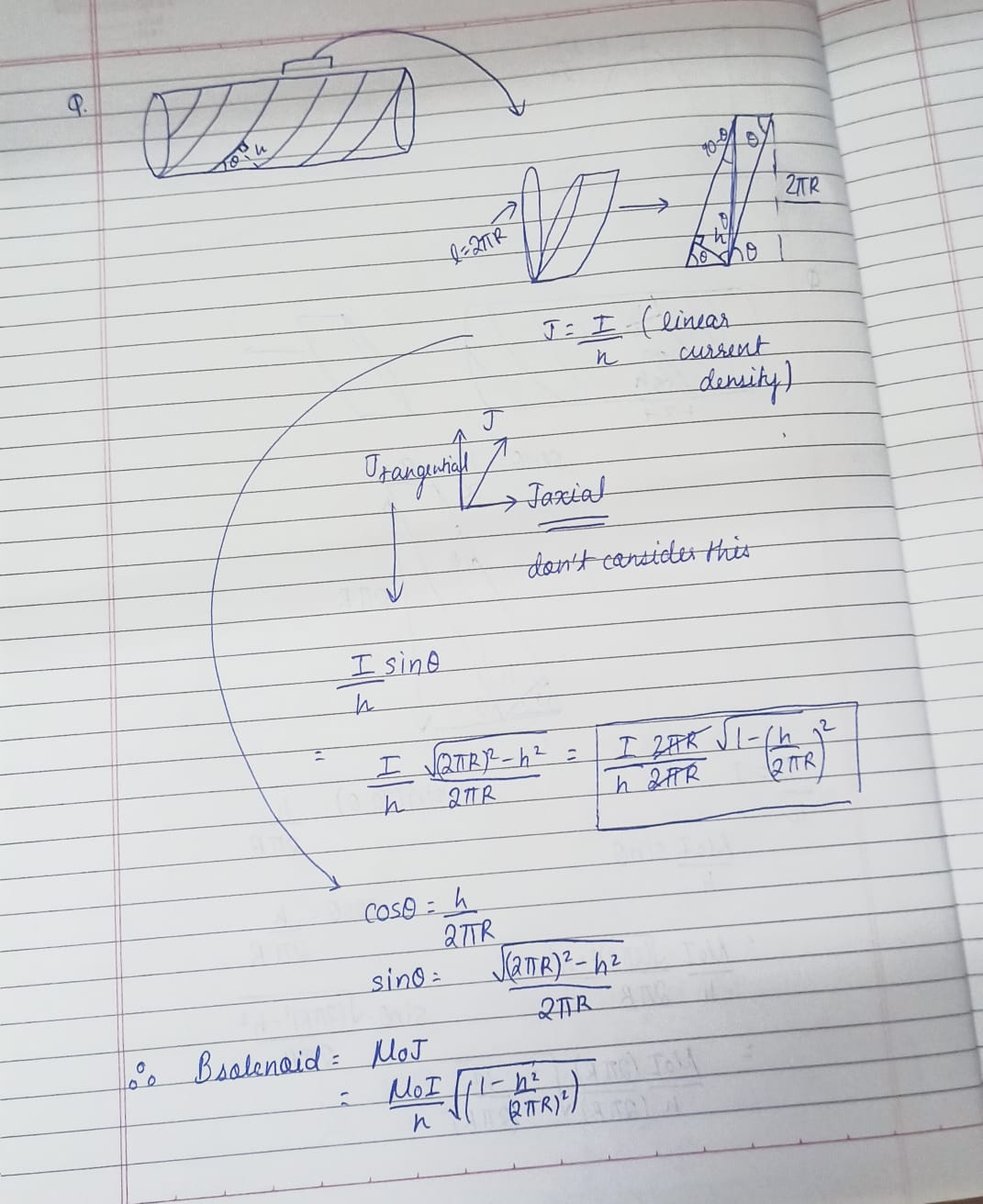

see uh
current per unit length of strip is i/h
but the strip is tilted
hame wo component nikalna padega current ka jisse field ayega
uske lie ek strip ko straighten krke theta nikalo
r or h ke terms me
@hardcoreisdead
Current ka component ?????
ha to
current ka direction dekh na kesa dia hai
current ka mtlb i mean current density ka
J kehra
achaa
will retry
wha que number evn is this i cant even find in the book ðŸ˜
3.238
yeah when calculating the field inside only take the tangential component of linear current density
axial component wont contribute
however outside that is not the case
smtg like this prolly @hardcoreisdead
@hardcoreisdead part 2 of this is prolly by ampere circuital law. right?
Forgot to check this

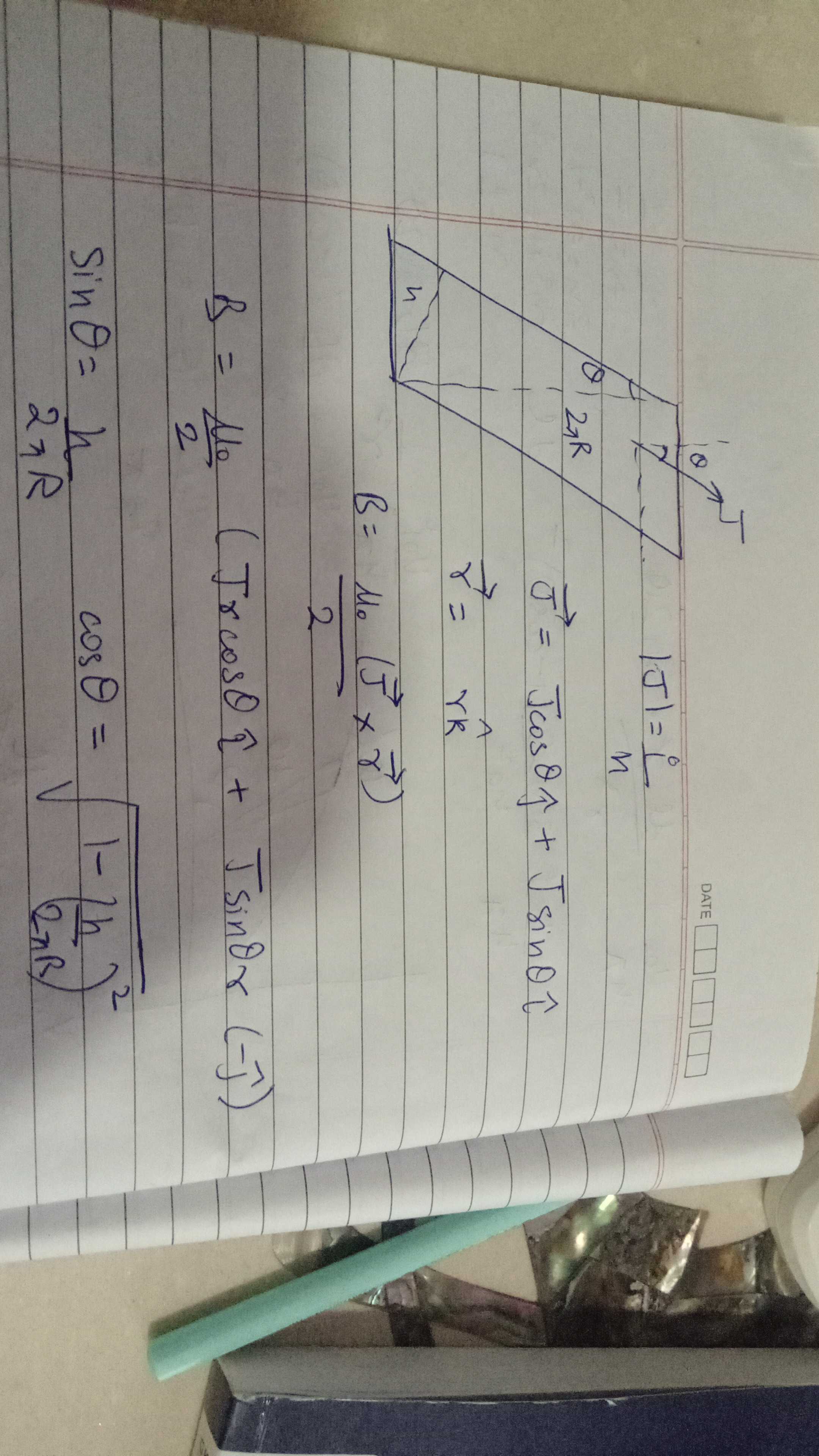

Where am I going wrong
@integralofe^2v this.

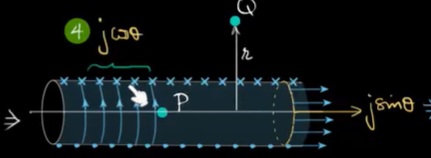

situation is smthing like this
at any distance r why wont we consider field due to jsintheta
Well due to jsin(theta) it behaves as a normal cirrent caryin wire due to which MF inside it is zero while outside it is knowm but due to jcos(theta) it behaves like a solenoid due to which inside the MF is known but outside is zero
woh samjh gya
but why does J cross r formula fails
Ill see this in a bit
+solved @integralofe^2v
