electrostats + shm

No description
47 Replies
iTeachChem Helper
iTeachChem Helperβ€’3w ago
@Gyro Gearloose
iTeachChem Helper
iTeachChem Helperβ€’3w ago
Note for OP
+solved @user1 @user2... to close the thread when your doubt is solved. Mention the users who helped you solve the doubt. This will be added to their stats.
flower
flowerβ€’3w ago
oh god kaha ka quesrion hai ye
CorrodedCoffin
CorrodedCoffinOPβ€’3w ago
open test aits
flower
flowerβ€’3w ago
damn yea im not defintely not at the level for invictus im out πŸ™
CorrodedCoffin
CorrodedCoffinOPβ€’3w ago
bhai sabke level se bahar hai yeh πŸ™ @nori @integralofe^2v yeh bhi dekhlo
integralofe^2v
integralofe^2vβ€’3w ago
Aight ill see after my class
CorrodedCoffin
CorrodedCoffinOPβ€’3w ago
alrr
integralofe^2v
integralofe^2vβ€’3w ago
for first 2 options
No description
integralofe^2v
integralofe^2vβ€’3w ago

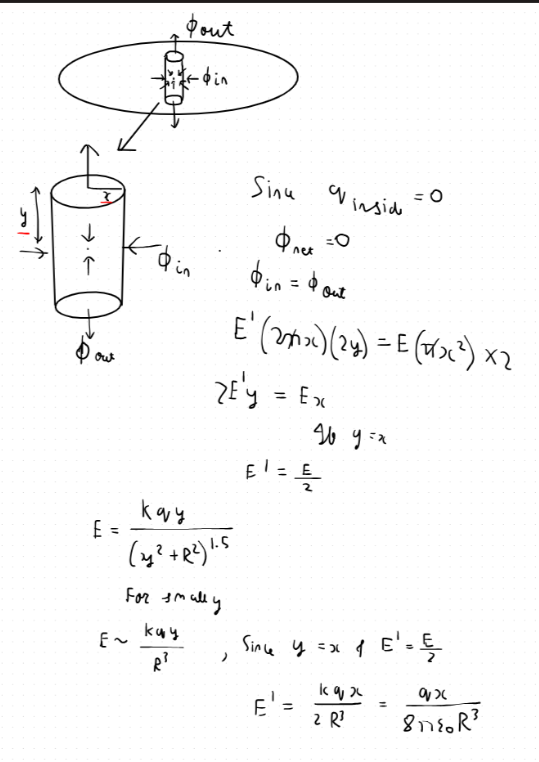

Basicslly there r 2 methos One is by integration other is this short cut Consoder a gaussian surface liek this with radius x so u cn find field at distance x And yes since charge in it is 0 Flux net shud be 0 So inc flux=out flux and inc fkux is from curved area and outgoing from axis of ring shich u alfeady know So yes u cn find tht out using this very clever method What tht teacher explaind on the vid
CorrodedCoffin
CorrodedCoffinOPβ€’3w ago
whats your final ans
integralofe^2v
integralofe^2vβ€’3w ago
2
CorrodedCoffin
CorrodedCoffinOPβ€’3w ago
and..?
integralofe^2v
integralofe^2vβ€’3w ago
Ill do next 2 options in few mins
CorrodedCoffin
CorrodedCoffinOPβ€’3w ago
the gaussian surface is from the centre ???
integralofe^2v
integralofe^2vβ€’3w ago
Its a cylinder with its middle coinciding with center of ring Placed along axis of ring
CorrodedCoffin
CorrodedCoffinOPβ€’3w ago
fir qencl zero kaise hai Qin theres charge Q right
integralofe^2v
integralofe^2vβ€’3w ago
I ignored tht, i founs field at tht pos due to ring solely Since thts wha que asked Due to ring
CorrodedCoffin
CorrodedCoffinOPβ€’3w ago
acha missed that part πŸ’€
integralofe^2v
integralofe^2vβ€’3w ago
Yes its a clever approsch, theres a similar que in pathfinder cyu and i did tht using integration for first time
CorrodedCoffin
CorrodedCoffinOPβ€’3w ago
bro even doing pathfinder πŸ™
integralofe^2v
integralofe^2vβ€’3w ago
Some ques jo aukaat me hein😭
CorrodedCoffin
CorrodedCoffinOPβ€’3w ago
how do u pick them out
integralofe^2v
integralofe^2vβ€’3w ago
Basically try every1 unless im like this is imppssible then watch sol on yt or rage quit and curse the book
CorrodedCoffin
CorrodedCoffinOPβ€’3w ago
how do u have so much time bruh irodov + pathfinder
integralofe^2v
integralofe^2vβ€’3w ago
Well thatz why im chem is weak i focus on it quite less
CorrodedCoffin
CorrodedCoffinOPβ€’3w ago
ig coaching module bhi nhi karte hoge
integralofe^2v
integralofe^2vβ€’3w ago
True incoplete he magnetism ki
CorrodedCoffin
CorrodedCoffinOPβ€’3w ago
oooo
integralofe^2v
integralofe^2vβ€’3w ago
But test incoming so krna padega
CorrodedCoffin
CorrodedCoffinOPβ€’3w ago
waise bhi neet wali hai mediocre hogi
integralofe^2v
integralofe^2vβ€’3w ago
Yes fr
CorrodedCoffin
CorrodedCoffinOPβ€’3w ago
lol anyways ping me when u get the second part
integralofe^2v
integralofe^2vβ€’3w ago
Okayy
integralofe^2v
integralofe^2vβ€’3w ago

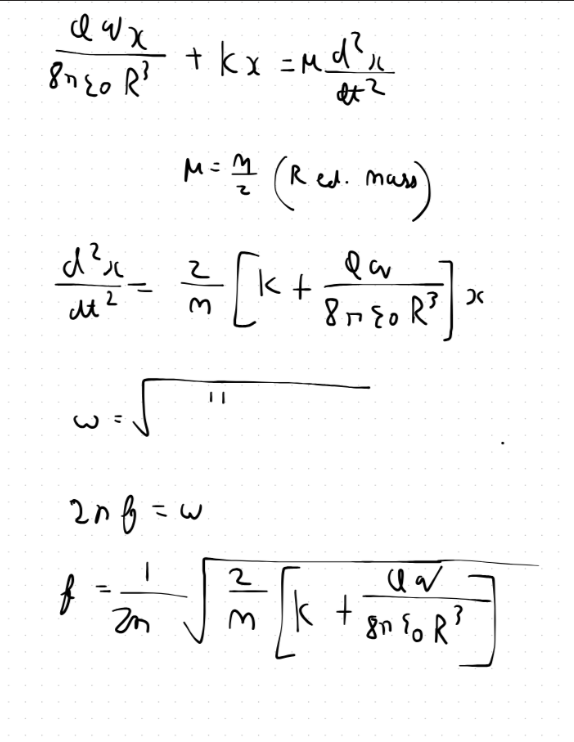

ig it shudd js be ts using reduced mass concept since both of em connected D option
No description
CorrodedCoffin
CorrodedCoffinOPβ€’3w ago
acc to key its C some students did comment it should be BD
integralofe^2v
integralofe^2vβ€’3w ago
oh bruh it sud be D acc to me let me chk stream again
integralofe^2v
integralofe^2vβ€’3w ago

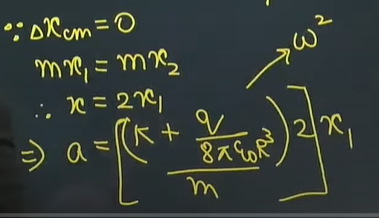

her omega is same as mine so ig theres a error on their side shud be D
No description
CorrodedCoffin
CorrodedCoffinOPβ€’3w ago
what was your thought process to solve
CorrodedCoffin
CorrodedCoffinOPβ€’3w ago

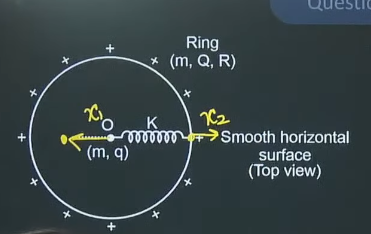

why is x2 backwards
No description
integralofe^2v
integralofe^2vβ€’3w ago

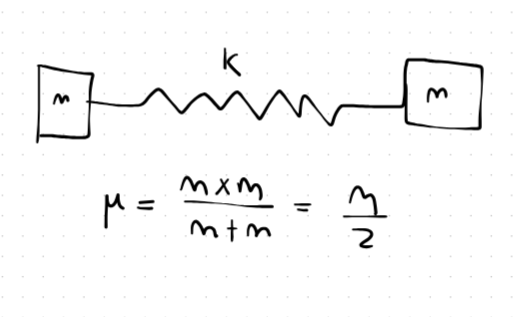

since they connected i treated them like this system and used concept of red. mass
No description
CorrodedCoffin
CorrodedCoffinOPβ€’3w ago
ok so mass m/2 pe qE + kx ka restoring force hai
integralofe^2v
integralofe^2vβ€’3w ago
ys wha is ts😭
CorrodedCoffin
CorrodedCoffinOPβ€’3w ago
yep D hoga def
integralofe^2v
integralofe^2vβ€’3w ago
yup
CorrodedCoffin
CorrodedCoffinOPβ€’3w ago
+solved @integralofe^2v
