LED Light Strips

Having issues with wiring up the strips that came with the V-core 4 kit. Granted I am using solid core Cat6. But that should mater for testing. Plus I don't have the proper wire on hand. Any thoughts? Ground is going to ground and hot is going to hot. I'm not missing something stupid where theres a toggle for turning the lights on?

7 Replies

TheTik•2w ago

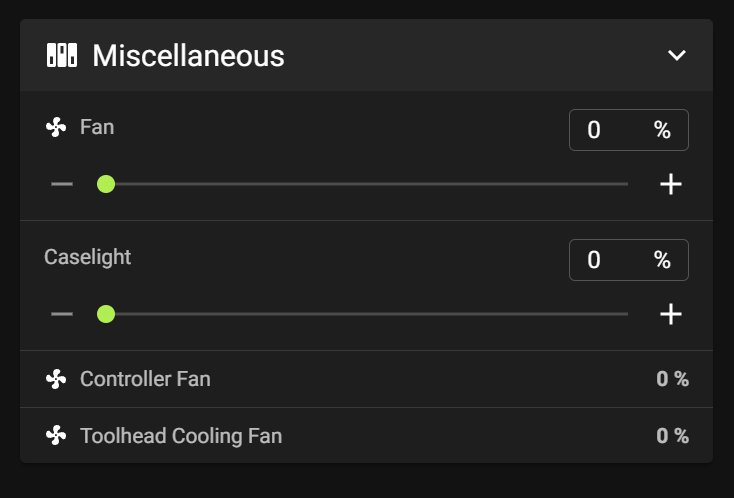

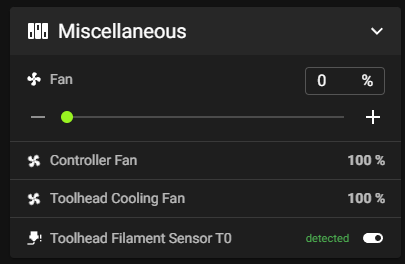

Maybe check the "Miscellaneous" section of the dashboard? I added my Caselight manually, might be something there in vc4 automagically

Milkman3407OP•2w ago

Nope. how'd you add the Caselight?

TheTik•2w ago

added this section to my printer.cfg:

## Chamber Lighting - HE1 Connector (24V)
[output_pin caselight]
pin: PA3
pwm:true
shutdown_value: 0
value:0.25                             #the brightness at startup (0-1)
cycle_time: 0.01

## Chamber Lighting - HE1 Connector (24V)
[output_pin caselight]
pin: PA3
pwm:true
shutdown_value: 0
value:0.25                             #the brightness at startup (0-1)
cycle_time: 0.01

Milkman3407OP•2w ago

Did you plug the lights in the same spot as the guide? Just trying to figure out what pins I need to check.

TheTik•2w ago

no, i used one of the heater pins iirc. This is on my VC3.1, not sure how the VC4 lights are wired sorry

Milkman3407OP•2w ago

All good i'm sure i can find something online.

TheTik•2w ago

If it comes with the vcore4, I'd re-check the docs yeah
