Shelly plus uni
Anyone that has successfully used the Shelly plus Uni with the pulse counter and got that data in to SK?
https://kb.shelly.cloud/__attachments/176816159/Plus-Uni-internal-schematics.png?inst-v=ebf6479b-b8d8-4c4a-93b6-13a430c63b58
46 Replies
No, but also want to do the same - so any advice would be hugely appreciated. Not just pulse count & frequency but also temperature (1-wire x3), ADC, digital inputs and control of digital outputs. Keen to hear what others have tried and what works partially or otherwise.
My thoughts presently:
1) there is the signalk-shelly plugin, supports Shelly Uni but not the new Shelly Plus Uni - can request addition on github @Scott Bender as the Shelly Plus Uni is a great piece of ESP32 boating kit with wide power supply range (DC and AC), external antenna, and all the Shelly programmability to act standalone in case other systems are down (e.g. temp alarm).
2) there is the mqtt route, and have the Uni publish/subscribe to mosquito broker - but here I'm confused by the many SK mqtt plugins and short of time to test them all. Also I prefer to run containers (as I have for SK) so adding a plugin without knowing which folders to persist is looking for trouble and risks losing config and data. I have SK installed in a container that I manage with Portainer. Would prefer a standalone mosquito container if that is the required route.
FYI, the Shelly Plus Uni works reliably up to about 1.2kHz pulse rate. I'm thinking RPM, but as my signal comes from a toothed flywheel sensor (VP D2-55), signal first needs conditioning (MAX9924) to stabilise it under different rpm conditions, then 1:8 frequency division (126 teeth -> 6.3kHz @3000rpm). Used a lambda on the Shelly to transform pulse frequency -> rpm and had it report this directly (experimentally to a Home Assistant Shelly integration, not SK). Have had it running reliably on bench for last 6 months, with only 1 reboot following a Shelly OTA update.
Since heard from Scott, he is exploring alternatives to the current node-shelly library as it is no longer maintained so this route is closed in the short-term.
node-red and mqtt may be the easiest route. When I get to re-writing the plugin, I’ll probably use mqtt…
Looks like that may be the way to go. I can help with node-red flows to get integrate with SK. Pop over to #node-red for that.

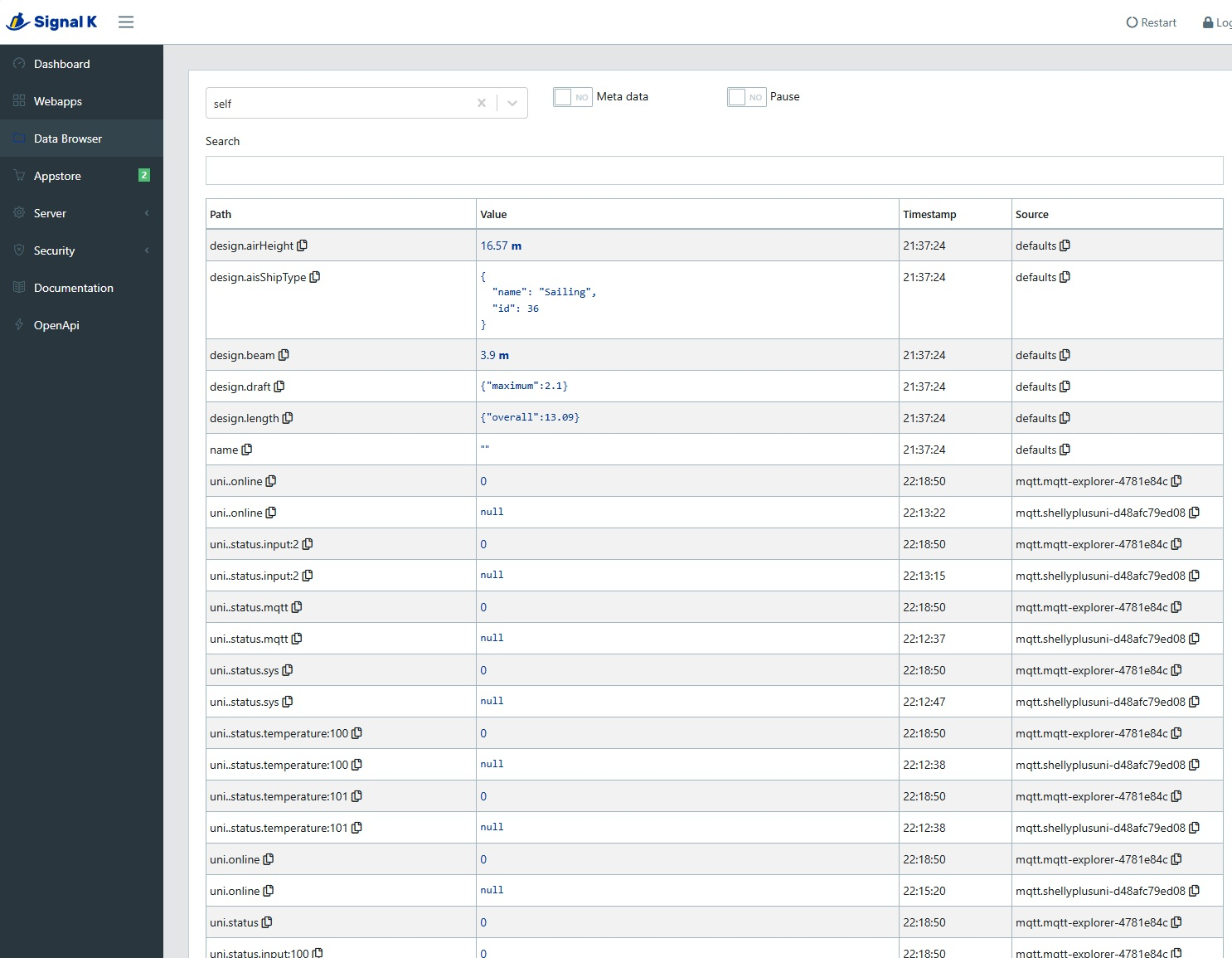

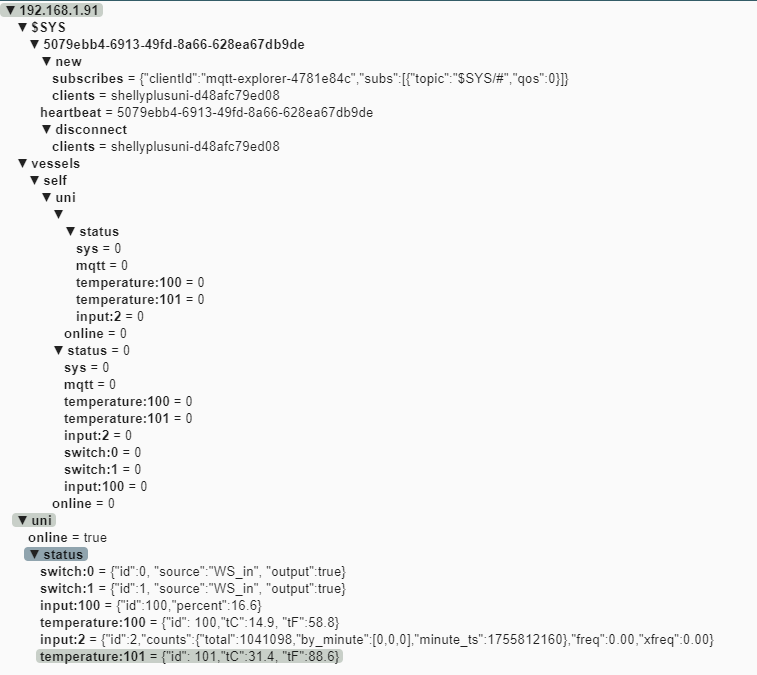

I did a quick test with signalk-mqtt-gw plugin. Shelly seems to embed json in the mqtt messages. Content can vary, e.g. the "xfreq" name in the mqtt explorer attached I defined as a calculated lambda via the Shelly Uni web interface. I guess the signalk-mqtt-gw expects topic:value pairs so does nothing with the data, pushing null to signalk server which is then published back to mqtt again as currently set up. Why mqtt-explorer is in the mix in signalk is a good question that I'm ignoring.
So, short-term, I will follow Scott's suggestion and use some combination of mqtt and node-red to get data into signalk - if I get the time....
If you use the node red palette linked above, you don’t have to mess with mqtt. I did real quick test, super easy to setup flows with that.
@Scott Bender you a star, appreciated thanks.
Hmm, maybe one could grab the Shelly communication code from that and adapt it. Node Red is not something I want to run
You guys got me interested again... I am working on a new plugin right now...
Can someone get me the results of
curl http://192.168.1.177/rpc/Shelly.GetStatus for a UNII have couple of those still in box waiting for installation. @Scott Bender if nobody else provides the data, ping me and I'll plug one in
I have released the new plugin https://github.com/sbender9/signalk-shelly2
It should work with the UNI, although currently just the switches and inputs
GitHub
GitHub - sbender9/signalk-shelly2
Contribute to sbender9/signalk-shelly2 development by creating an account on GitHub.
We still have couple of gen1 devices. I assume we'd control those still with the old plugin?
Yes
Is it API compatible? Same PUT paths, etc
We have all nav lights automated via Shellies
yes, and the paths are configurable
pretty early for this plugin, so not sure I would rely on it just yet
but would be awesome if you can test it out!
I'll give it a shot, and then we'll see if the anchor light turns on tonight 😄
you can disable/enable the switches in each plugin to switch between the plugins
if this rids me of having to reboot all Shellies with each Signal K restart, I'll be very very happy
There's quite a lot of those restarts now that I'm actively developing the Meshtastic integration
It's working for me, I am able to restart the server
I think I have the latest firmware on enverything
I just released a new version that you'll want
and let me know if anything is missing, I wrote this one a way that there is nothing device specific, but I am sure I am missing things.
Definitely won't work with RGB/W , but I ordered a new one of those to test with
the discovery is the same though, so not sure why it is working now
will definitely be interested to know if it is fixed for you too
My Plus Uni is hooked up to a node-red-contrib-shelly flow so not responding to the curl get, but same from that integration pushes out the following:
msg.payload : Object
object
ble: object
empty
cloud: object
connected: false
input0: object
id: 0
state: true
input1: object
id: 1
state: true
input2: object
id: 2
counts: object
freq: 0
xfreq: 0
input100: object
id: 100
percent: 0
mqtt: object
connected: false
script1: object
id: 1
running: true
mem_used: 966
mem_peak: 3038
mem_free: 24220
cpu: 1
switch0: object
id: 0
source: "timer"
output: false
switch1: object
id: 1
source: "WS_in"
output: false
sys: object
mac: "D48AFC79ED08"
restart_required: false
time: "22:19"
unixtime: 1755983945
last_sync_ts: 1755982399
uptime: 80453
ram_size: 265576
ram_free: 113080
ram_min_free: 95716
fs_size: 393216
fs_free: 122880
cfg_rev: 119
kvs_rev: 0
schedule_rev: 0
webhook_rev: 2
btrelay_rev: 0
available_updates: object
reset_reason: 3
utc_offset: 3600
temperature100: object
id: 100
tC: 16.2
tF: 61.2
temperature101: object
id: 101
tC: 23.8
tF: 74.8
wifi: object
sta_ip: "192.168.1.66"
status: "got ip"
ssid: "obfuscated"
bssid: "0c:8e:29:c5:a5:e3"
rssi: -72
ws: object
connected: false
Not sure what use that is to you.
garbled
can you try the new plugin?
turn debug on, you should get well formed json
Installed.
Initially data started to flow into Data Browser. Plugin Config showed device model (SNSN-0043X), but had blank Name. Checked Uni. Default, "PlusUni" was there. Did a curl GetDeviceInfo: {"name":null,"id":"shellyplusuni-d48afc79ed08"... explicitly saved the Name and ID page. Now {"name":"PlusUni","id":"shellyplusuni-d48afc79ed08"...
Restarted SK, picked up the Name correctly. I updated the Device Path, restarted SK, nothing.
Log:
...
Aug 23 23:27:10 2025-08-23T22:27:10.437Z signalk-shelly2 Connecting to device at 192.168.1.66
Aug 23 23:27:10 2025-08-23T22:27:10.459Z signalk-shelly2 Connected to device at 192.168.1.66
Aug 23 23:27:10 2025-08-23T22:27:10.497Z signalk-shelly2 Initial device information retrieved successfully from 192.168.1.66: shellyplusuni-d48afc79ed08 (SNSN-0043X, Gen 2)
Aug 23 23:27:10 2025-08-23T22:27:10.498Z signalk-shelly2 { "name": "PlusUni", "id": "shellyplusuni-d48afc79ed08", "mac": "D48AFC79ED08", "slot": 1, "model": "SNSN-0043X", "gen": 2, "fw_id": "20250730-063243/1.7.0-gbe7545d", "ver": "1.7.0", "app": "PlusUni", "auth_en": true, "auth_domain": "shellyplusuni-d48afc79ed08" }
Aug 23 23:27:10 signalk-shelly2:Failed to connect to device 192.168.1.66: [object Object]
Aug 23 23:27:10 Failed to connect to device PlusUni
Aug 23 23:27:10 { code: 401, message: '{"auth_type": "digest", "nonce": 1755988030, "nc": 1, "realm": "shellyplusuni-d48afc79ed08", "algorithm": "SHA-256"}' }
...
Going to try uninstall and reinstall.
I think password/security turned on
I have not worked on that yet
Odd that some data did trickle through right on first config.
Can I check some details with you.
Do I presume correctly that your integration does polling and does not install a callback function script on the Gen 2 devices, the way the node-red-contrib-shelly add-on does? What is the polling interval?
Additionally, can I assume that all data from a device will always go to the same path (electrical.switches.${devicePath}...)
Ultimately, I want to push some of the Uni data onto NMEA network, hence want to plug the values into the correct paths in SK to start with (e.g. vessels.self.propulsion.0.temperature,vessels.self.electrical.alternators.0.temperature etc, for different sensors and inputs.
I have not reased the polling yet
no plans to install a callback
Thanks. Gives me some direction as to possible routes to follow to achieve desired outcome.
all you are talking about, easy
Regrettably I do no have the experience you clearly have with all this.
let's get the data into sk first
Will try assist, but am travelling to the boat to do some maintenance over the next few weeks so won't be in front of computer much.
v1.1.0 is released and should show the pulse counter data from the UNI

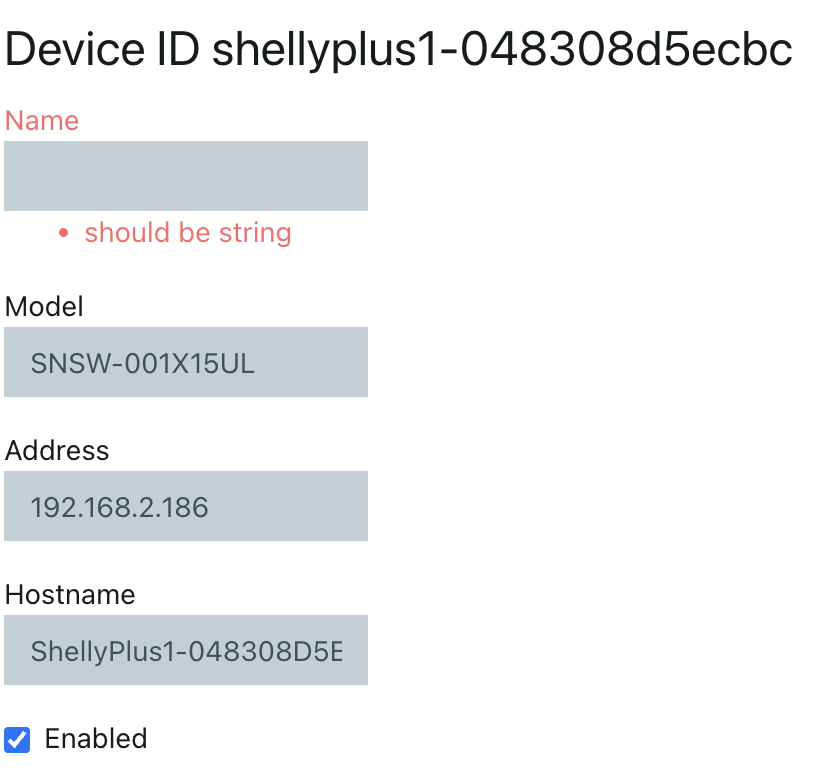

It discovered the Shellies right away, but a few of them don't get a name. This prevents me from saving the config.
ok, I can fix that later
you can go to the device's page and set the name for now?
They have names in the app. Maybe firmware version question, or lack of Sync device name?

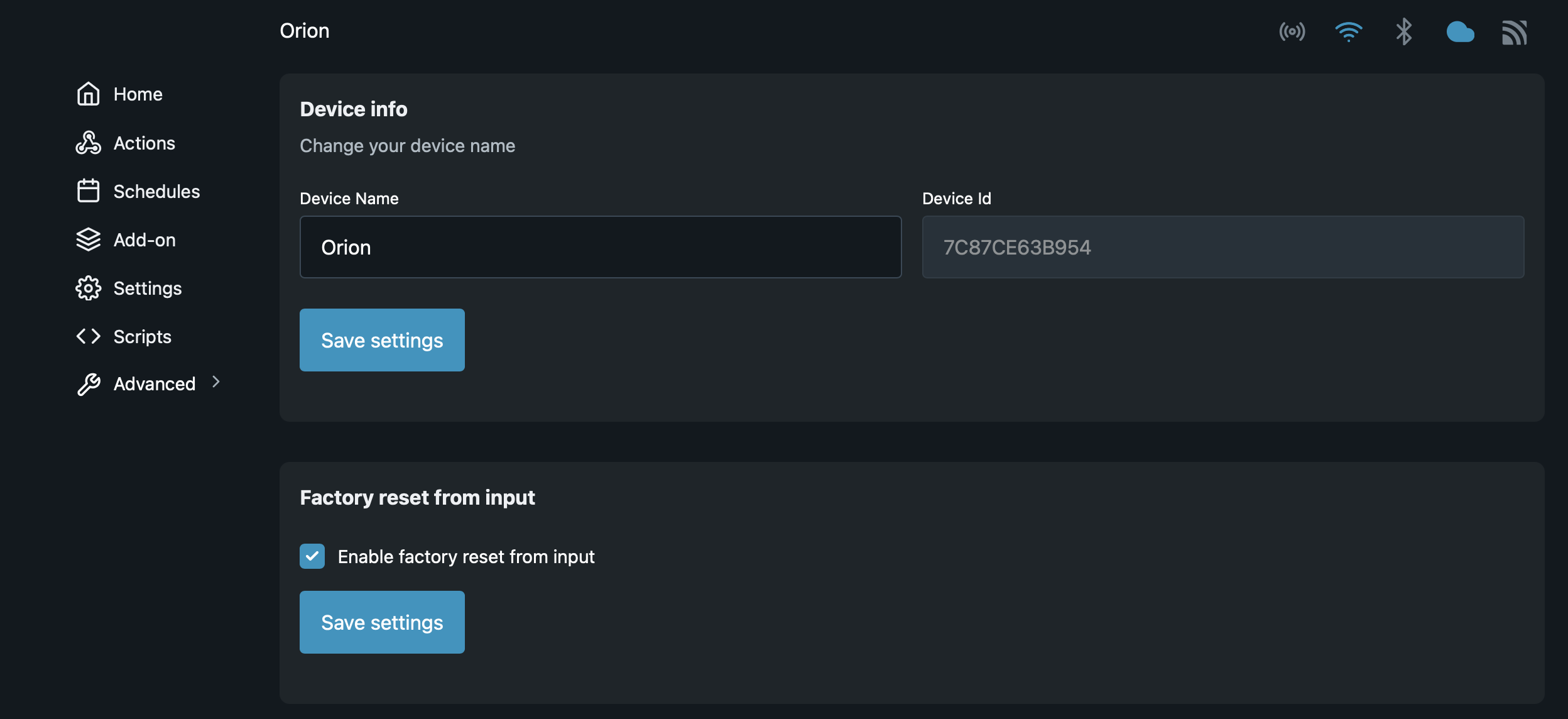

you have to do it on the devices web page
That seems to have done the trick. Interestingly, couple of the devices already names set even though I've never used the web interface
Could also confirm the API stayed the same, was able to turn our decklight on and off via a Meshtastic text message
nice work @Scott Bender !
@Lille Ø do you have an UNI
I have one that's still in the box
how 'bout a dimmable light?
Nope, only thing dimmable are the two (gen1) RGBW shellies we have
You don’t have to reboot your devices now when the server is restarted?
Correct, they seem to get detected immediately. And at least last night our anchor light went on automatically
@Lille Ø can you let me know which Shelly models you have tested with so I cam add them to the README?
Only with Shelly Plus 1. That's the only gen2 device we have as long as I don't find the time to install the Uni
ok. that's a Gen 2?
