26 Replies
@Gyro Gearloose
Note for OP

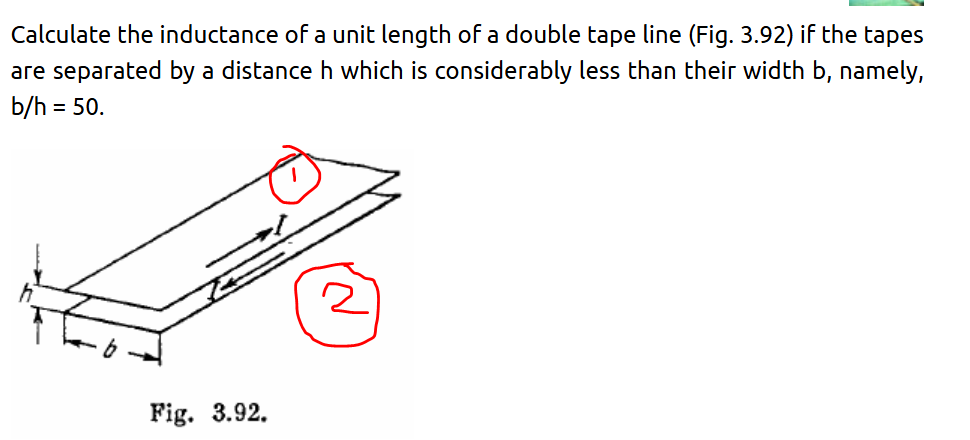

+solved @user1 @user2... to close the thread when your doubt is solved. Mention the users who helped you solve the doubt. This will be added to their stats.magnetic flux through 2 due to 1 = mu (current per unit width ) /2 * area
current per unit width = I/b
flux 21 = mui/2
inductance = mu/2
Total flux double hoga na iske

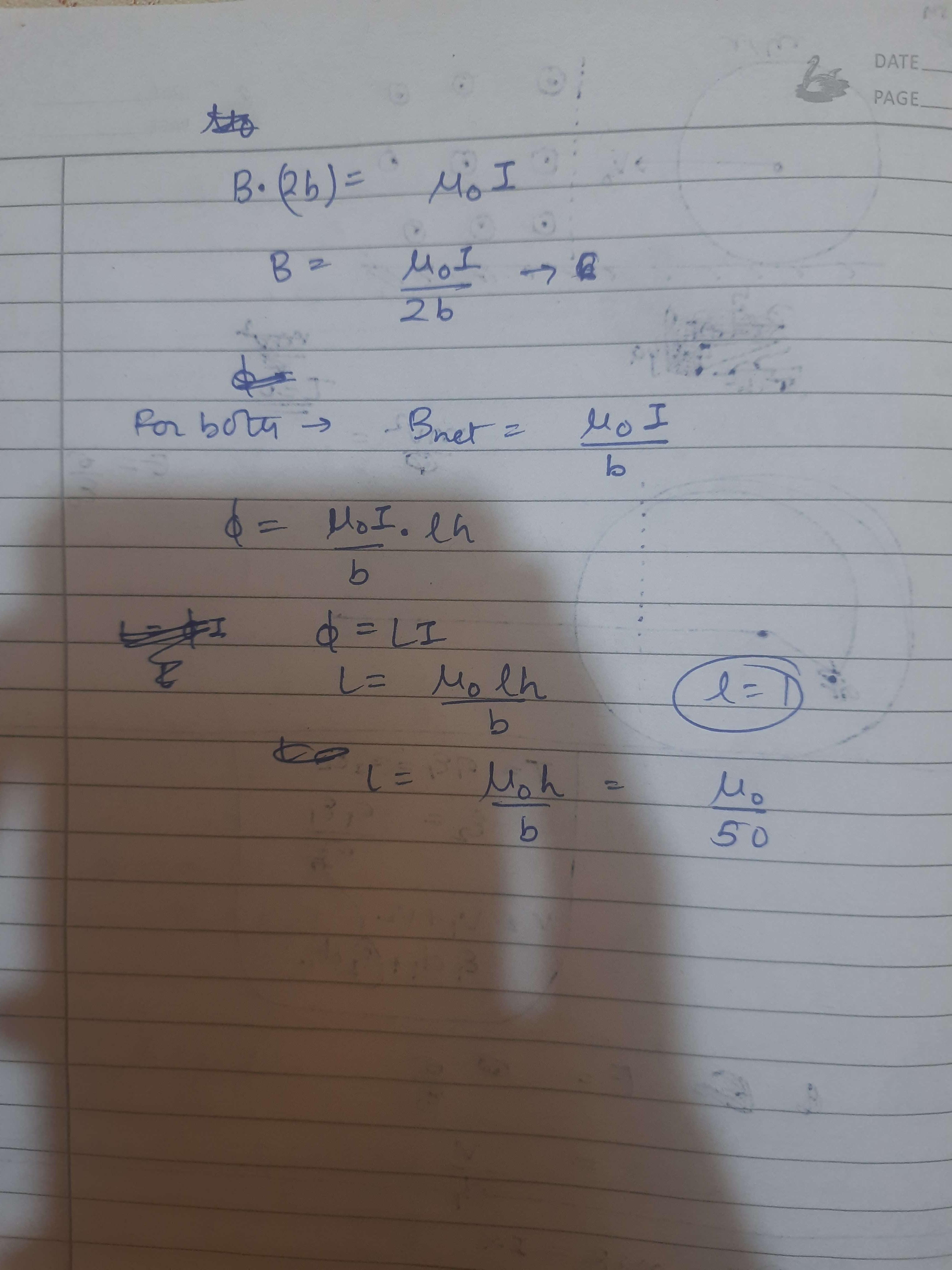

Is answer u0/50
@CorrodedCoffin
Tereko ye to pata na ki jab 2 loops similar kaagi close hote to
M=L hota
@nori ye vala confirm krdo
Hardcore sogaya lagta
okay but i didnt study this yet
sry
Damn
For mutual induction ke lie khud ki field ka flux thodi dekhenge
Bnet toh mu i / 2b hua (through any single plate due to other)
bhai waise flux pass ho kaise rha hai ismein se
@nori @integralofe^2v
Abhi mutual inductance baaki he padna
oh alr
Sorry bhai 2 din se discord nahi khola, test the kaafi.
Abhi batata
Pure system ko study kar rahe ha to flux to dono ki lenge

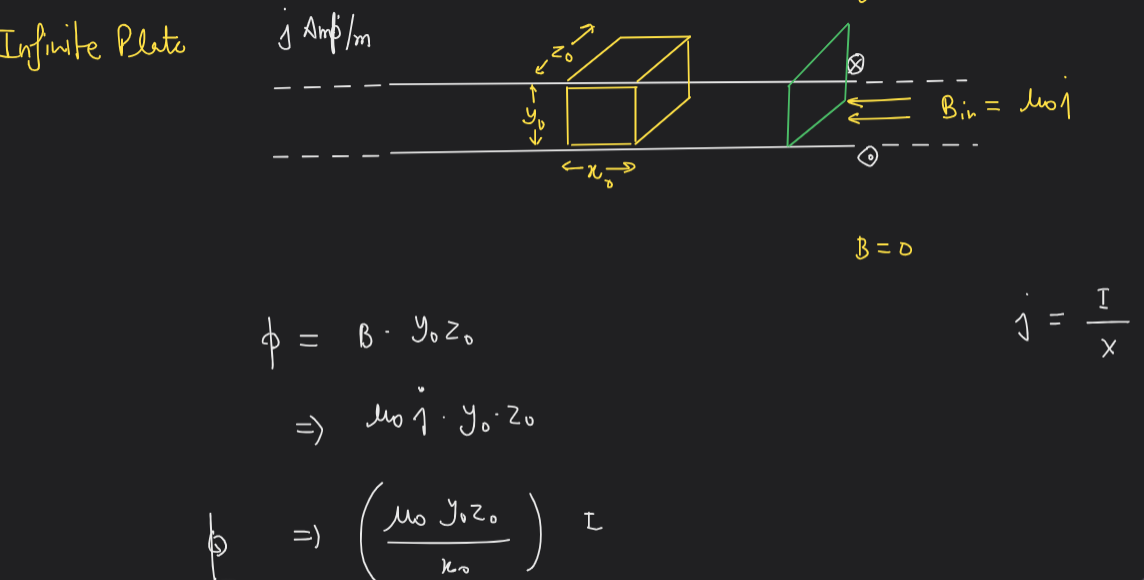

Sheets ko infinite wires maanle, fir right hand rule laga
@CorrodedCoffin
wtf
aise kaise
kyu galat kya ha isme
bhai sheet = wire ??

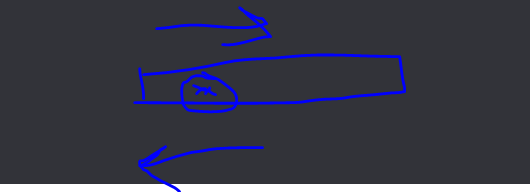

also sheet ki wajah se magnetic field toh aise jayegi
Infinite wires se hi bani hogi sheet
Aise vizualize karne mei kya dikkat hogi
cuz wire ki field concentric circles hoti ha
sheet ki nahi
Acha ure saying magnrtic field for sheet = muJ/2 where j is vector, so Direction should be towards current
But sheet is basically multiple wires, to direction to same si aani chahiye
Ill discuss this flux doubt with my teacher today, fir batata
Numerical part to clear hi ha
yeah.. basically you've to calculate the self inductance for this entire system.. we define self inductance for closed loops.. even tho this isn't exactly closed we'll take it to extend up to infinity
so calculate the flux that passes through a region enclosed within the sheets
this is correct ig
flux hi toh nahi pass hota dikhra
like this
par dusri plate se kahan flux pass kara
why tho? like this isn't mutual inductanc
it's the self inductance of the whole thing
ohhhhh self inductance hai
i was finding out mutual induction
