VC4 beginners mesh

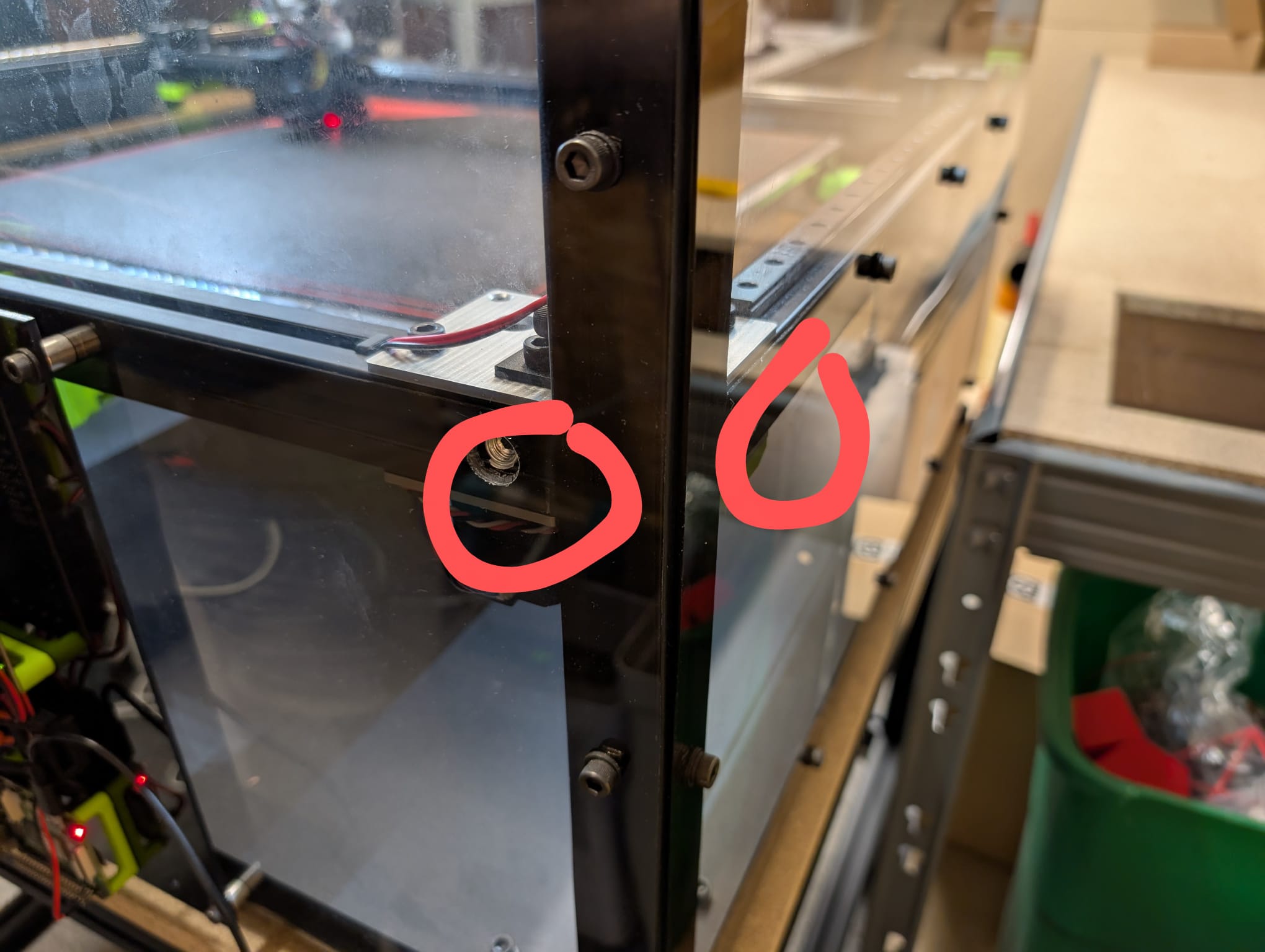

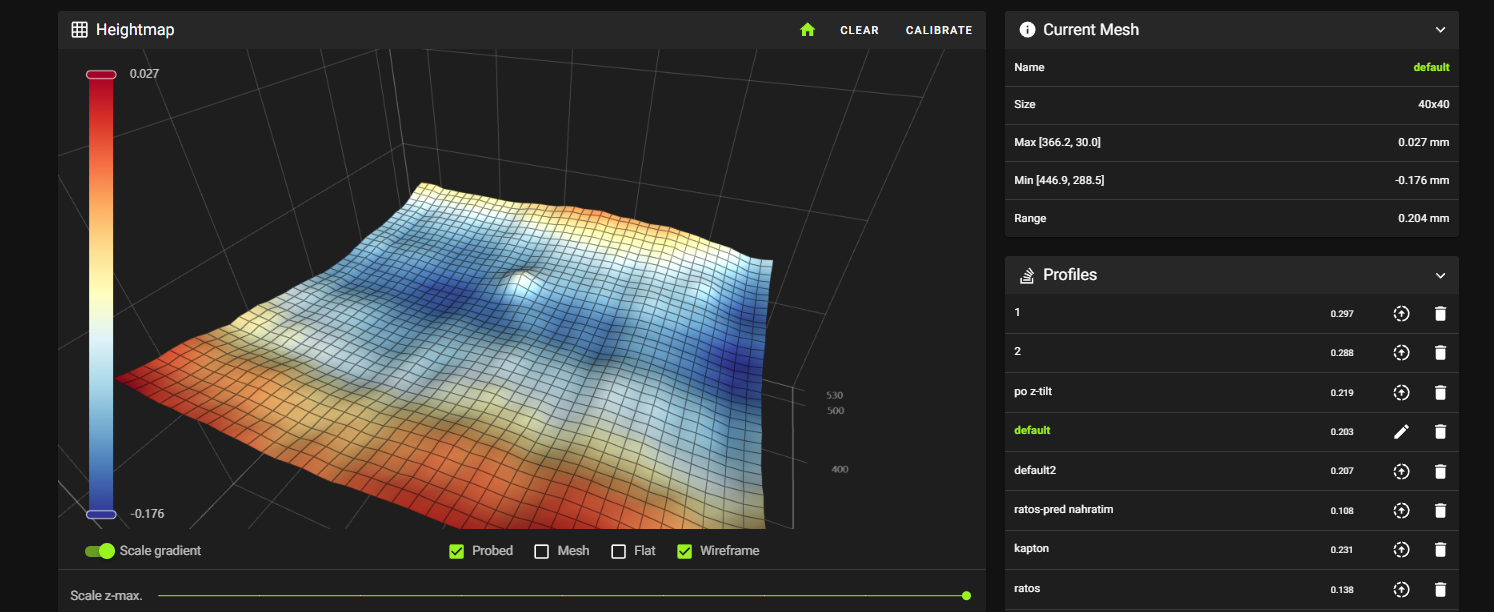

Hello, I’ve just got a new V-Core. I did a mesh and got this result — I need to raise the back left corner. I tried loosening the screws as shown in the photo and lifting it, but it doesn’t work. The mesh still looks the same. Are these the correct screws? Thanks for the advice.
Solution:Jump to solution
What i found useful was using a straight edge and make a mark with a pencil across the gantry and corner post so i could "see" how much i adjusted it. Remove the enclosure side completely then make that mark, loosen the screws and lower that corner slightly. If nothing is changing you aren't moving it
6 Replies
Those are the correct screws but your back left corner is low/ beacon is far away from bed there... you want to lower the gantry in that corner to bring it closer to the bed not raise it. Raising it will make the gap bigger
Thank you, I tried, but when I loosen both screws and push, then tighten and run the mesh again, nothing changes.
Solution
What i found useful was using a straight edge and make a mark with a pencil across the gantry and corner post so i could "see" how much i adjusted it. Remove the enclosure side completely then make that mark, loosen the screws and lower that corner slightly. If nothing is changing you aren't moving it

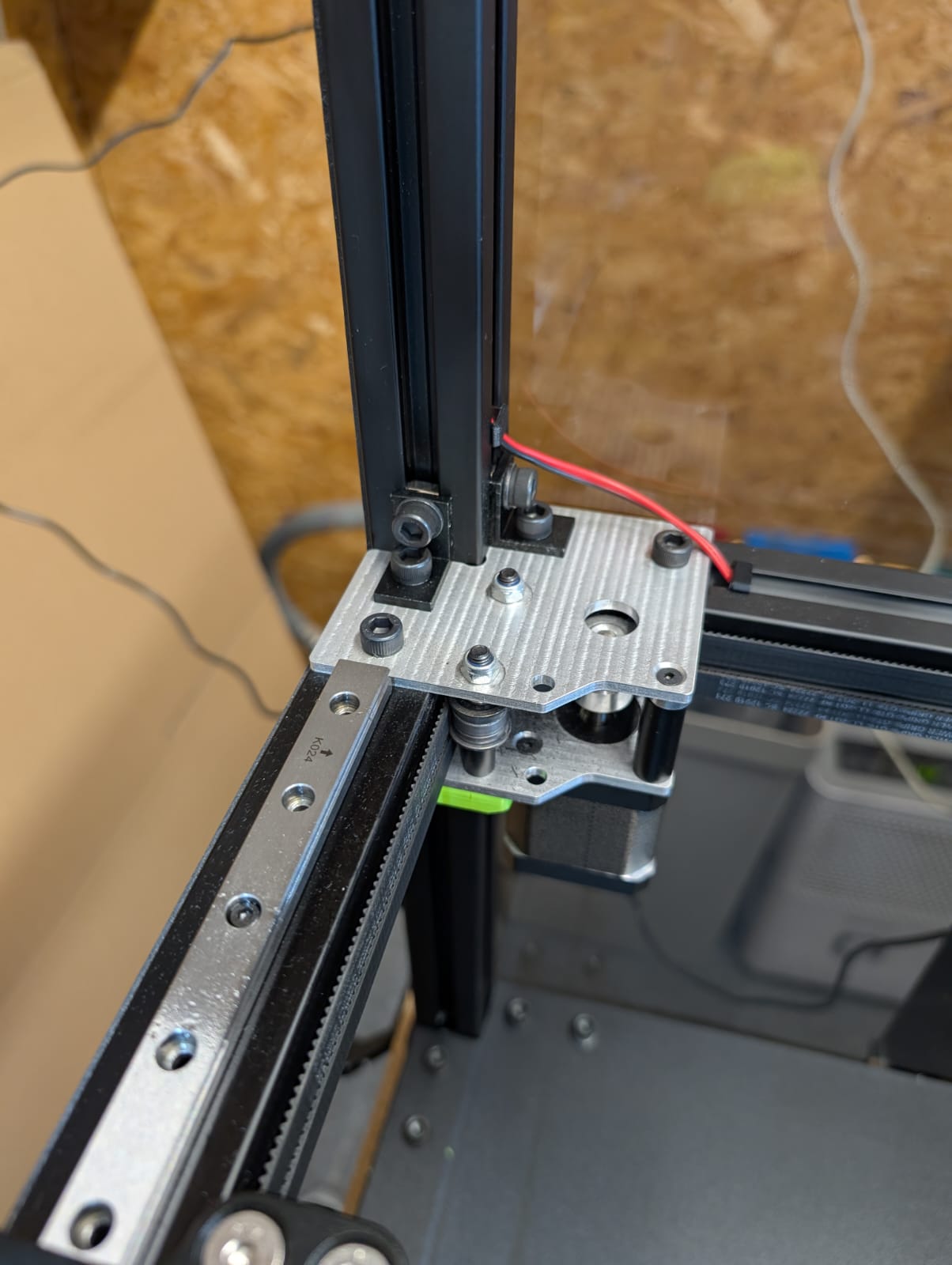

Side panel removed, both screws on the outer side loosened. When I press down on the silver corner from above, it doesn’t move even by 1/10 mm.. Do I need to loosen anything else?
Yup, those angle brackets definitely look like they are holding it in place
Loosening the brackets helped.
