Fix layer shift
Hello guys
Just finished assembling a vcore 4 idex 500
Its my first time building a rat rig.. but already built other printers
Ony first test prints I get layer shifts on Any travel movements.
Already tried belts from loose to tight nothing seems to help.

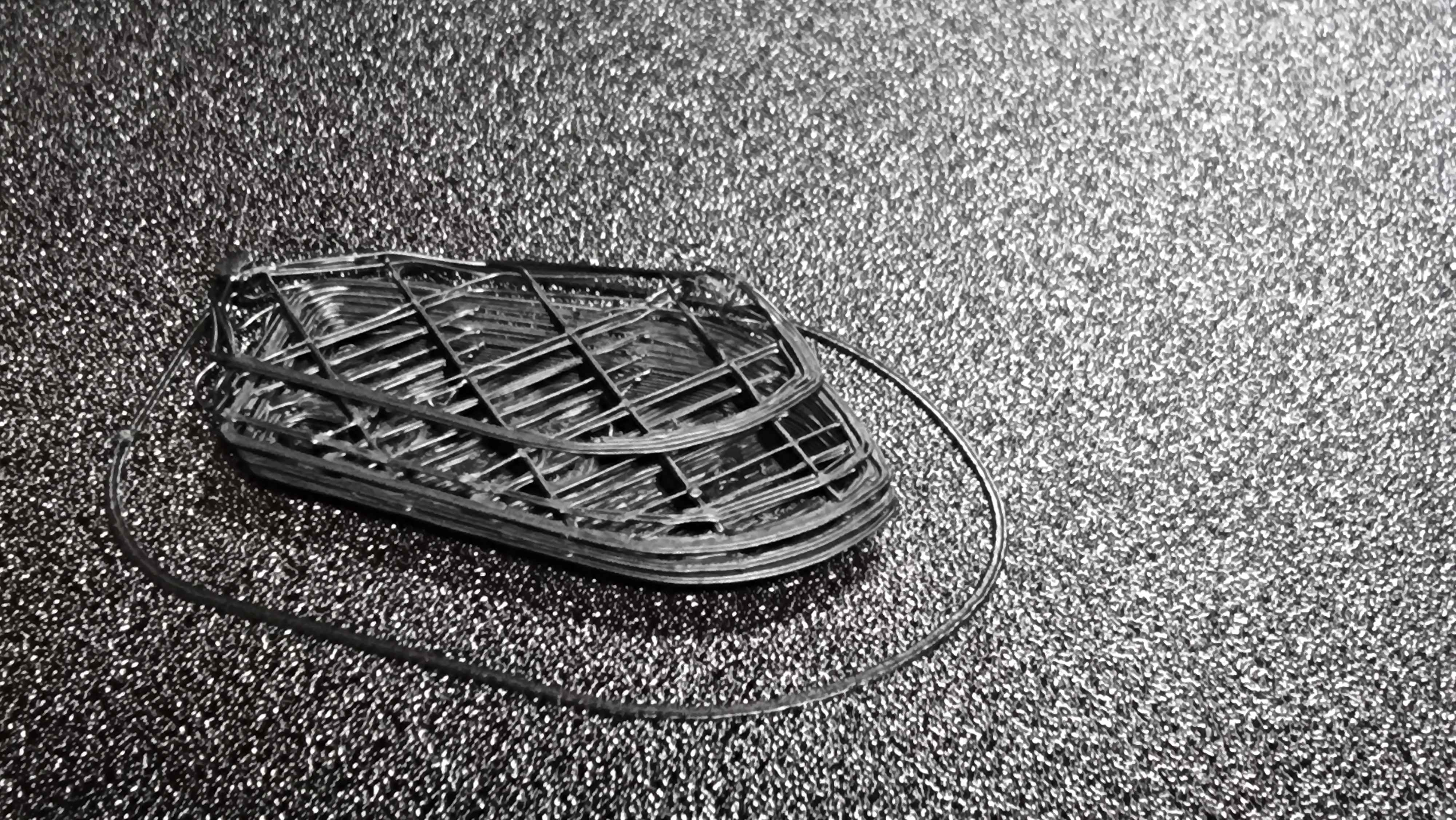

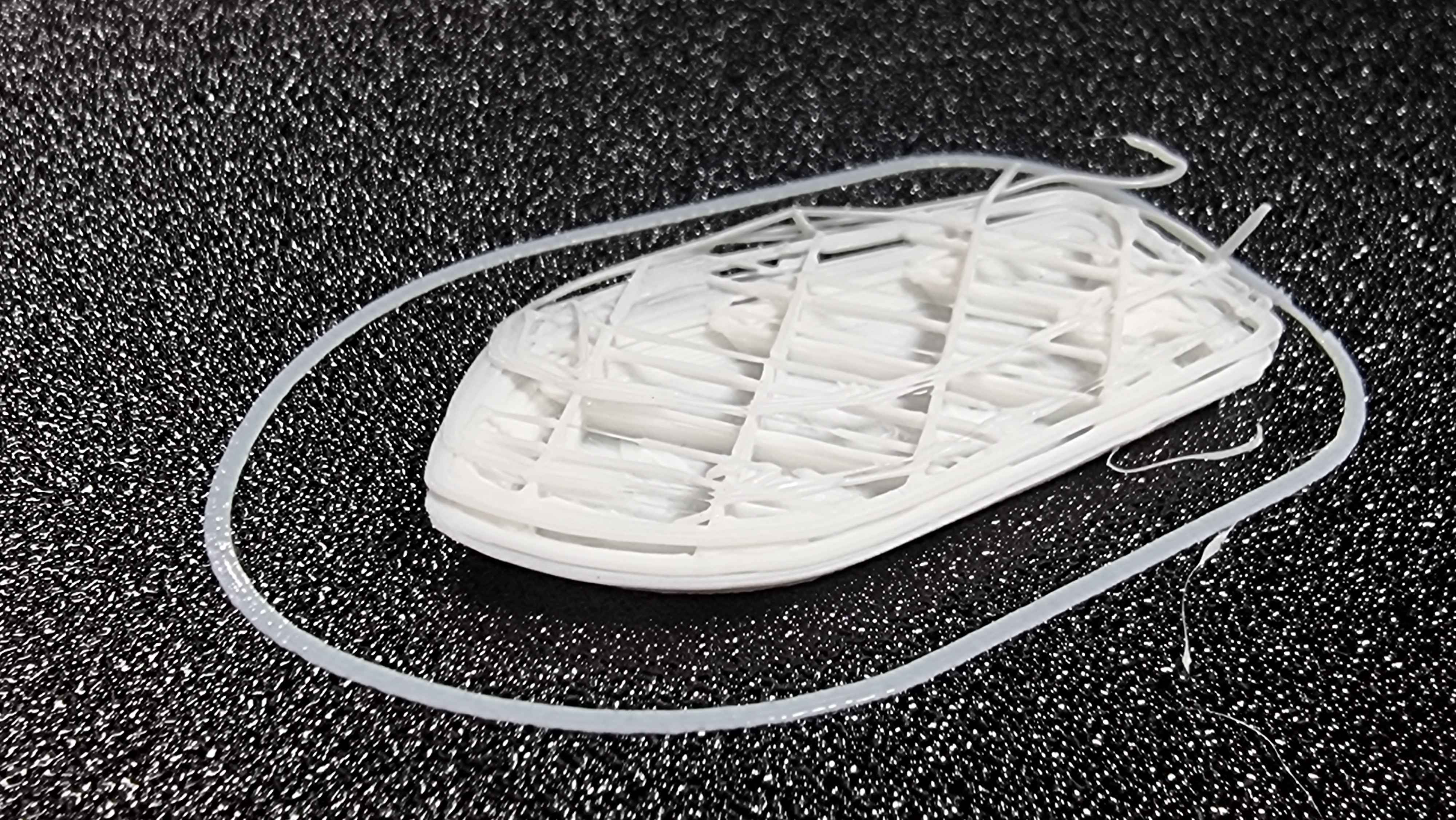

Let me leave here some print examples and my ressonance graphics..
Any help would be greatly apreciated
2 Replies
Ive rechecked the frame etc.. the axis move freely when no motors are atached.
all the puleys are centered and tight
tried from loose to stiff belts. compared the stiffness of the belts with a voron and prusa XL etc
Checked and the power suply is delivering 24V
tried 50% speed factor (3k accell on travel movements where the shifts happen)
using the recommended prusa slicer profiles
Contacted support (no answer yet for a few days now)
runing out of creativity to solve this issue to be honest.
Any help would great ! 🙂
that looks like layer shifting.
IDEX is extremely hard to set the correct belt tension. most people report good results with GATS.
the main point is having left and right belts tensioned equally
