Klipper shutdown MCU 'mcu' shutdown: Timer too close

So this have happend to me a few times now the last few days. Anyone know how to adress this or how to check for issues?
Im running a BTT Manta M8p with the CB1 on it.

BuddienorwayOP•12/23/25, 2:37 AM

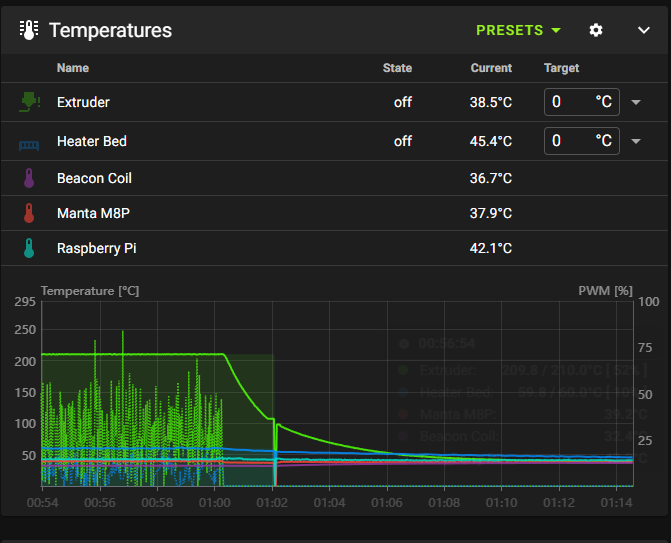

Should i maybe get a few new sd cards or something. Dont look like its to hot or anything

BuddienorwayOP•12/23/25, 4:20 AM

or maybe i need to get the 32 version of ratos instead of the 64 bit on my cb1.

BBuddienorway or maybe i need to get the 32 version of ratos instead of the 64 bit on my cb1.

cgrr [VC 3.4 hybrid 500]•12/23/25, 7:19 AM

I don't know about the CB1 but I do know that only the 32 bit Ratos is recommended for the Pi.

BuddienorwayOP•12/23/25, 9:43 AM

this is on my VC 3.1 400 normal. So i might need to get a 32 bit installed then. It might be to hard for the cb1. Thanks for the tips

BuddienorwayOP•12/23/25, 7:10 PM

So i guess i need to update the cb1 manually since i cant seem to find that in the ratos configurator. With the cb1. So i can maybe just SSH into it and do the update from there or? Ill try to find some guide online. Knew i had quite a hassle last time getting installed correctly

EternalPath•12/24/25, 12:55 PM

Its a loose USB connection to your motherboard or toolboard

EternalPath•12/24/25, 12:55 PM

Happens when the raspberry pi loses USB connectivity with the octopus or toolboard

TheTik•12/24/25, 2:17 PM

That's a different error message. Lost connection vs timer too close. The latter means the MCU couldn't keep up

TTheTik That's a different error message. Lost connection vs timer too close. The latter...

EternalPath•12/24/25, 8:54 PM

I thought its the same error. If I fiddle eith thr USB C going into an ebb46 toolboard, I get the timer too close error.

EternalPath•12/24/25, 8:55 PM

Mcu remains connected but connection is faulty, hugh packet loss -> timer desync

TheTik•12/24/25, 8:59 PM

Hmm, that's very interesting. With the USB protocol I wouldn't have expected that.

BuddienorwayOP•12/25/25, 6:47 AM

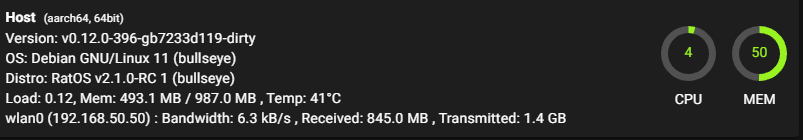

Its my VC 3.1 With the manta m8p and cb1. On the cb1 i have the 64bit installed witch take alof of memory having the ratos configurator in the back ground.

BuddienorwayOP•12/25/25, 6:48 AM

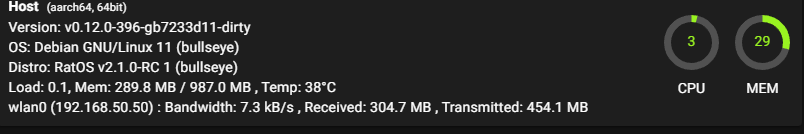

Here i turned it off so then it goes down to 30 % so i can use my printer still so it wont get to busy
