something tells me this frame buffer lacks a depth buffer

D

Deleted UserOP•8/13/21, 9:38 PM

not....sure how to fix that

P

Perksey•8/13/21, 9:53 PM

if it's opengl, you can use WindowOptions.PreferredDepthBufferBits

P

Perksey•8/13/21, 9:53 PM

set it to something like 24

D

Deleted UserOP•8/13/21, 11:24 PM

D

Deleted UserOP•8/13/21, 11:24 PM

Ouchie....

D

Deleted UserOP•8/13/21, 11:25 PM

Looks good to me?

D

Deleted UserOP•8/13/21, 11:25 PM

Nooooot in the settings window lol

D

Deleted UserOP•8/13/21, 11:25 PM

That is very much glitched

D

Deleted UserOP•8/13/21, 11:32 PM

It's... it's... it's EVEB WORSE NOW...

D

Deleted UserOP•8/13/21, 11:32 PM

D

Deleted UserOP•8/14/21, 2:52 AM

argh depth testing is not working

D

Deleted UserOP•8/14/21, 2:52 AM

DDeleted User Click to see attachment

D

Deleted UserOP•8/14/21, 6:27 AM

If you need help you'd have to give a bit more information

D

Deleted UserOP•8/14/21, 6:46 AM

@Deleted User okay well I've had a chance to renderdoc it

D

Deleted UserOP•8/14/21, 6:46 AM

So

D

Deleted UserOP•8/14/21, 6:46 AM

Depth testing works if, get this, RenderDoc is attached.

D

Deleted UserOP•8/14/21, 6:46 AM

...I don't... I don't know how that works.

D

Deleted UserOP•8/14/21, 7:09 AM

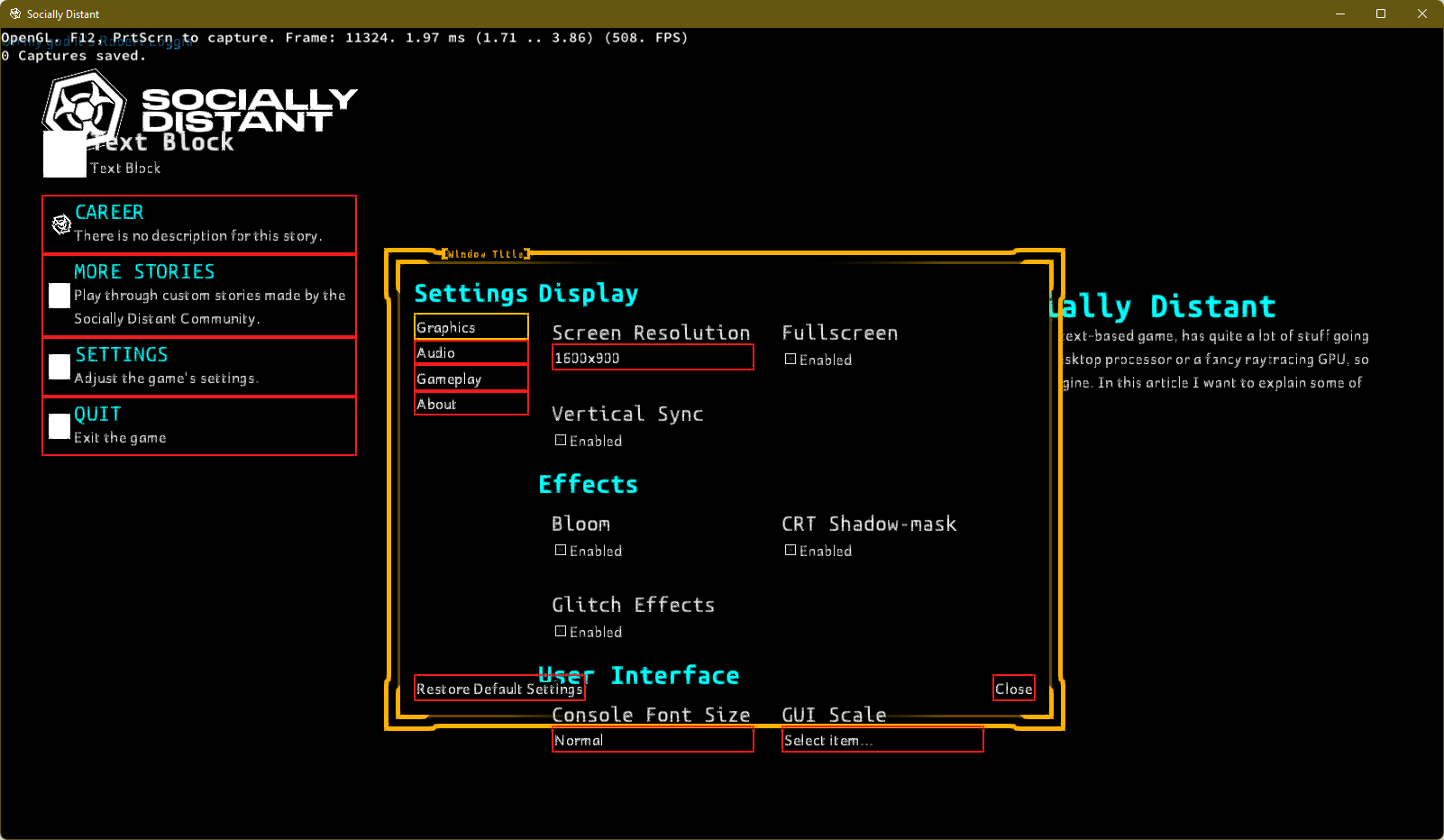

Yay, this is how things should look

D

Deleted UserOP•8/14/21, 7:09 AM

D

Deleted UserOP•8/14/21, 7:09 AM

but renderdoc's attached

D

Deleted UserOP•8/14/21, 7:10 AM

with renderdoc not attached:

D

Deleted UserOP•8/14/21, 7:10 AM

D

Deleted UserOP•8/14/21, 7:10 AM

No depth testing.

D

Deleted UserOP•8/14/21, 7:33 AM

So yeah everything works fine now in terms of everything being batched correctly and alpha blending etc

D

Deleted UserOP•8/14/21, 7:33 AM

It's just that something about renderdoc and the way it works causes my engine to actually get depth testing

D

Deleted UserOP•8/14/21, 7:34 AM

and, without renderdoc, despite me enabling depth testing and setting a depth function AND adding a depth attachment to my framebuffer... Without renderdoc being attached to the engine, depth testing flat-out does not work.

D

Deleted UserOP•8/14/21, 7:48 AM

Do you Render to your own image or to one provided by windowing?

D

Deleted UserOP•8/14/21, 7:48 AM

My guess would be the depth buffer bits in your own configuration are low

D

Deleted UserOP•8/14/21, 8:09 AM

I render to my own image

D

Deleted UserOP•8/14/21, 8:10 AM

Depth buffer bits in my SDL2 config are 24, depth buffer bits in my own framebuffer are 24

D

Deleted UserOP•8/14/21, 8:10 AM

Depth function is LEQUAL

D

Deleted UserOP•8/14/21, 8:10 AM

Depth testing works fine when the app is run using renderdoc

D

Deleted UserOP•8/14/21, 8:11 AM

Depth testing does not work when I just run the app normally or from rider

D

Deleted UserOP•8/14/21, 8:14 AM

hang on a sec

D

Deleted UserOP•8/14/21, 8:14 AM

I just noticed this in the thundershock log

D

Deleted UserOP•8/14/21, 8:14 AM

LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. <renderbuffer> does not refer to an existing renderbuffer object
LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. Invalid render buffer.
LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. <renderbuffer> does not refer to an existing renderbuffer object
LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. Invalid render buffer.
LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. <renderbuffer> does not refer to an existing renderbuffer object
LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. Invalid render buffer.

LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. <renderbuffer> does not refer to an existing renderbuffer object
LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. Invalid render buffer.
LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. <renderbuffer> does not refer to an existing renderbuffer object
LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. Invalid render buffer.
LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. <renderbuffer> does not refer to an existing renderbuffer object
LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. Invalid render buffer.

LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. <renderbuffer> does not refer to an existing renderbuffer object
LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. Invalid render buffer.
LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. <renderbuffer> does not refer to an existing renderbuffer object
LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. Invalid render buffer.
LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. <renderbuffer> does not refer to an existing renderbuffer object
LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. Invalid render buffer.

LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. <renderbuffer> does not refer to an existing renderbuffer object
LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. Invalid render buffer.
LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. <renderbuffer> does not refer to an existing renderbuffer object
LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. Invalid render buffer.
LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. <renderbuffer> does not refer to an existing renderbuffer object
LOG: [4:12:08 AM] <SDLGameWindow.cs:110/fatal> SdlGameWindow::PrintGlError(): GL_INVALID_OPERATION error generated. Invalid render buffer.

D

Deleted UserOP•8/14/21, 8:15 AM

public override uint CreateRenderTarget(uint texture, uint w, uint h)
{
    // Create a framebuffer.
    var fbo = _gl.GenFramebuffer();

    // Create a render buffer object for the depth buffer.
    var rbo = _gl.GenRenderbuffer();
    _gl.NamedRenderbufferStorage(rbo, GLEnum.Depth24Stencil8, w, h);

    // Attach it to the texture.
    _gl.BindFramebuffer(GLEnum.Framebuffer, fbo);
    _gl.FramebufferTexture2D(GLEnum.Framebuffer, GLEnum.ColorAttachment0, GLEnum.Texture2D, texture, 0);
    _gl.FramebufferRenderbuffer(GLEnum.Framebuffer, GLEnum.DepthStencilAttachment, GLEnum.Renderbuffer, rbo);
    _gl.DrawBuffer(GLEnum.ColorAttachment0);
    _gl.BindFramebuffer(GLEnum.Framebuffer, 0);


    // Return it.
    return fbo;
}

public override uint CreateRenderTarget(uint texture, uint w, uint h)
{
    // Create a framebuffer.
    var fbo = _gl.GenFramebuffer();

    // Create a render buffer object for the depth buffer.
    var rbo = _gl.GenRenderbuffer();
    _gl.NamedRenderbufferStorage(rbo, GLEnum.Depth24Stencil8, w, h);

    // Attach it to the texture.
    _gl.BindFramebuffer(GLEnum.Framebuffer, fbo);
    _gl.FramebufferTexture2D(GLEnum.Framebuffer, GLEnum.ColorAttachment0, GLEnum.Texture2D, texture, 0);
    _gl.FramebufferRenderbuffer(GLEnum.Framebuffer, GLEnum.DepthStencilAttachment, GLEnum.Renderbuffer, rbo);
    _gl.DrawBuffer(GLEnum.ColorAttachment0);
    _gl.BindFramebuffer(GLEnum.Framebuffer, 0);


    // Return it.
    return fbo;
}

public override uint CreateRenderTarget(uint texture, uint w, uint h)
{
    // Create a framebuffer.
    var fbo = _gl.GenFramebuffer();

    // Create a render buffer object for the depth buffer.
    var rbo = _gl.GenRenderbuffer();
    _gl.NamedRenderbufferStorage(rbo, GLEnum.Depth24Stencil8, w, h);

    // Attach it to the texture.
    _gl.BindFramebuffer(GLEnum.Framebuffer, fbo);
    _gl.FramebufferTexture2D(GLEnum.Framebuffer, GLEnum.ColorAttachment0, GLEnum.Texture2D, texture, 0);
    _gl.FramebufferRenderbuffer(GLEnum.Framebuffer, GLEnum.DepthStencilAttachment, GLEnum.Renderbuffer, rbo);
    _gl.DrawBuffer(GLEnum.ColorAttachment0);
    _gl.BindFramebuffer(GLEnum.Framebuffer, 0);


    // Return it.
    return fbo;
}

public override uint CreateRenderTarget(uint texture, uint w, uint h)
{
    // Create a framebuffer.
    var fbo = _gl.GenFramebuffer();

    // Create a render buffer object for the depth buffer.
    var rbo = _gl.GenRenderbuffer();
    _gl.NamedRenderbufferStorage(rbo, GLEnum.Depth24Stencil8, w, h);

    // Attach it to the texture.
    _gl.BindFramebuffer(GLEnum.Framebuffer, fbo);
    _gl.FramebufferTexture2D(GLEnum.Framebuffer, GLEnum.ColorAttachment0, GLEnum.Texture2D, texture, 0);
    _gl.FramebufferRenderbuffer(GLEnum.Framebuffer, GLEnum.DepthStencilAttachment, GLEnum.Renderbuffer, rbo);
    _gl.DrawBuffer(GLEnum.ColorAttachment0);
    _gl.BindFramebuffer(GLEnum.Framebuffer, 0);


    // Return it.
    return fbo;
}

D

Deleted UserOP•8/14/21, 8:16 AM

hard to tell exactly where that error comes from, I wish there were preprocessor macros in C#

D

Deleted UserOP•8/14/21, 8:16 AM

so I could wrap all the GL calls in a macro that, in release builds, just does the call, but in debug builds, does the call and checks/asserts errors

D

Deleted UserOP•8/14/21, 8:26 AM

Extension method with

[Conditional("DEBUG")]

[Conditional("DEBUG")]

[Conditional("DEBUG")]

[Conditional("DEBUG")]

V

vdvman1•8/14/21, 8:26 AM

Debug.Assert

Debug.Assert

Debug.Assert

Debug.Assert only does the check in debug as well

D

Deleted UserOP•8/14/21, 8:27 AM

Yeah, if you just want to check a single condition Debug.Assert is the way to go

D

Deleted UserOP•8/14/21, 8:27 AM

For more complicated stuff a method with that attribute will just be deleted when in release.

D

Deleted UserOP•8/14/21, 8:28 AM

(I still want to bring this to Silk.NET, but it's difficult to do without sacrificing perf)

D

Deleted UserOP•8/14/21, 8:32 AM

OKAY, got it working!!!

D

Deleted UserOP•8/14/21, 8:32 AM

you know what it was?

D

Deleted UserOP•8/14/21, 8:32 AM

Can't use NamedRenderbufferStorage

D

Deleted UserOP•8/14/21, 8:32 AM

Had to bind the renderbuffer, use RenderbufferStorage, then unbind

D

Deleted UserOP•8/14/21, 8:33 AM

D

Deleted UserOP•8/14/21, 8:33 AM

now it all works
