i saw the old posts from stal2k about his FFFF's but his buttons were all lit up.. mine arent. he h

i saw the old posts from stal2k about his FFFF's but his buttons were all lit up.. mine arent. he had a voltage issue but mine reads 5.03 at the 5pin

TheAmazinGreat•4/26/23, 3:43 AM

FF should be unpressed so with all FFs you shouldn’t have anything lit up.

smittyOP•4/26/23, 3:44 AM

yea he had some other unrelated issue i guess, i just remembered someone getting FFFFF 🧰support

TheAmazinGreat•4/26/23, 3:46 AM

I remember that. But that seems like a different issue

TheAmazinGreat•4/26/23, 3:47 AM

Are any of the pins on the 9 pin plug connected to the metal case? Anything touching metal in the enclosure or on your rig that could be causing a short?

smittyOP•4/26/23, 3:48 AM

9pins are in 3dprints, nothing touching metal.
woah this is weird, im just messing with buttons here and if i hold down more than 2, i can get 24,25,26,27 to light up

smittyOP•4/26/23, 3:51 AM

but my button wires are on d0-d7

TheAmazinGreat•4/26/23, 3:52 AM

The D# don’t necessarily correspond to the button number in VPF configuration.

Ssmitty That’s what I don’t get.. I followed my pic above exactly .. I did the crisscros...

walmis•4/26/23, 3:52 AM

Try the shift register profile

smittyOP•4/26/23, 3:52 AM

been trying both generics and vpf shift reg

Wwalmis Try the shift register profile

TheAmazinGreat•4/26/23, 3:53 AM

Is that not the same as debug?

smittyOP•4/26/23, 3:53 AM

one of the generics is debug

walmis•4/26/23, 3:53 AM

Oh and button layout is different than on silkscreen on this pcb revision

smittyOP•4/26/23, 3:54 AM

its rev01

walmis•4/26/23, 3:56 AM

Try saving the shift reg profile and resetting the board

smittyOP•4/26/23, 3:59 AM

same results

TheAmazinGreat•4/26/23, 4:02 AM

Only other suggestion I have is to eliminate the 9 pin to verify that isn’t the issue. I know I had some issues during bench testing with my connections showing continuity but actually being loose and causing issues. I had to put it down and come back and start from scratch a couple times.

smittyOP•4/26/23, 4:02 AM

if i hold the button on d2 i get no lights, i can get 27 to light while holding d1+d2, and 28 while holding d2+d3..

smittyOP•4/26/23, 4:04 AM

cant really eliminate the 9pin, wont be able to climb in/out of this simulator

smittyOP•4/26/23, 4:04 AM

i have to yank the joystick to get out

smittyOP•4/26/23, 4:06 AM

TheAmazinGreat•4/26/23, 4:06 AM

Just for testing purposes I mean, get it working and then work additional complexity in.

Ssmitty if i hold the button on d2 i get no lights, i can get 27 to light while holding ...

TheAmazinGreat•4/26/23, 4:07 AM

I had a similar issue. I think it ended up being loose/faulty wiring. 🧰support

TheAmazinGreat•4/26/23, 4:07 AM

I ended up rewiring my plugs and reconnecting and send/save a new config and it worked.

TheAmazinGreat•4/26/23, 4:08 AM

I’ve got to hop off, but hope you can figure it out. Keep us posted!

smittyOP•4/26/23, 4:09 AM

will do, thanks for the tips!

Ssmitty Click to see attachment

PiNKSH!T•4/26/23, 4:12 AM

Hey m8, those spring detents on your logitech tpm are they your design or did you get them somewhere?

smittyOP•4/26/23, 4:13 AM

theres no springs, i took em all out

smittyOP•4/26/23, 4:14 AM

OH the quadrant

smittyOP•4/26/23, 4:14 AM

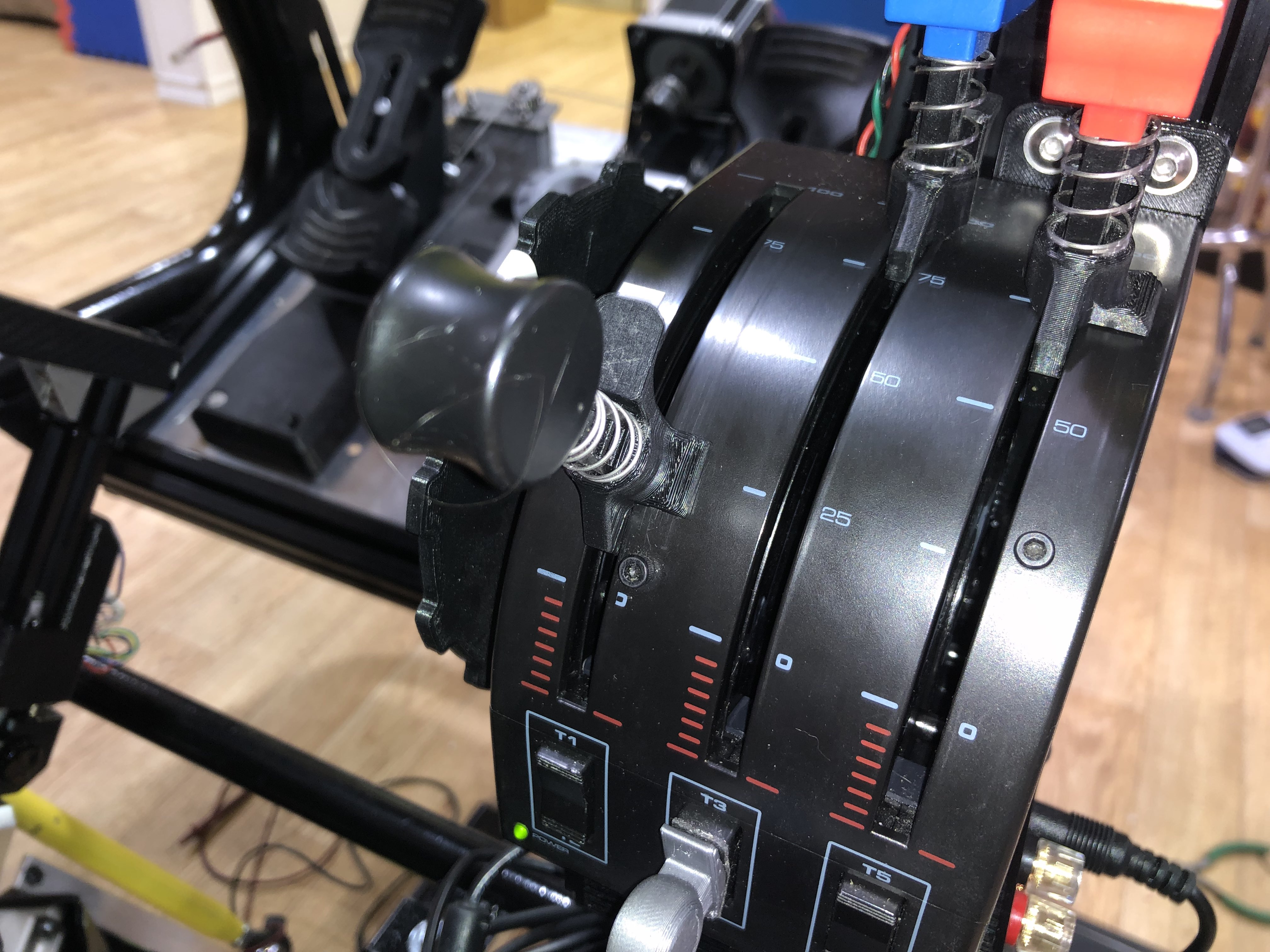

yeah i put em on thingiverse

smittyOP•4/26/23, 4:15 AM

https://www.thingiverse.com/thing:4891661

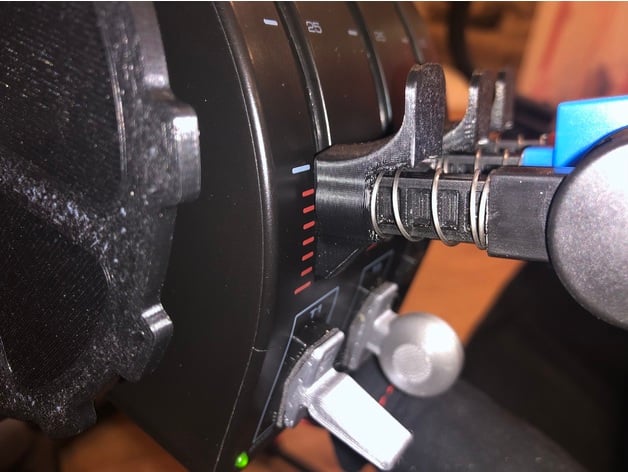

Saitek Quadrant Bottom Stop by smitty_fpv

This is a travel limiting stop for the Saitek flight simulator quadrant. Prevent accidental thrust reversing at bottom throttle! With a light pull of the tab you can bump the lever down to hit the switch.
I used this spring kit:https://www.amazon.com/gp/product/B08RXV6WH2
print in orientation shown with support.
Also included is flap and landi...

PiNKSH!T•4/26/23, 4:18 AM

oh cool cheers m8

smittyOP•4/26/23, 4:20 AM

just added the 2nd version to it that has a stop tab on the side, you just put in a m3 cap screw into the plastic as a 2nd stop. works great for thrust reverse etc

PiNKSH!T•4/26/23, 4:21 AM

sory I can't picture what you mean?

PiNKSH!T•4/26/23, 4:22 AM

oh nvm I see the screw in the pic

PiNKSH!T•4/26/23, 4:22 AM

I get what you mean

smittyOP•4/26/23, 4:22 AM

smittyOP•4/26/23, 4:23 AM

the one on mixture is for turboprop idle condition

smittyOP•4/26/23, 5:30 AM

dammit, now i think i killed a usb board facepalm

5v touched cs line by accident, fuck me.

smittyOP•4/26/23, 5:39 AM

going to bed, i think ive broken enough for one night

walmis•4/26/23, 5:41 AM

5V shouldn't kill it

walmis•4/26/23, 5:42 AM

but might damage that pin, though

Ssmitty i saw the old posts from stal2k about his FFFF's but his buttons were all lit up...

Stal2k•4/26/23, 6:24 AM

IDK how far you've come since but my issue was actually the USB hub I had it plugged into, for whatever reason it wasn't giving it enough juice and caused a lot of weird issues.

Stal2k•4/26/23, 6:25 AM

All my multimeter testing was ok at the Rhino, because my problem was elsewhere, so even if you aren't using a hub try swapping ports to a different controller on the PC or connect it directly if you aren't, remove or swap out any type of USB extensions etc.

Rails•4/26/23, 10:39 AM

@walmis I’ve been having trouble getting force feedback to work for il2 since it just updated. I checked I had the latest firmware update as well. I’m getting no input from the Y axis, X axis seems to be functioning. Is it something on your end or with the game?

RRails @walmis I’ve been having trouble getting force feedback to work for il2 since it...

walmis•4/26/23, 10:40 AM

Hmm, yeah, I think I broke something.

RRails @walmis I’ve been having trouble getting force feedback to work for il2 since it...

walmis•4/26/23, 10:42 AM

Fix pushed http://vpforcecontrols.com/usb/rhino/

Rails•4/26/23, 10:42 AM

Awesome thank you sir.

Wwalmis 5V shouldn't kill it

smittyOP•4/26/23, 3:02 PM

it's dead-dead. no beeps, no windows usb sound. Going thru multiple combinations of wire to the SR i found that hooking it up straight to the 5 pin works. Also tried one of the other SR boards from the order and same thing there. i was about to test the longer 26ga cable without the db9 and while i was unsoldering, realized it was still plugged in on usb as the iron touched 5v and CS. it made a last 'beep!' and windows usb disconnect sound and then that was it.

smittyOP•4/26/23, 3:04 PM

Before it died i was getting same results on powered usb hub and pc usb ports.

smittyOP•4/26/23, 3:07 PM

the 26ga cable is only about 200mm long. what i dont get is, why would a correctly wired cable/connector not work? is it some insanely high speed or something? does it need shielding or twisted pairs?
