I just hooked up my Rhino to a winwing F18 stick using the winwing adapter. All buttons work except

I just hooked up my Rhino to a winwing F18 stick using the winwing adapter. All buttons work except the trim hat. That is; the button works but right/left/up/down does not register. Any ideas? Thanks in advance

MMinimanzack I just hooked up my Rhino to a winwing F18 stick using the winwing adapter. All ...

Mr. S•11/24/23, 5:08 PM

check those settings in the FFB configurator software?

MinimanzackOP•11/24/23, 5:17 PM

Thanks! I now saw that I hadnt changed the grip type. Changed it to winwing adapter and all works flawless! Thanks @mr.s4232

I/JG7_Moto•11/25/23, 1:19 AM

Mine just shipped, is there a tutorial on how to setup the FFB Rhino?

FlatSpin•11/25/23, 2:12 AM

knowledge-base manual

I/JG7_Moto•11/25/23, 5:11 AM

Thanks

legobirds•11/25/23, 8:10 AM

Does any know how to make winwing adapter works for rhino? I have selected the winwing adapter in grip type

legobirds•11/25/23, 8:10 AM

legobirds•11/25/23, 8:11 AM

None of the buttons worked, no reaction

Llegobirds Click to see attachment

Mr. S•11/25/23, 10:41 AM

Sorry for the obvious question, but did you apply/store the profile?

NNumber481 you can try disabling it in the edge settings.. but its %50/50 whether it honors...

Jehly•11/25/23, 9:20 PM

This, did not work.

Number481•11/25/23, 9:31 PM

Microsoft.com/support?

Number481•11/25/23, 9:31 PM

1-800-EXORCIST

Jehly•11/25/23, 11:27 PM

Ha! Might as well...

NNumber481 you can try disabling it in the edge settings.. but its %50/50 whether it honors...

slowmover•11/26/23, 3:26 PM

yeap it did not nothing....

f15sim•11/27/23, 12:20 AM

Is there a wiring diagram available for the FFB kits? I finally opened the box I got a couple of months ago, and there's no docs in there at all.

FlatSpin•11/27/23, 12:32 AM

f15sim•11/27/23, 2:49 AM

Perfect @.flatspin, thank you!

f15sim•11/27/23, 2:53 AM

24v acceptable if I can't source a 20v supply?

FlatSpin•11/27/23, 3:01 AM

I think Walmis recommends the 24v 350W meanwell

FlatSpin•11/27/23, 3:01 AM

This one: https://www.amazon.com/LRS-350-24-Switching-Supply-350-4W-115Vac/dp/B07RF38JXK

Mean Well LRS-350-24 Switching Power Supply 350.4W 24V 14.6A 115Vac...

350.4W 24V 14.6A Single Output Switchable Power Supply 24 Volts @ 14.6 Amps

f15sim•11/27/23, 3:07 AM

Got it, thanks.

Sundown•11/27/23, 5:24 AM

Does anyone know if the VKB-to-Rhino adapter will work for the new Mk 4 grips/button box? If not, is there a Mk 4 adapter or will there be one on the way?

FlatSpin•11/27/23, 6:16 AM

I don't believe so.

Llegobirds Click to see attachment

�

𝔐𝔬𝔯𝔭𝔥𝔦𝔫𝔢 💀•11/27/23, 5:23 PM

Ultimately, I was not able to get my WinWing F-16 stick working with firmware version 1.0.16 (it worked with 1.0.15) despite the debug saying the adapter was fine. I switched to the Virpil Alpha grip.

Raick•11/28/23, 4:21 PM

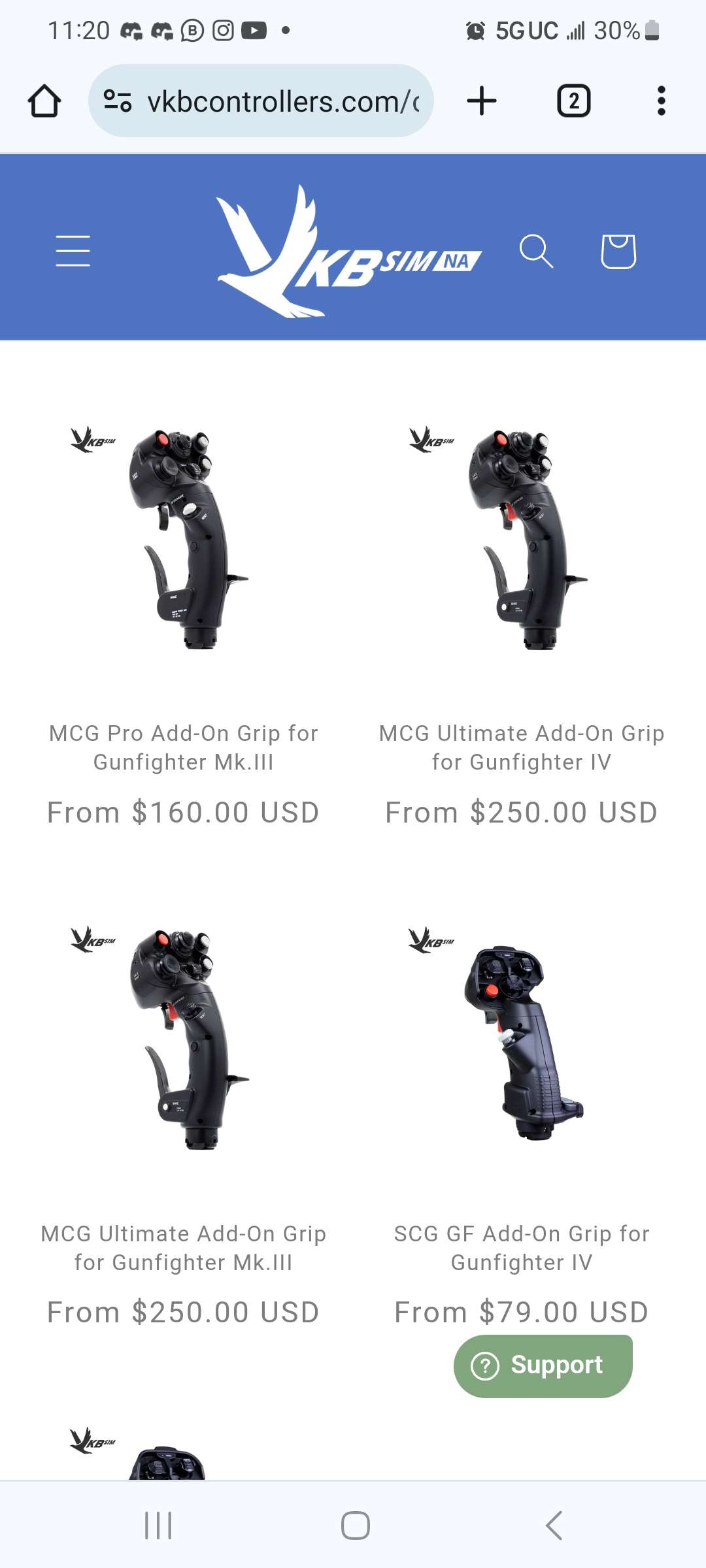

Hey guys, good morning! The vkb ultimate grip mkv works on rhino?

Raick•11/28/23, 4:21 PM

FlatSpin•11/28/23, 5:05 PM

MK III afaik

Icebeat•11/28/23, 6:20 PM

I don't understand why they need to change the adapter every revision.

IIcebeat I don't understand why they need to change the adapter every revision.

MashedPotato•11/28/23, 6:35 PM

The first one sucked, the last one was good, but flawed. this most recent one, barring any unforseen issues should have much better longevity

Bob Bushman•11/28/23, 6:35 PM

Got to pay for the eight+ year long development time for the throttle somehow I guess.

MashedPotato•11/28/23, 6:36 PM

Such things are the price of not just going with the current and using 5 pin DIN (which sucks ass) like everyone else

Subsonic•11/29/23, 4:03 AM

FYI Tomcat pilots

The latest patch has the FFB trim setting reversed. Unchecked enabled F-14 trim implementation, checks turns it off

amadeus•11/29/23, 6:04 AM

I flew the F14 over the weekend and feel like I didn’t notice this?

RRaick Hey guys, good morning! The vkb ultimate grip mkv works on rhino?

aniron•11/29/23, 8:22 AM

You will need a VKB blackbox to handle the grip, and a VKB adapter from Walmis.
Not sure if he has done any work on a RevC version of that adapter yet, but perhaps it could be modified using a VKB base connector upgrade kit.

Aamadeus I flew the F14 over the weekend and feel like I didn’t notice this? 🤔

Subsonic•11/29/23, 4:09 PM

Yea when I fired it up last night, first time after last patch.....trim would just run away and park itself full aft and then full forward and never respond.
No double mappings, update the stick firmware, sp and mp the same
Disabling FFB Trim in "special, f-14" settings caused it to work again.

PiNKSH!T•11/29/23, 4:44 PM

Hey where do I find the log? I've had the data log running & need to see it

PPiNKSH!T Hey where do I find the log? I've had the data log running & need to see it

blave549•11/29/23, 4:46 PM

it's in the installation directory

Bblave549 it's in the installation directory

PiNKSH!T•11/29/23, 4:48 PM

I'm running vpforce config software from the folder, so it should be in there? I can't find anything with .log

PPiNKSH!T I'm running vpforce config software from the folder, so it should be in there? I...

blave549•11/29/23, 4:49 PM

I thought you were talking about TelemFFB

Bblave549 I thought you were talking about TelemFFB

PiNKSH!T•11/29/23, 4:49 PM

oh sorry, I should of been clear

PiNKSH!T•11/30/23, 9:48 AM

Anyone looking for log file like I was it is in the config software folder & it's a .csv file.

RoyMi6•11/30/23, 12:46 PM

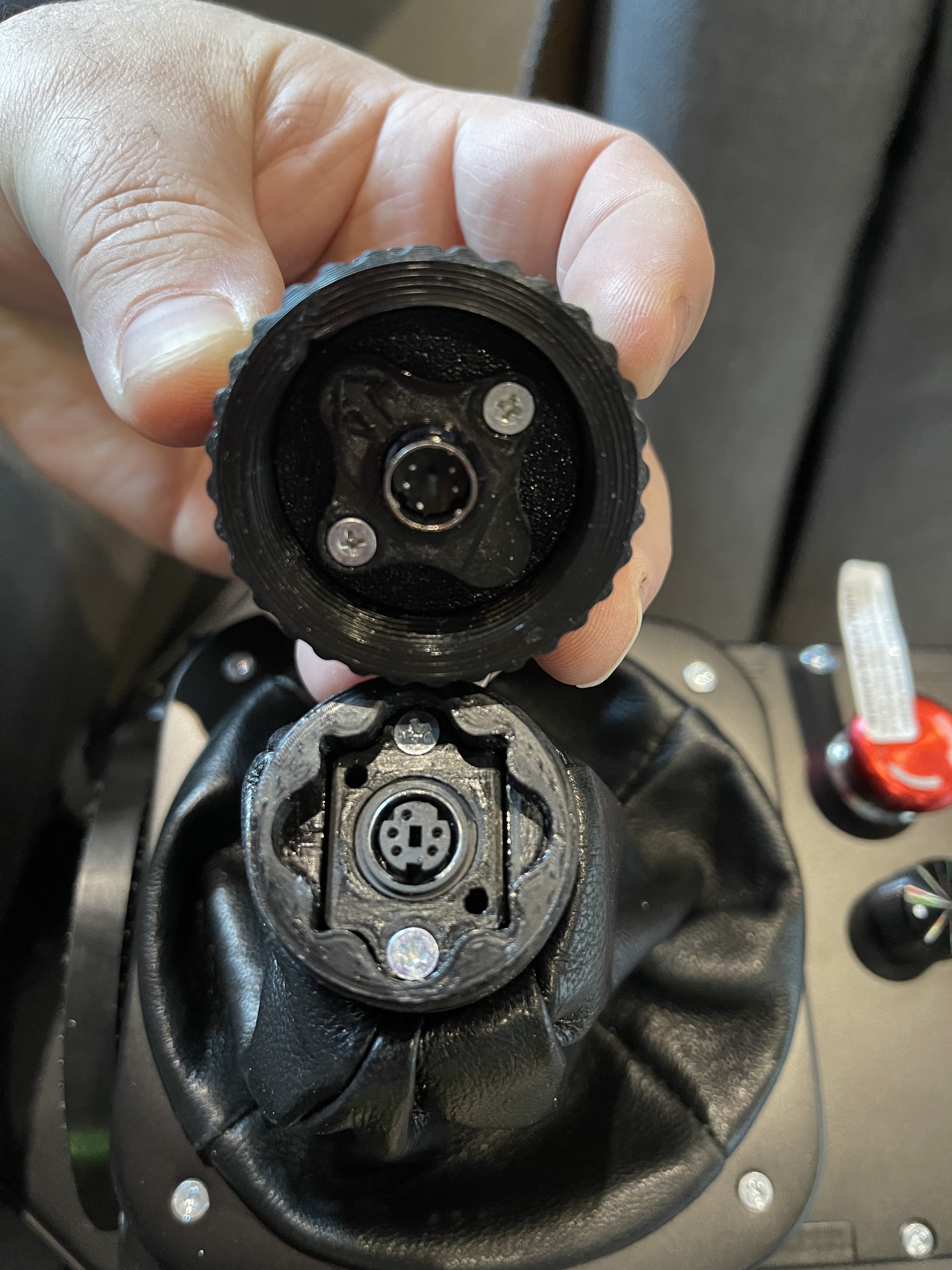

Just received my Rhino and winwing adapter. This looks wrong to me… like I need to rotate with the plug in the adapter or the rhino base… I assume I’m best rotating the winwing adapter plug yes?

walmis•11/30/23, 1:17 PM

Yeah, it's rotateable inside the winwing adapter

RoyMi6•11/30/23, 2:34 PM

Can I just… twist, or do I need to take it apart?

walmis•11/30/23, 2:36 PM

Yeah, definitely no need to take it apart

RoyMi6•11/30/23, 2:42 PM

Cool… well… going to have to be destructive as I’ve stripped the head of one of the 4 screws on the opposite end

RoyMi6•11/30/23, 2:42 PM

I can make it all fit without the 3D printed part/insert with the arrow shown in the picture… any concerns about just removing that?

RoyMi6•11/30/23, 2:48 PM

Or! Keeping that part just not screwing it into place on the adapter. So it’s still in the grip as a spacer, just not held in with those two screws…

walmis•11/30/23, 2:49 PM

You can plug the 6pin WW connector and twist it, it should turn without much resistance

walmis•11/30/23, 2:51 PM

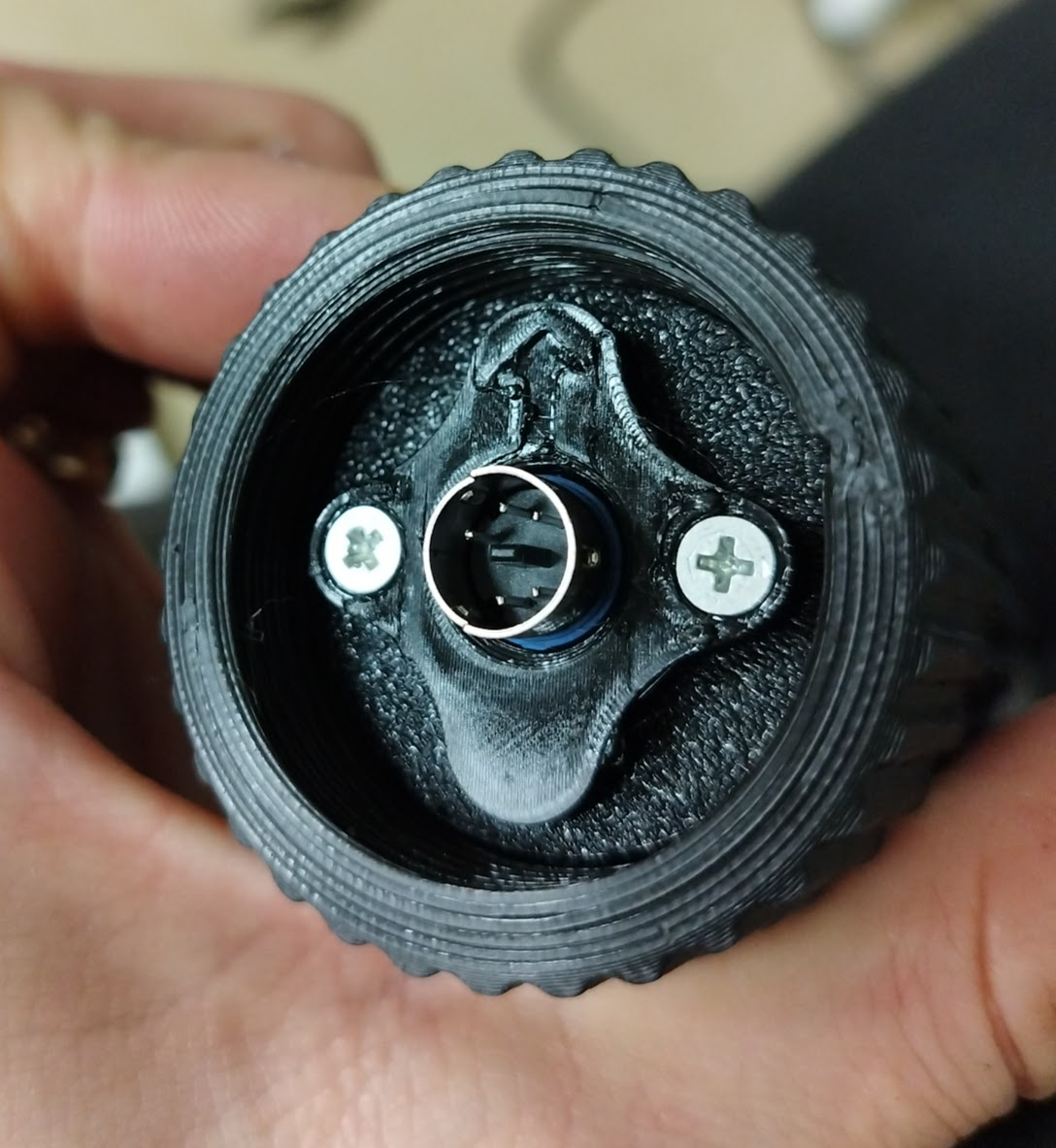

It should align like this
