VPforce Controls•2y ago

To get the red button to face away from you, do you just click on both the Xand Y axis invert in the

To get the red button to face away from you,
do you just click on both the Xand Y axis invert in the configurator?

356thFS_PiranhaOP•12/30/23, 5:11 PM

I have a thrustmaster warthog stick. How do i turn it the opposite way? Id the connection reversible?

356thFS_PiranhaOP•12/30/23, 5:11 PM

Pikas62•12/30/23, 6:02 PM

I think you have to reverse the axies in the sim or in the configurator. Sorry, I can only answer theoretically as I'm still waiting for my Rhino.

3356thFS_Piranha To get the red button to face away from you, do you just click on both the Xand ...

A. Palmetto•12/30/23, 9:08 PM

Yes

3356thFS_Piranha I have a thrustmaster warthog stick. How do i turn it the opposite way? Id the c...

A. Palmetto•12/30/23, 9:09 PM

In plug the stick. Take off. Turn 180. Put the plug back in and tighten stick. assuming you’re using a cable in between the stick and base

A. Palmetto•12/30/23, 9:09 PM

I have mine on like 200mm of extension with a extended cable so I can twist mine around if I need be

356thFS_PiranhaOP•12/30/23, 9:09 PM

Thanks for the relies.

356thFS_PiranhaOP•12/30/23, 9:10 PM

Problem is I'm not using an exstention and thus not using a cable.

356thFS_PiranhaOP•12/30/23, 9:11 PM

Wondering how I can turn thre plug in the stick, or turn the female receptacle in the base?

3356thFS_Piranha Wondering how I can turn thre plug in the stick, or turn the female receptacle i...

Number481•12/30/23, 9:40 PM

yes.. you can unscrew the connector from the rhino and flip it around.. https://discord.com/channels/965234441511383080/972180323787997255/1100787013864669254

356thFS_PiranhaOP•12/30/23, 9:40 PM

Great!!

356thFS_PiranhaOP•12/30/23, 9:40 PM

Thanks

Activity•12/30/23, 11:37 PM

not sure to post this here or in https://discord.com/channels/965234441511383080/1093558100713279508 but I'm having some issues with getting telemFFB to work, tried both the latest wip and stable and both seem to get DCS telemetry and send effects, but I don't actually feel any of the effects, even after turning some of them up in the config, afaik the log looks like it should be sending effects:

Activity•12/30/23, 11:39 PM

TelemFFB.lua exists in the savedgames script folder, entry is also added to Export.lua

AActivity not sure to post this here or in https://discord.com/channels/965234441511383080...

audax•12/30/23, 11:40 PM

Do the native DCS effects function?

Activity•12/30/23, 11:40 PM

Yeah

Activity•12/30/23, 11:42 PM

I'm mainly using the gun effect on F-14 as a testing point with it set to 100% in the config, but none of the effects can be felt

audax•12/30/23, 11:43 PM

So effects work, the connection from DCS to telemffb is also fine...

audax•12/30/23, 11:43 PM

Well, I'll hand this problem to those who are more knowledgeable than me

Activity•12/30/23, 11:44 PM

Yeah I'm baffled too

AActivity not sure to post this here or in https://discord.com/channels/965234441511383080...

Number481•12/30/23, 11:45 PM

whats your periodic effects slider set to in configurator?, is your potentiometer tied to the periodic effects (and is it turned up?)...

Activity•12/30/23, 11:46 PM

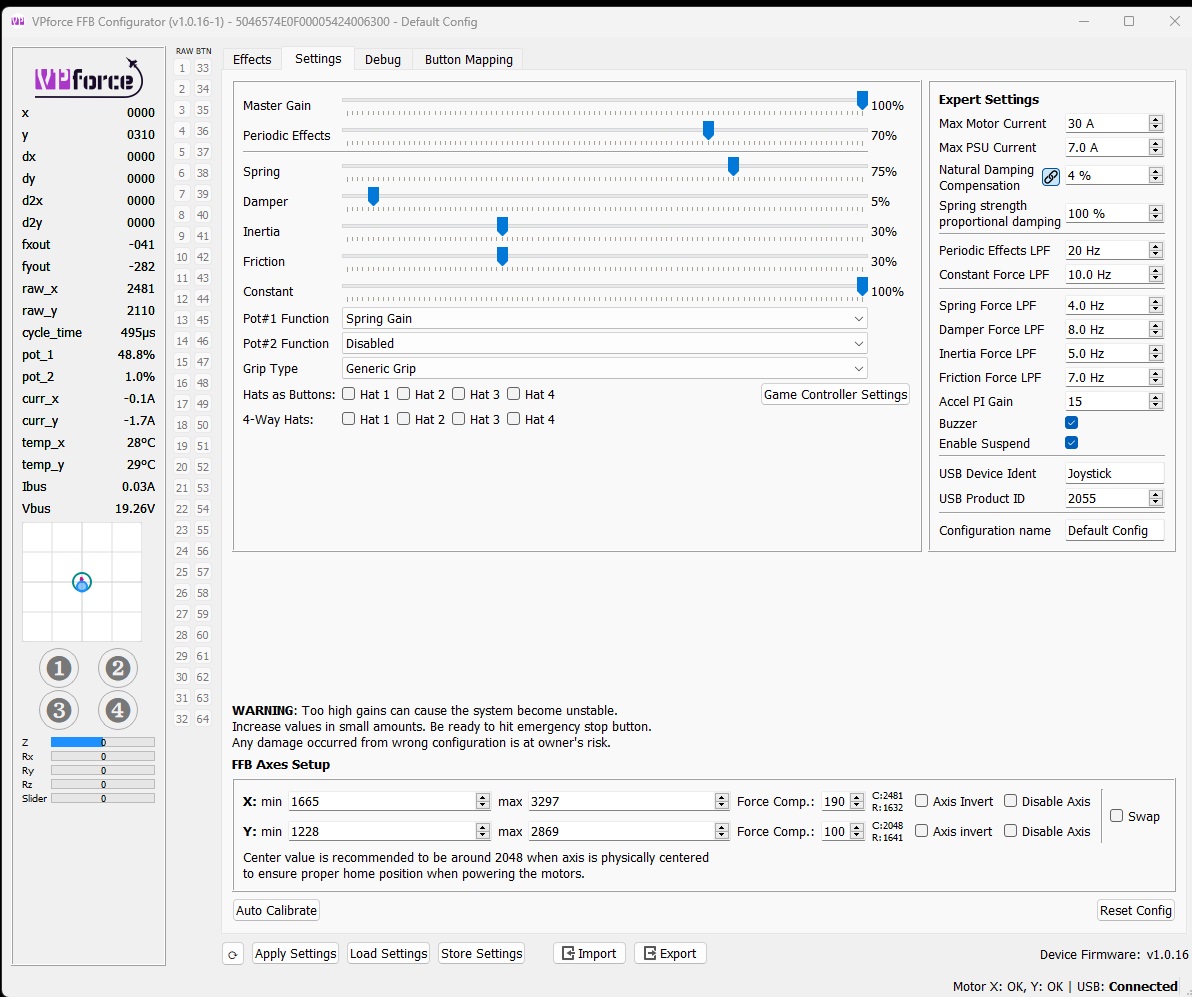

I've got the pots set up for master gain and sprint gain:

Number481•12/30/23, 11:47 PM

effects are designed with periodic slider set at %50 (so please for the love of all that is holy turn the settings back to their original values in the TelemFFB config file or you will blow your arms off)

Activity•12/30/23, 11:47 PM

oh christ

Activity•12/30/23, 11:47 PM

periodic is set at 0, that's probably it

Number481•12/30/23, 11:47 PM

that would be it.. yeah

Activity•12/30/23, 11:48 PM

D'oh ahahah

Activity•12/30/23, 11:48 PM

fantastic, thanks for the help, not sure how I overlooked that

Number481•12/30/23, 11:49 PM

you dont know what you dont know until you know... ya know?

Activity•12/30/23, 11:49 PM

also gun effect set to 100 is very exciting

NNumber481 effects are designed with periodic slider set at %50 (so please for the love of ...

audax•12/30/23, 11:51 PM

I had to improve my mount a bit after I lost my wings in the F-16 for the first time

audax•12/30/23, 11:53 PM

My whole pit was shaking. I also combined this with a JetSeat, so that my ass and back were also shaking. It was a bit unnerving, but fun.

AActivity also gun effect set to 100 is *very* exciting 😅

Number481•12/30/23, 11:54 PM

might be cool if you were in the side gunner seat in the Huey though

356thFS_PiranhaOP•12/31/23, 1:14 AM

Is it odd that my stick calibrated the Y axis at -22 min?

Activity•12/31/23, 7:20 AM

Your y center is a bit on the low side at 1614

Activity•12/31/23, 7:21 AM

But if the software deems the center to be too far off the ideal 2048 it shows up in red

356thFS_PiranhaOP•12/31/23, 4:39 PM

Thanks,

356thFS_PiranhaOP•12/31/23, 4:43 PM

Is there a way to adjust this? The manual is not clear on this. Should i manually move the centers to 2048. The stick isn't centered in game (IL2) . it's not far off in most planes but is way off in the p38. Howevere The FFB works well.

Tinman•12/31/23, 4:47 PM

Hey guys, any suggestions how to center my stick? I already followed walmis advice to turn off everything cept balance spring and tweak it from there then add the other effects plus adaptive recentering. Im using a thustmaster f18 stick plus a long offset extension (220mm) so I imagine it would be aft heavy.

Tinman•12/31/23, 4:47 PM

Also, are my settings decent or are things way off?

Tinman•12/31/23, 4:48 PM

3356thFS_Piranha Is there a way to adjust this? The manual is not clear on this. Should i manuall...

Bob Bushman•12/31/23, 4:48 PM

My guess would be to slip the belt so the motor is at about 2400 and stick is centered. Followed by recalibrating.

Bob Bushman•12/31/23, 4:49 PM

Mine seems to be about 2400 y and x at 2200-2300 so I'll start off with that.

356thFS_PiranhaOP•12/31/23, 8:05 PM

You can't change the motor position by moving the belt (I tried). That has to be done internally I think.

356thFS_PiranhaOP•12/31/23, 8:08 PM

I don't know how to get this to be anywhere near 2048 while stick is centered, unless there is some internal adjustment.

Bob Bushman•12/31/23, 8:14 PM

When slipping the belt you change where the stick center, do it in the right direction and upon recalibration center will be shifted on the sensor position.

356thFS_PiranhaOP•12/31/23, 8:22 PM

OK,

356thFS_PiranhaOP•12/31/23, 8:23 PM

So to get the the Y axis to go up,do I want to get the raw numbers down when slipping the belt?

Bob Bushman•12/31/23, 8:38 PM

I could be mistaken, but if say want to get the value to go one way slip the belt the other, and recalibrate.

356thFS_PiranhaOP•12/31/23, 9:33 PM

Thanks, Thgat works!!
