kristof-at-embeetle•1/22/24, 11:12 AM

Hi guys,
Before going into production - I would kindly ask to check this schematic of our Tiny Scarab community board.

tiny-scarab.pdf1.27MB

kristof-at-embeetle•1/22/24, 11:15 AM

DevHeads•1/22/24, 11:18 AM

Congrats @SAMMY SIDDHYA ! You've been Verified!

Saßì•1/22/24, 12:02 PM

@SAMMY SIDDHYA Welcome,! We're happy to have you as a DevHead. Feel free to let us know what you're working on now and a bit about your technical background.

DevHeads•1/22/24, 2:09 PM

Congrats @Timo ! You've been Verified!

Saßì•1/22/24, 2:26 PM

@Timo Welcome! will be happy to know your technical background and what project you're working on these days.

tahenan•1/22/24, 5:48 PM

Can anyone suggest some good resources for bms (battery related communications) collecting data from sensors and so

Ttahenan Can anyone suggest some good resources for bms (battery related communications) ...

techielew•1/22/24, 6:59 PM

Hey @tahenan, @Navadeep is your man for this. He probably won't be back until tomorrow but I know he has worked on this fairly extensively.

ArcaneMike•1/22/24, 9:18 PM

Upgrading from a 1080 to a 4070 ti
Now we wait.

ArcaneMike•1/22/24, 9:18 PM

kristof-at-embeetle•1/22/24, 9:47 PM

kristof-at-embeetle•1/22/24, 9:47 PM

Hi guys,
I purchased the 10 Tiny Scarabs

kristof-at-embeetle•1/22/24, 9:48 PM

This is a prototype production

kristof-at-embeetle•1/22/24, 9:48 PM

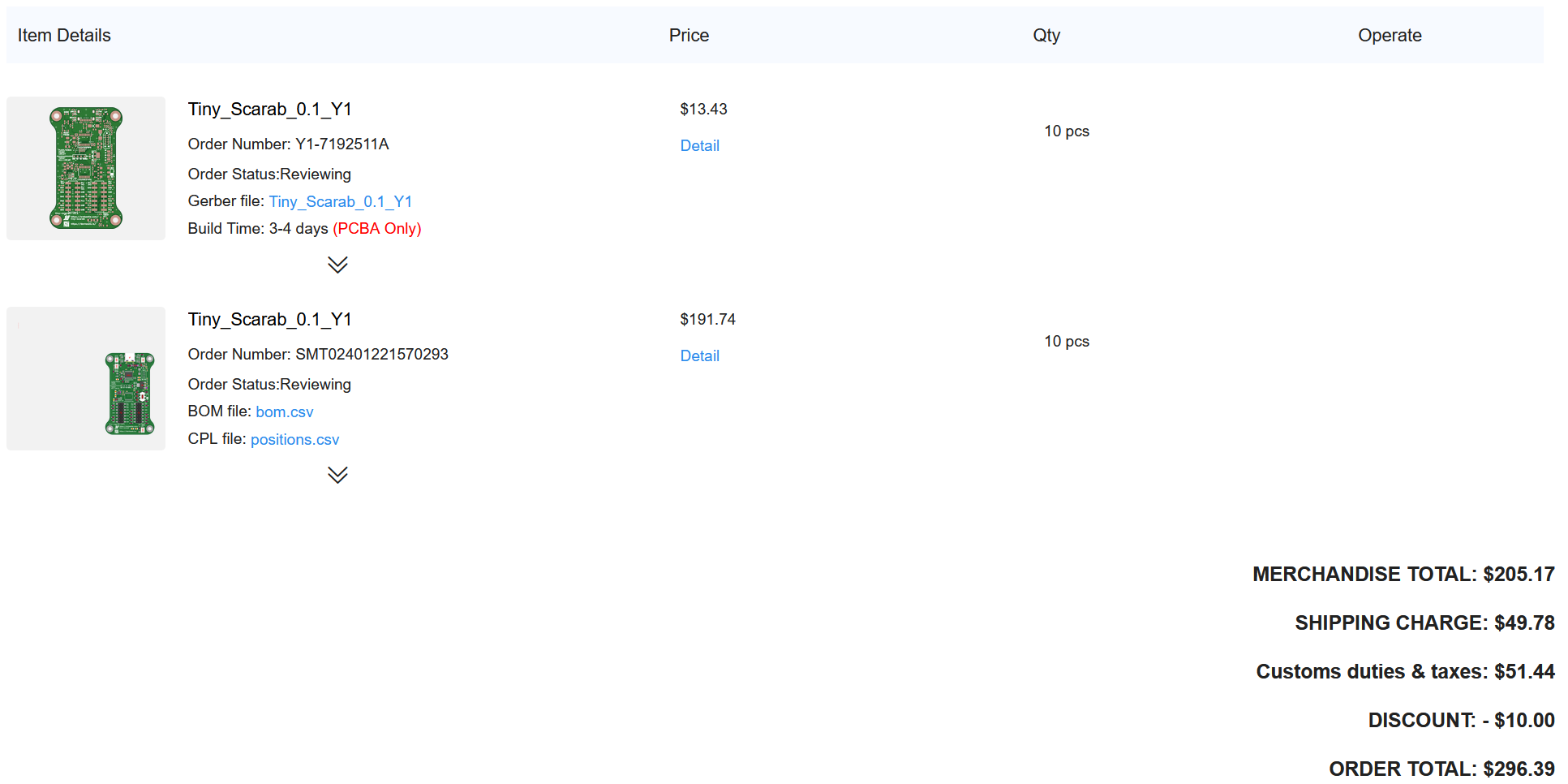

They charged me almost 300$ as you can see. A bit more than expected (I hadn't foreseen the high shipping and customs charges), but still way less than what Eurocircuits would charge me.

kristof-at-embeetle•1/22/24, 9:51 PM

I plan to test all of the boards, then I can send some of them to you guys. To those who want a board: please refund the production cost (that would be around 30$ for one board) and the shipping cost from Belgium to your country. I don't have much experience with shipping, but I'll look out for some cheap options if available.

Kkristof-at-embeetle I plan to test all of the boards, then I can send some of them to you guys. To t...

techielew•1/22/24, 10:27 PM

DevHeads will cover the cost and the shipping for anyone who wants one. Please like this comment if you would like to receive one.

kristof-at-embeetle•1/22/24, 10:27 PM

Wonderful

techielew•1/22/24, 10:28 PM

@kmulier, do you have any idea of the production cost at volume?

kristof-at-embeetle•1/22/24, 10:28 PM

I can try something, one moment

techielew•1/22/24, 10:30 PM

Interested in the lowest possible cost per unit

kristof-at-embeetle•1/22/24, 10:35 PM

Around 3000$ for 400 boards

Kkristof-at-embeetle Around 3000$ for 400 boards

techielew•1/22/24, 10:58 PM

Okay, is that with or without shipping?

Kkristof-at-embeetle Around 3000$ for 400 boards

techielew•1/22/24, 10:58 PM

And are you guys going to be at Embedded World?

kristof-at-embeetle•1/22/24, 10:59 PM

It's without shipping
We didn't decide yet about Embedded World

kristof-at-embeetle•1/22/24, 11:00 PM

I could reduce the price a bit by removing the TVS protection diodes on the IO Pin Headers

kristof-at-embeetle•1/22/24, 11:00 PM

That would reduce the price of 400 boards by around 650 $

Kkristof-at-embeetle I could reduce the price a bit by removing the TVS protection diodes on the IO P...

techielew•1/22/24, 11:11 PM

My opinion is to remove them. What does the community think about that?

kristof-at-embeetle•1/22/24, 11:12 PM

I can remove them alltogether, or replace them with a cheaper variant.

Kkristof-at-embeetle I can remove them alltogether, or replace them with a cheaper variant.

techielew•1/23/24, 2:48 AM

Let's hear from the group!

Aditya thakekar•1/23/24, 4:08 AM

Replace them... Or as an USP you can use tvs protection on only selected io

Ttechielew My opinion is to remove them. What does the community think about that?

Umesh Lokhande•1/23/24, 5:05 AM

I agree the price difference is unbelievable. As long as the Dev Board is protected and justifies its purpose. It will be fine to remove TVS diodes on IO Pins.

Umesh Lokhande•1/23/24, 5:34 AM

What is the most frustrating part of getting PCB design fabricated? Since there are many board manufacturers. Do they follow the same process in terms of dealing with File format issues, DRC violations, Gerber file verifications, and communication challenges? If the prototype cost is significant then the mistake will be expensive for the designer. @kmulier @Joseph Ogbonna @Aditya thakekar

UUmesh Lokhande What is the most frustrating part of getting PCB design fabricated? Since there ...

Joseph Ogbonna•1/23/24, 5:43 AM

For me one of the major challenge i faced during my last design was the cost. Majorly jlcpcb could not manufacture the board because it exceeded their capability, so looking for other vendor and comparing price took lots of time, it even extended the project time frame. Majorly before you start your board design always find the manufacturer you'd use and tell them about the board so they can validate if they could produce it

UUmesh Lokhande What is the most frustrating part of getting PCB design fabricated? Since there ...

ShreeshaN•1/23/24, 5:54 AM

Most of the time, issues stem from capability of PCB manufacturer, track width, via size, cutouts, PCB thickness, etc. If you plan to make PCB, you have to consider capability of manufacter first. I have faced issues with JLCPCB asking extra engineering fees for capability they have advertised as standard and you may require to redesign your board again to reduce PCB cost.

DevHeads•1/23/24, 6:09 AM

Congrats @Emmanuel Ampretwum ! You've been Verified!

Emmanuel Ampretwum•1/23/24, 6:10 AM

Kkristof-at-embeetle Hi guys, Before going into production - I would kindly ask to check this schemat...

Petr Dvořák•1/23/24, 6:14 AM

Hello @kmulier, here are my points from the schematic review:
• Missing decoupling caps at IN of U4. C1 and C2 to be removed. Acc. to the datasheet, the manufacturer recommend 10+0.1 uF.
• The R28 and R29 to be replaced with a single resistor. I recommend 1k because those modern SMD LEDs enourmously shine even at 1 mA.
• The same for R3 and R20. I recommend keeping R20 only.
• Too many decoupling caps at U1. It is not incorrect but not neccessary. Those capacitor batteries of 3 and more values times are over. Just place 100n or a manufacturer recommended value as close as possible to a given pin.
• What is the reason for C3 to C9? Do you need a bulk capacitor? Just use a tantalum cap of 100 uF or similar. 100 nF caps or lower are to be placed close to the component power entry port.
• The same for C18-C41 battery. Is it neccessary or recommended? How many power entry pins are on the U2? A single 100 nF and 10 uF would be enough.
• I recommend to replace R13 and R14 with resistors of bigger resistance. I recommend design them for 1 mA current.
• What the MCU datasheet tells about the crystal load capacitors? I recommend following the recommended schematics provided by the MCU manufacturer.
• TP1-TP7, I recommend keeping them placed but setting the Exclude from Bill of materials attribute.
• The same for J5-J8.
• Generally, I recommend keeping values of all semiconductor devices visible. The clamping voltage for TVS is as important to know as for Zener diodes. The part number of FETs is more important then marking of their electrodes.
• R23 and R25 - I recommend use a single 1k resistor.
• C33-C40, I recommend reduce number of those capacitors. Two caps per power entry pin is usually enough.
• R21 is not needed. I would reconnect it to be placed between the gate and ground to keep the FET closed when the MCU is in reset. Otherwise LED4 can glow slightly or be sensitive to a finger touch close to the FET.

Good job!

Ttechielew My opinion is to remove them. What does the community think about that?

Petr Dvořák•1/23/24, 6:17 AM

Ports must be protected. ESD is real. I cannot read the part number of those TVSs. Everything human -accessible must be ESD-protected.

Saßì•1/23/24, 6:22 AM

@Emmanuel Ampretwum Welcome,! We're happy to have you as a DevHead. Feel free to let us know what you're working on now and a bit about your technical background.

UUmesh Lokhande What is the most frustrating part of getting PCB design fabricated? Since there ...

Aditya thakekar•1/23/24, 6:38 AM

I prefer to work with local vendors first. And have a design process set. This is what I would follow even with pcb power gujrat. And then build trust and relations.

Because if the prototype has some issues, those can be rectified easily.

PPetr Dvořák Ports must be protected. ESD is real. I cannot read the part number of those TVS...

techielew•1/23/24, 7:23 AM

What you say @pallavaggarwal?

pallavaggarwal•1/23/24, 7:26 AM

USB port ESD protection make sense. For IOs, switches not so much as we are talking about a dev board which is used in a very controlled environment.

pallavaggarwal•1/23/24, 7:27 AM

ST, ESP has so many dev board, did you see schematic of them? they sell like crazy? do you see much failure of their dev boards?

pallavaggarwal•1/23/24, 7:28 AM

if it was a product which will go out of lab, i will protect everything
