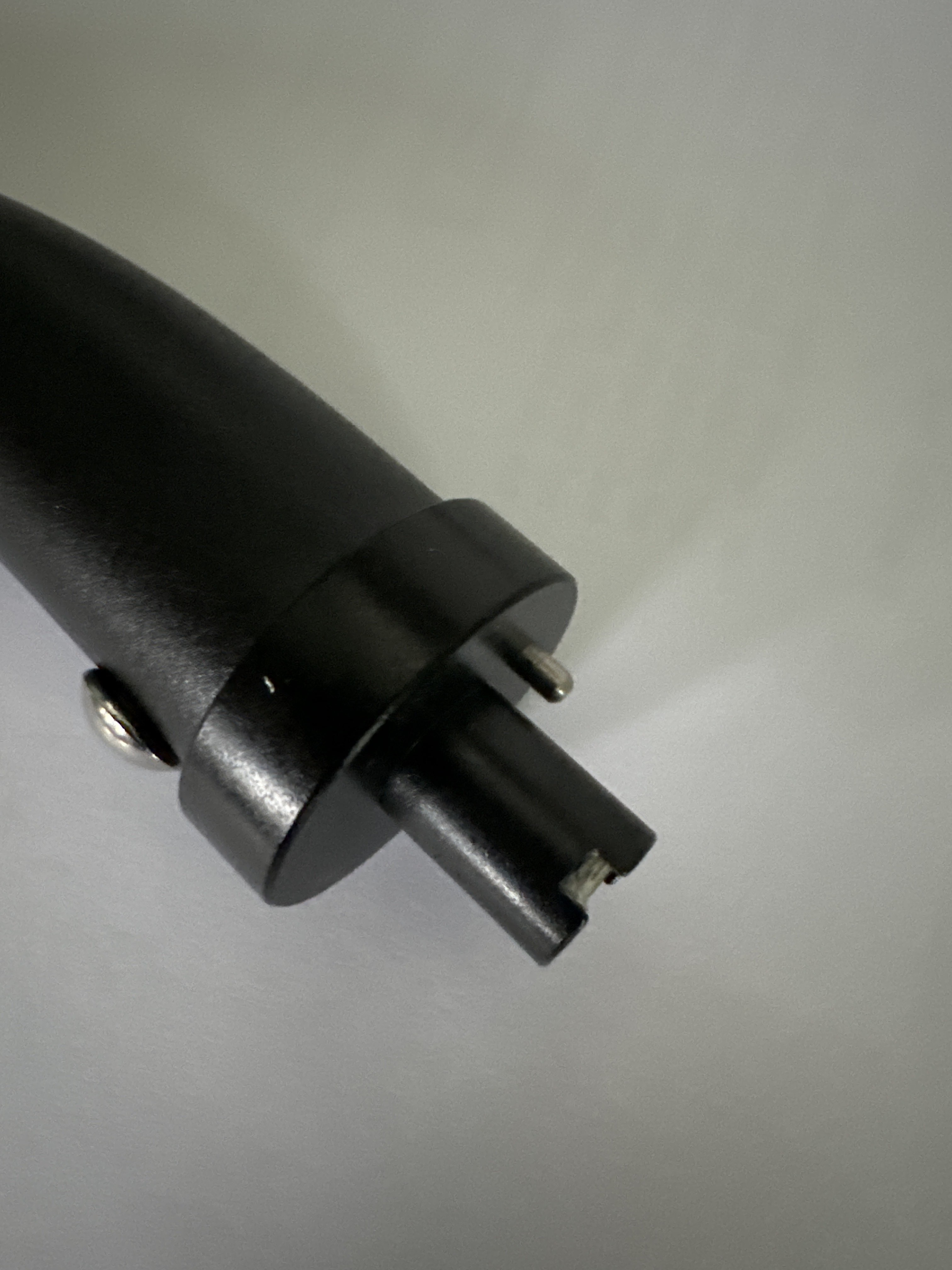

The little silver nub… it slips into one of two holes on the grip for either straight or 15angle. That pin is 2.5mm round. The vkb adapter has an m3 screw in the same location that does not fit into the grip. Prevents the grip from seating all the way.

Fierce_Fire•1/26/24, 7:18 PM

Wierd, I dont remember how mine looked there but I believe it fit into a slot

Fierce_Fire•1/26/24, 7:18 PM

Wait, what rev adapter is this?

Fierce_Fire•1/26/24, 7:19 PM

Iirc the newest type doesn't fit and needs a seperate adapter

GadrocOP•1/26/24, 7:24 PM

My equipment is mark 3

GadrocOP•1/26/24, 7:25 PM

New mark IV is different connector all together

GadrocOP•1/26/24, 9:08 PM

I replaced the M3 screw with a M2.5 screw and while it's a little loose should prevent the grip from twisting and shorting out the contacts.

Fer•1/27/24, 4:02 AM

Hello, I have a problem with my winwing adapter I can’t secure the adapter in position it stays loose and can’t hold the stick in place, any ideas ?

ddrake1984•1/27/24, 5:04 AM

maybe a rubber washer

Fer•1/27/24, 5:23 AM

Fer•1/27/24, 5:23 AM

I don’t know if this is normal

Fer•1/27/24, 5:33 AM

I have to adapters and both do the same.

TrigaNZ•1/27/24, 5:33 AM

Not normal. Start from scratch and make sure you have threaded correctly. mine is tight as with the F-16 grip.

Fer•1/27/24, 5:34 AM

Yes both are threaders correctly

Fer•1/27/24, 5:34 AM

To the top

FFer Click to see attachment

ddrake1984•1/27/24, 5:44 AM

yeah, rubber washer should fix that

Fer•1/27/24, 6:16 AM

thanks

Fer•1/27/24, 6:16 AM

ill try thatbut where should i put it__

ddrake1984•1/27/24, 6:20 AM

between the grip (metal bit) and the top plastic (where you plug it in)

Fer•1/27/24, 6:41 AM

Fer•1/27/24, 6:42 AM

in both sides??

ddrake1984•1/27/24, 6:48 AM

just 1 should do it

ddrake1984•1/27/24, 6:48 AM

it creates something to compress against

Fer•1/27/24, 7:38 AM

ok hope that helps

R7-Cedar•1/27/24, 11:39 AM

Hello, while all aircraft I have are working well on the Rhino, only Ka-50(And Ka-50III) are not being able to work with TelemFFB. I found following entry in log, __ Exception in thread Thread-2:
Traceback (most recent call last):
File "main.py", line 746, in process_data
File "aircrafts_dcs.py", line 592, in on_telemetry
File "aircraft_base.py", line 863, in _update_heli_engine_rumble
TypeError: float() argument must be a string or a real number, not 'NoneType'

During handling of the above exception, another exception occurred:

Traceback (most recent call last):
File "traceback_with_variables\print.py", line 67, in printing_exc
File "traceback_with_variables\print.py", line 98, in wrapper
File "main.py", line 794, in run
File "main.py", line 750, in process_data
File "traceback_with_variables\print.py", line 39, in print_exc
AttributeError: 'NoneType' object has no attribute 'write'

During handling of the above exception, another exception occurred:

Traceback (most recent call last):
File "threading.py", line 1009, in _bootstrap_inner
File "traceback_with_variables\print.py", line 92, in wrapper
File "contextlib.py", line 153, in exit
File "traceback_with_variables\print.py", line 70, in printing_exc
File "traceback_with_variables\print.py", line 39, in print_exc
AttributeError: 'NoneType' object has no attribute 'write'
any help will be appreciated,

RR7-Cedar Hello, while all aircraft I have are working well on the Rhino, only Ka-50(And K...

smitty•1/27/24, 3:38 PM

can you post your userconfig here? you can find it in the System meno, open config/log dir

R7-Cedar•1/27/24, 3:45 PM

Hello Smitty, thanks for looking into this. I tried to see of I can delete and recreate setting but not sure if its doable, I cloned Ka50 to come up with Ka-50_3 so entry is in the XML file uploaded. However I don't see 'Ka-50' itself and that's been the case before I cloned Ka-50 for Ka-50_3.

userconfig.xml6.13KB

smitty•1/27/24, 3:47 PM

so it was crashing before cloning? theres a few settings in defaults

R7-Cedar•1/27/24, 3:49 PM

Game stays running, the TelemFFB states Current Aircraft as Unknow (No much), upon starting Ka-50_3 flight.

R7-Cedar•1/27/24, 3:55 PM

Other aircraft like Mi-24, Mi-8MT, UH-1, the TelemFFB is kicking in fine and effect starts as configured, If not, restarting the TelemFFB fixes and effect starts after it was restarted. Just Ka-50 is keep staying as Current Aircraft Unknown and Telemetry stays at '"Waiting for Data'.

R7-Cedar•1/27/24, 3:57 PM

BTW, your setup is awesome, I got same gearboxes based off of your design. 3arcmin is no joke.

smitty•1/27/24, 3:57 PM

try this copy of userconfig. i shut off heli rumble.

userconfig.xml6.29KB

R7-Cedar•1/27/24, 3:58 PM

Thanks! I'm trying now!

smitty•1/27/24, 4:02 PM

the line at 863 is frequency = float(rrpm) / 45 * blade_ctfrequency = float(rrpm) / 45 * blade_ct so for some reason it isnt getting rotor rpm (rrpmrrpm) I dont have dcs to test any further, maybe Number481 can figure out why

R7-Cedar•1/27/24, 4:12 PM

It worked! Thank you!!

smitty•1/27/24, 4:12 PM

cool! dont click the X next to heli rumble!

R7-Cedar•1/27/24, 4:13 PM

Ah, the default value is one creating the issue?

smitty•1/27/24, 4:13 PM

it defaults to ON because its type:Helicopter

R7-Cedar•1/27/24, 4:15 PM

Got it, I'll keep in mind, Thank you again, I really appreciate!

smitty•1/27/24, 4:20 PM

youre welcome, do you have a build log of your rig on xsimulator.net?

smitty•1/27/24, 4:21 PM

or are you just using the 3arcmin's for joystick things

R7-Cedar•1/27/24, 4:29 PM

No, Ive never shared anything there before. This is my first time buying such high precision gearboxes. I liked the 'All metal' idea.

RR7-Cedar Got it, I'll keep in mind, Thank you again, I really appreciate!

Number481•1/27/24, 4:32 PM

There's an issue with the pattern match for the Ka50 in the telemffb export script. Sorry, its the only heli I dont own so I never do any testing with it. I grabbed the trial and found the issue. I will push a update to the repository later. In the meantime you can use this export script. Just replace the one that is in your TelemFFB/export folder. When you restart TelemFFB it will install it into the DCS folders.

TelemFFB.lua55.22KB

R7-Cedar•1/27/24, 4:35 PM

Oh, nice! I'll do it now, thank you for making all this, the sim is in a whole new level! .....the export script worked! I'm going bed for now, the joystick is good now, I'll have to start work on the rudder tomorrow! Thank you again!

Firaga•1/27/24, 4:47 PM

Tried to search for a solution for a F-16 problem but found only comments and confirmations about the existence of the problem. F-16 has quite bad FFB feeling in y-axis compared to any other module (some damping and very weak spring forces). Apparently it is due to DCS FFB output and not a Rhino issue as such. However, has anyone found good settings to fly F-16 with the Rhino or are there any other workarounds to make it more precise?

Sir_Diggins•1/27/24, 4:54 PM

Question for someone who knows more than me. So I’ve been messing with my rhino a bit and am loving it so far! I noticed that in dcs everything works smoothly, however in msfs with telemffb at least in the a2a piper, it likes to be smooth but then it “catches” in a direction on occasion and you need to pull it back to where you had it. It’s not a huge movement, but enough to feel a bit weird. Is this just because of the lack of native ffb, something configured wrong, or just a quirk of that aircraft? I haven’t tried doing much as I’m still getting an understanding of the software, but I figured I’d ask.

SSir_Diggins Question for someone who knows more than me. So I’ve been messing with my rhino ...

Number481•1/27/24, 11:48 PM

Might be the “lateral force” (uncoordinated turn) effect. You can try turning that off in the TelemFFB settings.

Sir_Diggins•1/28/24, 12:48 AM

Thanks for the suggestion, I’ll try it out when I get a chance!

Fer•1/28/24, 2:59 AM

@=RS= ddrake1984 my friend the washer worked excellent thanks for the advice.

Antares•1/28/24, 12:07 PM

I am having an issue in the DCS F-14 that I'm hoping someone can help me with. When flying from the pilot's seat the Rhino works beautifully, with excellent force feedback effect.
However, if I jump into the rear seat, the stick will slowly move almost all the way to the rearmost position. I use the Rhino as the RIO hand controller, but the same happens if I leave the Rhino unassigned for the RIO.
When I then return to the pilot's cockpit, the stick is then way out of position (almost all the way back), and trimmed to that position. I have to hold the stick forward with full force until I can trim it to a usable level (maybe 20 seconds of holding trim). Is there any way to prevent jumping to the RIO cockpit changing the trim?

AAntares I am having an issue in the DCS F-14 that I'm hoping someone can help me with. W...

walmis•1/28/24, 12:44 PM

Yeah, can confirm it's a bug with F-14. Once in RIO seat the trim center drifts to either extent
