On the gazelle, you have to enable a special FFB toggle in the special menu.. its the only module l
On the gazelle, you have to enable a special FFB toggle in the special menu.. its the only module like that
J- the trim in the uh-1 works amazingly well
- the ah-64(for me) I belive has an issue with static force, or possible just the implentation of force trim. I have to compensate with curves in game. I've not found another way.
Ji have it enabled. there is a secondary toggle is that the one you are speaking about?
Nthe separate one (from the game global) in its special settings, yes
Ji believe i have this set, I'll double check. have you flown the gazelle recently? are you not experiencing any trim issues with these settings?
NI haven't, no
Jit was the forcefeed back gain curve, I had it set to 100
Ji guess i thought that was an effects curve. but its a controls curve.

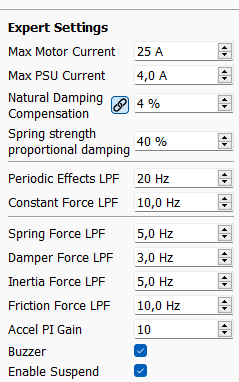

MWhen I have spring at max in vpforce configurator and I push/pull against the force the motors pretty quickly go into overcurrent fault and the stick needs to be unplugged/replugged.
My psu is 180w/20v so I have max psu current set to 9a and max motor current set to 30. Should these be higher? Are there other settings I should be looking at too?
My psu is 180w/20v so I have max psu current set to 9a and max motor current set to 30. Should these be higher? Are there other settings I should be looking at too?
BI found the solution to the weird rumble / knocking feeling had in my X-Axis. Turned out the upper screw on the base connector of the Virpil S-Curve worked it's way loose. All other screws were tight. If this happens again i might have to turn down the rumble a bit.. Putting this here i case anyone else has this problem and Ctrl+F's the Discord for "Knocking" or "Rumble" like me.
ALooking at the picture, I see the extension is touching the seat. Did you have to adjust limits in the software? Would it work better if you raise the whole thing a little bit?
AYours is DiY I think. Maybe measures are not the same with the VP one.
BThere is a gap between extension and seat, with just a little room at max. deflection. Yes, the base is DIY, the connector is lower so it accomodates the 20 cm S-Curve perfectly IMO.
ACool. I think it is a matter of trial and error with finding the right spot. Nice done!!
AI have several modules on DCS and almost all of them work ok with Rhino. But on A-10C and A-10C II the stick is not centered but is as on the image from control indicator! Any idea why?
TIt’s how the A-10 rolls, I use end stops and rescale, works well. I think about 30 forward, not home right now.
MStill trying to figure this out. For reference, this is when in the vpforce configurator page, not in game. That being if spring is set to 100% and gain to 100% and I start pushing/pulling against it the motors overload protection shuts them down very quickly. Is this normal?
Will setting max amps above 30A damage the motors if they are able to be kept cool? My fan hasn't kicked on once aside from the test menu and being 92mm and directly above the motors will cool them well if needed..
Will setting max amps above 30A damage the motors if they are able to be kept cool? My fan hasn't kicked on once aside from the test menu and being 92mm and directly above the motors will cool them well if needed..
WHmm, sounds like could be an issue with earlier motor firmware. Try setting max motor current to 28-29, does this help?
Acould loc-tite be an option on those extension screws?
BI might consider it if it happens again, but for now i just pulled them tight again and i'll be aware of it should it happen again
MTried at 28 and 29 and still did it. Also did it at 25 which it was set to by default.
DHi, I have an issue with my Pedals, in the configurator, the motor is offline, with usb connected. When do unplug the wires connected to the motor, I don't have any "bip" anymore
WHi, if the motor is powered, indicated by the LED, check the communication wire link, most likely there's a problem there.
They guys, just built up a diy rudder with the F04, I'm having trouble with the centering it being slow to center. Any suggestions?

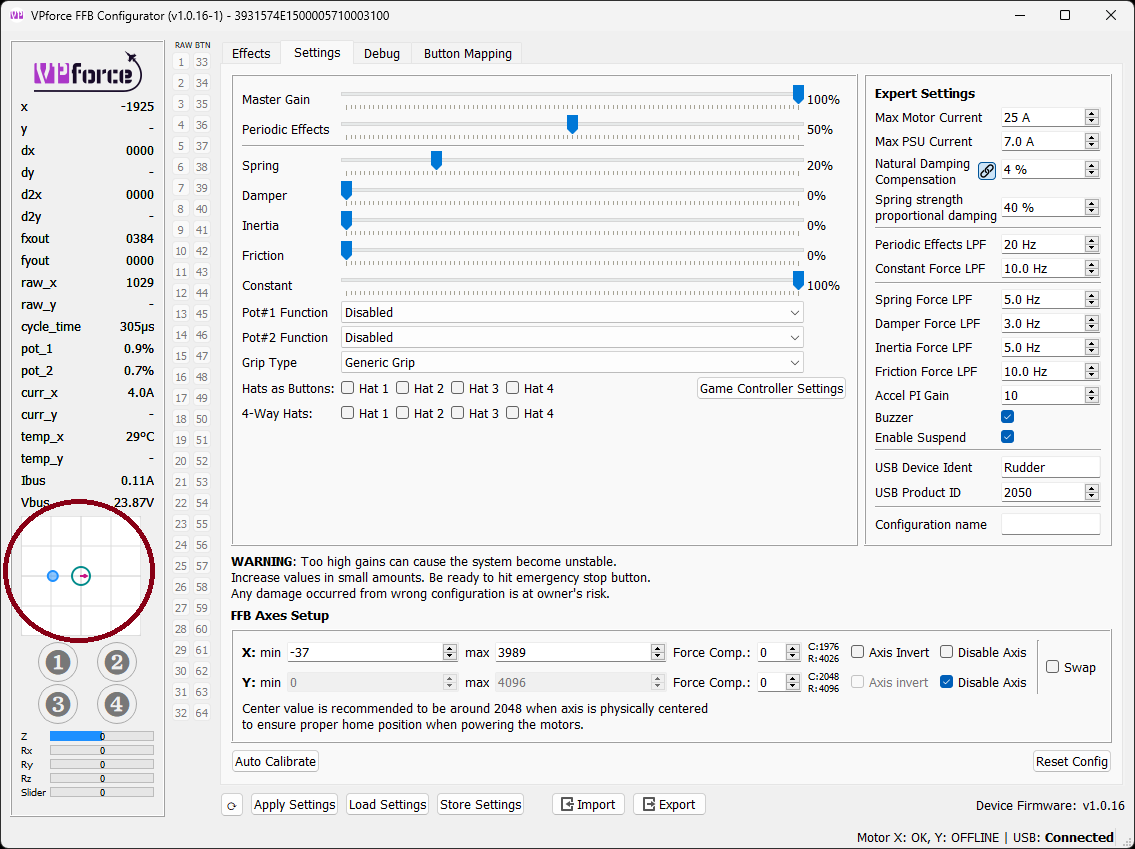

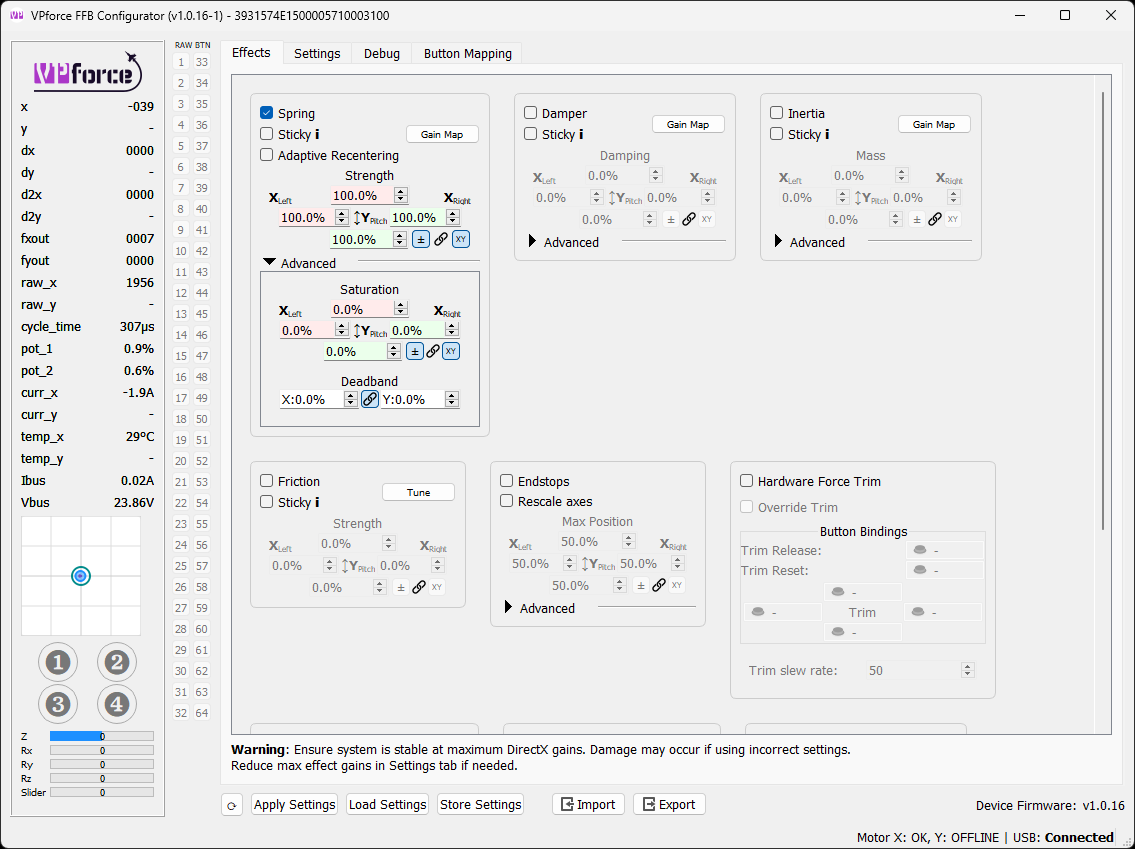

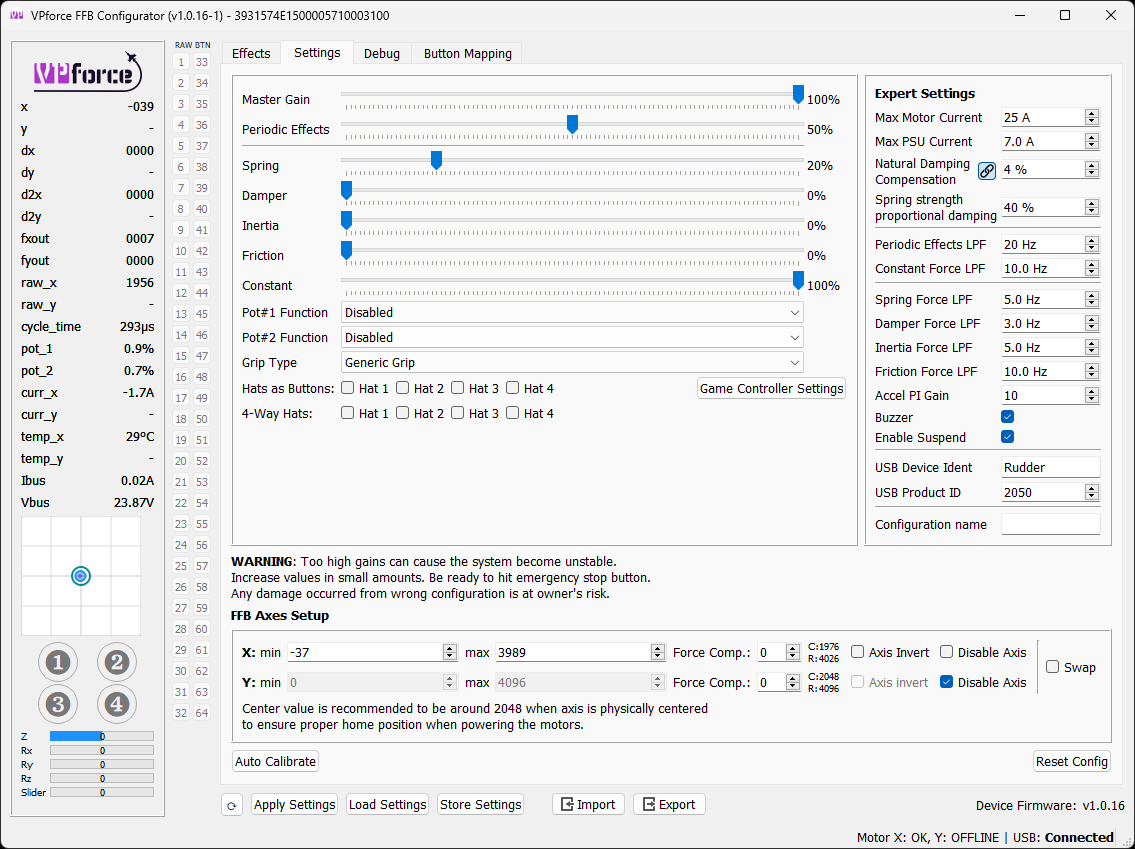

WCan you post your settings and showcase the behaviour?
Thold on
T
T

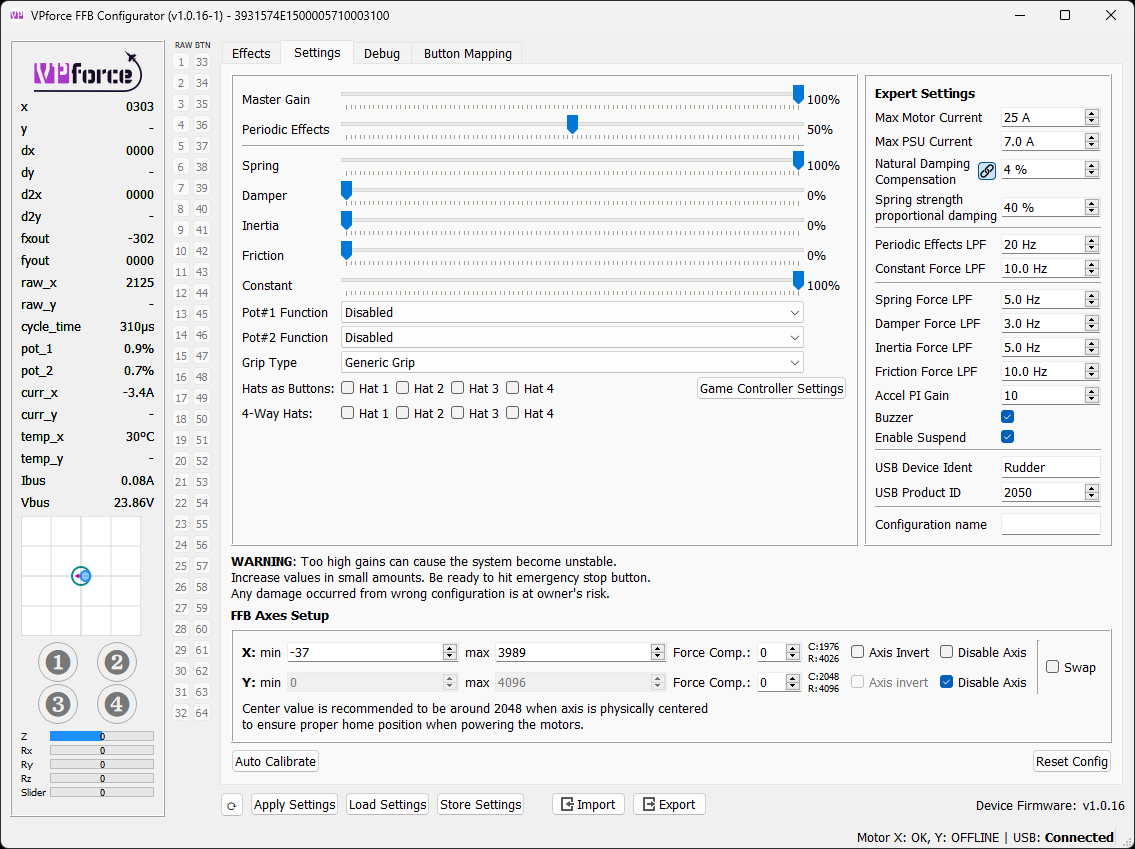

Tat full defection, then release it only returns to that point in pic 3
WYour spring is at 20%
Hhi, after calibrating the rhino into the configurator, I have to calibrate it in windows as well?
WNo, never calibrate in windows
Tat 100%
Tso i have to set it at 100% for it to work like a rudder?
WYeah

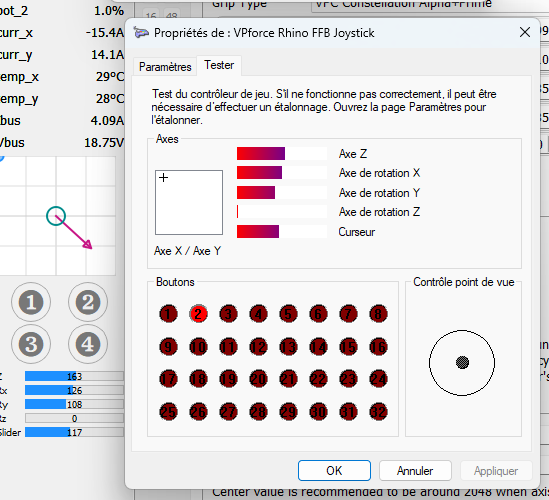

Hok thanks. I wonder because look how the axis is in windows in comparison with the configurator. I'm full in the corner in the calibrator and not in windows.
Tlol, damn, looks like i dont need leg days... lol
WThat's how windows calibrator displays it, it won't go further
Hok. so if I find I have to push the stick too much forward for full forward move I just adjust dcs axis saturation?
WYou can also use axis scaling feature
W
Hat 50% means if the axis is at 50%, for windows it is at 100%?
Wyep
Hok thanks. Will try that. btw are those the default settings and are they good, knowing that I use a heavy grip with something like a 30/40 cm extension?
Nyou certainly shouldn't need %100 spring force to center the pedals (unless maybe they are direct drive).. I run my pedals at %60, and much lower in game settings (with TelemFFB) and they center just fine.
Houch I clicked on reset config, because I thought it will just do that on screen, and it did that in firmware as well so load settings do not work. Next time I'll export my settings
TI only want to set it to 30%, it would be perfect. Thing is, as walmis sait, it wont center quick enough to act like a rudder at 30%
WThese settings are "Board defaults" you can import the "Rhino defaults" from
configs directory with the VP configuratorHah ok thanks
Hah yes rhino defaults are really different than board config
