Can you show your configuration? Both effect and settings pages
Can you show your configuration? Both effect and settings pages
HSure, I'm put now, will send it asap
F@walmis : Not sure if this is reported already but this issue was today replicated with two Rhino users. A-10C (and apparently also F-5) the DCS in-game control indicator range is shorter in fwd direction compared to aft (picture 1). As a consequence, Rhino is considering the neutral position to be this much fwd. Forces seem to be quite ok but the neutral position is very awkward (picture 2). The correct behavior would be that the Rhino is physically centered in neutral position and allows full aft deflection but with limited (or scaled) fwd deflection. Can we expect a fix for this or any tips for temporary workarounds? Would not want to edit the global profile as this problem exists only for certain modules.
F@skyPickle :
If Rhino is here working as intended, did you find any workaround for this issue from dcs side? A-10C does not have those trimmer options in special options tab like F-5.
If Rhino is here working as intended, did you find any workaround for this issue from dcs side? A-10C does not have those trimmer options in special options tab like F-5.
HAlso for some strange reason I need to have the y axis inverted for normal movement.
PHi, I’m getting the VPForce set up for the first test in MSFS and I get a left aileron deflection every few seconds whenever the stick is full forward or full aft. Any ideas what the problem would be?
P
PAre there any profiles that are a good starting point for msfs and dcs?
SAxes should not be bound in msfs- telemFFB handles it. (Get the wip version)
PThanks that did it. Works great now!
FThis works. Thanks a lot! Would be nice if the configurator detected the module the same way as TelemFFB. However, can live with this just fine.
LI encountered a strange issue with MSFS (everything works in DCS): the stick lost all the spring/damping force as soon as I launch TalemFFB. It seems the TalemFFB effect is still on but the configurator shows USB disconnected. If I close the TalemFFB then the stick springs back to center again and can be trimmed as well.
Nwhat the spring does when you connect TelemFFB to MSFS depends on a great many things. Including:
- What type of aircraft is loaded
- Whether you are paused/slew mode, in the hangar, or in an active flight and how the pause spring is configured in TelemFFB
- Depending on the type of aircraft, whether you are cold and dark, idling on the ground or flying
Lit happened mid flight, when i realize i forgot to launch TelemFFB, so i pause the game, launch TelemFFB, unpause game, all spring force is gone, close TelemFFB in the same flight, spring force is back. Had this issue a few times but will try to reproduce it.
Ltried again, this time it did not disconnect, but force trim is not working with telemffb openned. (flying in flyininside B206). Forcetrim works without Telemffb
WIf you're using the Hardware trim feature, then it won't work if the spring force is controlled by the application
WYou would need to setup force trim in telemFFB itself
Nwalmis is correct
LThx! got it, works now with Forcetrim on in telemFFB. Do i keep the hardware force trim on in configurator? but override trim off? Must admit this bit is still a bit confusing
Shardware trim off. btw for "realism", the B206 doesnt have force trim . ive been told it feels like a 70s car power steering, very loose but stays where you put it
Lis there any point of turn on hardware trim in the configurator then? or its better just to do it in Telem in general?
Sit's for games not controlled by telemffb, so you could set up any generic game to have the function. everything on the effects tab is for "when telemffb is not running"
WI might add, not only telemFFB but any native FFB supported game, such as DCS
Hnot everything. The axis scaling or balance spring works even with telemffb and regardless of the sim. Endstops too. I think the effects that are overwritten by the sim or telemffb are those who have the "sticky" option, of course when this option is off
Shavent flown these birds in a while...I'll check in to see what I did last year
FThe software stop and axis scaling did the trick. However, need to remember to adjust every time you change the module.
NIf you didn’t already know, TelemFFB can dynamically load the configurator profiles for you.
F
Thanks for the tip! Will take a look.PIs anyone aware of a quick start guide on the best way to tweak the configurator settings? The manual is comprehensive.. I’m just curious if there’s an abbreviated how to somewhere. Thanks in advance!
P@Tinman appreciate the advice on 3 Vs motor power
![[BSD] Molevich](https://cdn.discordapp.com/avatars/369833010427854850/be5dca529019def396375731af350bc9.webp?size=40)
[Hello all. I have just started testing and configuring my DIY buikld cyclic for Mi-24 DCS helicopter. I am struggling to understand the Trimming setup.
I expect the Trim button when depressed to make the cyclic go loose, and allow for repositioning to a "new centre", which will be offset from true centre. However, the spring effect simply pushes the stick back to true centre. Settings below.
I expect the Trim button when depressed to make the cyclic go loose, and allow for repositioning to a "new centre", which will be offset from true centre. However, the spring effect simply pushes the stick back to true centre. Settings below.
[I dont yet have hardware Trim button activated, so maybe thats why? Using keyboard T.
WYou have trim override enabled - this will take away trim control from DCS
WIf you use DCS FFB trim, disable the hardware trim feature

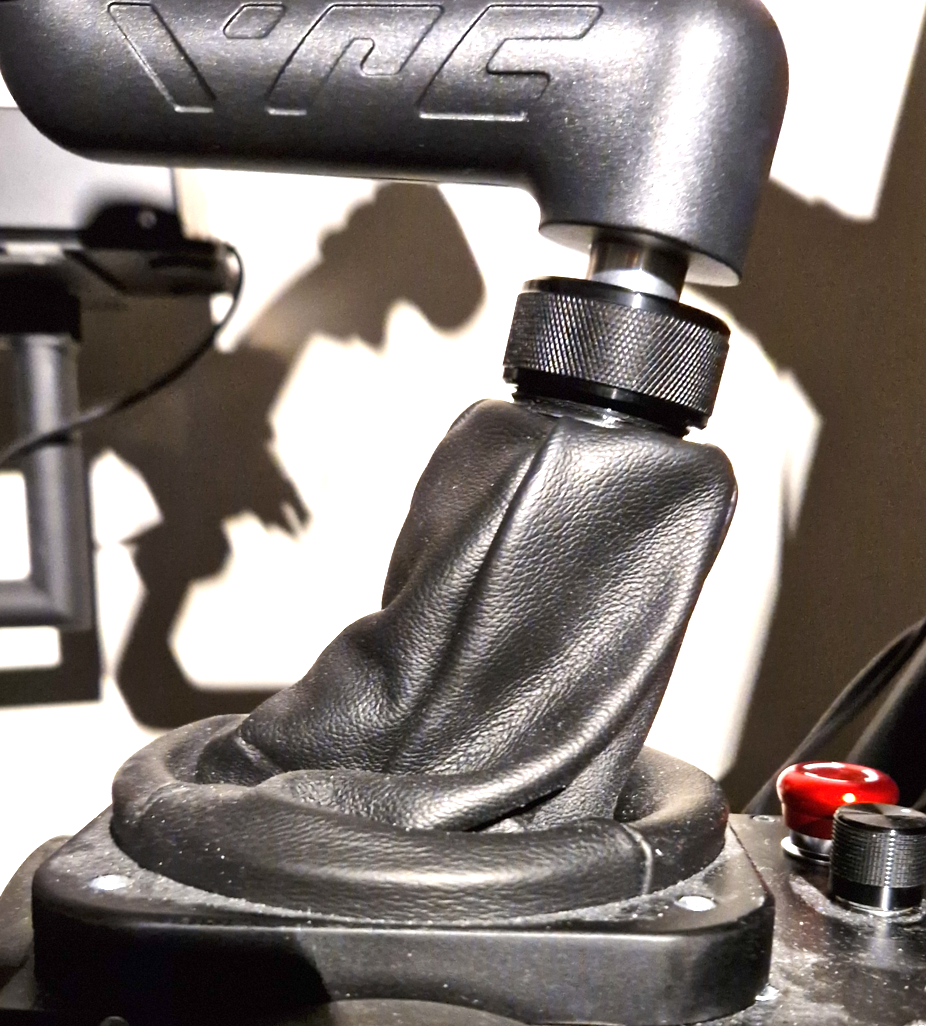

[Thank you @walmis ! I am absolutely loving the VPForce product, and here is a pic of my cyclic so far.
FHi all, I have just installed my Rhino, and am struggling to set it up for DCS.
So, I have a Virpil Z-Extension, oriented to the rear, as per the photo, and I have installed hard-stops, but instead of fore-aft symmetrical, they are 8 degrees forward, and 14 degrees aft. This, with the z-ext, gives me an appropriate throw, but angled slightly to the rear.
I've successfully autocalibrated using the configurator, but once I run DCS, the weight of the stick pulls the centrepoint back a little, so that at rest, the stick is effectively trimmed nose-up.
Is there any way to make the stick rest at the center point, compensating for the slightly asymmetrical stick weight?
Thanks in advance...
Phil
So, I have a Virpil Z-Extension, oriented to the rear, as per the photo, and I have installed hard-stops, but instead of fore-aft symmetrical, they are 8 degrees forward, and 14 degrees aft. This, with the z-ext, gives me an appropriate throw, but angled slightly to the rear.
I've successfully autocalibrated using the configurator, but once I run DCS, the weight of the stick pulls the centrepoint back a little, so that at rest, the stick is effectively trimmed nose-up.
Is there any way to make the stick rest at the center point, compensating for the slightly asymmetrical stick weight?
Thanks in advance...
Phil
GI use the static force in effects to "trim" that out
GAlso under spring in the ffects tab turn on adaptive recentering
FSo simple. Many thanks.
HIn fact the correct way is to use the "balance spring" feature, if you put your mouse over the feature it says it adds a force to counteract grip weight. This is exactly what you need. Moreover it is a very useful feature as you can add force left, right, top, bottom.

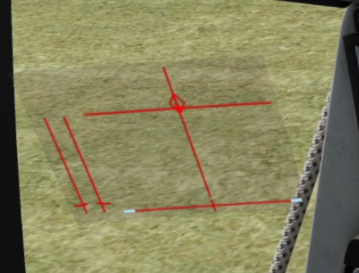

The best way to setup it is to launch dcs with the huey for instance, as it has the force trim (if you do not have it you can enable hardware force trim for testing purpose), then you use for trim at different points, top left, top right, and so on, you see where the circle is and where the blue point is, and you add force so the blue point stays in circle.
The best way to setup it is to launch dcs with the huey for instance, as it has the force trim (if you do not have it you can enable hardware force trim for testing purpose), then you use for trim at different points, top left, top right, and so on, you see where the circle is and where the blue point is, and you add force so the blue point stays in circle.
HLook what my settings are, I have the same setup as you, a Z extension on the base. Not the same grip I think though, so you will need to adjust the numbers.
SWhile of course not rocket science i assume, looking at all those options i think for a while ill miss the ease of install of a non ffb cam stick base
Srealism is complicated
SI recently had an issue with DCS on a particular private multiplayer server where TelemFFB showed that it was not connected to DCS. My haptic seat software (SimShaker Aviators) also would not connect. Is there some server-side setting that limits communication with the export LUA?
JSome servers have player export turned off. It is an anti cheat issue. It isn't necessary to address to address cheating, if you are friendly with the admins you could suggest they enable only that option or find other servers to play on.
SAwesome, thank you! I am totally ignorant about server-side stuff. This is my virtual squadron's private server where cheating isn't an issue....this would almost certainly be an accidental misconfiguration.
LIn MSFS, using TelemFFB for force trim, the trim reset everytime i hit pause or esc, or when there is a bad stutter. And i cannot retrim it right away until it has recentered itself first.
Wbetter post telemFFB related stuff to https://discord.com/channels/965234441511383080/1093558100713279508
MAnyone had issues whent trying to use TelemFFB and SimShaker Aviators. It seems when i have both - non of software working :/
