hey all, I know for sure I have seen people talk about this before however my brain can't find anything searching for it.
My question is under what setting in the configurator would cause the stick to wobble back and forth as its trying to recentre itself - I have found reducing the spring gain slows it down but i've definitely touched something months ago and can't remember what it was. sometimes now the stick will exponentially wobble itself out of control.

YunacPL•4/19/24, 6:04 AM

How does the shift register board work ? Is it plug and play? Does it have axis outputs?

YYunacPL How does the shift register board work ? Is it plug and play? Does it have axis ...

walmis•4/19/24, 6:06 AM

It connects to the 5 pin grip connection and allows to wire up to 32 buttons

SSkete hey all, I know for sure I have seen people talk about this before however my br...

walmis•4/19/24, 6:07 AM

I'd recommend loading up the default Rhino configuration - it's included in

configs

configs

directory with the configurator

Wwalmis It connects to the 5 pin grip connection and allows to wire up to 32 buttons

YunacPL•4/19/24, 6:08 AM

Thanks is there any simple small board with at least 3 axis small enough to fit into grip supported by the base ? Im trying to avoid external wiring

walmis•4/19/24, 6:09 AM

It's possible via a microcontroller https://discord.com/channels/965234441511383080/1185807510993637386

Wwalmis It's possible via a microcontroller https://discord.com/channels/965234441511383...

YunacPL•4/19/24, 6:10 AM

That's fantastic thank you !

Will iam•4/19/24, 12:02 PM

super random question

Will iam•4/19/24, 12:03 PM

looking at the website (I know nothing) there are two or one motors offered in a bundle

Will iam•4/19/24, 12:03 PM

Im guessing the motors are rotary ones, so two are needed for 4 axis?

Fr4Ged•4/19/24, 12:13 PM

there are only 2 axes in a joystick. x and y.

WWill iam looking at the website (I know nothing) there are two or one motors offered in a...

Fierce_Fire•4/19/24, 12:28 PM

The single motor is for diy FFB pedal mods

Will iam•4/19/24, 12:29 PM

ohh, thank you :)

Carmel•4/19/24, 1:56 PM

Hi guys, im strugling with a strange situation on MSFS Fenix A320. When im move the stick on aileron axis the aircraf have a tendency to virtualy center the sidestick and back to normal position in fraction of seconds. Theres no other devices controlling aileron or pitch axis. Im really dont know wqhat is happening. This issue occurs only when TelemFFB is enabled.

Epyon•4/19/24, 2:47 PM

Hi all, I have a weird problem with the Viggen in DCS. This only happens with the Viggen. Trim commands seem to move the stick to the opposite side. in the aircraft, the trim works as intended (left trim moves the stick towards the left) however, the stick moves to the right, which counteracts the trim in the aircraft by physically moving the stick to the opposite side. So any trim input will be nullified by the opposing forces between the aircraft stick, and the physical stick. help?

EEpyon Hi all, I have a weird problem with the Viggen in DCS. This only happens with th...

Jehly•4/19/24, 3:46 PM

Everything else work?

EEpyon Hi all, I have a weird problem with the Viggen in DCS. This only happens with th...

walmis•4/19/24, 4:22 PM

Maybe you need to invert the trim in FFB tune menu in DCS

MichalK•4/19/24, 7:08 PM

Yes, the VIggen is the only one in DCS where I had to invert FFB axis in DCS options

Wwalmis Maybe you need to invert the trim in FFB tune menu in DCS

Epyon•4/19/24, 7:36 PM

This worked. Thank you!

Stryker990•4/20/24, 11:41 AM

@walmis is it possible to turnaround one (not both) of the connector plugs on the winwing adapter 180°?

I/JG7_Moto•4/20/24, 12:22 PM

@walmis The fan on the Rhino goes ON very loud sometimes, is this ok? Sound does not bother me, I have headphones, just want to know if something can get damaged with the Rhino.

SStryker990 @walmis is it possible to turnaround one (not both) of the connector plugs on th...

walmis•4/20/24, 12:31 PM

No, any reason to rotate them? The winwing grip has a free cable in the grip

II/JG7_Moto @walmis The fan on the Rhino goes ON very loud sometimes, is this ok? Sound does...

walmis•4/20/24, 12:31 PM

Yeah, those fans can be a bit whiny, I'll add some tuning in the future to quiet them down a bit

Fr4Ged•4/20/24, 12:38 PM

I haven't managed to turn them on by use yet. lol

Wwalmis No, any reason to rotate them? The winwing grip has a free cable in the grip

Stryker990•4/20/24, 12:39 PM

the extension i bought has the connectors the other way round and since its a goosenecked extension i decided to just turn the connected on the rhino 180°

amadeus•4/21/24, 2:57 AM

any chance of a new firmware update soon?

looking forward to those saturation improvements for force compensation

amadeus•4/21/24, 3:01 AM

well, i guess general saturation, i notice even if i fix it to not be a problem be a problem with 100% spring in the configurator, the F14 DCS module will end up over-saturating and creating that sort of drop off effect (i notice it definitely during takeoff)

amadeus•4/21/24, 3:02 AM

for context, in reference to this issue: https://canary.discord.com/channels/965234441511383080/968208779084701716/1165770657439695008

Hammer•4/21/24, 2:44 PM

@walmis I am having an issue with using any thrustmaster grip to work. I select Generic Grip, apply and save, and every time I push one button the whole Colum of buttons register a press. I have zero issues with my virpil f-14 grip though. What am I missing, why dosen't TM grips work?

Wwalmis Yeah, I get the same behavior if I disconnect the +5V wire going to the grip. So...

Mistic•4/21/24, 4:07 PM

I got it to work! Yes the +5V wire was hanging partially out. Weird but it is working wonderfully now. Truly impressive Walmis!

HHammer @walmis I am having an issue with using any thrustmaster grip to work. I select...

TheAmazinGreat•4/21/24, 5:29 PM

Change to the debug grip profile and post the debug window.

Hammer•4/21/24, 6:51 PM

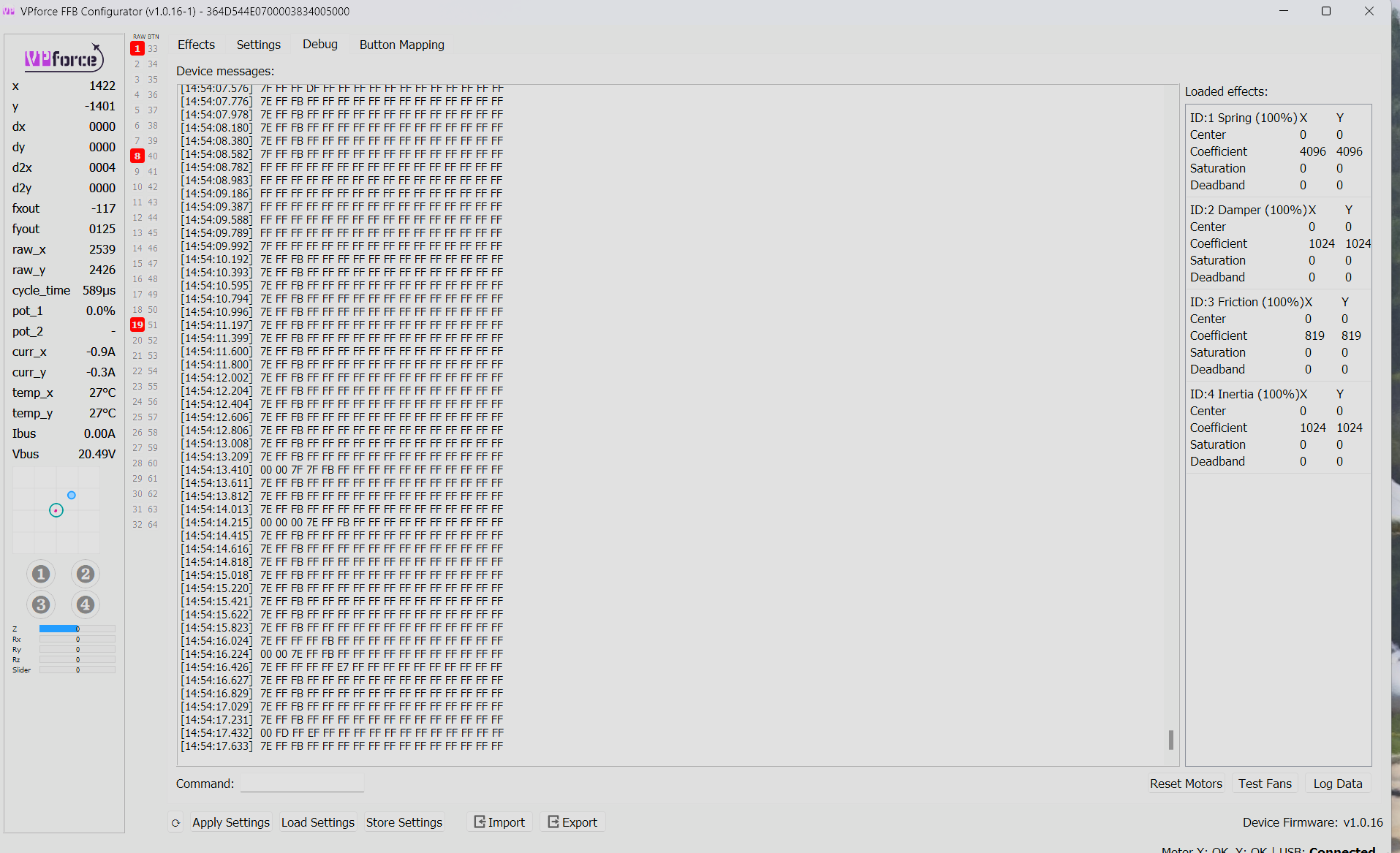

@TheAmazinGreat

Hammer•4/21/24, 6:52 PM

it continues to log the same over and over

Hammer•4/21/24, 6:53 PM

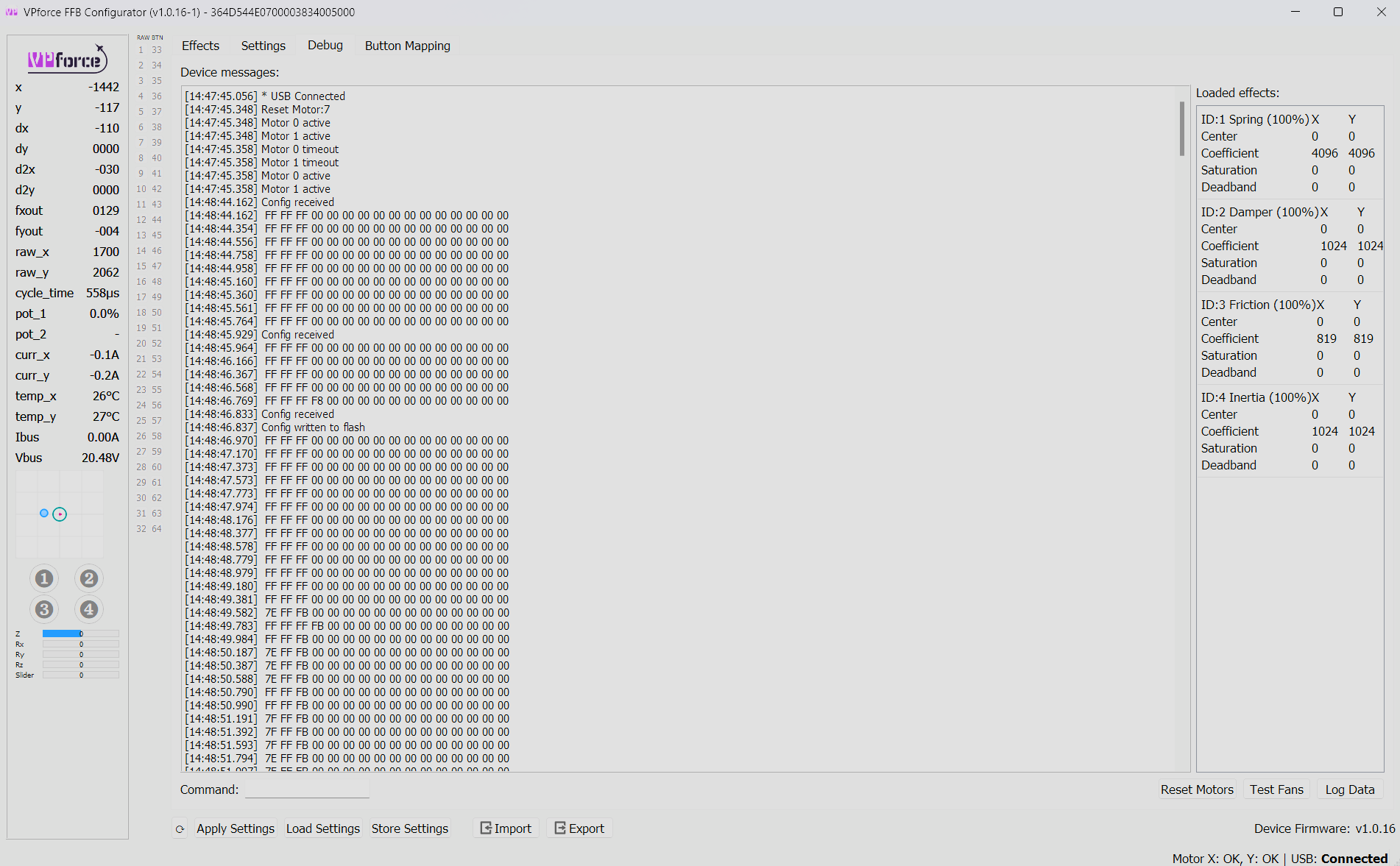

that was the f/a-18 grip with no buttons being pressed

Hammer•4/21/24, 6:55 PM

this is the a10/ f16 grip with the trigger being held

TheAmazinGreat•4/21/24, 7:31 PM

Walmis may chime in and know right away but I would verify all connections between grip and the board. It could be that the virpil grip hits the pins on the connector just right.

Swoop•4/22/24, 2:39 PM

Before I make a massive assumption, can I confirm that:

5v = VDD
CS = Latch
CK = Clock
DI = Data
G = Ground

Trying to wire a warthog to the board!

Toddimus•4/22/24, 2:50 PM

That’s how I would interpret it. CS is chip select, which means hey you, I’m talking now. So latch makes sense.

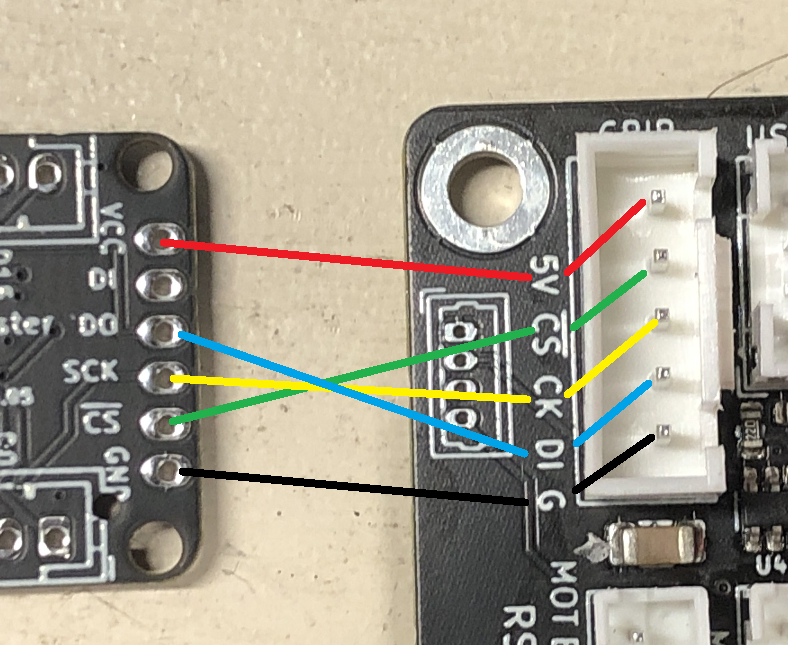

TheAmazinGreat•4/22/24, 3:08 PM

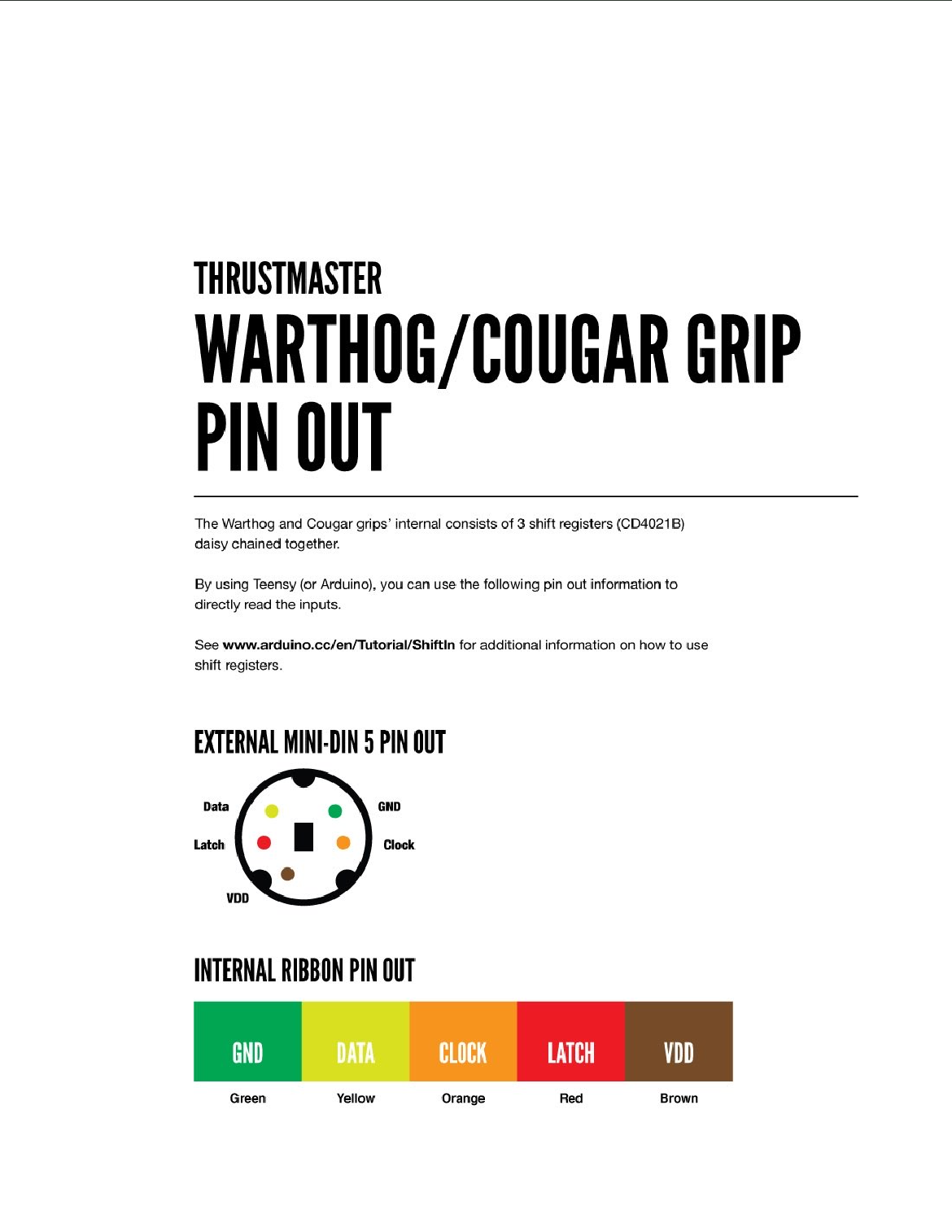

TheAmazinGreat•4/22/24, 3:09 PM

TheAmazinGreat•4/22/24, 3:11 PM

Keep in mind colors don’t match between the two images, and the TM colors may not be intuitive (red is not Vcc on TM internal ribbon)

TTheAmazinGreat Walmis may chime in and know right away but I would verify all connections betwe...

Hammer•4/23/24, 12:23 AM

I found out the issue I was having. Apparently the powered usb hub I was using wasn't providing enough power causing it to act funny, but only with the TM grips.

Silver•4/23/24, 8:36 AM

I'm getting slight cracking noises in the pitch axis when changing movement direction. I've heard there is a screw that you can tighten to fix the issue. Anybody knows more about that? My Rhino is relatively new, only used it for about 3-4h.

Fresh_Mint•4/23/24, 8:54 AM

@Silver That may caused by interference between the body of base and the thick electric wire for connecting grip

SSilver I'm getting slight cracking noises in the pitch axis when changing movement dire...

Weltmensch_RL•4/23/24, 9:29 AM

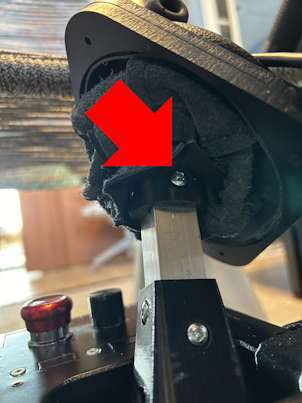

If I remember right, it was this screw.

Weltmensch_RL•4/23/24, 9:29 AM

Found the picture in the general tap.

Weltmensch_RL•4/23/24, 9:30 AM

Or the ones on the bottom of the picture.

Silver•4/23/24, 10:19 AM

Thanks for the info guys, I'll check out that screw and see if it helps

Stryker990•4/23/24, 6:21 PM

hm i require some help im not sure if its a rhino or a telem problem but it just doesnt center anymore and triming on the fulcrum for example doesnt work

SStryker990 hm i require some help im not sure if its a rhino or a telem problem but it just...

Fr4Ged•4/23/24, 6:26 PM

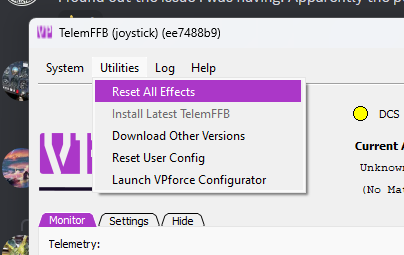

you might need to reset the effects because them being stuck. happened to me once before when I crashed.

FFr4Ged you might need to reset the effects because them being stuck. happened to me onc...

Stryker990•4/23/24, 6:29 PM

doing the good old IT tip first of have you tried turning it (PC) off and on again
