DevHeads IoT Integration Server•2y ago

@Camila_99$$

Aaymen ammari @Camila_99$$

Camila_99$$•5/12/24, 10:08 PM

Hiii Aymen

Camila_99$$•5/12/24, 10:09 PM

Humm wait a minute

aymen ammariOP•5/12/24, 10:09 PM

You have all the time

Camila_99$$•5/12/24, 10:16 PM

Vout = Vin * (R2 / (R1 + R2))

Camila_99$$•5/12/24, 10:16 PM

Am I correct

Camila_99$$•5/12/24, 10:17 PM

R1 is the resistance of the first resistor

aymen ammariOP•5/12/24, 10:17 PM

Well you can say Rout / Rin to Disperse between resistors

Camila_99$$•5/12/24, 10:17 PM

R2 for the second resistor

aymen ammariOP•5/12/24, 10:17 PM

But your good, go on...

Camila_99$$•5/12/24, 10:28 PM

Soo
Vout = 0.6V * (1.4 kΩ / (1 kΩ + 1.4 kΩ)) = 0.6V * (1.4 kΩ / 2.4 kΩ) = 0.35V

Camila_99$$•5/12/24, 10:29 PM

1.4 kΩ = Combined resistance

Aaymen ammari Quiz time ✨✨✨

Camila_99$$•5/12/24, 10:33 PM

0,35 V ?

CCamila_99$$0,35 V ?😁

aymen ammariOP•5/12/24, 10:37 PM

Womp womp

Camila_99$$•5/12/24, 10:45 PM

Is the result incorrect !!

Camila_99$$•5/12/24, 10:45 PM

I don’t think so

aymen ammariOP•5/12/24, 10:45 PM

Let me give you a hint

Camila_99$$•5/12/24, 10:45 PM

Ok go

aymen ammariOP•5/12/24, 10:47 PM

So we have 2 amplifiers.. With 2 different montages

aymen ammariOP•5/12/24, 10:47 PM

And V out from the first amplifier will be V in for the second one

Aaymen ammari So we have 2 amplifiers.. With 2 different montages

aymen ammariOP•5/12/24, 10:50 PM

This means that we will use 2 different laws

Camila_99$$•5/12/24, 10:58 PM

0,23 V ?

aymen ammariOP•5/12/24, 11:01 PM

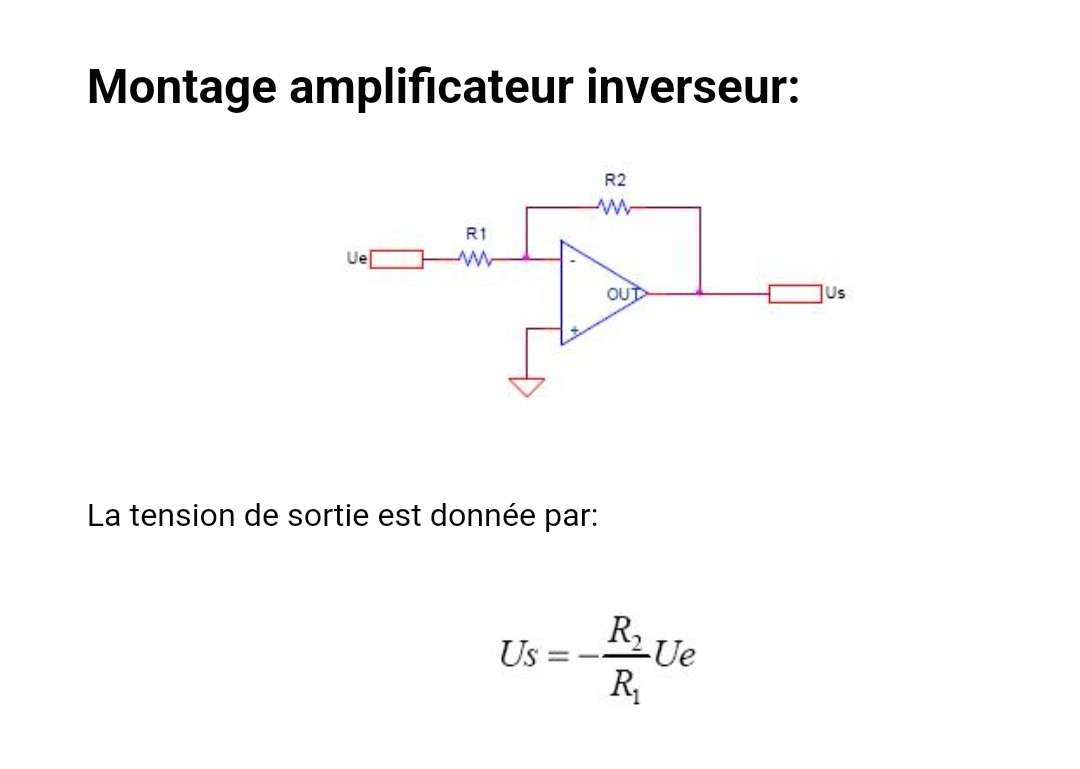

aymen ammariOP•5/12/24, 11:01 PM

This is the first one

aymen ammariOP•5/12/24, 11:03 PM

aymen ammariOP•5/12/24, 11:03 PM

And this is the second one

aymen ammariOP•5/12/24, 11:22 PM

@Camila_99$$

Saßì•5/13/24, 3:11 AM

@nighty @azharak. @Brandon Satrom @sharanjeetsinghmago @MGInvisible Welcome to the community! We're curious to hear about the twists and turns of your professional journey. Care to share?

azharak.•5/13/24, 3:13 AM

Hello Guys,
I am an Embedded Design Engineer and I have mostly worked on IoT devices.
I have expertise in making End to End IoT products.

Looking forward to helping the people here and learning from them.

Aazharak.Hello Guys, I am an Embedded Design Engineer and I have mostly worked on IoT dev...

techielew•5/13/24, 3:30 AM

Welcome, Azharak! What you working on currently?

azharak.•5/13/24, 4:25 AM

I am currently working on an IoT product for offices and co working spaces. It is actually a monitoring product which monitors different parameters in a room.

Aazharak.I am currently working on an IoT product for offices and co working spaces. It i...

Accur4te•5/13/24, 4:31 AM

I am working on iot products for industrial applications , nice to meet you

AAccur4te I am working on iot products for industrial applications , nice to meet you

azharak.•5/13/24, 4:32 AM

Nice to meet you

embeē🚀🎮•5/13/24, 4:42 AM

hi everyone!

Eembeē🚀🎮hi everyone!

Accur4te•5/13/24, 4:43 AM

hello

embeē🚀🎮•5/13/24, 4:44 AM

I'm a hardware developer and robotics mechanic. I have my expertise in designing and prototyping hardware systems, and little background in PCB.

I'm hoping to connect with other dev guys and learn in the process.

Eembeē🚀🎮I'm a hardware developer and robotics mechanic. I have my expertise in designing...

Marvee Amasi•5/13/24, 5:39 AM

Welcome @mbana , what's like the most complex hardware system you have worked on ? We'd love to hear about your experience

FredObumma•5/13/24, 8:05 AM

Hello guys, It's great to be here. I'm Manfred, A software developer with 3+ years experience. Looking forward to growing with y'all.

FFredObumma Hello guys, It's great to be here. I'm Manfred, A software developer with 3+ yea...

aymen ammariOP•5/13/24, 8:06 AM

Hi manfred, nice to have you here

youcef_ali•5/13/24, 9:07 AM

When we talk about wifi esp32 / esp8266 is the first choice, are ther other alternatives? There are any microcontrollers with built is wifi ?

Yyoucef_ali When we talk about wifi esp32 / esp8266 is the first choice, are ther other alte...

aymen ammariOP•5/13/24, 9:13 AM

Arduino MKR wifi
Raspberry pi ( for bigger projects)

Aaymen ammari Arduino MKR wifi Raspberry pi ( for bigger projects)

youcef_ali•5/13/24, 9:15 AM

Raspberry pi we are talking about microprocessor and mpu this is heavy in price, energy consumption and need an os, you are right for bigger projects but what i'm looking for is for light weight applications (low energy, low cost, ...)

aymen ammariOP•5/13/24, 9:16 AM

Yeah then ARDUINO MKR WIFI 1010 is the best choice for you

Yyoucef_ali When we talk about wifi esp32 / esp8266 is the first choice, are ther other alte...
