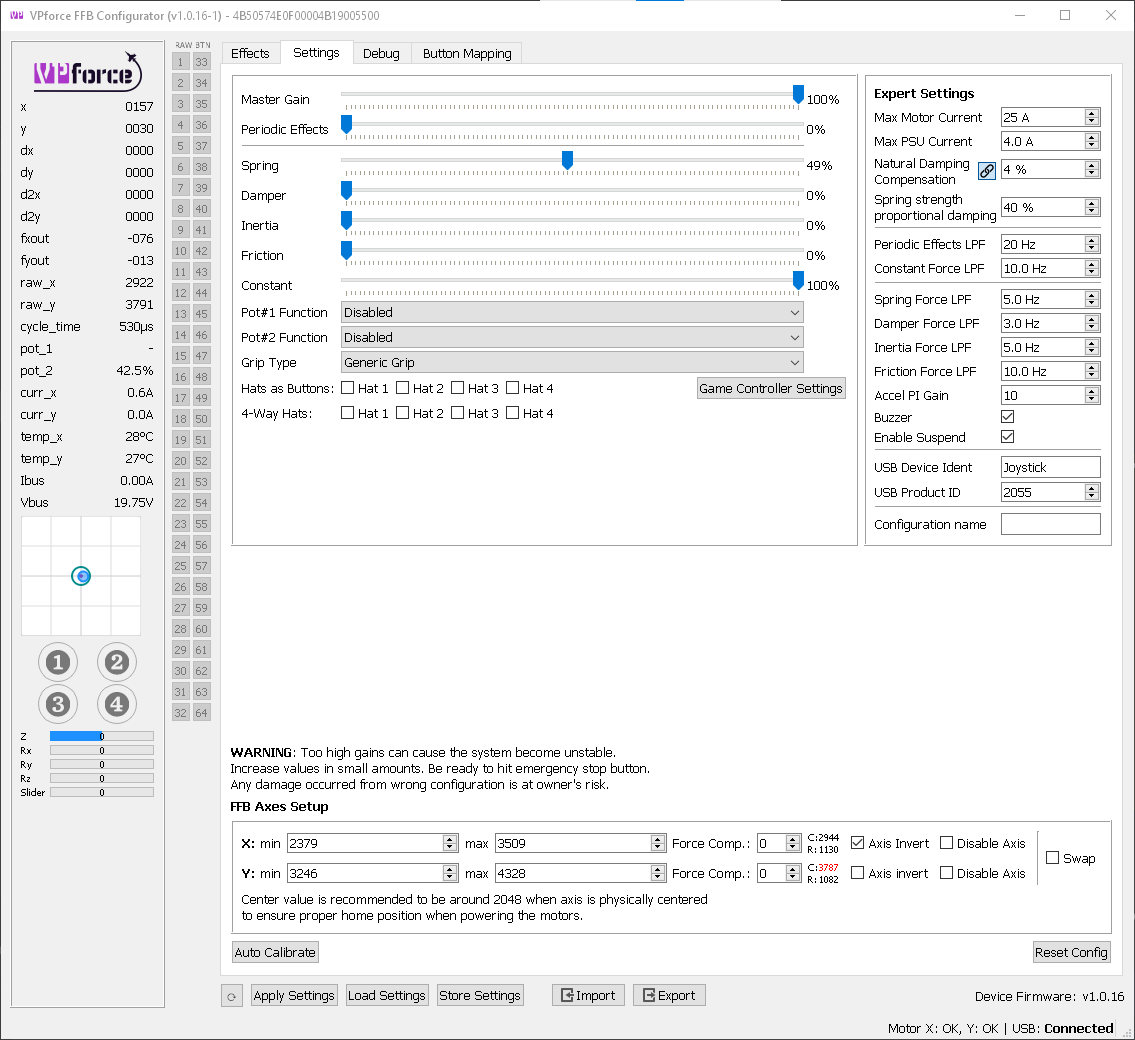

so i somewhat had it working, downloaded telemffb, downloaded a file from the #📙knowledge-base and

so i somewhat had it working, downloaded telemffb, downloaded a file from the #

knowledge-base and my stuff went crazy, tried to start all over agin with the first "center" calibration and now my figures arent near 2000, any ideas?

142nd_BamaOP•7/26/24, 2:56 AM

AAdiSz Hi, couldn´t use my rhino for a long time. Now there is a new firmware.(I´m stil...

walmis•7/26/24, 6:59 AM

Try this fix:
🧰support

142nd_BamaOP•7/26/24, 2:12 PM

Is there a setting to give more holding power at the central trimmed position? Looking for a more constant spring load as opposed to progressive.

1142nd_Bama Is there a setting to give more holding power at the central trimmed position? L...

[

[OR] SerGeant•7/26/24, 3:18 PM

Adaptive Recentering is your friend.

[[OR] SerGeant Adaptive Recentering is your friend.

142nd_BamaOP•7/26/24, 3:26 PM

Ummmm. It does help but that’s not what I’m looking for, unless I was doing it wrong…. Think of it as I’m wanting a preloaded spring feel, or a linear spring. Almost center detent like without the bump… does that make sense

[

[OR] SerGeant•7/26/24, 3:29 PM

I get it. You don’t want a linear increase in spring load.
So you have to work with custom spring curves. Maybe someone can explain it better. I didn’t use that feature before.

mattback•7/26/24, 5:16 PM

hello there, @walmis when you last requested i send in a video in the debug mode showing the twist grip values, were you able to view the video i sent, and is there anything more that is needed while you work on the latest update to the register size for the twist grip

1142nd_Bama Is there a setting to give more holding power at the central trimmed position? L...

Hiob•7/27/24, 7:30 AM

Put an additional point on the spring curve (symmetrical) and steepen the first part of the curve. That will greatly enhance the initial spring force right from the center (and increase the centering power).

Teeks•7/27/24, 11:50 AM

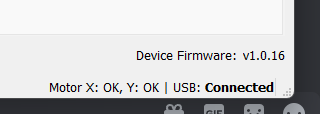

my rhino is no longer showing up in windows, but it is showing up in ffb configurator

Teeks•7/27/24, 11:50 AM

any ideas?

Teeks•7/27/24, 11:53 AM

(and as a result not showing up in dcs)

Teeks•7/27/24, 11:54 AM

Teeks•7/27/24, 11:55 AM

ahhhhh

Teeks•7/27/24, 11:55 AM

ok, if i disconnect my throttle, it shows up

Teeks•7/27/24, 11:55 AM

obviously an issue with my pc - disregard!

Teeks•7/27/24, 11:56 AM

(or if anyone has any ideas on how to solve this)? all my devices are plugged into the one powered USB hub

Teeks•7/27/24, 12:10 PM

Fixed it. If my logitech 502 mouse was plugged into the hub, it killed the rhino. Bizarre

142nd_BamaOP•7/27/24, 12:51 PM

I finally discovered this! Only issue is the sick starts oscillating and vibrates if it’s too step, if I could get that sorted that’s what I was looking for!

HHiob Put an additional point on the spring curve (symmetrical) and steepen the first ...

142nd_BamaOP•7/27/24, 12:51 PM

Wwalmis Try this fix: https://discord.com/channels/965234441511383080/968208779084701716...

AdiSz•7/27/24, 1:34 PM

Thank you, it worked

TTheAmazinGreat Have you tried pushing down the connector hard to make sure it’s seated? A lot o...

Rhino•7/27/24, 1:41 PM

Yeah, I tried everything I could think of

Rhino•7/27/24, 1:42 PM

I've had to buy a virpil grip since that'll work out of the box

1142nd_Bama I finally discovered this! Only issue is the sick starts oscillating and vibrate...

Hiob•7/27/24, 1:48 PM

Don‘t make the incline too steep or too big. And you may need add some dampening/friction to keep it from oscillating on itself.

[

[OR] SerGeant•7/27/24, 3:48 PM

Hey, I got an issue with the y-axis motor. Inflight i just felt an uneven spring force for pull/push (pull weaker than push) It has 2-3 Amps difference for full pull and push. So it’s no imaginary feeling. My understanding of the software is, to manage the power output related to the springforce at a specific deflection?!

Also the X-axis feels more powerful at all at the same gain overall.

Defective motors?

142nd_BamaOP•7/27/24, 5:16 PM

How do the end stops work exactly? Is 100% the full range of the calibrated range or the 21/22 deg the rhino is capable of? Reason I ask is I was going to remove my 12deg limiter and use end stops to test different throw degrees….

Matei•7/27/24, 5:50 PM

Im having trouble sourcing my own motor as the ones I've found either seem to have the no integrated drivers and they have different specifications than the ones on the vpforce website. Can anyone help me out?

MMatei Im having trouble sourcing my own motor as the ones I've found either seem to ha...

PiNKSH!T•7/27/24, 5:51 PM

if you plan on using any VPforce software you have to use the VPforce motors Walmis provides

Matei•7/27/24, 5:51 PM

well i plan on using the same kind of motors, wouldnt that work?

MMatei well i plan on using the same kind of motors, wouldnt that work?

PiNKSH!T•7/27/24, 5:52 PM

no the vpforce motors have special drivers etc.

Matei•7/27/24, 5:52 PM

oh damn

PiNKSH!T•7/27/24, 5:52 PM

for anti cogging & other stuff

tebinu•7/28/24, 8:43 AM

my Rhino stopped working suddenly this morning. Yesterday, it still worked. I dont hear this beeping sounds anymore when i turn on my computer. I checked if its the powersupply, but i get 24V on that board and also the motors have a green light. Anything else i can debug here?

tebinu•7/28/24, 9:09 AM

what exactly is triggering the beep sound? is it the power supply connected or the usb connected?

tebinu•7/28/24, 9:18 AM

ok problem seems to be the usb cable.. weird that it can just "fail" if though i dont move my joystick

Touch_Of_Legend•7/28/24, 11:43 AM

Yep yep I’ve seen that issue before so great job troubleshooting

wolfman59#6013•7/28/24, 5:19 PM

hello everyone, someone could tell me which power supply should I buy to power the rhino vpforce, knowing that my connection is an XT60

Wwolfman59#6013 hello everyone, someone could tell me which power supply should I buy to power t...

Xaero Zero•7/28/24, 5:53 PM

I'm on same boat, there are few "drone" charger ones with out of the box XT60, but they are 20V
The best Gold Standard from my understanding in Meanwell 350/24

Xaero Zero•7/28/24, 5:54 PM

Meanwell is good power but big looks ugly and too much power for single unit, but it's best source you can get

Xaero Zero•7/28/24, 5:56 PM

Meanwell LRS 350/24
to be exact

TonyZ2525•7/28/24, 5:58 PM

https://www.amazon.com/dp/B08GFSVHLS?ref=ppx_yo2ov_dt_b_product_details&th=1

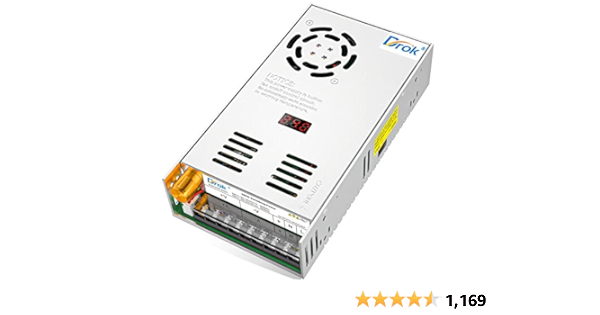

DROK 24V Power Supply, AC 110V/220V to DC 0-24V 20A 480W Buck Conve...

DROK 24V Power Supply, AC 110V/220V to DC 0-24V 20A 480W Buck Converter, Variable Adjustable Adapter Regulated 5V 12V 24V Volt Switching Voltage LED Transformer 20A Amp Charger for Computer Lab

TonyZ2525•7/28/24, 5:58 PM

i used this one

mattback•7/29/24, 1:46 AM

mattback•7/29/24, 1:47 AM

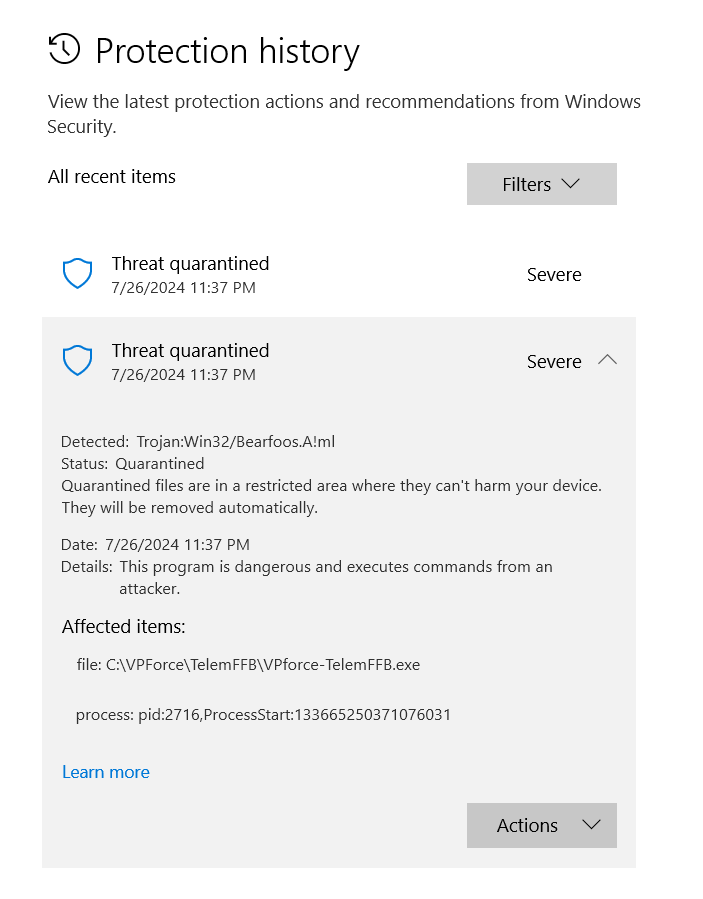

why is windows finding this

Mmattback why is windows finding this

walmis•7/29/24, 5:07 AM

https://discord.com/channels/965234441511383080/1230919462144835674/1266661159872888935

Mmattback hello there, @walmis when you last requested i send in a video in the debug mo...

walmis•7/29/24, 5:08 AM

Thanks, I will fix the twist axis for the upcoming release

wolfman59#6013•7/29/24, 7:10 AM

Hello everyone ,
can someone tell me what type of DC connector I should put on the rhino because I only find models in 5.5-2.1mm?

PiNKSH!T•7/29/24, 1:28 PM

I have the virpil warbrd grip & if I don't own a virpil base is there anyway that vpforce config would allow me to change the trim hat to a 4 way instead of the 8 way? thanks for any help

PPiNKSH!T I have the virpil warbrd grip & if I don't own a virpil base is there anyway tha...

Stryker990•7/29/24, 1:56 PM

Why tho just dont use the 4 unused button positions?

PPiNKSH!T I have the virpil warbrd grip & if I don't own a virpil base is there anyway tha...

Bob Bushman•7/29/24, 2:02 PM

The configurator has a setting for that.

BBob Bushman The configurator has a setting for that.

PiNKSH!T•7/29/24, 3:54 PM

I thought it did but I couldn't figure out which one did it, you got a screenshot maybe? cjeers for the help m8
