didnt think of moving the telemFFB line in the export.lua to the top, that seems to have fixed it. a
didnt think of moving the telemFFB line in the export.lua to the top, that seems to have fixed it. appreciate the suggestion!
RReplacement arrived and unit is working again. Thank you for the link. Wanted to provide an update that this has been resolved.
Swhere is that marking? can you make a video how to perform proper centering and calibration?
HAll three motors I got from Walmis had a marking on the face of the motor axis that showed the middle (~2048) position. Assumingly he put in on when calibrating the motors and putting on the firmware. But of course I don't know for sure if he does that every time.
HBut it isn't that important anyway. I can't make a video because I don't want to take apart my rhino (again) but it is really pretty simple. Leave the belt off, manually set the calibration values to 0-4096 for each axis apply and save. Then turn all effects except spring off. The motor will turn to the correct position on its own and due to the spring it will hold it with some force. THEN put on the belt (of course hold the stick upright for that). That will give you a center position in the proximity of 2048 (doesn't matter when it is 1999 or 2078). Then do a proper calibration. Et Voila.....
HThe axis might jitter a bit without the belt due to the lack of damping mass, if it is too much reduce the spring gain.
S^this is great process explanaton, thanks man! appreciate
TAny basic docs/videos on changing out the 3D printed Thrustmaster adapter that comes with the pre-assembled Rhino joystick for the metal version? It looks like it should be straight forward, but I couldn't find any docs and always like to verify before I start taking stuff apart!
*YouTubegodfreynet
Performed by my 11 years old wingman, under my supervision...
Music used in video:
Pat and Mat Soundtrack (A JE TO! 1979-1985)
Music used in video:
Pat and Mat Soundtrack (A JE TO! 1979-1985)

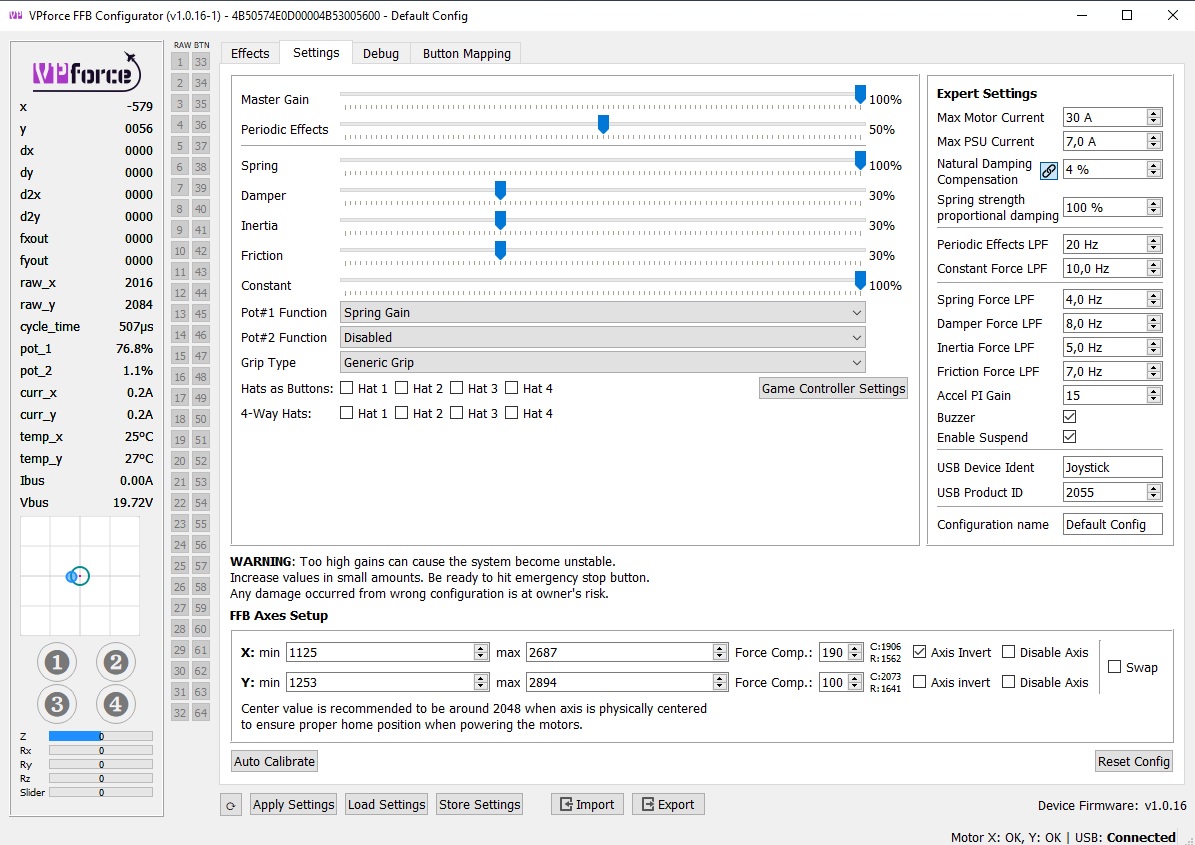

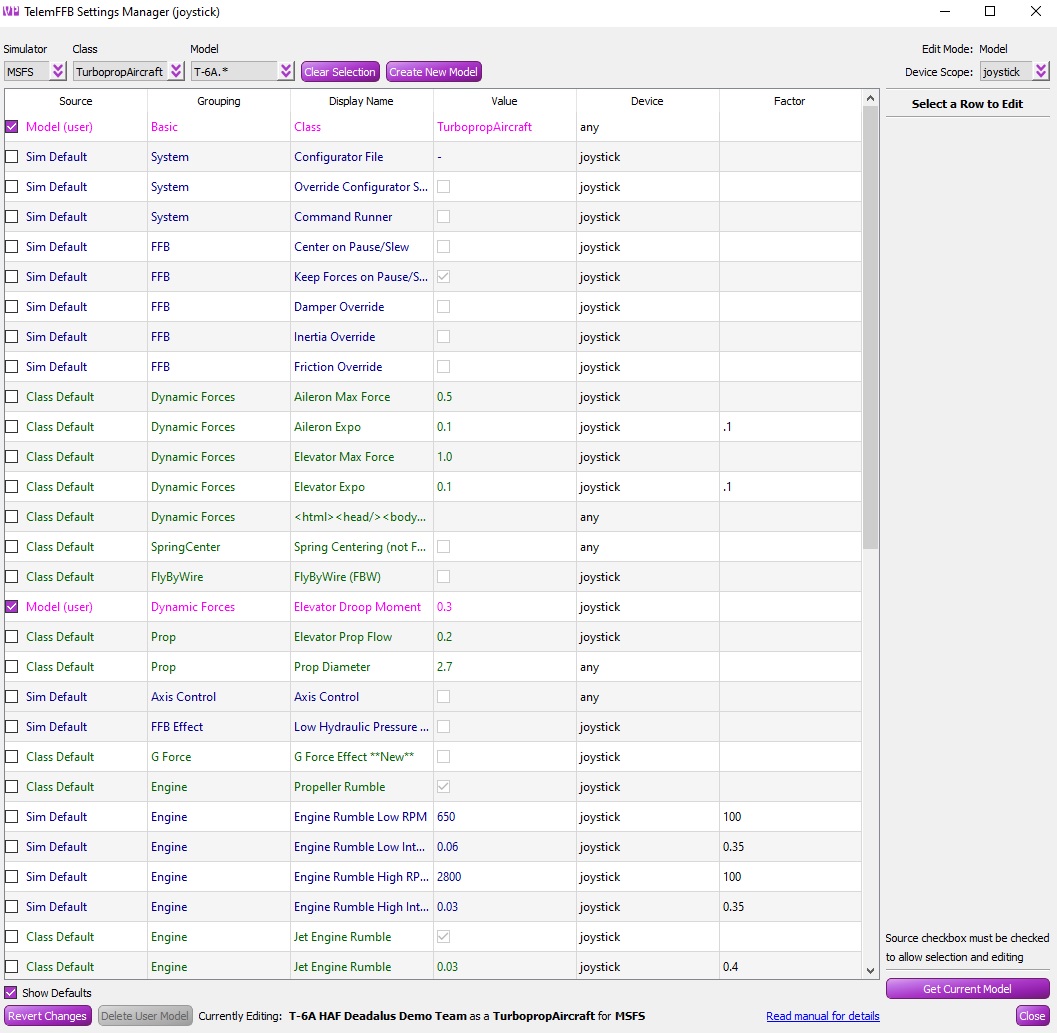

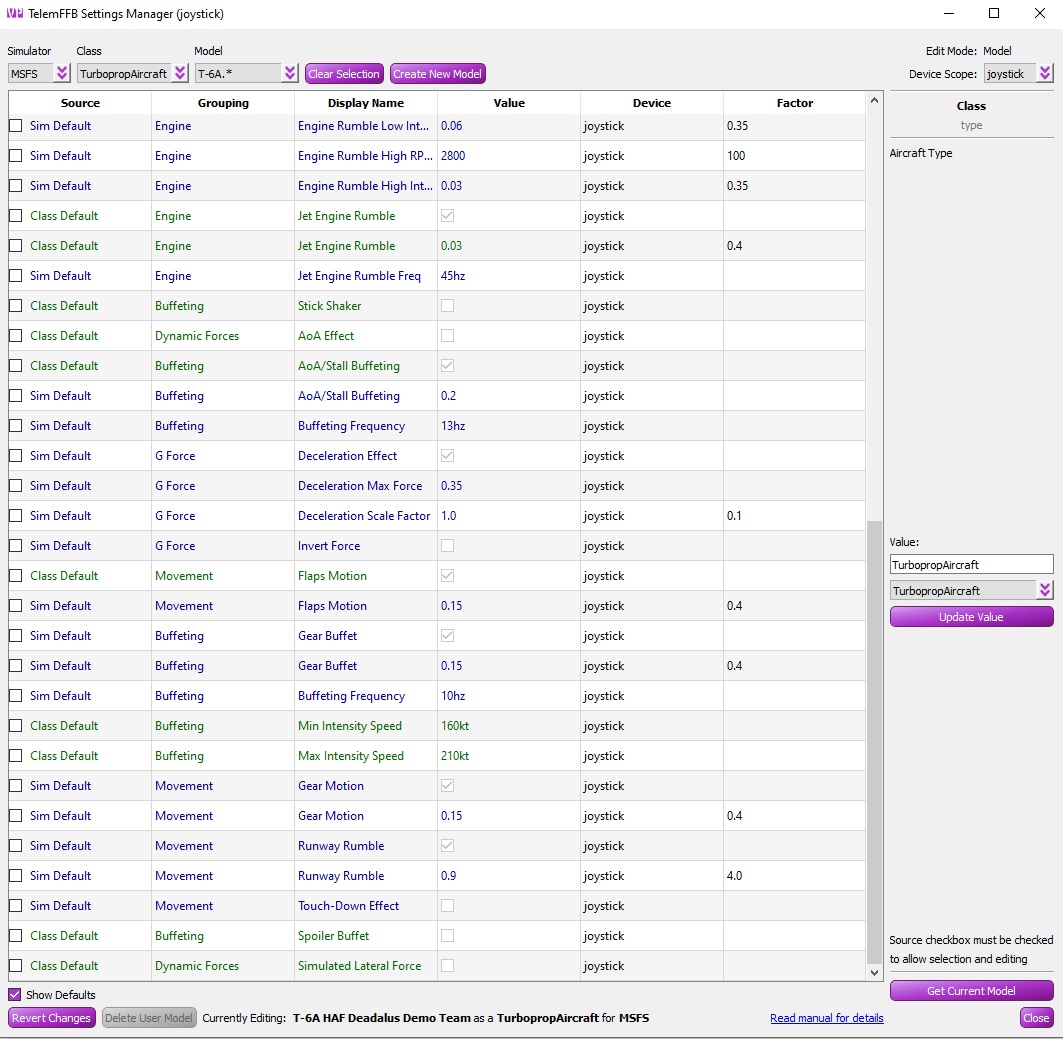

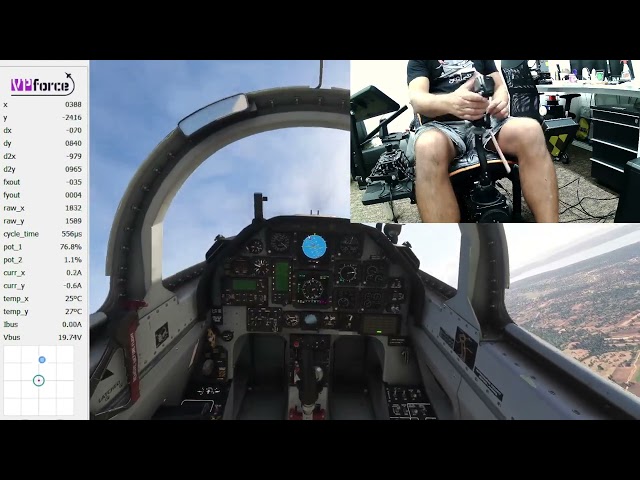

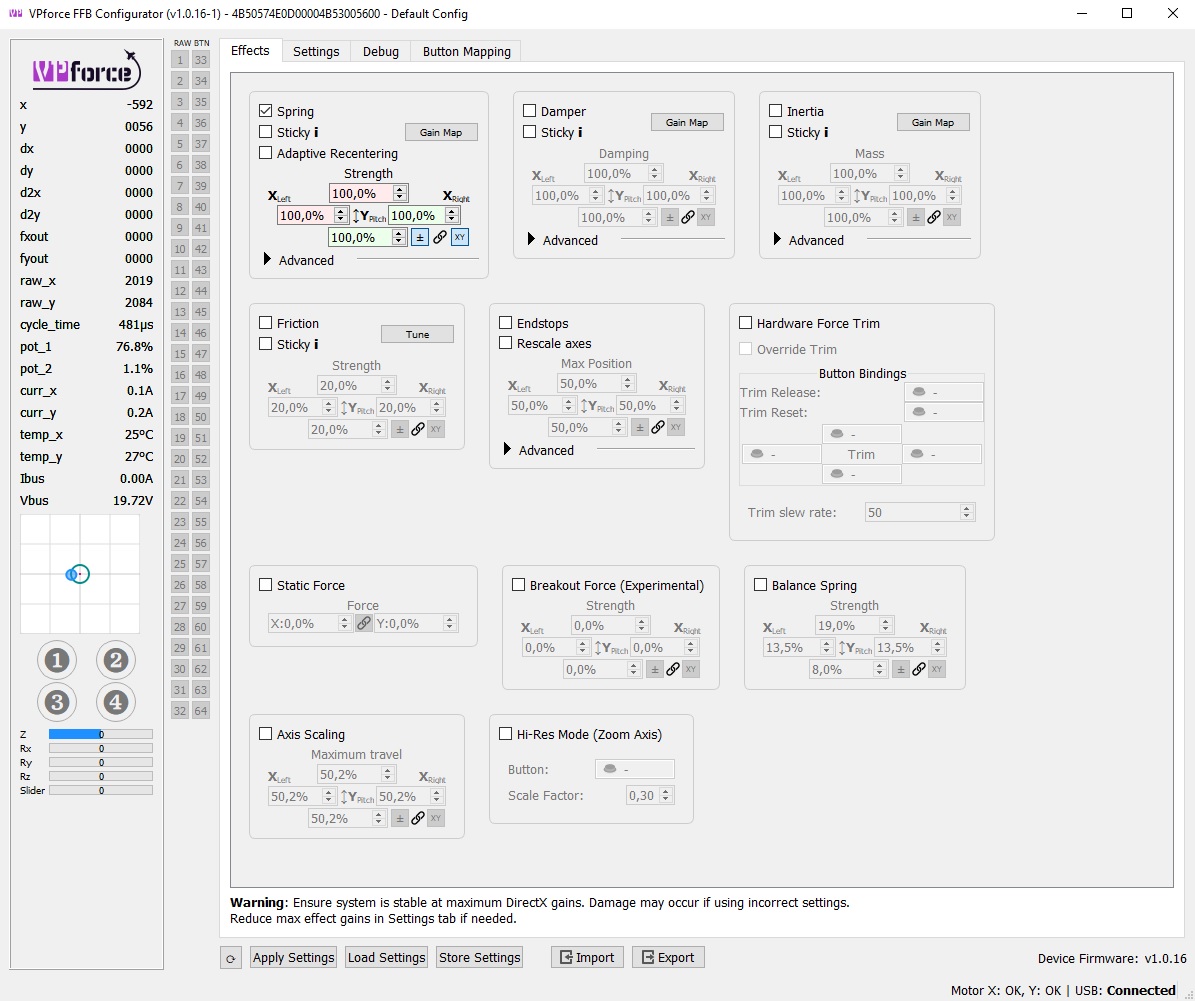

*Here is my MSFS pitch oscillation and settings... please help if you notice anything wrong in my settings...
*
*
*
*
*
TI am pretty sure since you don’t have damper, inertia, or friction checked in the effects tab, that the sliders on the settings tab do nothing. My understanding is that you take effects% * settings% to get total allowable %.
Try ticking damper box first, store settings, and see if that helps. High values for inertia and friction can cause instability (motor shutdowns) so best to feed those in slowly.
Try ticking damper box first, store settings, and see if that helps. High values for inertia and friction can cause instability (motor shutdowns) so best to feed those in slowly.
*I think TelemFFB overrides the configurator settings by using recognized or generated profiles, right?
TOnly if you set them to do so. It doesn’t look like you have, so TelemFFB uses the device settings.
TUnless you’ve changed your “startup” vpconfig or set a custom aircraft specific vpconfig in TelemFFB
TSection 4.12 of the manual: https://discord.com/channels/965234441511383080/1091401951951982602/1091401951951982602
CHey guys I'm having some issues with the config for the F4. The stick's neutral postion requires a ton of nose down to maintain level flight in cruise. The trim seems to do nothing. Any ideas?
HWhat do you mean? The trimmed stick position in level flight is forward from center - that is correct. The faster the more it needs to be trimmed forward (down).
CNo the trim does nothing
Cdoesn't move the stick at all
HAre you talking about the VP hardware trim or the in game trim?
Ctrim in game
CI suppose, honestly I'm not sure which
CJust got this thing. I'm pretty new to all of this
HNo problem.
HSome things to check
-make sure ffb is actually activated in the game settings
-make sure ffb is actually activated in the game settings
Cit is, I feel the rumble and what not
H- check the VP config if you have accidentally checked the trim override
H- check if you actually correctly bound the trim hat switch (in game)
HAre you using TelemFFB?
CTrim works, I can see it moving on the hat. Not using telemffb
Hhmmm
Hthe physical stick doesn’t move though?
Cno, not with the F4
Cthe helicopters I can set it, and it stays there
HBut you do know that trim in the F4 works totally different from helicopters? Sorry for asking, just to make sure
Cyes
CIt seems the base is working just fine, but the F4 Y axis is all messed up
Hany curves or saturation on the axis in DCS?
CIt might be worth mentioning I'm using a 200mm extension
HYeah, me too.
HDouble bindings?
Hon axis‘ I mean?
Clet me check
Cno double bindings
Hand no curves?
CI reset the config to default, seems to fix the trim issue, but still the in level flight the stick is very far forward
