DevHeads IoT Integration Server•15mo ago

An arduino uno rr4 wifi to blynk platform , dynamically changing the wifi network name and passwor

An arduino uno rr4 wifi to blynk platform , dynamically changing the wifi network name and password without altering the code is feasible , just that it requires the use of a wifi provisioning feature, somewhat like a blynk edgent library. Heard of Blynk.Edgent? Dat is designed for dynamic wifi management, it will wat wil make this work

MMarvee Amasi An arduino uno rr4 wifi to blynk platform , dynamically changing the wifi netw...

Abdullah•10/20/24, 9:28 PM

Yes I heard about it and used it on esp32 but it doesn't support arduino uno r4 wifi

AAbdullah Yes I heard about it and used it on esp32 but it doesn't support arduino uno r4 ...

Marvee AmasiOP•10/20/24, 9:32 PM

You sure about that ?

Abdullah•10/20/24, 9:35 PM

Yes I am sure, there is another library for embedded MCUs called blynk.ncp but I don't know how to use it if you know can you help me?

Marvee AmasiOP•10/20/24, 9:35 PM

Then you should use Arduino IoT Cloud

MMarvee Amasi Then you should use Arduino IoT Cloud

Abdullah•10/20/24, 10:42 PM

Is it possible to change the wifi network through the arduino iot cloud application?

Gigih•10/20/24, 11:00 PM

Hi, can anyone help me program a circuit? I'm a beginner and I have no idea how to do it

GGigih Hi, can anyone help me program a circuit? I'm a beginner and I have no idea how ...

techielew•10/21/24, 1:37 AM

What kind of circuit?

Ttechielew Are you back in Belgium?

kristof-at-embeetle•10/21/24, 3:02 AM

Nope. Still in Shenzhen.

AAbdullah Is it possible to change the wifi network through the arduino iot cloud applicat...

Marvee AmasiOP•10/21/24, 6:01 AM

It will allow u to manage device settings, u can add ur wifi credentials there too, and u wont have to be uploading new code each time you doin it. you can update the wifi network name SSID and password directly from the dashboard there

Mohan•10/21/24, 9:56 AM

How do I resolve this error ?

MMarvee Amasi It will allow u to manage device settings, u can add ur wifi credentials there ...

Abdullah•10/21/24, 11:48 AM

Do you mean that I can change it through the word network or is there another way?

Ttechielew What kind of circuit?

Gigih•10/21/24, 12:31 PM

Gigih•10/21/24, 12:31 PM

The circuit has a buzzer, an LED, 1 button (which is like a sensor), 1 button which is like a reset, an LCD screen, a switch and a Potentiometer. The project has to work as follows, as soon as I start simulating the project (which will be in Tinkercad) the word count and the zero below will appear on the LCD screen, as soon as I press the button that serves as a sensor, the counter it will show 1, ring the buzzer and turn on the LED at the same time and so on continuously, if for example I press the button 5 times, each time it is pressed it will appear on the LCD, depending on the time that the potentiometer marks and the buzzer and LED turn on together. The Potentiometer will serve as time in seconds to carry out the count, so for example if the Potentiometer has a delay of 4000 and I press the button, the counter will only show on the LCD after 4 seconds and the buzzer and the LED will also ring (the Potentiometer goes from 0 to 4000). When I press the switch down, it will show the Potentiometer information on the screen with the word Potentiometer at the top and the count in seconds below and when I move it up the switch will show the counter on the screen again. The other button will reset the counter

GGigih The circuit has a buzzer, an LED, 1 button (which is like a sensor), 1 button wh...

ZacckOsiemo•10/21/24, 12:41 PM

Nice plan, where are you currently having issues?

AAbdullah Do you mean that I can change it through the word network or is there another wa...

Marvee AmasiOP•10/21/24, 2:39 PM

Yh that network section is where u should enter ur wifi information

Marvee AmasiOP•10/21/24, 2:41 PM

Once you enter the SSID which is ur network name and then password, click that configure button to save the changes thrn try to connect to the new network

ZZacckOsiemo Nice plan, where are you currently having issues?

Gigih•10/21/24, 3:06 PM

I don't really know how to program what I want to do, I needed someone to help me program

GGigih I don't really know how to program what I want to do, I needed someone to help m...

ZacckOsiemo•10/21/24, 3:10 PM

Ah I see, I doubt you will find someone to help with that,
However if you are learning how to program and are stuck let us know we may be able to help.

ZZacckOsiemo Ah I see, I doubt you will find someone to help with that, However if you are le...

Gigih•10/21/24, 3:13 PM

Yes, I'm in the process, but I only know the basics, but I appreciate your attention

Abdullah•10/21/24, 3:15 PM

Thnx for help

Abdullah•10/21/24, 3:56 PM

I don't know how to flash arduino uno r4 wifi can someone help me?

Abdullah•10/21/24, 4:05 PM

I don't know how to do step 4

ZacckOsiemo•10/22/24, 9:03 AM

@32bitSaviour @Ming Is yocto just westwestbut for embedded linux. As in does this just help me keep a handle on my builds rather than a million scripts?

ZZacckOsiemo @32bitSaviour @Ming Is yocto just `west`but for embedded linux. As in does this...

Ming•10/22/24, 9:04 AM

In essence - yes.
You still have a million scripts, they are just packaged nicely and called The Yocto Project!

MMing In essence - yes. You still have a million scripts, they are just packaged nice...

ZacckOsiemo•10/22/24, 9:07 AM

Aha that's insane that embedded linux is that huge, that the build tool is a project, as opposed to being shipped with a project.

ZZacckOsiemo Aha that's insane that embedded linux is that huge, that the build tool is a pro...

Ming•10/22/24, 9:10 AM

Embedded Linux is that huge. A typical distribution contains thousands of files - but then a Linux system is meant to be for more heavyweight tasks.

Ming•10/22/24, 9:11 AM

If I wanted ‘small’ then I would go hand-rolled or just use something like zephyr.

ZZacckOsiemo @32bitSaviour @Ming Is yocto just `west`but for embedded linux. As in does this...

Marvin•10/22/24, 9:11 AM

I think so. It is just scale that differs.

MMing If I wanted ‘small’ then I would go hand-rolled or just use something like zephy...

ZacckOsiemo•10/22/24, 9:11 AM

well you want a good build tool rather than a small one

MMarvin I think so. It is just scale that differs.

ZacckOsiemo•10/22/24, 9:12 AM

what is the scale difference would you say, I'm still looking at things very baremetalbaremetal

Marvin•10/22/24, 9:17 AM

I mean scale in terms of features, entirely based off, what each of them offers - yocto would be just more complex.
For example, I think it would take a lot to have layering in zephyr but is it even needed.
And look at the learning curve on yocto.

MMarvin I mean scale in terms of features, entirely based off, what each of them offers ...

ZacckOsiemo•10/22/24, 9:25 AM

I know this has been explained before, but can you explain layeringlayering to a layman?

ZZacckOsiemo I know this has been explained before, but can you explain `layering` to a layma...

Ming•10/22/24, 9:56 AM

Layering is simply having groups of related build instructions bundled in a 'layer'. You can then stack those layers on top of each other, e.g:

___________________________
| Application Build Stuff |
---------------------------
| System Build Stuff      |
---------------------------
| Board Booting Stuff     |
---------------------------

___________________________
| Application Build Stuff |
---------------------------
| System Build Stuff      |
---------------------------
| Board Booting Stuff     |
---------------------------

You can then build up your final system by adding in layers that contain the useful stuff you need (and therefore also don't include the layers of non-useful stuff you don't need)

This allows for complex systems to be almost pieced together in a way that is manageable.

ZZacckOsiemo what is the scale difference would you say, I'm still looking at things very `ba...

Ming•10/22/24, 10:05 AM

The scale is not clear cut.
For 'simple things' where for example you are 'just' reading sensor data and then either acting upon it to control something or pass that data upstream, a full blown Linux type system would probably be an overkill.
While I don't know RTOS's that well, but for more complex systems, where you may want to have task isolation (in Linux every task is isolated from each other, so that an issue in user-space with one task should not affect any other tasks) or if you just need more computational power, then Linux makes it easier, as the OS handles a lot of it for you.
The other things would be familiarity with the system (I'm always going to be biased towards Linux, as I 'think' in Linux and can see the solution faster in Linux) or if an essential library is only available for one particular OS.

ZZacckOsiemo I know this has been explained before, but can you explain `layering` to a layma...

Marvin•10/22/24, 10:05 AM

When you are building your bike each layer is a like a specific group of things that serve a distinct purpose (grouping things into a function), so a layer could be the engine or custom seats. All the layers stack up and you have your bike. Building from layering allows you to build (and easily modify) your bike. Swapping the engine would be as simple as replacing or modifying the engine layer. This modular system gives you flexibility to create what you need while making it easy to modify without complexity.

MMing _Layering_ is simply having groups of related build instructions bundled in a 'l...

ZacckOsiemo•10/22/24, 10:12 AM

so in this kind of world you don't need to rebuild layers that have not changed. I.e my OS and Drivers havent changed but my application has changed so just use a cache for the former 2 and re build my application.

MMarvin When you are building your bike each layer is a like a specific group of things ...

ZacckOsiemo•10/22/24, 10:14 AM

Almost like releases in elixir, but that's a bundle as opposed to a build system.

ZZacckOsiemo so in this kind of world you don't need to rebuild layers that have not changed...

Ming•10/22/24, 10:15 AM

In a Yocto Project - the caching actually happens at the recipe level. It is more like a makemake system - it only rebuilds the package if the recipe has changed.

Ming•10/22/24, 10:18 AM

For layers - think of them more as bundles of functionality.
I have a great CLI system and I now want to add a GUI. All I need to do is add a Graphical layer, say XFCE and I can then select which recipes from that layer I actually want to use in my project.
Or, I have a great system from a RaspberryPi but now I want to build it for an ODroid. All I need to do is swap my RaspberryPi layer for the ODroid layer - keeping all the other layers in place.

MMing In a Yocto Project - the caching actually happens at the recipe level. It is mor...

ZacckOsiemo•10/22/24, 10:20 AM

Miiiing, what in the world is a recipe. Is this like a list of dependecies and their versions?

Ming•10/22/24, 10:22 AM

A Recipe is the instructions in a Yocto Project for the how tos:

How to download the source
How to configure the source
How to compile the code
How to install the resulting files into the final image
The collection of files that actually end up in the final image are then a packagepackage.

MMing A Recipe is the instructions in a Yocto Project for the how tos: - How to downlo...

ZacckOsiemo•10/22/24, 10:23 AM

Man I'm sorry this is becoming russian dolls. Is a package an executable then. Is this what a .deb is?

Ming•10/22/24, 10:27 AM

It is russian dolls!
A .deb.deb (or .rpm.rpm or .ipk.ipk)package is an installable collection of executables. The recipe in Yocto is the thing that builds that package.

For a .deb.deb or .ipk.ipk it is literally a tar file containing the files to be installed along with some pre and post installation scripts.

MMing It is russian dolls! A `.deb` (or `.rpm` or `.ipk`)package is an installable c...

ZacckOsiemo•10/22/24, 10:29 AM

I have more questions, I will read first and maybe bring them. Thank you both for this awesome TIL

nour_oud•10/22/24, 12:40 PM

The Upcoming Event :
:verifyanimated: Sign up for event reminders:
https://discord.gg/J3qdZNg9?event=1298219889416212531

Abdullah•10/22/24, 3:26 PM

I have firmware bin file how can i upload to arduino ?

AAbdullah I have firmware bin file how can i upload to arduino ?

wafa_ath•10/22/24, 5:22 PM

Is your .bin file for an ESP32?

Wwafa_ath Is your .bin file for an ESP32?

Abdullah•10/22/24, 5:26 PM

The file names BlynkNCP_uno_r4_wifi.flash.bin

https://docs.arduino.cc/tutorials/uno-r4-wifi/esp32-upload/#hardware--software-needed

https://github.com/Blynk-Technologies/Blynk-NCP-Driver/issues/7

Here they explain it but I don't know python nor platformIO can you help me please

GitHub

arduino uno r4 wifi support · Issue #7 · Blynk-Technologies/Blynk-N...

pio run -e rp2040connect -t upload_ncp UnknownEnvNamesError: Unknown environment names 'rp2040connect'. Valid names are 'uno_r4_wifi' Is the error due to uno r4 wifi not being fully...

AAbdullah The file names BlynkNCP_uno_r4_wifi.flash.bin https://docs.arduino.cc/tutorials...

Umesh Lokhande•10/22/24, 5:52 PM

Once you login to your Blynk dashboard (web version). Please check in the left pane where you'll find Developer ZoneDeveloper Zone -> Blynk.Air (OTA)Blynk.Air (OTA) menu and then everything else is straight forward. Here is step-by-step guide https://docs.blynk.io/en/blynk.edgent/updating-devices-firmwares-ota

Follow Section: 3 of above article

wafa_ath•10/22/24, 8:10 PM

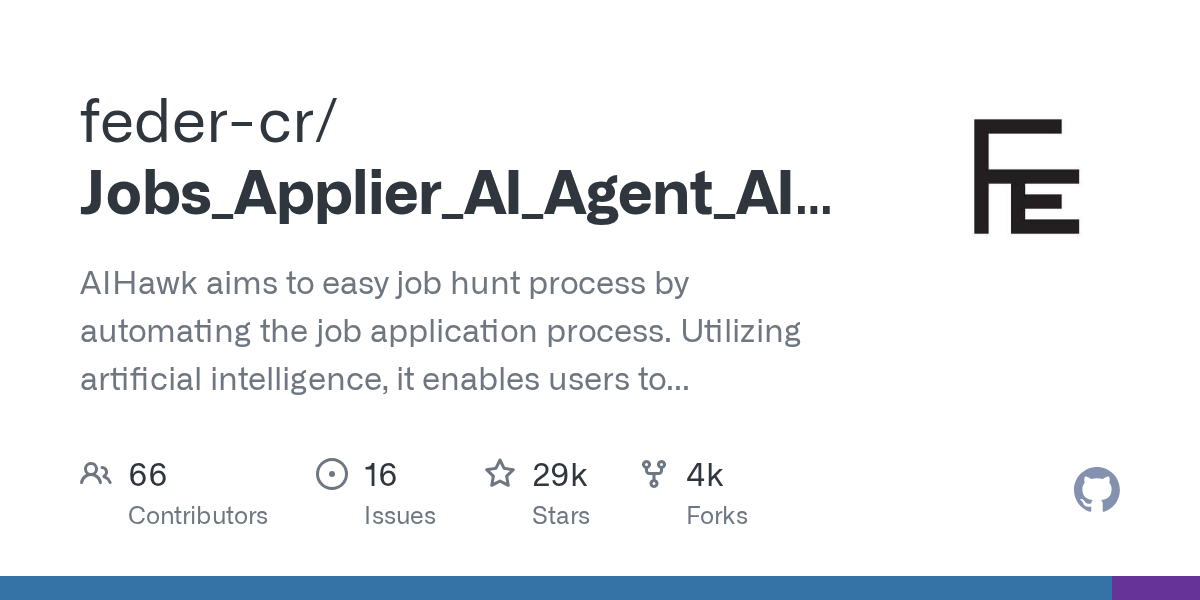

Hi, I found this interesting project in github called "Auto Jobs Applier AI Hawk" It automates the job application process using AI, making it easier to apply to multiple jobs with less manual effort. It can help you streamline your job search and save a lot of time.

https://github.com/feder-cr/Auto_Jobs_Applier_AIHawk?tab=readme-ov-file

If you’re actively looking for jobs or just want to speed up the application process, i think you should give it a try

GitHub

GitHub - feder-cr/Auto_Jobs_Applier_AIHawk: Auto_Jobs_Applier_AIHaw...

Auto_Jobs_Applier_AIHawk is a tool that automates the jobs application process. Utilizing artificial intelligence, it enables users to apply for multiple job offers in an automated and personalize...
