On the board itself. Measured between the 4pin connector and mcu pin
On the board itself. Measured between the 4pin connector and mcu pin

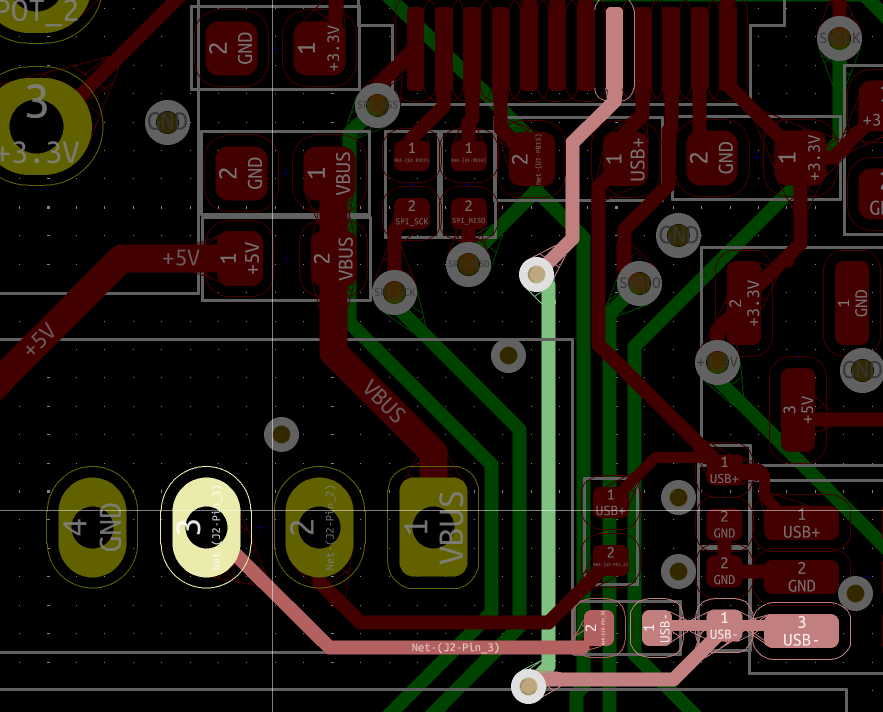

WHere's the layout, you can check it:
W
DThat first resistor seems faulty? It sometimes reads 40 ohms, but when measuring to the chip pad, it doesn’t read anything? Whats the nominal value of it? I have full series on 0603 resitors here at home so i could try to replace that
Wit's 22ohms
Hmm, Maybe bad solder, I think you can try to remelt both pads
Hmm, Maybe bad solder, I think you can try to remelt both pads
WAnyhow it can be shorted, it's not critical
DI will change it, not a biggie. Yeah it should be just fine if it is simple short. After all, it almost boots up. But i wonder why the led doesn’t stay on after the beep?

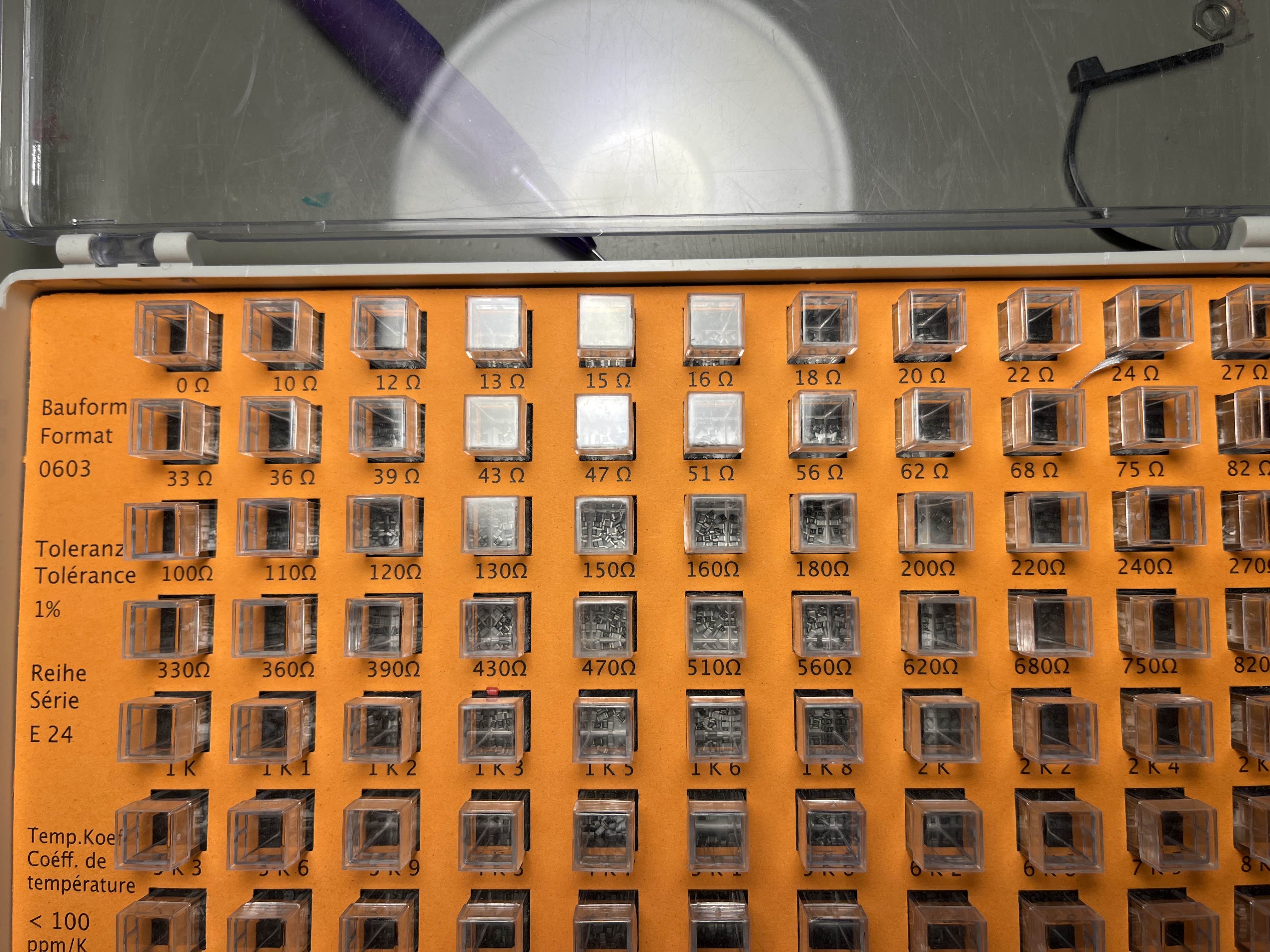

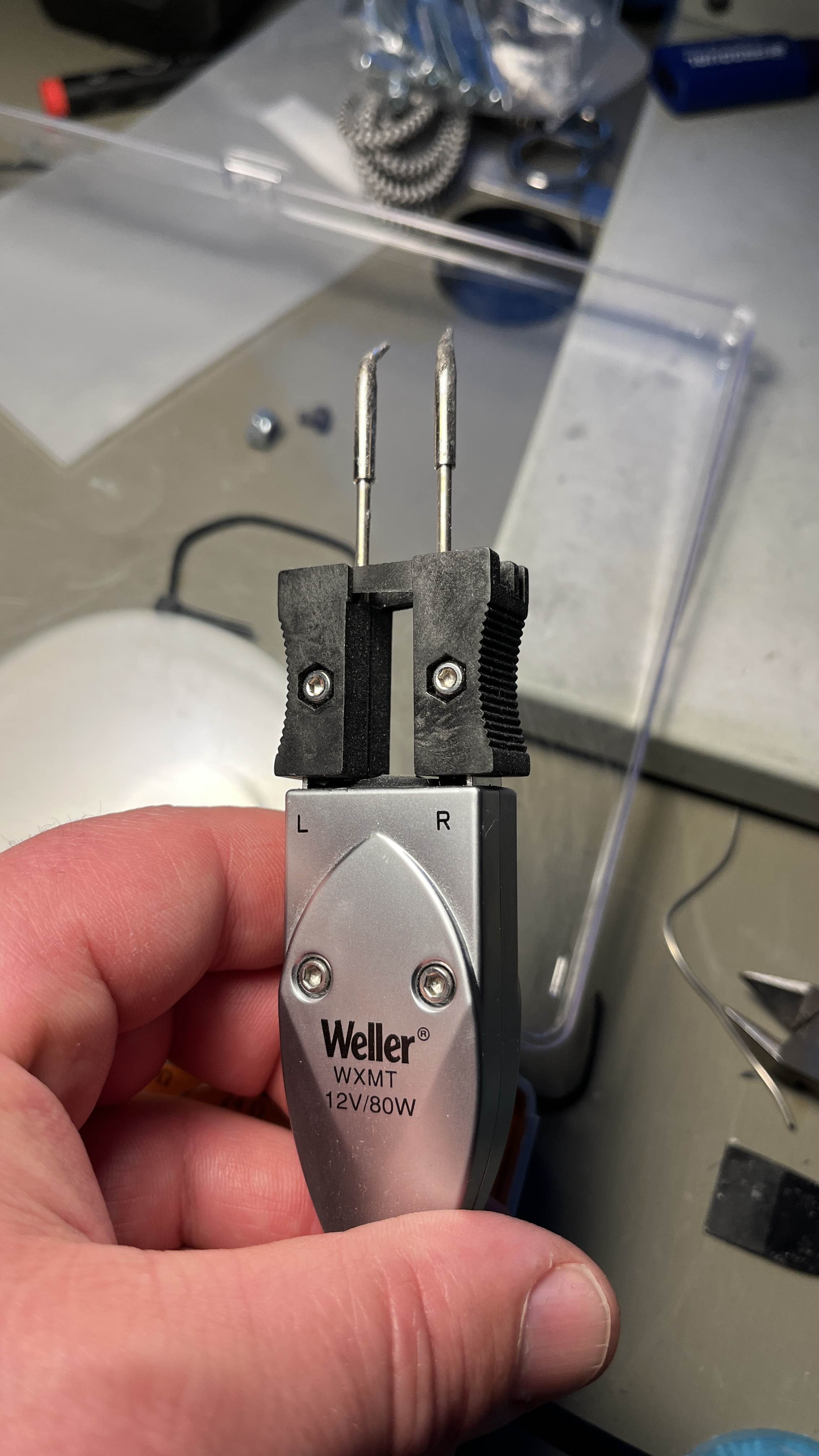

DQuite easy with these.
WThe LED indicates USB status, therefore it shuts off when no USB link is present
WDid it happen with previous firmware?
NYes but not so often.
NCould it be any problem with the board?
Hcan anyone point out to me where one could find some mounting options and some aftermarket parts for the rhino? Ive got a next level racing flight seat pro and looking for a way to mount this to my pit without having to fabricate much
Hor is it more feasible to just post this thing onto the floor?
Dwhen touched the resistor with soldering iron, the resistor physically broke in 2 pieces. Cleaned the pads, soldered new 0402 22R resistor, cleaned the excess flux, and voilá! It's Alive!!!
DThanks for the support!
Sdefect boards seem pretty rare but it's good someone like you got it
DYou can check on the vpforce site otherwise you have some mounting option by Monstertech (or similar)
DOn the floor it's ok but it "must" be fixed (wooden board or similar)
DSomehow I don’t always feel lucky in these cases, but the end result is that matters. Now I just have to put it all together (again)

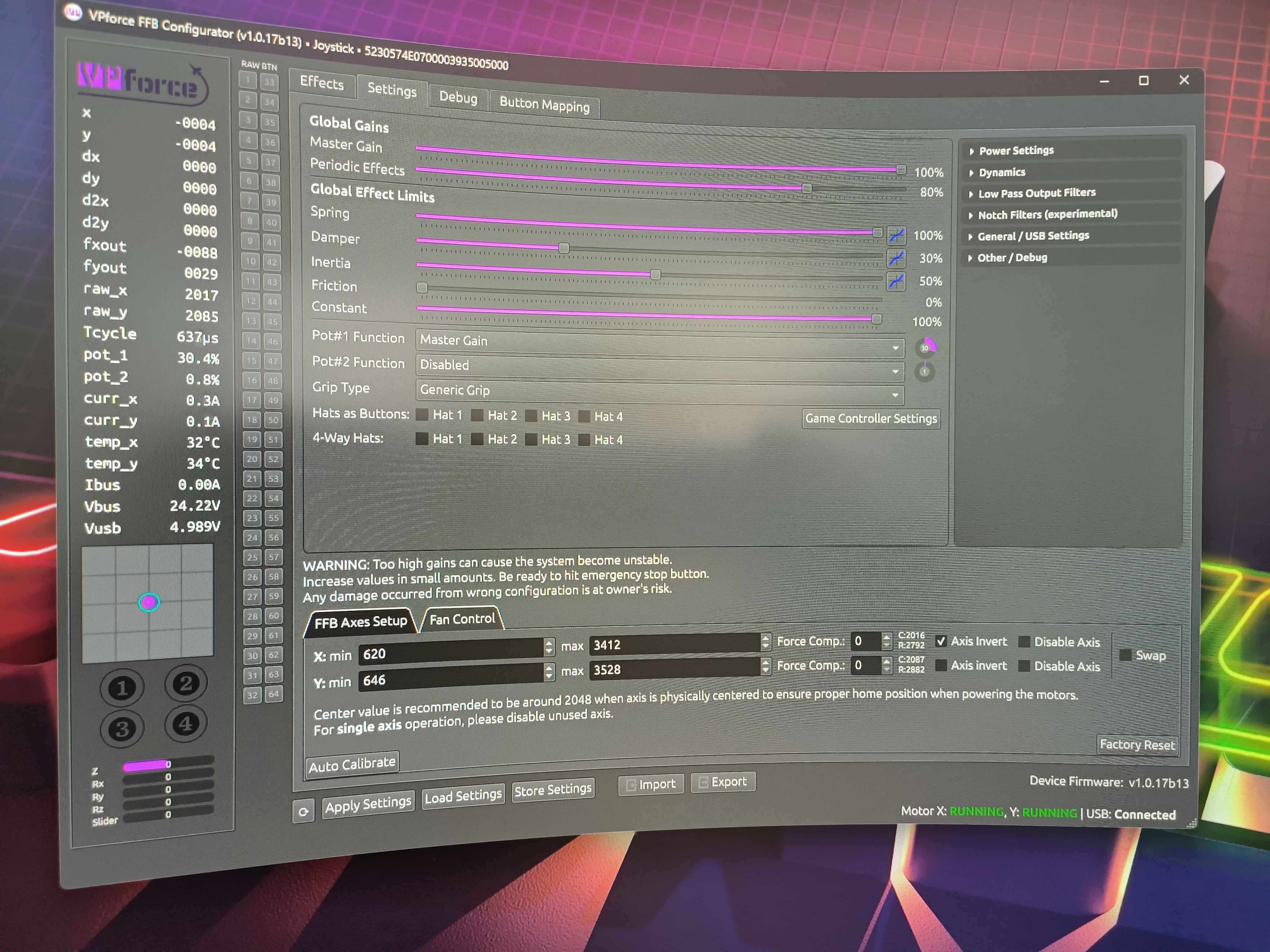

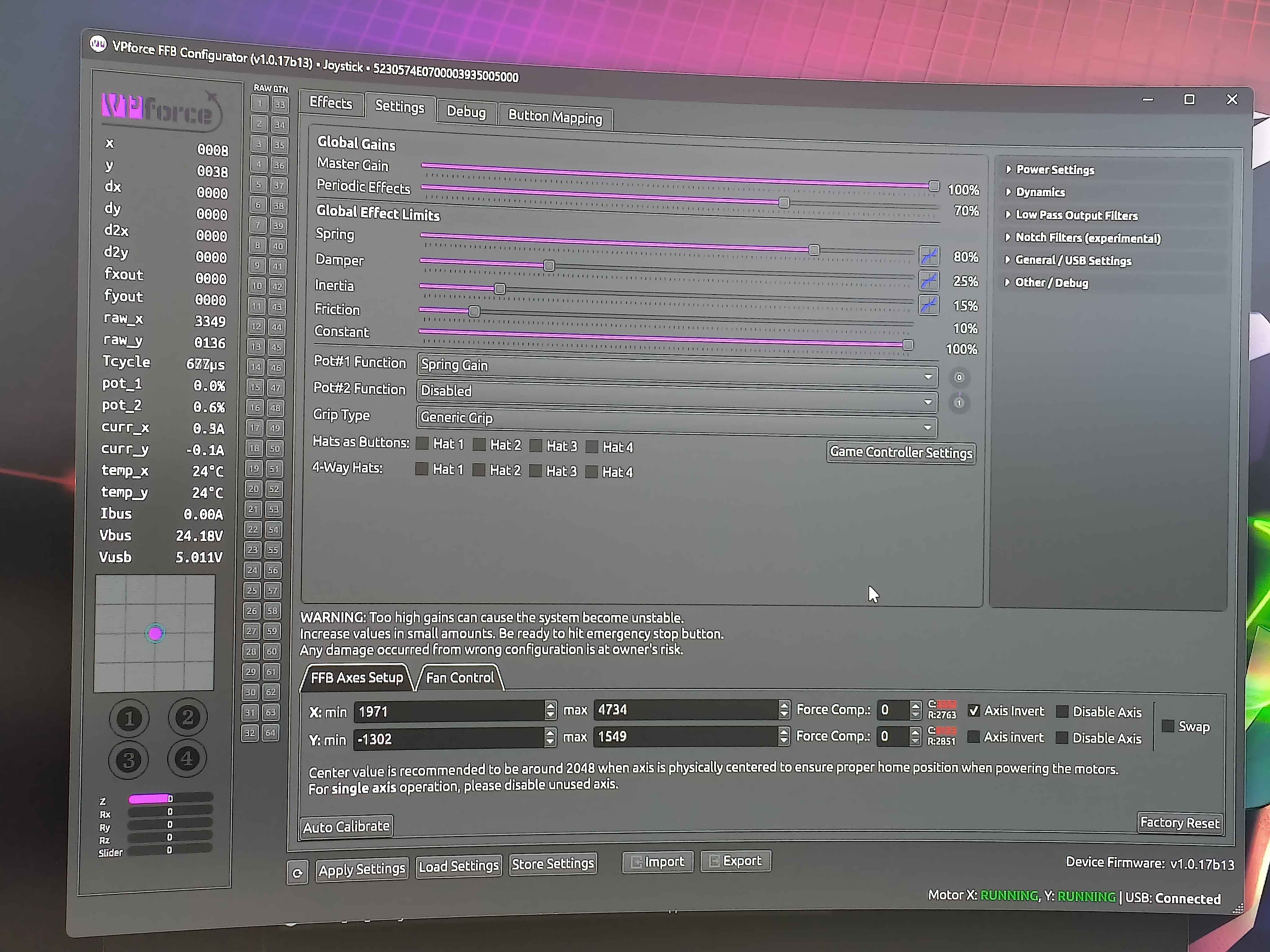

WCan someone tell me this is correct for the VPforce configuration part, because I'm having a little trouble, and it's to use the Vpforce rhino for dcs?
W
TPot 1 is set to change spring gain and is at 0% so you will feel no spring.
TIncrease pot 1 or disable it in the drop down.
RI keep my spring gain at 100% all the time and don’t adjust it. I’ve got my pot set the spring has anyone changed the pot to damper and use it to fine-tune that effect if they keep their spring 100% all the time like I do
TI don’t touch the pots too much, but I do keep one on the periodic effects so if I have something like a stuck down landing gear I can turn the effect down if it gets annoying.
Wit's good I managed to correct the centering values, tell me if this is good now for the first configuration step
W
RHi, we are using Rhino Input Loopback (1.0.17b13) to read an axis from a BU0836 axis (for hardware trim). When the application starts, it doesn't seem to read the input Axis until the dropdown is used to select another axis, then reselect axis 0 again. Then the value is then correctly read. Any ideas? Thanks!
TInertia might be a little high but depends on if it is causing instability. If you have any issue you could try turning that down. To feel effects out of sim, need to turn on effects in the effects tab, you may have done that already but not sure since you hadn’t sent a pic of that tab.

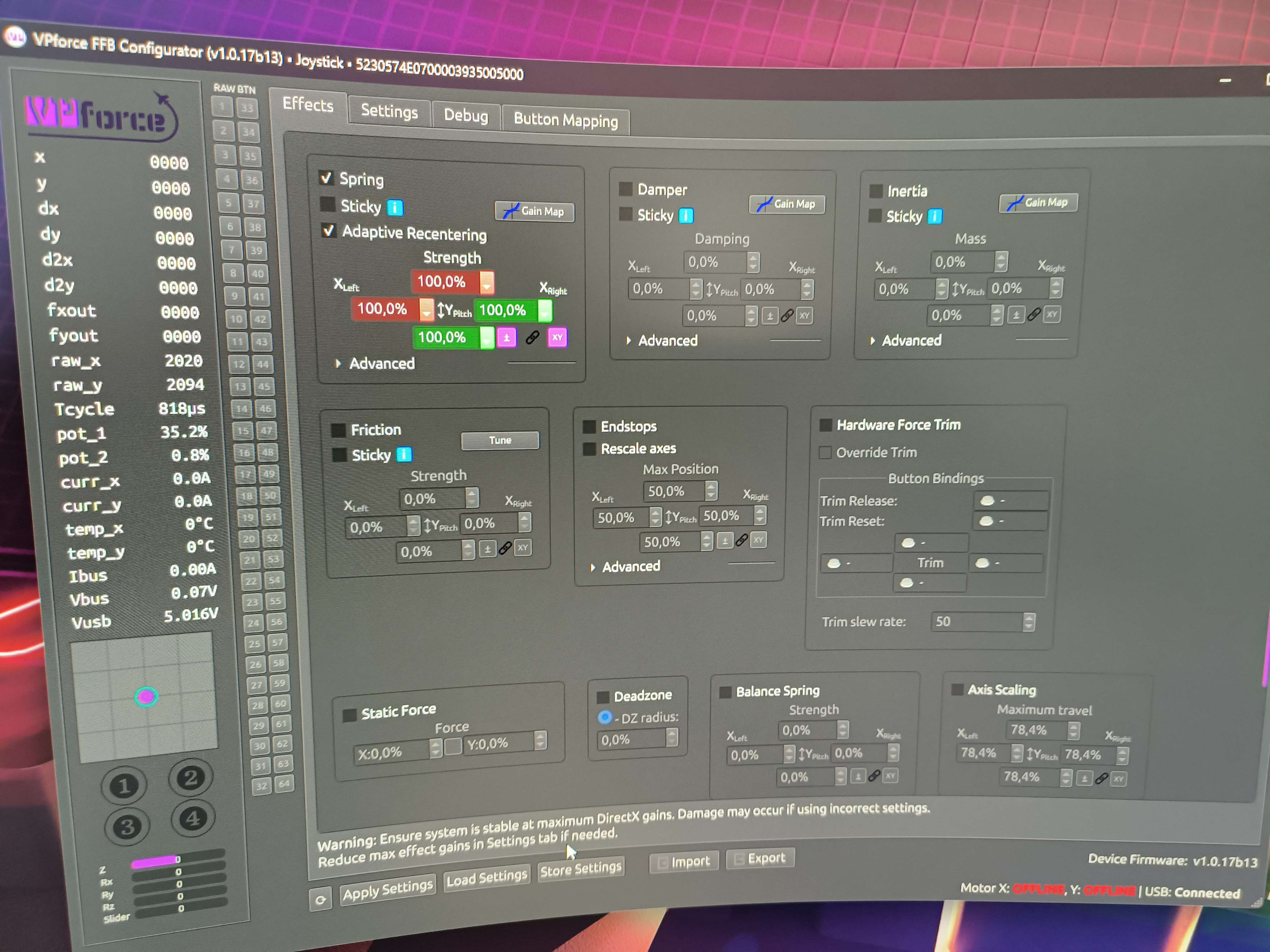

WI only have this for now
W

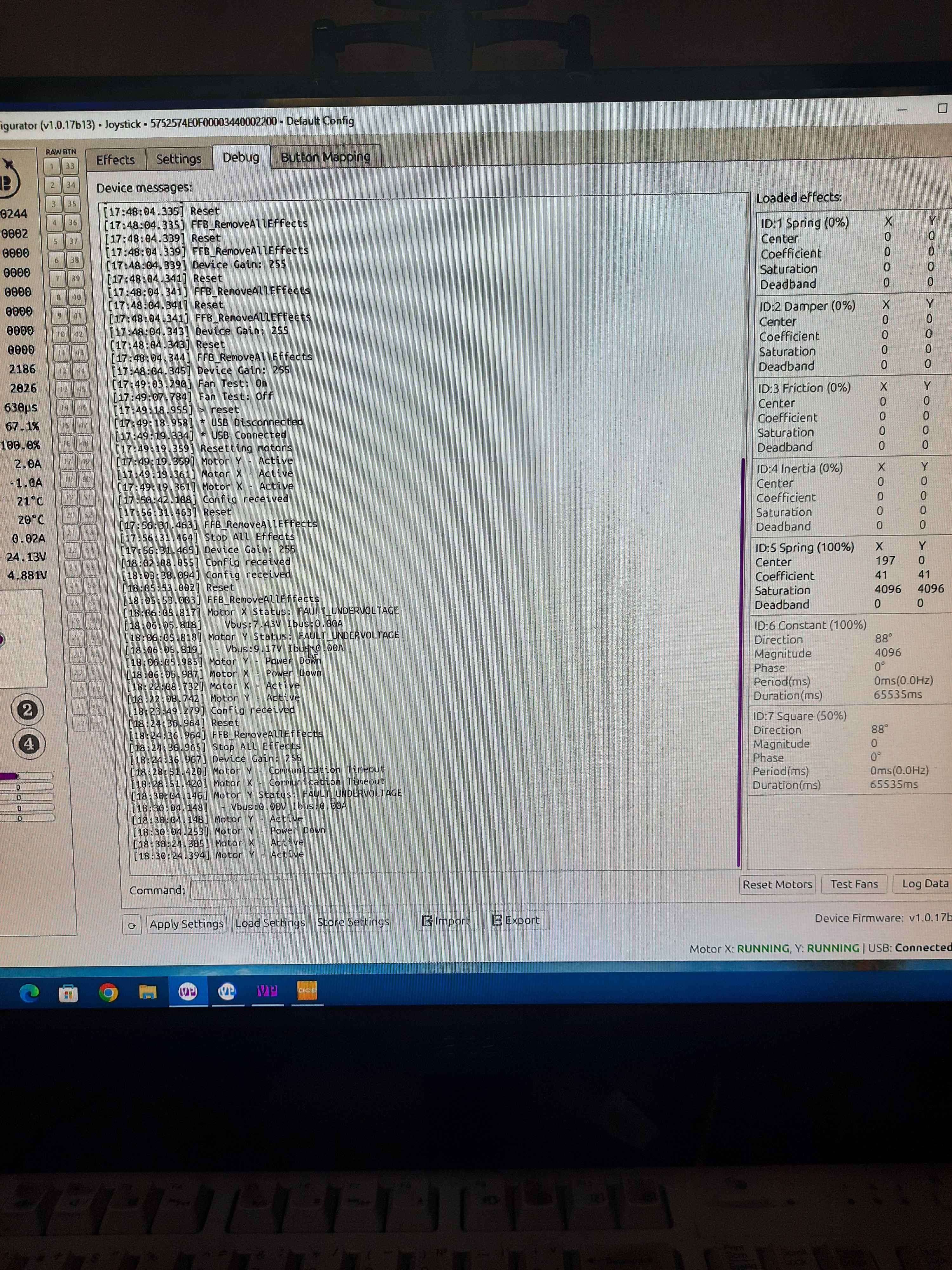

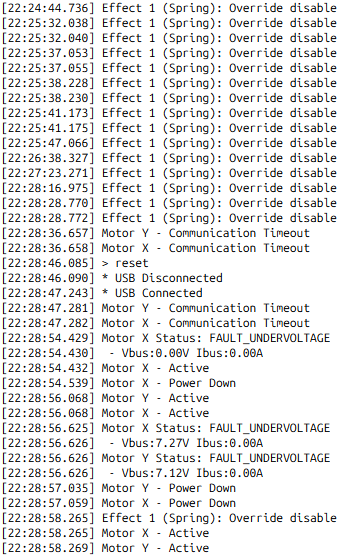

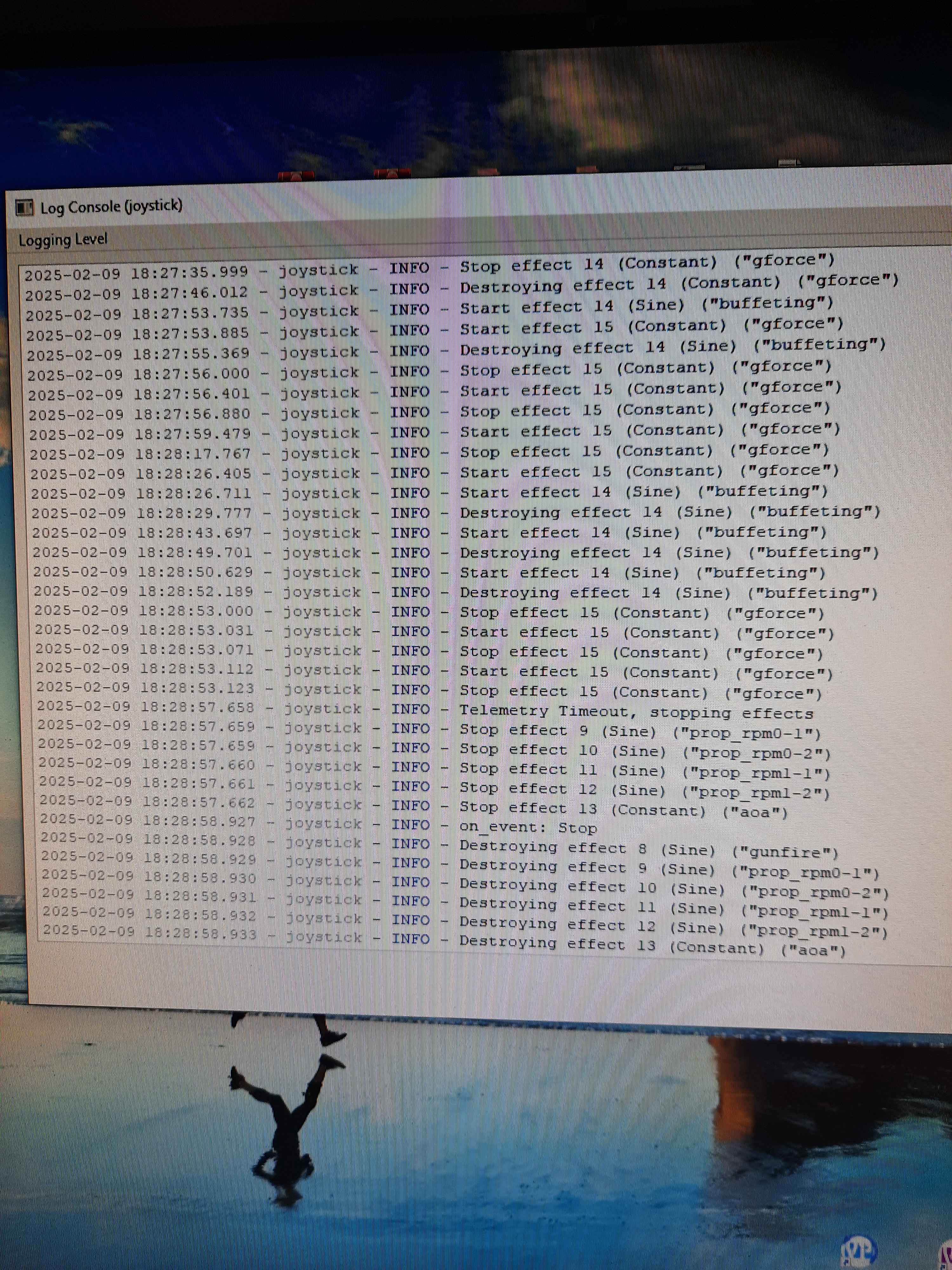

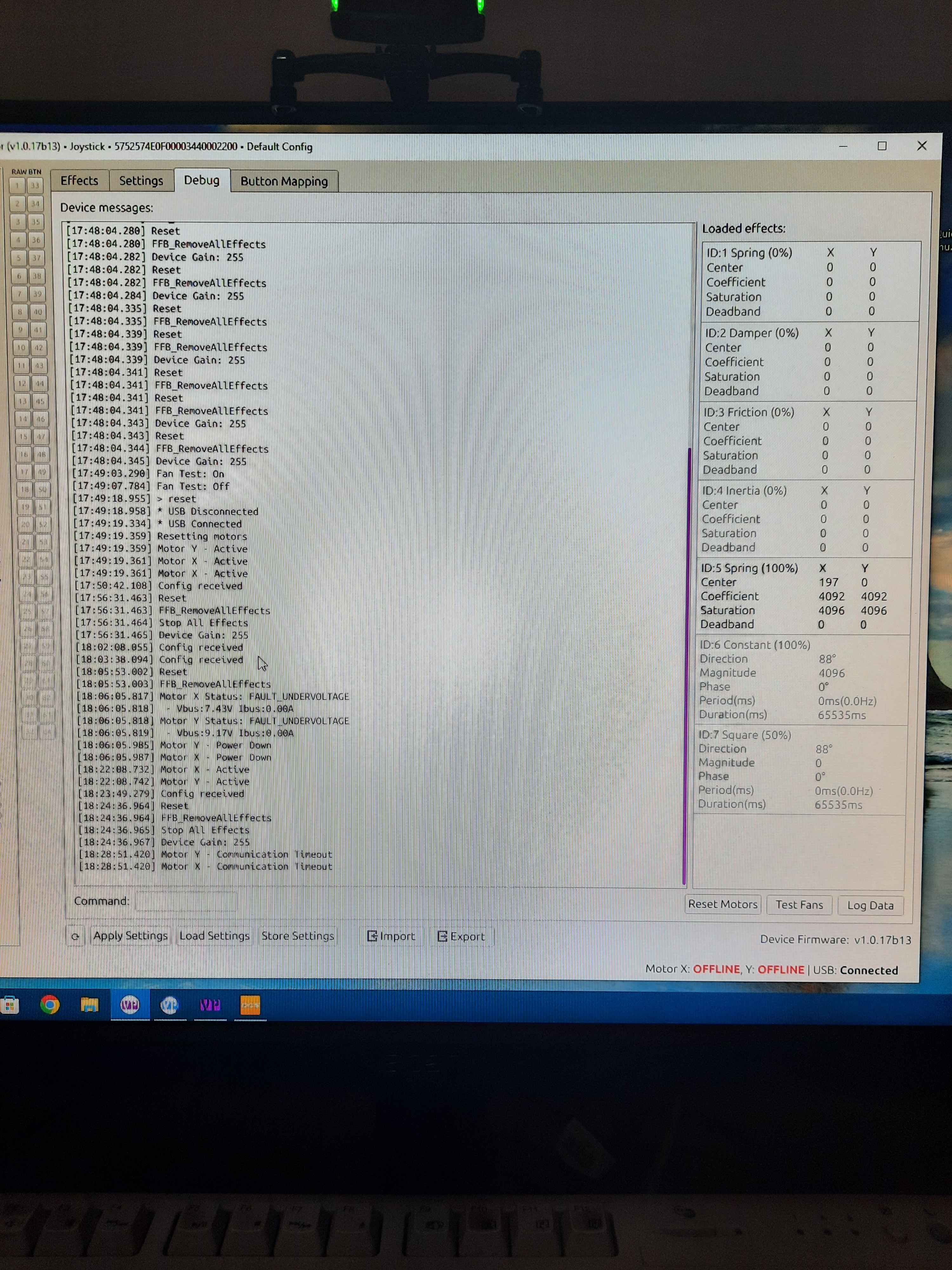

NAgain, at 18:51:420- motor x and y Communication Timeout. After that I switched off and on the power and motors came active , at the same time telem log showed the effects are OK. In the game(dcs) I had no control of the joystik.
N

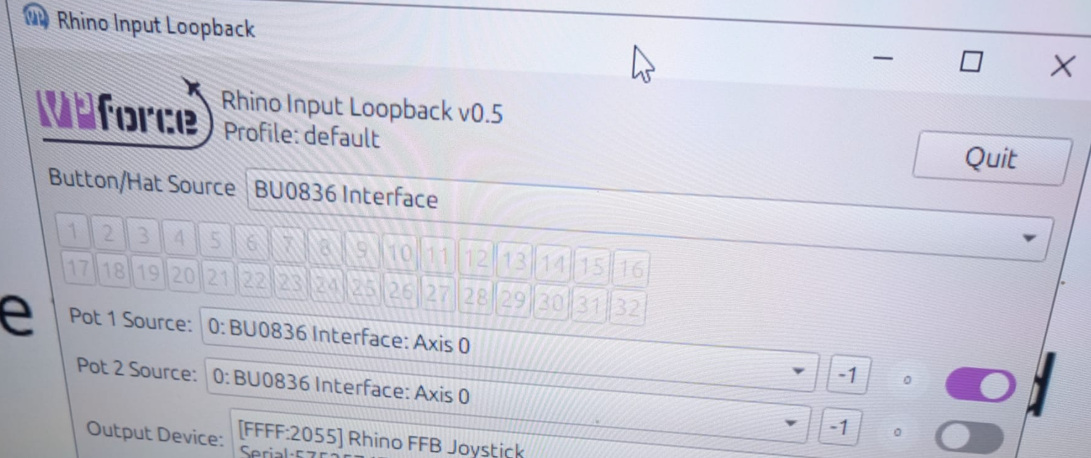

PSo I am using someone elses profile as a baseline and have adjusted it for my VKB stick. I notice the loopback tool keeps resettings its input device to be the rhino as the HAT source when I restart it. I think this may explain the issue I am having with trim. How can I make that button/hat source in loopback a permanent change?
PI can see Loopback tool is referencing a "default" profile but I am not sure where that is or how to change it
Pnm just saw this is fixed in latest firmware
TLooks good.
P@walmis Actually I am still having this issue. When I updated to the latest configurator software its still not saving my loopback device choice
Wso now to be able to use my rhino on dcs, I have to install telefemFFB, is that right?
TIt is not required but adds some effects.
W@TheAmazinGreat Okay, I thought it was mandatory, so I just have to launch DCS and make the assignment settings in the DCS parameters and that's it?
TYes, be sure to check out the manual for info on TelemFFB installation.
F1000 points awarded for use of "snip"
RHey I have a problem. On FW update page https://vpforcecontrols.com/usb/rhino my chrome is seeing rino (controls are working and stuff and I can pick joystick in popup window) but when I click Update Firmware seems joystick is switching to BL mode (controler board start to flash) and no compatible device is shown in popup window. Seems my browser is not able to detect joystick while it is in BT mode. I do not remember: is it required to click something on controler board in order to flash FW? Shoult it be automatic process? Any clue why Chrome does not see joystick while swithing to bootloader mode?
RI will try aswell. Have disconnections like 3 times and hour currently. Is this command reset different from "Reset Motors" button?
RUpdating firmware to B13 now + configurator
RQuick reply with reset command. It did not put the motors back "running" after the shutdown bug. But hitting the emergency stop on and off helped as usual.
CIs there a way to increase spring effect in MSFS? Everything is
in DCS, but in MSFS, the dynamic spring is barely enough to keep the stick from flopping over under 300kts
in DCS, but in MSFS, the dynamic spring is barely enough to keep the stick from flopping over under 300kts
MHi Walmis…..I just received another SR I ordered 3 weeks ago for another project and tested it out……works perfectly. Therefore the SR I ordered last Sep and tried it for first time a few days ago confirms it is indeed U/S. I will now send you the online form for warranty replacement……thank you.
BTW the form does not specifically have a warranty section……I had to select a payment and the SR with a remark that it is a warranty replacement…….i hope that will make sense when you receive it???
BTW the form does not specifically have a warranty section……I had to select a payment and the SR with a remark that it is a warranty replacement…….i hope that will make sense when you receive it???
WYeah, just mention it in the remarks, we'll know
