Hi Walmis…..I just received another SR I ordered 3 weeks ago for another project and tested it out……

Hi Walmis…..I just received another SR I ordered 3 weeks ago for another project and tested it out……works perfectly. Therefore the SR I ordered last Sep and tried it for first time a few days ago confirms it is indeed U/S. I will now send you the online form for warranty replacement……thank you.

BTW the form does not specifically have a warranty section……I had to select a payment and the SR with a remark that it is a warranty replacement…….i hope that will make sense when you receive it???

MMike T Hi Walmis…..I just received another SR I ordered 3 weeks ago for another project...

walmis•2/10/25, 6:39 AM

Yeah, just mention it in the remarks, we'll know

Mike TOP•2/10/25, 7:05 AM

Thanks Walmis……@walmis. I meant to ask what would you like me to do with the defective SR?

Shamansky•2/10/25, 5:38 PM

is your Configurator loading settings upon app launch? I need to manually press Load Settings.

SShamansky is your Configurator loading settings upon app launch? I need to manually press ...

Blackrat•2/10/25, 6:53 PM

Are you storing the settings after load? Storing will write it to the board.

SR-F Bob•2/10/25, 11:08 PM

I use my rhino with a alpha prime grip. Had no prob. Now suddenly the grip generates spikes. So buttons and ministick generate short inputs without any movement fysically. I can not use it in the apache anymore cause when I use the ministick for aiming it jumps of target randomly. I checked with another alpha prime. Same result. When I connect the warbird grip which has no ministick I see two buttons also light up without fysical movement. When I try the alpha grips on my warbird base I get no problems. So I think the vpforce rhino is broken. I tryed earlier software but I get the input spikes ( don’t know the right word I am not English). I wonder what to do. I would by another grip in an instant but I am afraid it’s the rhino. I have tm tpr rudders converted to ffb on vpforce motor. Works fine. Really puzzled what to do. Left it in shambles today cause tired and late and disappointed. Hope for some help and will get on it after work tomorrow maybe I need to replace some computerboard ar so. Try reinstalling all tomorrow. Quite some work. Thx .

SSR-F Bob I use my rhino with a alpha prime grip. Had no prob. Now suddenly the grip gener...

TheDude9974•2/10/25, 11:56 PM

@walmis I have exactly the same issue with the VPC Alpha Prime after updating to firmware v1.0.17b13

Number481•2/11/25, 12:04 AM

@SR-F Bob @TheDude9974 - Alpha Prime users can revert to b12 firmware here: https://vpforcecontrols.com/usb/rhino/#force=ffb-rhino_v1.0.17b12.bin

Walmis is working on addressing the ghosting related to the LED enhancement in b13.

NNumber481 @SR-F Bob @TheDude9974 - Alpha Prime users can revert to b12 firmware here: ht...

TheDude9974•2/11/25, 12:05 AM

Thank you, mate

Reed•2/11/25, 2:00 AM

i have alpha prime with ministick but dont see this. i do have large deadones though for it.

NIKO_BG•2/11/25, 7:15 AM

The problem with the rhino ffb communication timeout continues. I reduse the max ups amps to 6.5 , but the problem exist. Maybe have to try another psu, I use now meanwell 350/24

NNIKO_BG The problem with the rhino ffb communication timeout continues. I reduse the ma...

kaltokri•2/11/25, 7:40 AM

I would bet that the problem is gone with the Meanwell 350/24. I haven't had any problems since I started using it.

NIKO_BG•2/11/25, 7:44 AM

Or maybe I have to update to previous firmware?

NIKO_BG•2/11/25, 7:44 AM

And see what gonna happen

NIKO_BG•2/11/25, 7:46 AM

It is strange , I have no problem for 40min or 1 hour, and suddenly communication is off

walmis•2/11/25, 9:32 AM

Yeah, I'm investigating this particular issue, there are few instances of communications timeout occurring for a few users, but I've not been able to replicate it in the lab, so it's difficult to debug.

NIKO_BG•2/11/25, 9:49 AM

NIKO_BG•2/11/25, 9:53 AM

Thank you @walmis . On the other hand the experience with all the ffb effects are outstanding, I can't go back to spring loaded base.....never!

RRapid2214 Hi, we are using Rhino Input Loopback (1.0.17b13) to read an axis from a BU0836 ...

Rapid2214•2/11/25, 10:29 AM

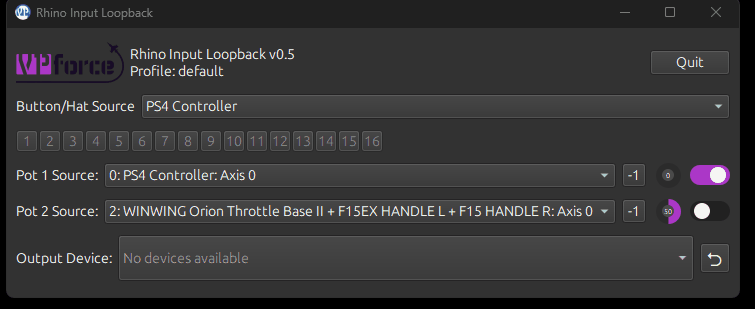

I've reproduced this issue with Rhino Loopback on my desktop (not the sim), it seems to only happen with some input devices. Note how when the application is first launched it reads 0 for previously selected axis input and needs reselecting in the drop down to read the current value. Notably, this doesn't affect all input devices (reproduced so far with a BU0836 + PS4 controller axis - Winwing axis all work as expected).

RRapid2214 I've reproduced this issue with Rhino Loopback on my desktop (not the sim), it s...

walmis•2/11/25, 11:25 AM

Thanks will look into this

mork•2/11/25, 5:01 PM

Is there a way to add custom grip types? I have a NS-37 grip that doesn't play well with any of the preset grips.

Mmork Is there a way to add custom grip types? I have a NS-37 grip that doesn't play w...

walmis•2/11/25, 5:58 PM

I'll gladly add it - could you map out the hats like in this table (you can copy it): https://docs.google.com/spreadsheets/d/1jyj5VUKgx8KYb_0rTCk0_NimaHjZFaoxHQcyMFH52UI/edit?gid=0#gid=0
Use Generic grip profile.
Does this grip have analog axis ?

Google Docs

T50Hats

VPS_Choki•2/11/25, 6:06 PM

hello guys so flying the f-5 i find on the pitch its very sensitive and i cannot pu curve as its a known issue but i wanted to ask if maybe there is a way to have more force directly from the middle zone? im pretty new to the configurattor etc

VPS_Choki•2/11/25, 6:13 PM

i just want it to be more stronger in the middle and then move from there normally

VVPS_Choki hello guys so flying the f-5 i find on the pitch its very sensitive and i cannot...

smitty•2/11/25, 6:29 PM

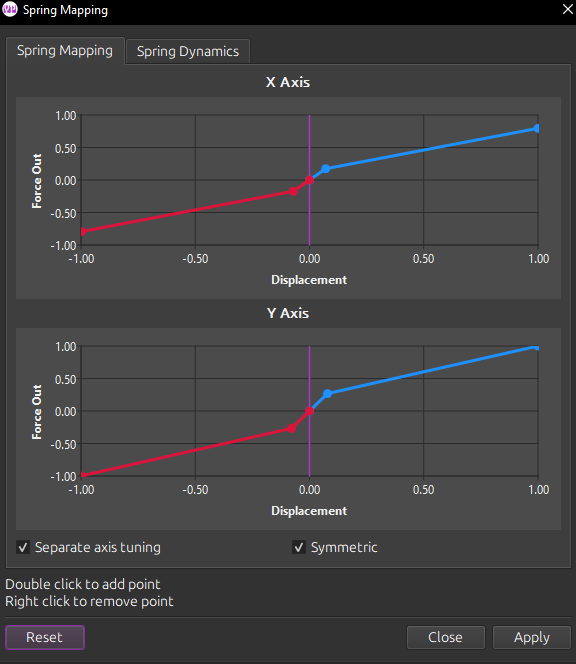

put some steeper points in the gain map

VPS_Choki•2/11/25, 6:31 PM

ill try that thx

Wwalmis I'll gladly add it - could you map out the hats like in this table (you can copy...

mork•2/11/25, 6:35 PM

Hi Walmis. Thanks for the quick response!

I've copied the template and updated it for the NS-37 grip. You should have permission to view and edit. Let me know if there's any other info you'd like me to provide.
https://docs.google.com/spreadsheets/d/1fdNOSp6Hf8tnMT04S3-_ZkTbAwHGWQwifitOt1RJGBo/edit?usp=sharing

Yes, it does have a Z-twist axis.

Google Docs

NS37Hats

NNumber481 @SR-F Bob @TheDude9974 - Alpha Prime users can revert to b12 firmware here: ht...

SR-F Bob•2/11/25, 7:03 PM

I do not see b12. Maybe 1.0.17b2 but no 12. Finder doesn’t see it either. And installing b2 does not help anymore. Now I am 57 and no computerwizz. I just believe in this ffb concept. It’s just harder for people like me to sorry.

SR-F Bob•2/11/25, 7:04 PM

SR-F Bob•2/11/25, 7:05 PM

76099352155__E5DF4624-75FA-42C8-9BF3-FA712B128716.mov

SR-F Bob•2/11/25, 7:06 PM

Twitching is all of these

SSR-F Bob I do not see b12. Maybe 1.0.17b2 but no 12. Finder doesn’t see it either. And in...

Number481•2/11/25, 7:12 PM

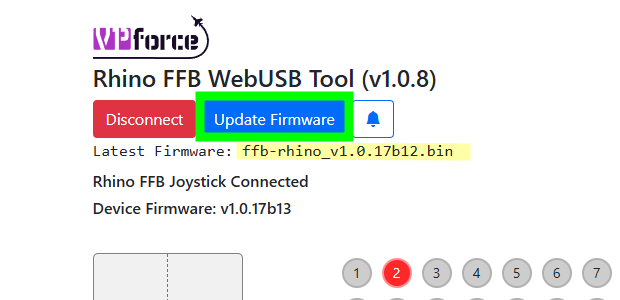

just update as per normal once you hit that link... it will load the b12 firmware back onto your rhino...

SR-F Bob•2/11/25, 7:19 PM

Wilco. Guess I shouldn’t forget the pedals…they ll have to be on the same. Thx

SR-F Bob•2/11/25, 8:03 PM

thx, but still probs. dont worry, will look at it tomorrow. thx for the help.

Bob Bushman•2/11/25, 8:10 PM

Would need an old configurator as well I'd imagine.

NIKO_BG•2/11/25, 8:31 PM

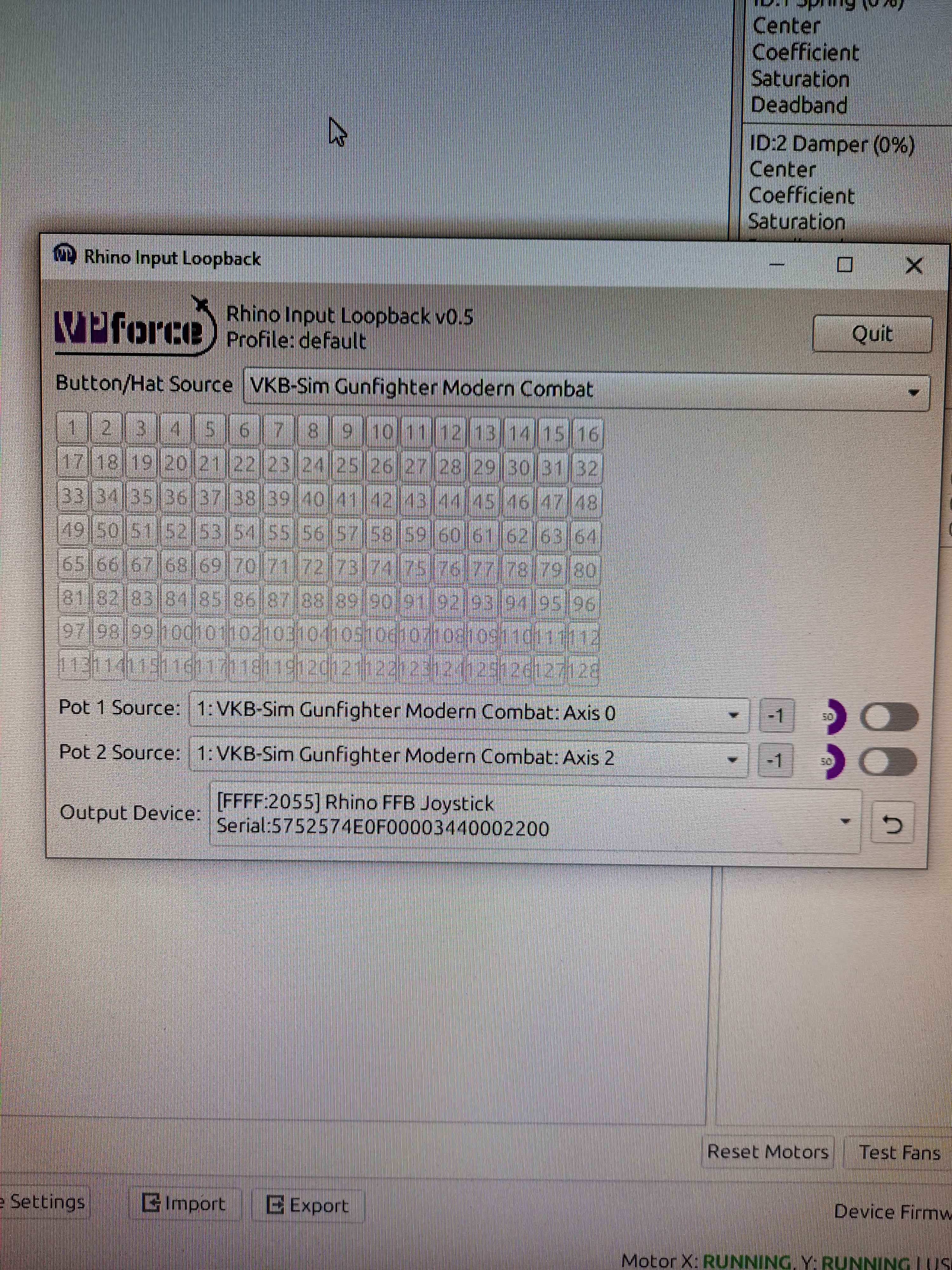

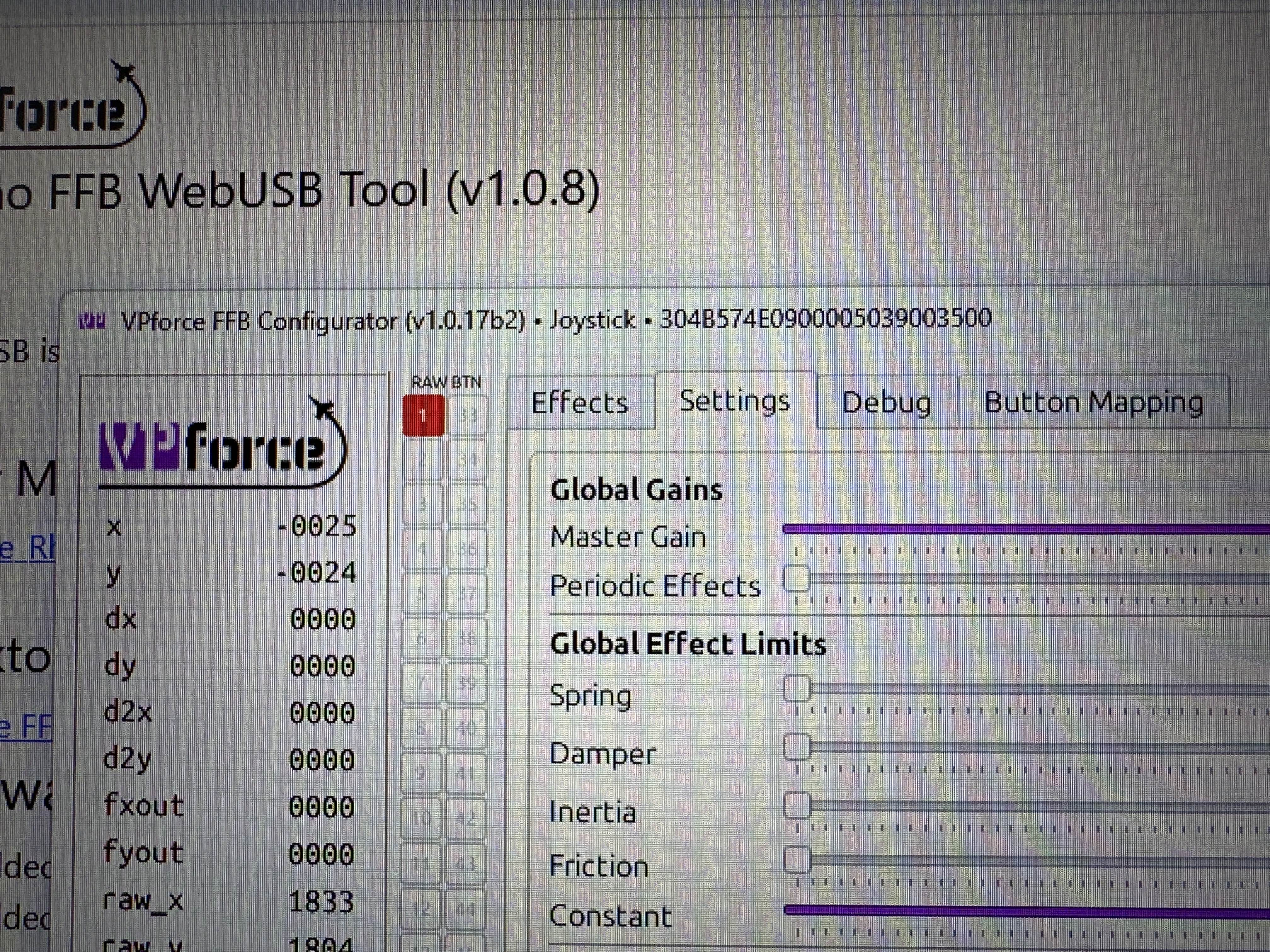

I switched to v.1.0.17b2 and made the loop back just like the picture, and 2 hours without problem.

NIKO_BG•2/11/25, 8:31 PM

Padinn•2/11/25, 11:26 PM

Anyone else running into an issue where the latest version of Rhino Loopback is not saving device still?

PPadinn Anyone else running into an issue where the latest version of Rhino Loopback is ...

J2_NobiWan•2/12/25, 10:19 AM

For me it saves the pot sources but not the button source

JJ2_NobiWan For me it saves the pot sources but not the button source

Padinn•2/12/25, 12:14 PM

Same

NNIKO_BG Click to see attachment

SR-F Bob•2/12/25, 6:10 PM

Will try asap. Got the flue and fever. Sorry.

red_one•2/13/25, 7:39 AM

the power cable in my rhino doesn't seat nicely - sometimes the rhino powers up and sometimes it doesn't
if i wiggle the cable or rotate it, it can fix it, or unfix it

red_one•2/13/25, 7:40 AM

(i received it yesterday)

red_one•2/13/25, 8:07 AM

this is bullshit

red_one•2/13/25, 8:07 AM

now i can't even get it to power up

walmis•2/13/25, 8:21 AM

Well bummer, this definitely sounds unusual.
Maybe the PSU plug is problematic. Is the fit of the DC plug firm or loose to the Rhino ?
Make sure the emergency stop is not depressed.
Can you make a short video or take some photos of the socket and plug ?
Do you have USB connectivity with the FFB Configurator app?

red_one•2/13/25, 8:22 AM

plug fit is firm. estop is out.
ffb config says usb connected, motors not
will take video/photos.

red_one•2/13/25, 8:33 AM

https://photos.app.goo.gl/9TDKdnNDGWNfvpbL7

Google Photos

vpforce rhino power issue

5 new items added to shared album

red_one•2/13/25, 8:34 AM

Photos and video in the album

red_one•2/13/25, 8:38 AM

I suspect the wires in the lead are broken

walmis•2/13/25, 8:41 AM

If you have a similar 5.5/2.5mm barrel PSU around the house (12V to 20V) you can quickly test it to isolate the issue to the PSU.
