I'll gladly add it - could you map out the hats like in this table (you can copy it): https://docs.g

I'll gladly add it - could you map out the hats like in this table (you can copy it): https://docs.google.com/spreadsheets/d/1jyj5VUKgx8KYb_0rTCk0_NimaHjZFaoxHQcyMFH52UI/edit?gid=0#gid=0
Use Generic grip profile.
Does this grip have analog axis ?

Google Docs

T50Hats

VPS_Choki•2/11/25, 6:06 PM

hello guys so flying the f-5 i find on the pitch its very sensitive and i cannot pu curve as its a known issue but i wanted to ask if maybe there is a way to have more force directly from the middle zone? im pretty new to the configurattor etc

VPS_Choki•2/11/25, 6:13 PM

i just want it to be more stronger in the middle and then move from there normally

VVPS_Choki hello guys so flying the f-5 i find on the pitch its very sensitive and i cannot...

smitty•2/11/25, 6:29 PM

put some steeper points in the gain map

VPS_Choki•2/11/25, 6:31 PM

ill try that thx

Wwalmis I'll gladly add it - could you map out the hats like in this table (you can copy...

mork•2/11/25, 6:35 PM

Hi Walmis. Thanks for the quick response!

I've copied the template and updated it for the NS-37 grip. You should have permission to view and edit. Let me know if there's any other info you'd like me to provide.
https://docs.google.com/spreadsheets/d/1fdNOSp6Hf8tnMT04S3-_ZkTbAwHGWQwifitOt1RJGBo/edit?usp=sharing

Yes, it does have a Z-twist axis.

Google Docs

NS37Hats

NNumber481 @SR-F Bob @TheDude9974 - Alpha Prime users can revert to b12 firmware here: ht...

SR-F Bob•2/11/25, 7:03 PM

I do not see b12. Maybe 1.0.17b2 but no 12. Finder doesn’t see it either. And installing b2 does not help anymore. Now I am 57 and no computerwizz. I just believe in this ffb concept. It’s just harder for people like me to sorry.

SR-F Bob•2/11/25, 7:04 PM

SR-F Bob•2/11/25, 7:05 PM

76099352155__E5DF4624-75FA-42C8-9BF3-FA712B128716.mov

SR-F Bob•2/11/25, 7:06 PM

Twitching is all of these

SSR-F Bob I do not see b12. Maybe 1.0.17b2 but no 12. Finder doesn’t see it either. And in...

Number481•2/11/25, 7:12 PM

just update as per normal once you hit that link... it will load the b12 firmware back onto your rhino...

SR-F Bob•2/11/25, 7:19 PM

Wilco. Guess I shouldn’t forget the pedals…they ll have to be on the same. Thx

SR-F Bob•2/11/25, 8:03 PM

thx, but still probs. dont worry, will look at it tomorrow. thx for the help.

Bob Bushman•2/11/25, 8:10 PM

Would need an old configurator as well I'd imagine.

NIKO_BG•2/11/25, 8:31 PM

I switched to v.1.0.17b2 and made the loop back just like the picture, and 2 hours without problem.

NIKO_BG•2/11/25, 8:31 PM

Padinn•2/11/25, 11:26 PM

Anyone else running into an issue where the latest version of Rhino Loopback is not saving device still?

PPadinn Anyone else running into an issue where the latest version of Rhino Loopback is ...

J2_NobiWan•2/12/25, 10:19 AM

For me it saves the pot sources but not the button source

JJ2_NobiWan For me it saves the pot sources but not the button source

Padinn•2/12/25, 12:14 PM

Same

NNIKO_BG Click to see attachment

SR-F Bob•2/12/25, 6:10 PM

Will try asap. Got the flue and fever. Sorry.

red_one•2/13/25, 7:39 AM

the power cable in my rhino doesn't seat nicely - sometimes the rhino powers up and sometimes it doesn't
if i wiggle the cable or rotate it, it can fix it, or unfix it

red_one•2/13/25, 7:40 AM

(i received it yesterday)

red_one•2/13/25, 8:07 AM

this is bullshit

red_one•2/13/25, 8:07 AM

now i can't even get it to power up

walmisOP•2/13/25, 8:21 AM

Well bummer, this definitely sounds unusual.
Maybe the PSU plug is problematic. Is the fit of the DC plug firm or loose to the Rhino ?
Make sure the emergency stop is not depressed.
Can you make a short video or take some photos of the socket and plug ?
Do you have USB connectivity with the FFB Configurator app?

red_one•2/13/25, 8:22 AM

plug fit is firm. estop is out.
ffb config says usb connected, motors not
will take video/photos.

red_one•2/13/25, 8:33 AM

https://photos.app.goo.gl/9TDKdnNDGWNfvpbL7

Google Photos

vpforce rhino power issue

5 new items added to shared album

red_one•2/13/25, 8:34 AM

Photos and video in the album

red_one•2/13/25, 8:38 AM

I suspect the wires in the lead are broken

walmisOP•2/13/25, 8:41 AM

If you have a similar 5.5/2.5mm barrel PSU around the house (12V to 20V) you can quickly test it to isolate the issue to the PSU.

walmisOP•2/13/25, 8:41 AM

Or you can measure the voltage on the plug itself.

ono•2/13/25, 12:00 PM

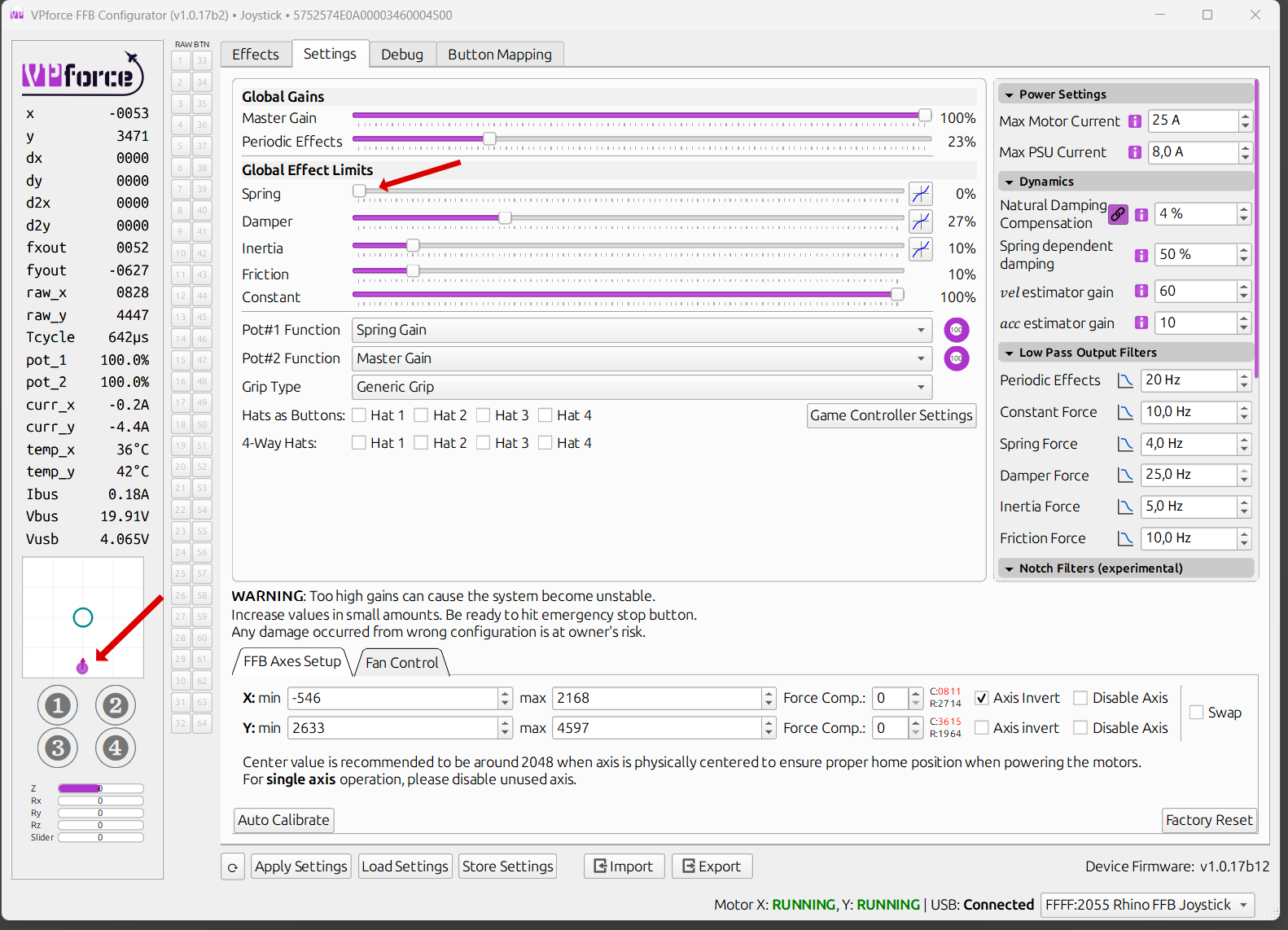

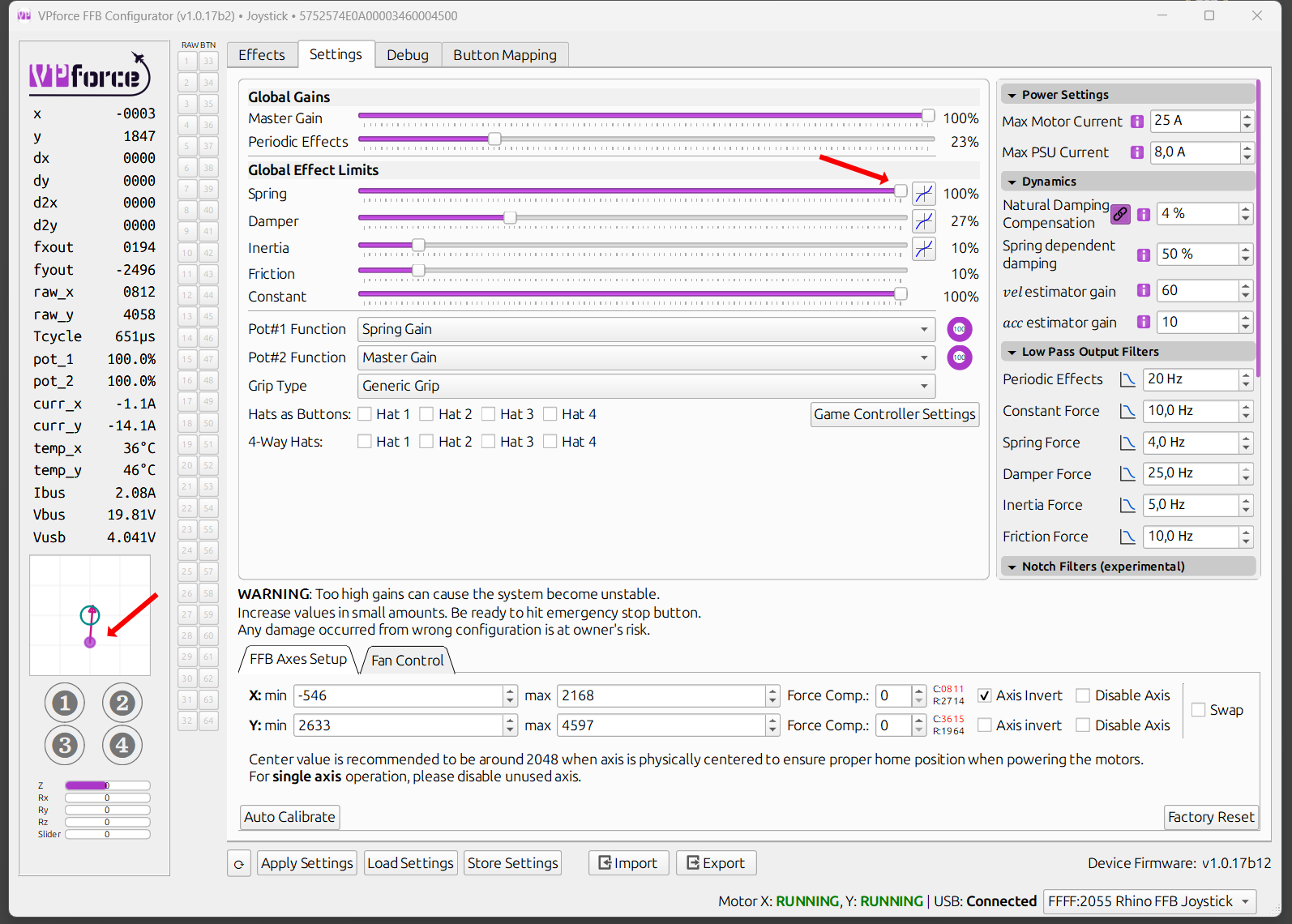

Hello, I have a question: If I set the spring to 100%, the maximum travel in y is only 50% of the possible distance. If I set the spring to 0%, the entire distance works. Why is that? see screenshots.

Oono Hello, I have a question: If I set the spring to 100%, the maximum travel in y i...

TheAmazinGreat•2/13/25, 12:02 PM

You need to add some force comp at the bottom next to your calibration values to account for flex. Hover your mouse over that area and it will explain.

TTheAmazinGreat You need to add some force comp at the bottom next to your calibration values to...

ono•2/13/25, 12:04 PM

Thanks, I'll try it.

VRFGiPJP•2/14/25, 12:09 AM

I find that Win11 Joy control panel thinks the Rhino base has a status of OK even I have powered it off. All axis and button are inoperative. And when I turn it back on again, the status is still okay and all the button and axis are normal. Earlier today I had a sudden disconnect when I was flying UH-1H and when i touched the ground briefly, the base suddenly went disconnected. Are these normal?

Hammer 1-1•2/14/25, 1:54 AM

just a quick question setting this up: for the VKB joystick, I just need the black box, correct? I dont need the base or anything else other than the stick and blackbox?

TTheAmazinGreat You need to add some force comp at the bottom next to your calibration values to...

Reed•2/14/25, 2:47 AM

Is this why when not using force trim release in the game the stick doesn’t travel the full deflection?

RReed Is this why when not using force trim release in the game the stick doesn’t trav...

TheAmazinGreat•2/14/25, 4:35 AM

Not sure what you mean

HHammer 1-1 just a quick question setting this up: for the VKB joystick, I just need the bla...

NIKO_BG•2/14/25, 5:06 AM

Yes, only black box

VVRFGiPJP I find that Win11 Joy control panel thinks the Rhino base has a status of OK eve...

Blackrat•2/14/25, 9:16 AM

USB lead has enough juice to power the board so its like any other joystick, the electric power is for the motors. So for a total reboot after a firmware upgrade you will need to kill power and disconnect the USB.

BBlackrat USB lead has enough juice to power the board so its like any other joystick, the...

VRFGiPJP•2/14/25, 9:17 AM

Oh i see

BBlackrat USB lead has enough juice to power the board so its like any other joystick, the...

Touch_Of_Legend•2/14/25, 10:47 AM

Just for information purposes you should hit the E stop. (Leave it down)

Power off both the USB port AND the Rhino power adapter/CPU.

That’s how you shut down a Rhino and now it’s fully disconnected from power.

Turn off the computer and do whatever you want.

Next time before you fire up the sim you turn it all on in the opposite direction.

So we start with the computer.

Next we turn on the USB port (and the rhino will beep as the main board gets power)

Next we turn on the Rhino CPU, which powers the actual motors.

Last we start the sim.

Now use the E stop to activate/release the Rhino.

Good to go every time but for sure make sure to power it down 100% and to cut the power to the board with a USB switch (or just unplug it).

VVRFGiPJP Oh i see

Touch_Of_Legend•2/14/25, 10:47 AM

I think my reply above is for you

Original message was deleted

walmisOP•2/14/25, 2:03 PM

This is not stock Rhino part, better post in -> #

diy-builds

ono•2/14/25, 2:05 PM

TTheAmazinGreat Not sure what you mean

Reed•2/14/25, 3:37 PM

If you are in game. Let’s say the 58 or oh6. You push stick all the way to the left or right. The physical stick will touch the limiter of the rhino way before the in game stick. Confirmed with controls indicator. However if you hold the trim release or use beep trim the physical stick matches the ingame stick and both go the full deflection.

RReed If you are in game. Let’s say the 58 or oh6. You push stick all the way to the l...

TheAmazinGreat•2/14/25, 3:45 PM

When you are in configurator, does the blue dot show that it goes to the edge of the box in the input viewer? If not, then that is what is happening most likely.

TheAmazinGreat•2/14/25, 3:48 PM

Position is sensed off the rotation of the motor, not the rotation or position of the stick. Imagine if you had 0 spring (trim released) and put the motor to the left stop and then slowly turned up spring while holding the physical stick against the left stop. Any flex in the system will allow the motor to spin back toward center, but the physical stick stays on the stop. Since the motor is back toward center it tells the game that the virtual stick is back toward center though your physical stick is at the stop.

Reed•2/14/25, 4:10 PM

The blue dot does not make it to the edge when just pushing the stick under force. It only goes to the edge when holding trim release and all the forces are null or beep trim is used.

Reed•2/14/25, 4:10 PM

ok makes sense, so I need to use the force comp ?

RReed ok makes sense, so I need to use the force comp ?

TheAmazinGreat•2/14/25, 4:27 PM

Yes, the default profile has some built in, but you may need to adjust depending on your setup.
