Collisions, bob and box

No description
14 Replies
iTeachChem Helper
@Gyro Gearloose
iTeachChem Helper
Note for OP
+solved @user1 @user2... to close the thread when your doubt is solved. Mention the users who helped you solve the doubt. This will be added to their stats.
Nimboi [ping if answering]
why is the velocity of the block u before collision? instead of 0
Sephrina
Sephrina3mo ago
0 kyu hoga? gravity accelrate karega na
Sephrina
Sephrina3mo ago
No description
Nimboi [ping if answering]

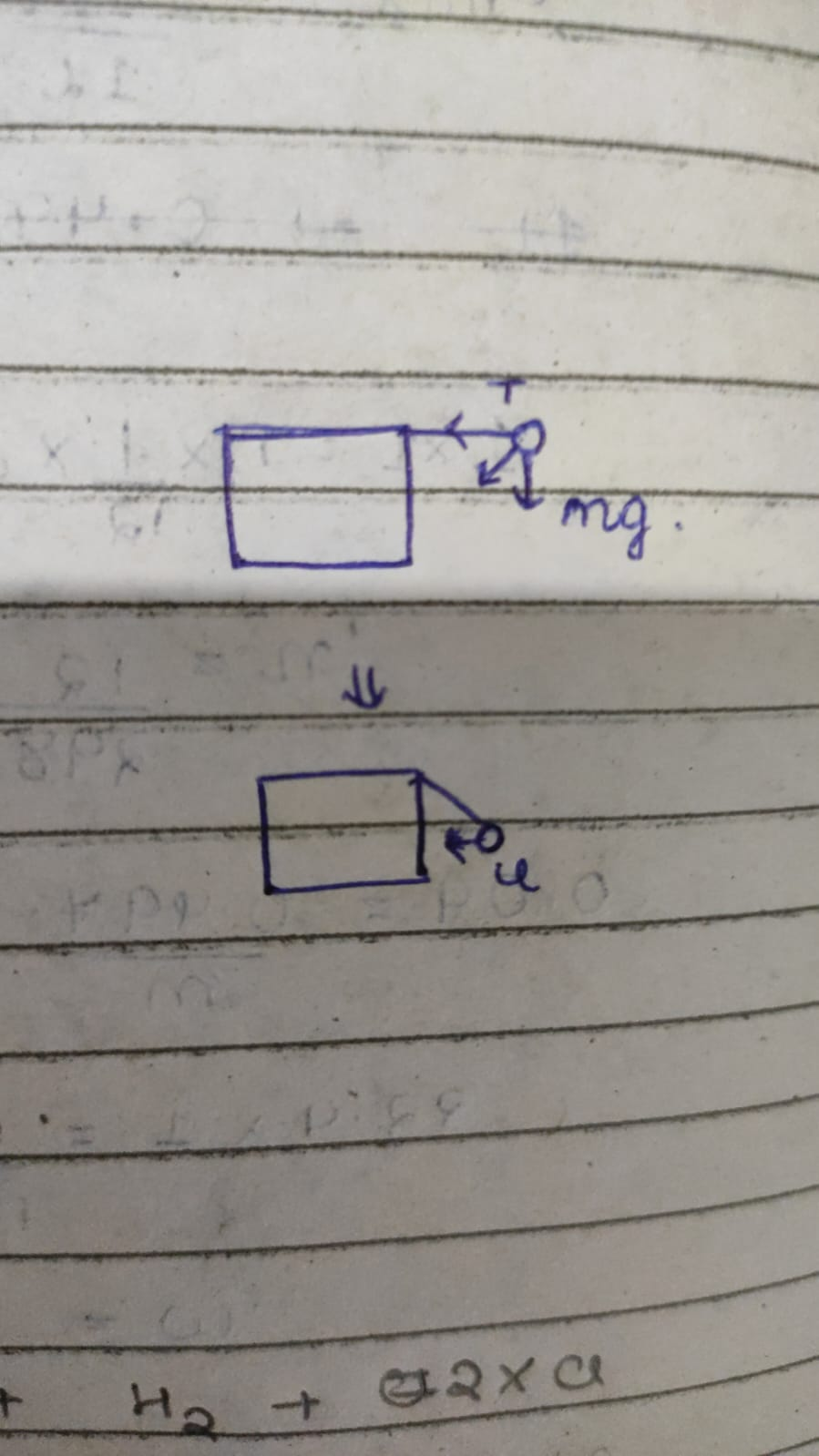

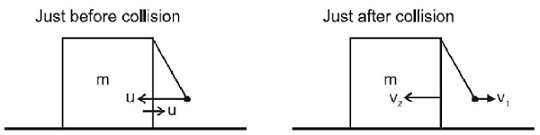

picture dekho for some reason unhone dono block and bob ka u liya hua hai why is the block u
Sephrina
Sephrina3mo ago
for every action equal and opposite reaction
Nimboi [ping if answering]
the collision hasn't even happened yet what action
Sephrina
Sephrina3mo ago
point to hai ruko hn u are right kyu hi ayega u
SirLancelotDuLac
By energy conservation, the velocity of m is sqrt(2gl) and hence the velocity of M is -sqrt(2gl). Since coeffecient of restitution is 1/3, 2sqrt(2gl)=1/3.(2v) or v=sqrt(2gl/9). From here the max. height attained is l/9 Because v_com=0 there is no external horizontal force on block, bob and string system. Also the tension pushes the block forward as the bob goes down.
coolguy.
coolguy.3mo ago
Yes just momentum conservation, energy conservation and definition of coefficient of restitution
Nimboi [ping if answering]
ahhh the tension explanation makes sense +solved @SirLancelotDuLac
iTeachChem Helper
Post locked and archived successfully!
