BlueDragon424

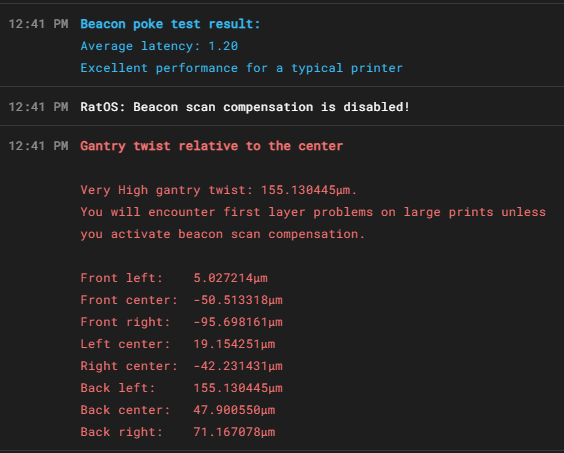

Very High Gantry Twist

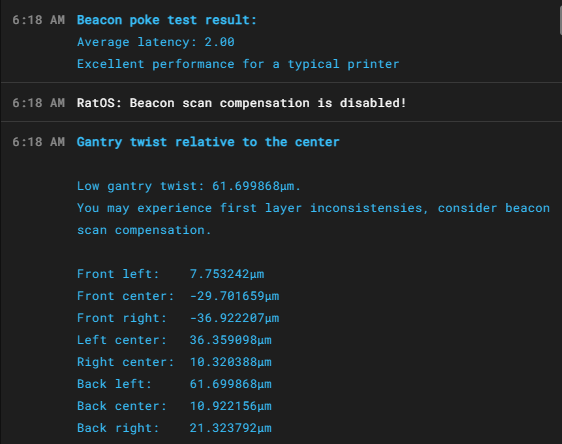

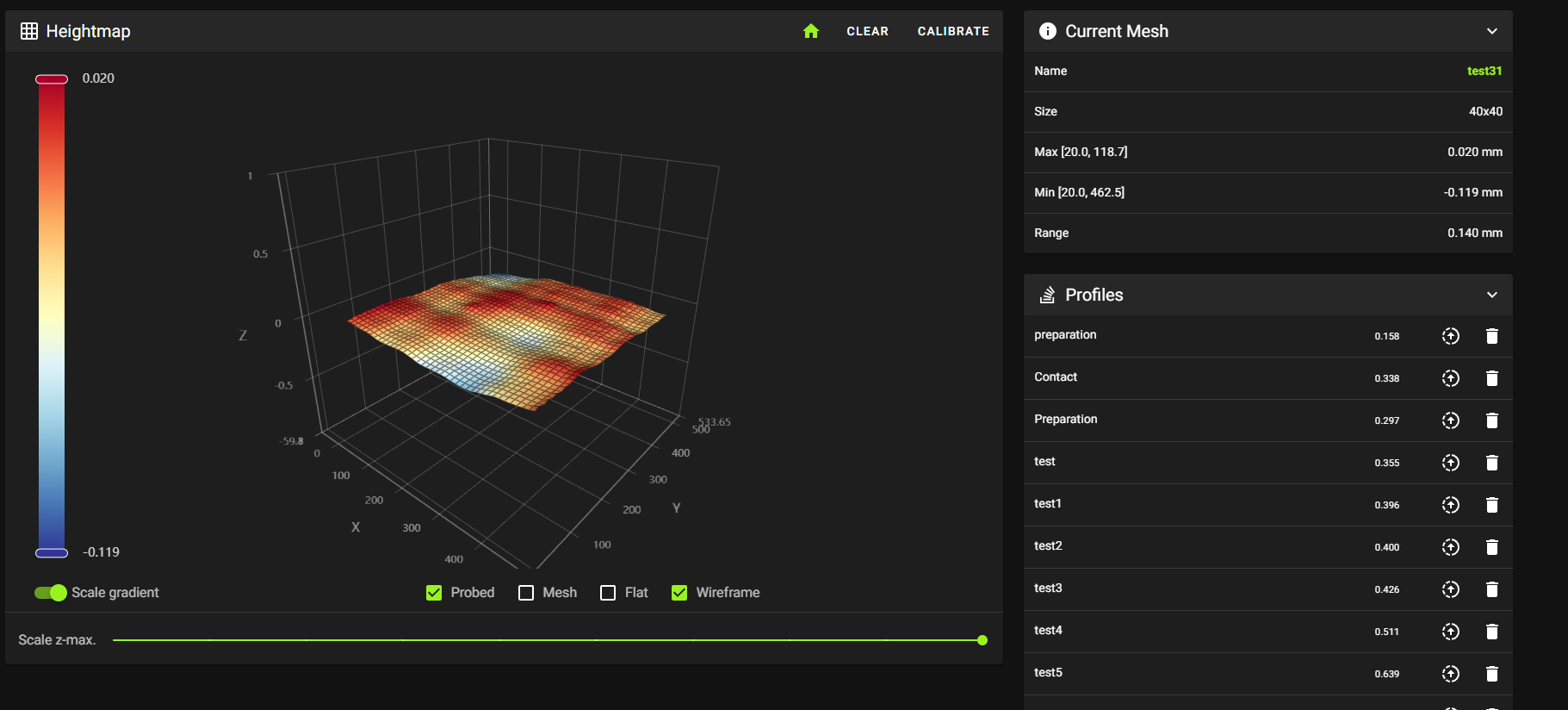

I can't seem to remove my gantry twist. I have taken the belts off and made sure the gantry strikes both sides at the same time. loosened the xy-joiners to while lined up at the back to make sure they are aligned. Loosened an retorques the y-rails making sure they are straight. A billion heightmaps. Shimmed my x-rail. Adjusted frame. Lowered and raised feet. Checked Beacon. It seems flat to me. I'm not sure what else to look for.

V4 500mm
Toro Ti Tube
MandalaRoseWorks aluminum everything

Solution

Only change was my build plate. Seem crazy to me but I'll take it!

Jump to solution
