Extremely high gantry twist, out of ideas.

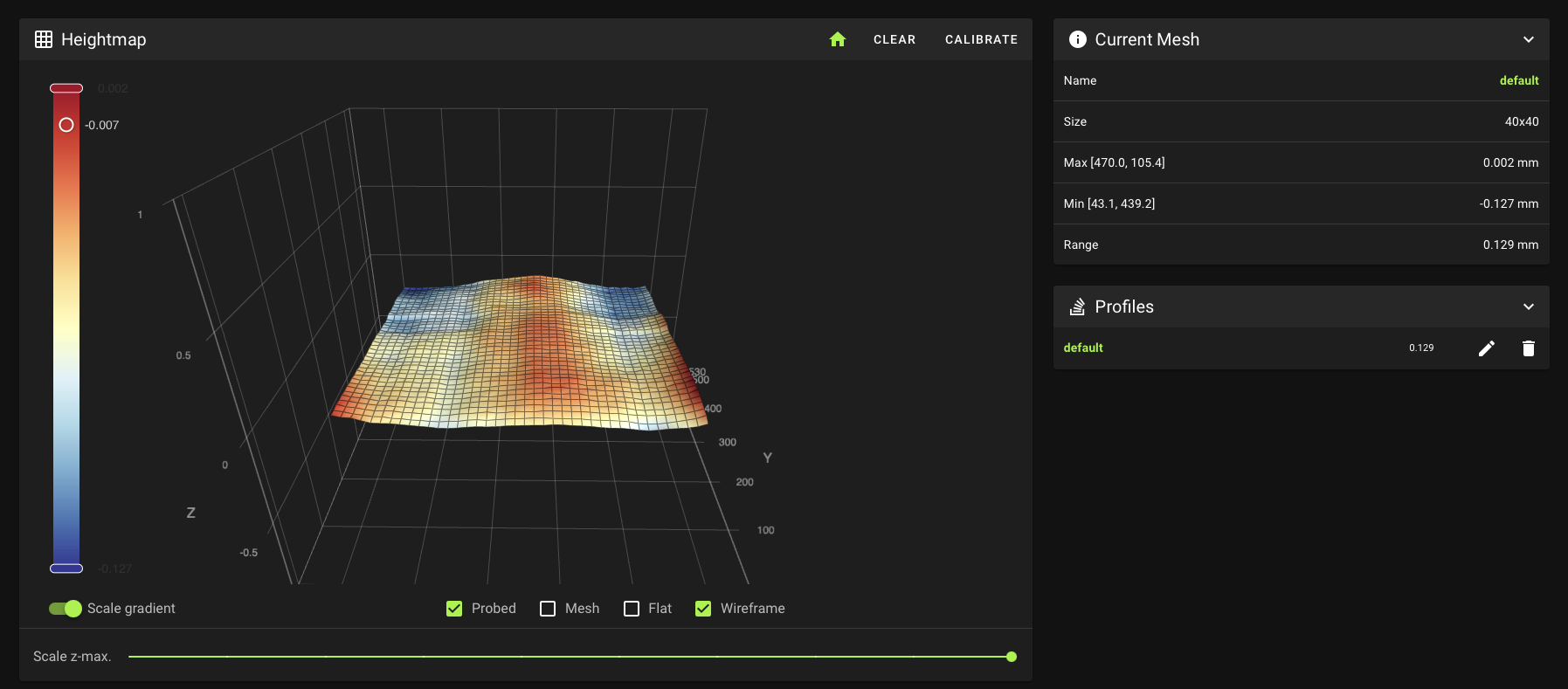

Hi, so Ive been fighting heavy gantry twist, what feels strange is that nothing affects the numbers, they just jump +/- 10um, but always the problem is on the left side. Please see the images. Even artificially if I pul down the left corner, like 1mm, the gantry twist is still in the same range. Open for ideas or suggestions, thank you!
No description
No description
1 Reply
Fierux_GAGATAM
Fierux_GAGATAMOP2mo ago

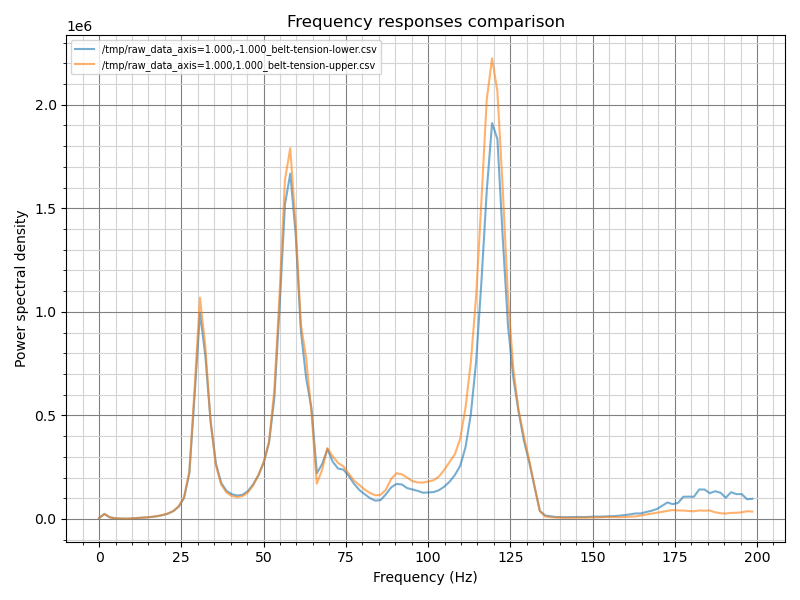

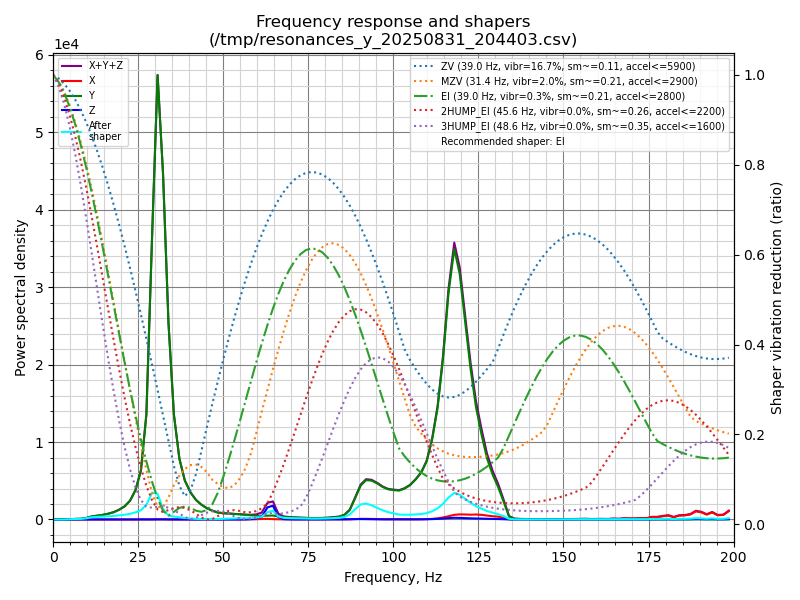

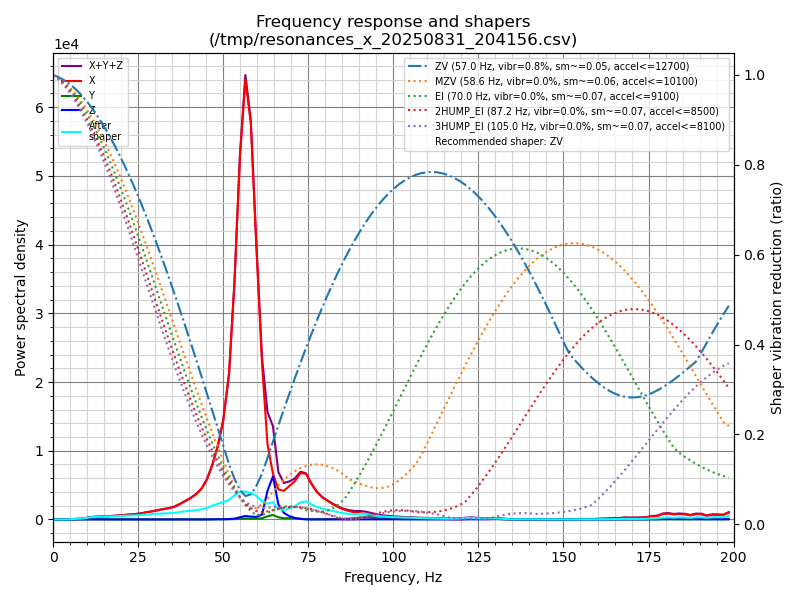

Also did frequency response measurements, and this aready tells some issue:
No description
No description
No description
