IDEX Toolheads offset in X

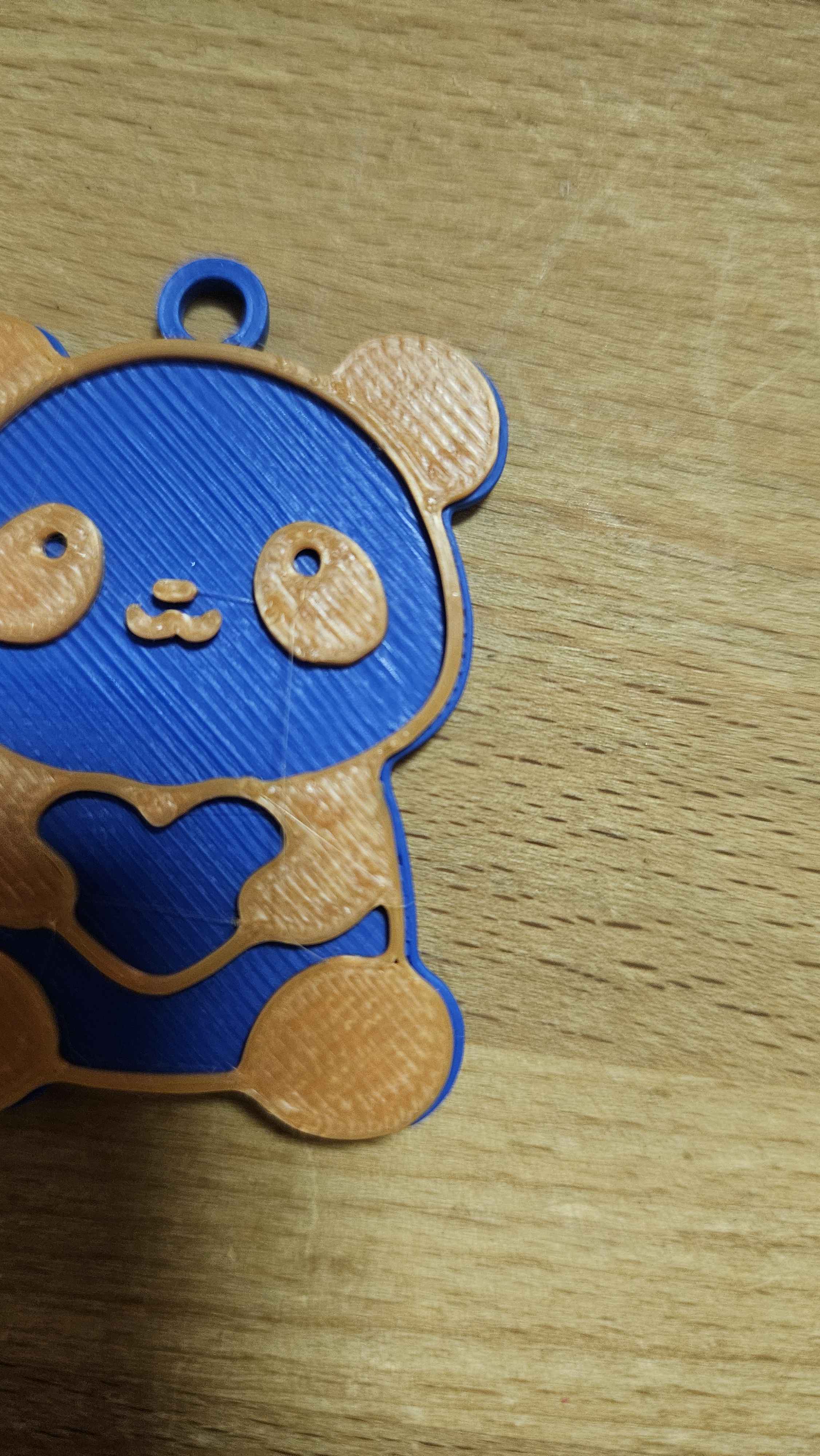

Dear all .... I can't get my IDEX working .... regardless how often I Calibrate VAOC ... I do alwys have an terrible offset between two colors in X direction
2 Replies
Perfect toolhead z-offset of 0.006875mm!
You have a perfect toolhead z-offset!
This is variables:
[Variables]
idex_applied_offset = 0
idex_xcontrolpoint = 161.43981207725238
idex_xoffset = -0.029013430044727784
idex_ycontrolpoint = 430.95073826094574
idex_yoffset = -0.03692618369336742
idex_zcontrolpoint = -0.6000000000000001
idex_zoffset = 0.006875000001112408
idex_zoffsetcontrolpoint = -3.6978124999782778
nozzle_expansion_applied_offset = 0
nozzle_expansion_coefficient_multiplier = 1.0
nozzle_expansion_coefficient_t0 = 0.06
nozzle_expansion_coefficient_t1 = 0.06
t0_filament = ('', '', 0)
t1_filament = ('', '', 0)
and this is the DC Endstop Calc resault
[dual_carriage]
position_max: 460.003
position_endstop: 460.003
[gcode_macro RatOS]
variable_bed_margin_x: [59.800, 60.003]
[gcode_macro _VAOC]
variable_expected_camera_x_position: 161.453
variable_expected_camera_y_position: 430.927
[gcode_macro T0]
variable_parking_position: -57.800
[gcode_macro T1]
variable_parking_position: 458.003
We are talking about an IDEX 400mm. Skewcalib is done an very good results, belt tension if done, input shapers,, .... Any Idea, what I'm doing wrong ?
